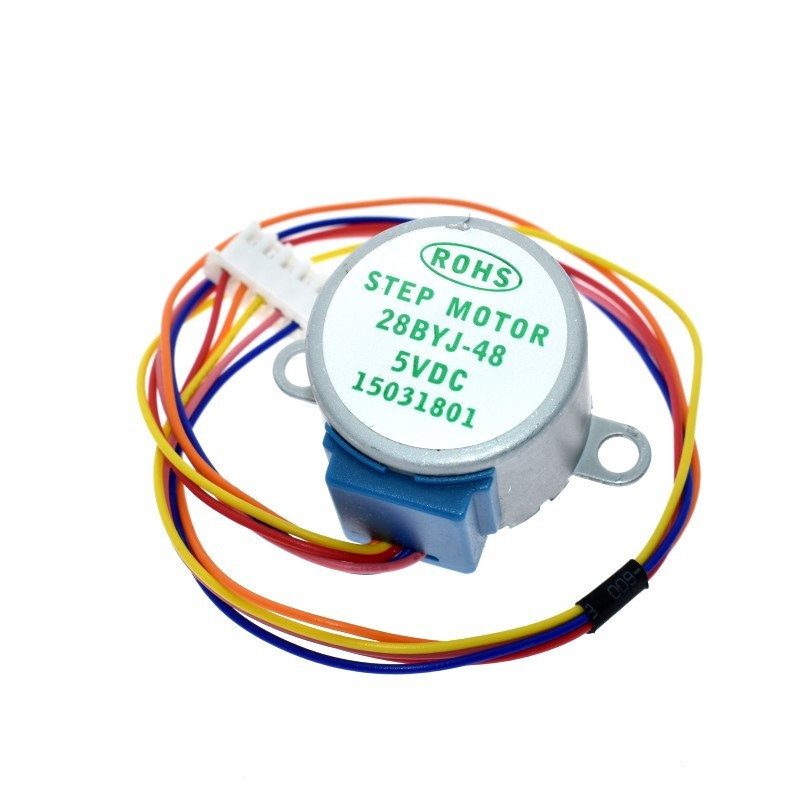

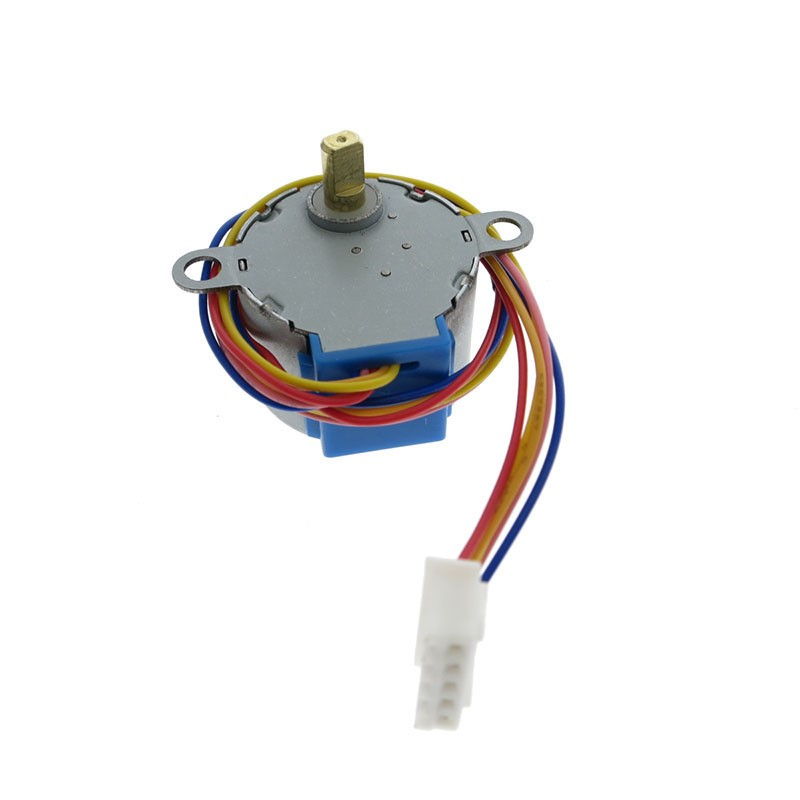

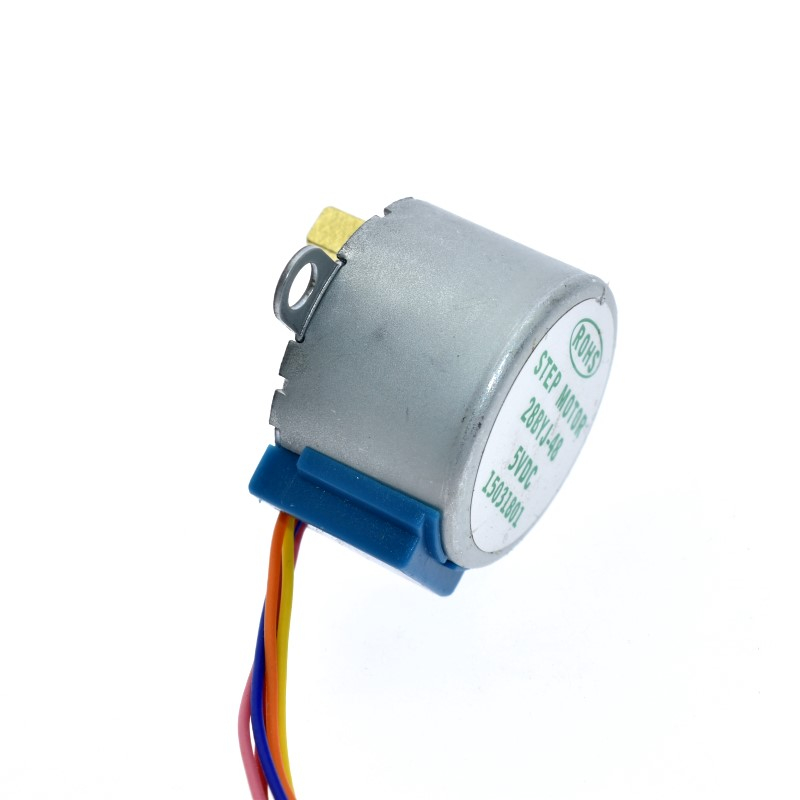

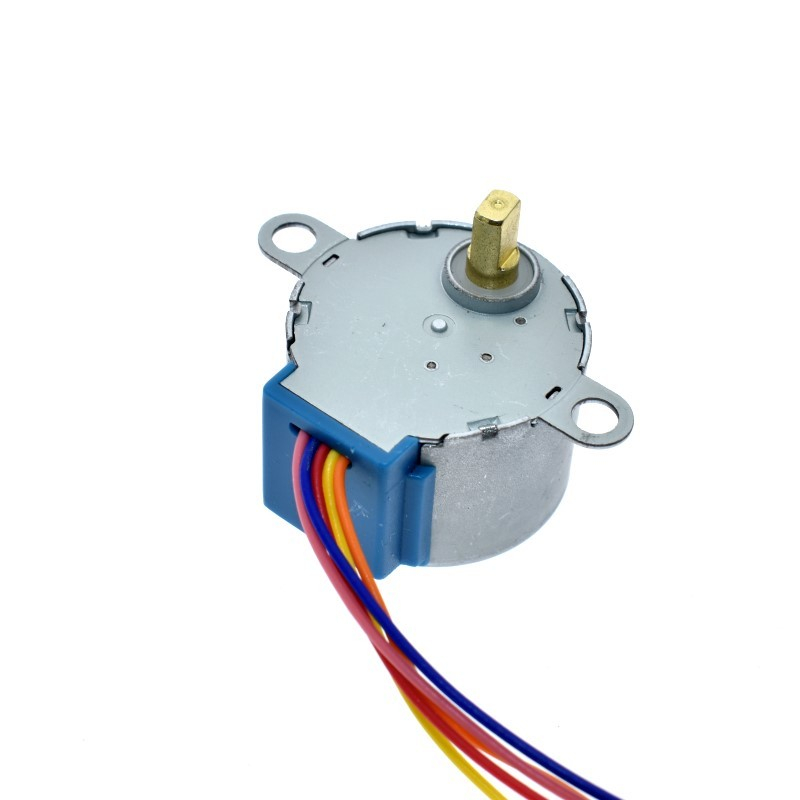

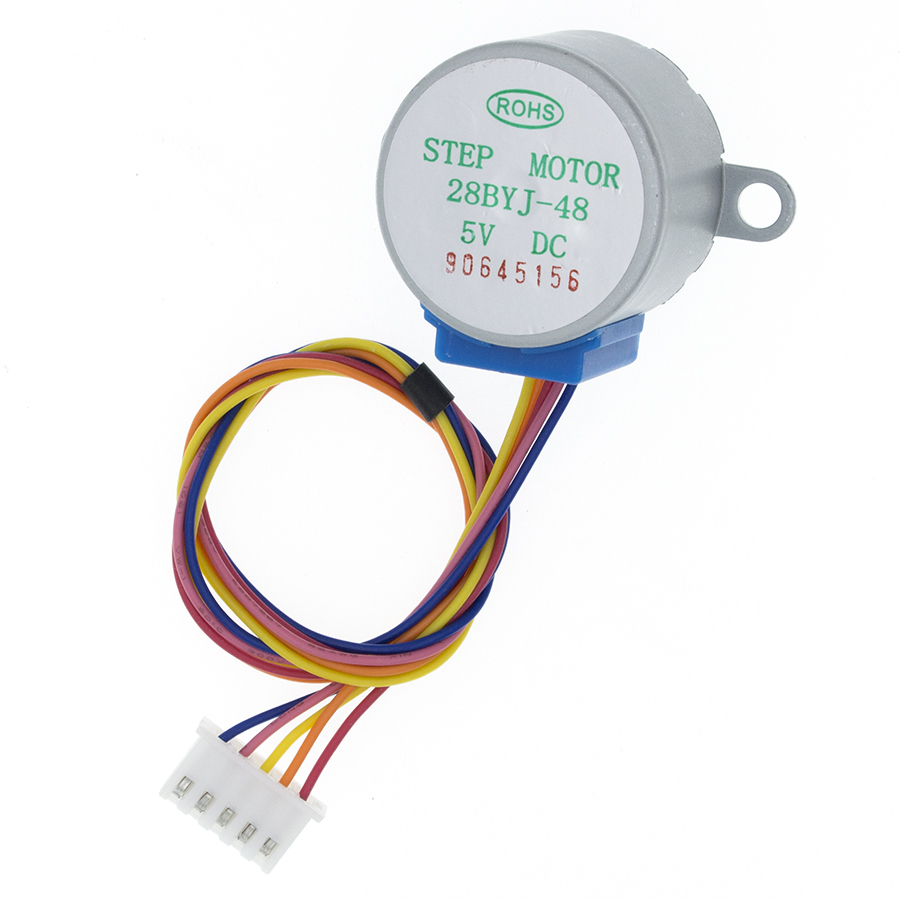

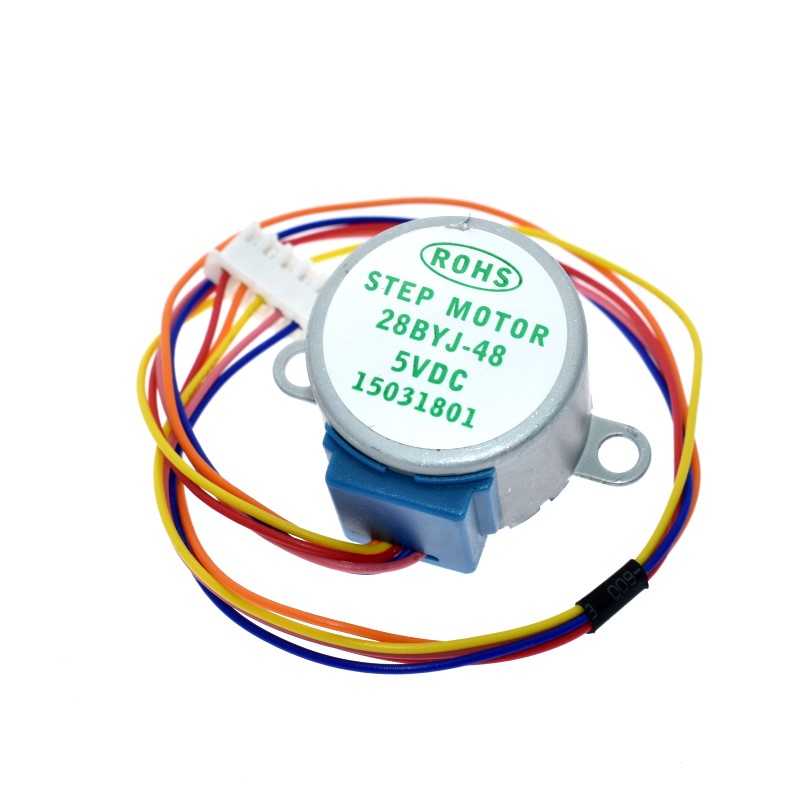

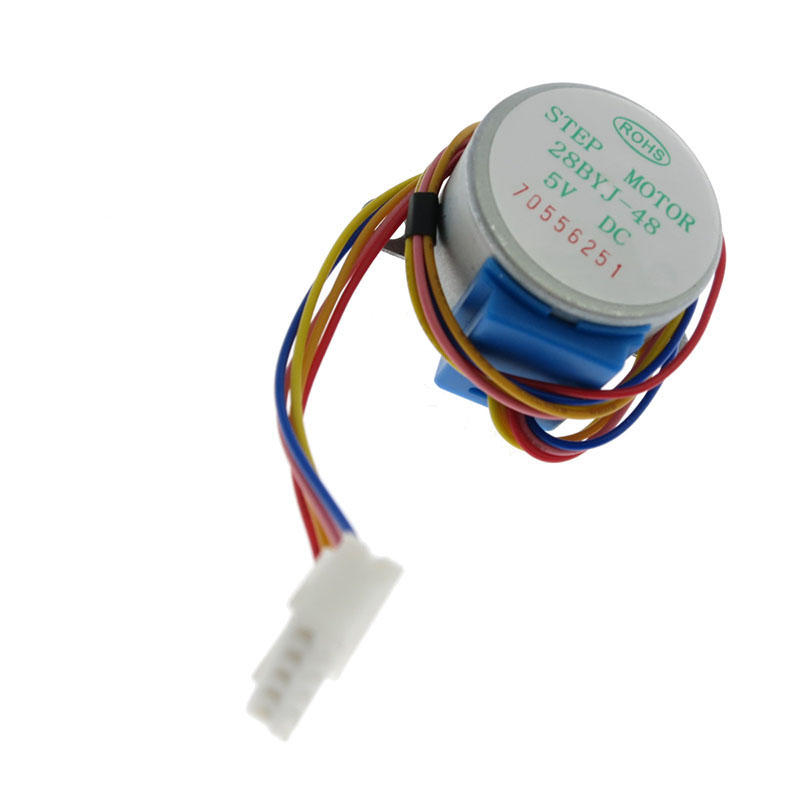

28BYJ-48 5V 4-Phase Stepper Step Motor

SKU: FA4040 Tag:

$0.65

Weight 0.047 kg
Dimensions 2.8 cm
Diameter

28 mm

Voltage

5V

No-load pull frequency

> 600 Hz

Phase

4

No-load pull-out frequency

> 1000 Hz

Ratio

1/64

Pull-in force

> 34.3 mN.m (120Hz)

Step angle

5,625 x 1/64

Self-positioning force

> 34.3 mN.m

DCR

200ohm +/- 7% (25 ° C)

Temperature

<40 K (120 Hz)

Insulation resistance

> 10 Mohm (500V)

Noise production

<40 dB (120Hz, No load, 10cm)

Dielectric

AC 600V / 1mA / 1s

Isolate class

A

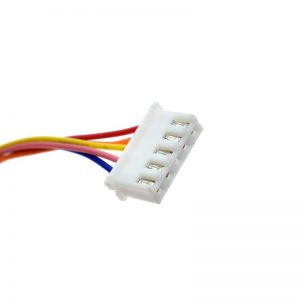

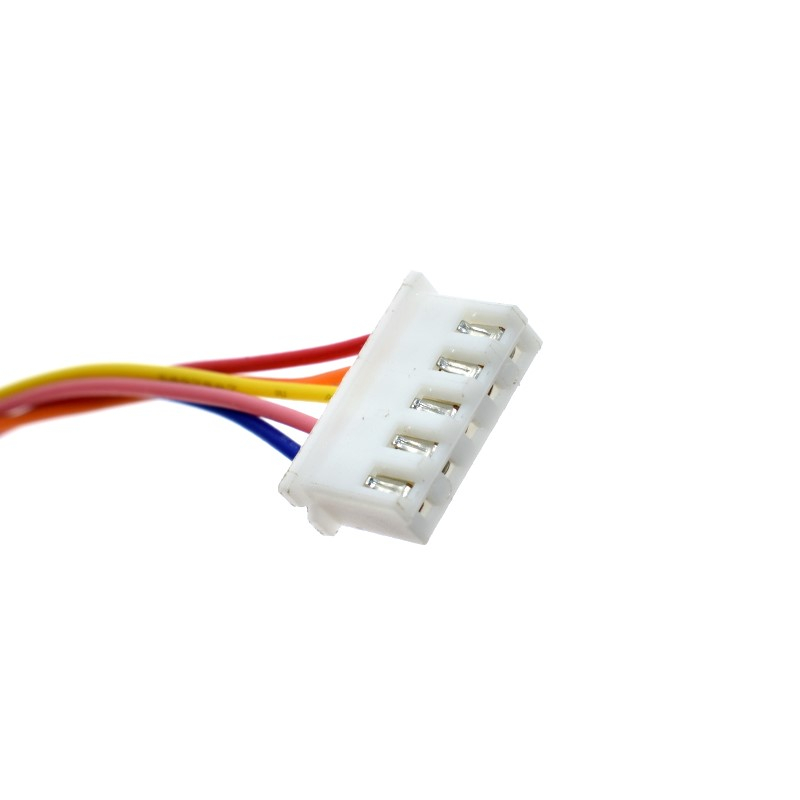

Cable length

24 cm

500 in stock

Properties
– Diameter: 28 mm
– Voltage: 5V
– No-load pull frequency:> 600 Hz
– Phase: 4
– No-load pull-out frequency:> 1000 Hz
– Ratio: 1/64
– Pull-in force:> 34.3 mN.m (120Hz)
– Step angle: 5,625 x 1/64
– Self-positioning force:> 34.3 mN.m
– DCR: 200ohm +/- 7% (25 ° C)
– Temperature: <40 K (120 Hz)
– Insulation resistance:> 10 Mohm (500V)
– Noise production: <40 dB (120Hz, No load, 10cm)
– Dielectric: AC 600V / 1mA / 1s
– Isolate class: A
– Cable length: 24 cm
Small but powerful stepper motor. This force can be explained by the gearbox that is mounted on it. This makes this engine specialized in power and precision. This stepper motor is controlled by means of 4 phase with 5 wires, it is even possible to switch the motor 2 phase.
