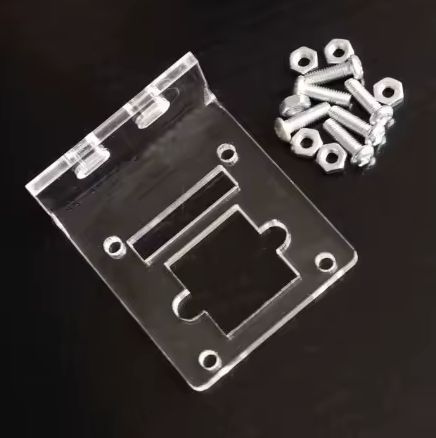

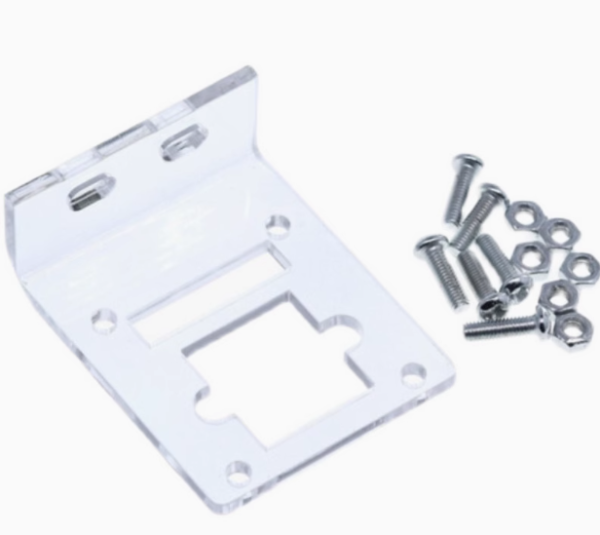

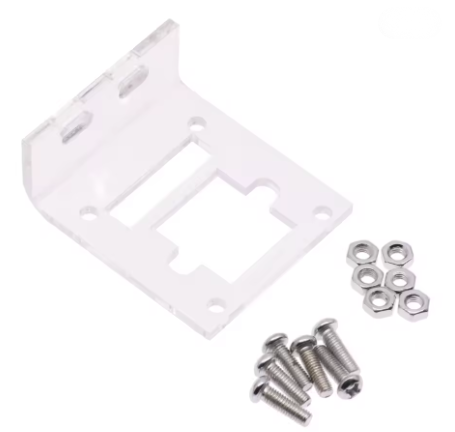

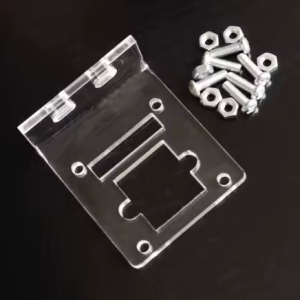

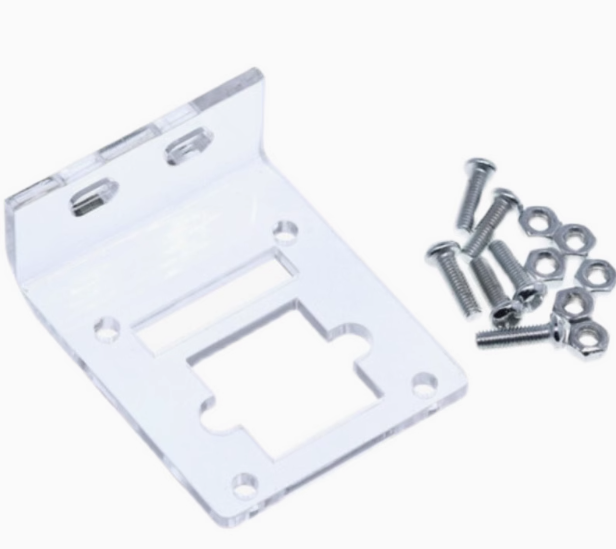

OV7670 Camera Transparent Acrylic Bracket

SKU: FA1045-1
Material

High-Grade Acrylic
Color

Transparent (Clear)
Compatibility

OV7670 VGA Camera Module (Standard PCB version)
Assembly Required

Yes (Simple nuts and bolts assembly)
Included Hardware

Set of nuts and bolts
Dimensions

Matches the standard OV7670 PCB dimensions (approx. 3.5cm x 3.5cm)
Note

Camera module is NOT included
OV7670 Camera Transparent Acrylic Bracket
The OV7670 Transparent Acrylic Bracket is a protective enclosure and mounting solution designed specifically for the OV7670 VGA Camera Module. This DIY assembly kit, made from laser-cut high-grade acrylic, provides essential physical protection for the camera’s delicate printed circuit board (PCB) and electronic components.
This bracket ensures stability during operation, reduces the risk of accidental short circuits, and offers convenient mounting points for integration into robotics, surveillance projects, 3D printers, or custom IoT devices. The unique design perfectly matches the dimensions of the OV7670 PCB and maintains access to all necessary connection headers and the camera lens.
Key Features
  • Durable Protection: Constructed from high-grade, transparent acrylic material, offering robust protection against physical damage and debris in project environments.
  • Precision Fit: Engineered with precise dimensions for a snug and secure fit that matches the exact PCB size of the standard OV7670 camera module.
  • Transparent Design: The clear material allows for full visibility of the camera module’s status LEDs and wiring orientation, aiding in troubleshooting and a sleek professional appearance.
  • Easy Assembly: Typically supplied as a flat-pack kit with all necessary nuts and bolts for simple, user-friendly installation.
  • Stable Mounting Platform: Provides a stable base with pre-drilled positioning holes (M2/M3) for securely attaching the camera setup to project chassis or breadboards.
  • Accessibility: Unique design ensures easy connection to the 2×10 output connector pins, allowing for seamless integration with prototype boards or breadboards.
Technical Parameters (Specifications)
Parameter  Value/Description
Material High-Grade Acrylic
Color Transparent (Clear)
Compatibility OV7670 VGA Camera Module (Standard PCB version)
Assembly Required Yes (Simple nuts and bolts assembly)
Included Hardware Set of nuts and bolts
Dimensions Matches the standard OV7670 PCB dimensions (approx. 3.5cm x 3.5cm)
Note Camera module is NOT included
Usage Instructions
The primary use of this product is to house and protect a bare OV7670 camera module.
Step-by-Step Assembly:
  1. Remove Protective Film: Peel off the protective paper/plastic film from both sides of all acrylic pieces.
  2. Position the Camera: Carefully place your OV7670 camera module within the designated bottom layer of the bracket, aligning the mounting holes.
  3. Assemble Layers: Stack the remaining acrylic layers around the camera PCB, ensuring the cutouts align perfectly with the lens and connector pins.
  4. Secure with Hardware: Insert the provided nuts and bolts through the assembly holes. Tighten securely with a small screwdriver, but do not overtighten the acrylic as it can crack.
  5. Mount: The assembled bracket can now be mounted to your robot chassis, project box, or other structure using the external mounting holes.
Q: Does the camera module come included with this bracket?

No, this product listing is only for the transparent acrylic bracket pieces and mounting hardware (nuts/bolts). The OV7670 camera module must be purchased separately.

Q: Will this fit the OV2640 camera module?

No, this bracket is precisely cut to fit the dimensions of the OV7670 PCB specifically. The OV2640 module has a different form factor and requires its own specific bracket.

Q: Can I use this with a 5V system like an Arduino Uno?

The bracket is a non-conductive mechanical holder and has no electrical components. It can physically hold the camera regardless of the voltage of your main system, but remember that the OV7670 camera itself requires a 3.3V logic interface.

Q: I am a business buyer. Is this available in bulk?

Yes, we offer competitive pricing for bulk orders of this bracket, suitable for educational kits, manufacturing lines, or large-scale prototyping runs. Please contact our sales team for quantity pricing and lead times.

Q: Can I adjust the angle of the camera with this bracket?

This is a fixed-mount bracket designed for stability in a single orientation. For adjustable camera angles, you would need to integrate the assembled module into a separate pan-tilt servo bracket system.
