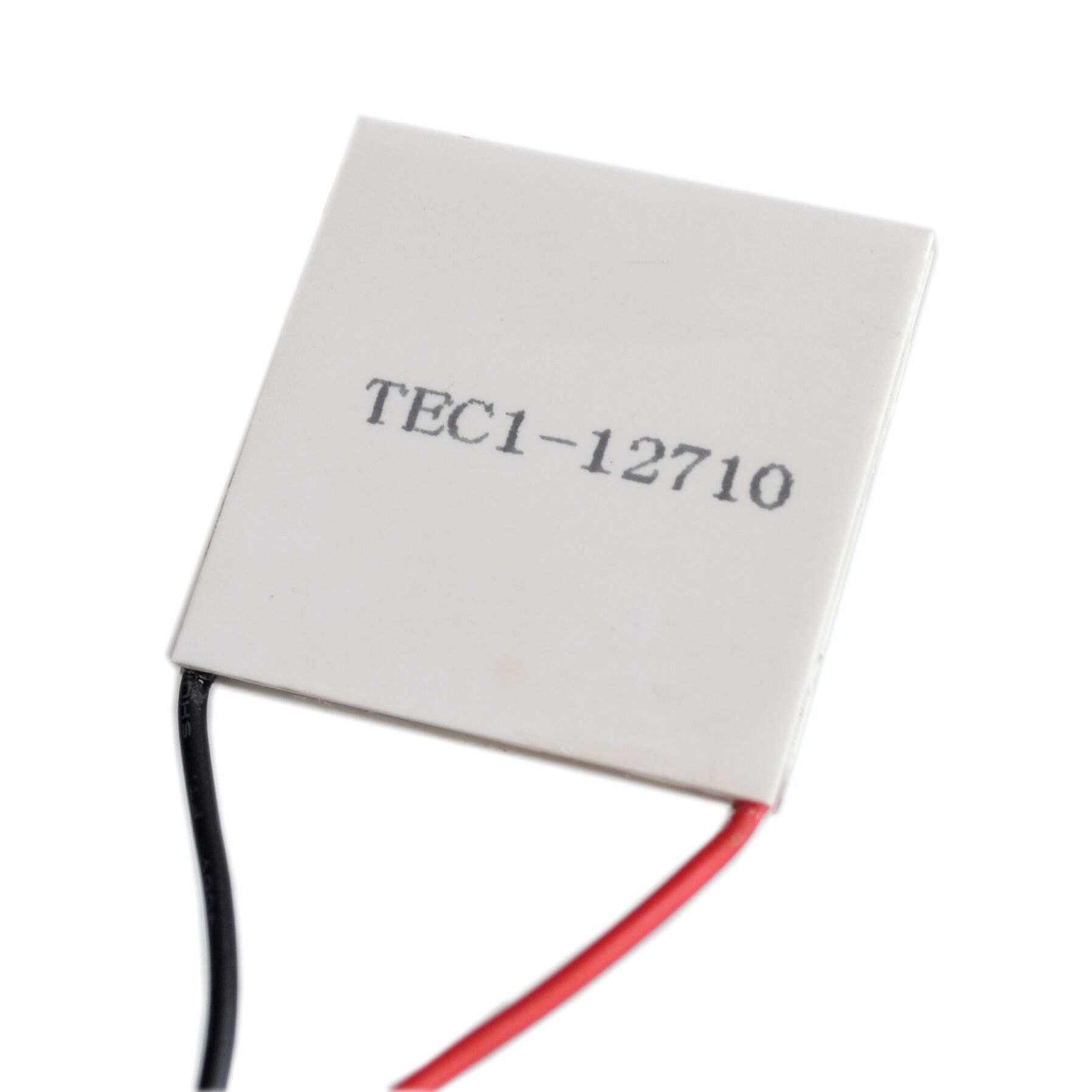

12710 Thermoelectric Cooler (TEC) – 12V Peltier Module for Refrigeration & DIY Projects 40*40mm

SKU: FA2056
Model Number

TEC1-12710
Dimensions

40mm x 40mm x 3.4mm (approx.)
Internal Couples

127
Maximum Voltage

15.4V DC
Maximum Current

10.0A
Max Cooling Power

~90W – 100W
Max Temp Difference

≥68°C
Operating Temp Range

-50°C to +80°C
Internal Resistance

1.0 ~ 1.2Ω
Lead Wire

150mm (Approx.) 18 AWG
Product Description
The 12710 Thermoelectric Cooler (TEC) is a high-power, industrial-grade Peltier module engineered for applications requiring aggressive heat pumping in a compact form factor. By utilizing the Peltier effect, this solid-state semiconductor device creates a significant temperature differential between its ceramic plates. With a 10-Ampere current rating and a cooling capacity approaching 90W–100W, the 12710 is a heavy-duty solution designed to handle thermal loads that smaller modules cannot manage.
Constructed with 127 internal bismuth telluride semiconductor couples, the 12710 offers a silent, vibration-free alternative to traditional compressor-based cooling. Its durable ceramic plates are designed for long-term stability and precise temperature control. Whether you are building a high-performance liquid chiller, an active CPU cooling system, or an industrial-grade portable refrigerator, the 12710 delivers the thermal “muscle” needed for demanding environments.
Key Features
  • Extreme Heat Pumping: One of the most powerful 40mm modules available, capable of moving up to 100W of heat energy.
  • Solid-State Reliability: No moving parts, mechanical wear, or refrigerants, ensuring silent operation and a long service life.
  • Precision Thermal Control: Allows for sub-degree temperature stability when integrated with a PWM or PID control system.
  • High Delta-T: Capable of achieving a maximum temperature difference () of up to 68°C–70°C.
  • Instant Thermal Response: Rapidly switches between cooling and heating modes by simply reversing the DC polarity.
  • Eco-Friendly: Fully RoHS compliant and free of CFCs or other ozone-depleting gases.
Usage & Applications
  • High-End Computing: Active cooling for extreme overclocking of CPUs and GPUs, often used in sub-ambient liquid cooling loops.
  • Industrial Refrigeration: Core component for high-performance wine chillers, portable medical refrigerators, and cold-storage lockers.
  • Medical Equipment: Precise thermal stabilization for DNA sequencing machines and large-volume vaccine transport.
  • Scientific Research: Cooling high-resolution infrared sensors and laser diodes in spectroscopy and aerospace applications.
  • DIY High-Power Projects: Building custom water chillers, cloud chambers, or localized air conditioning units.
Q: Do I need a special heatsink for the 10A model?

Yes, absolutely. The 12710 generates a massive amount of waste heat on its “hot side.” Standard air-cooled heatsinks are often insufficient. We strongly recommend using liquid cooling or high-performance heat-pipe tower coolers to prevent the module from overheating and burning out.

Q: Can I run this directly from a 12V 10A power supply?

Yes. While the module is rated for up to 15.4V, it is optimized for 12V operation. Ensure your power supply can provide a constant 10A to achieve the maximum advertised cooling power.

Q: Which side is the cold side?

Generally, the side with the printed model number (TEC1-12710) is the cold side. The blank side is the hot side. You can test this by applying power for 1 second; the cold side will chill instantly.

Q: Is thermal paste required?
Yes. To ensure proper heat transfer, you must apply a thin, even layer of high-quality thermal grease (TIM) between both ceramic plates and their respective contact surfaces (the heatsink and the object being cooled).
Q: Can I use this for heating?

Yes. By reversing the red and black wires, the heat flow reverses. The side that was cold will become the heating side, which is useful for incubation systems.
