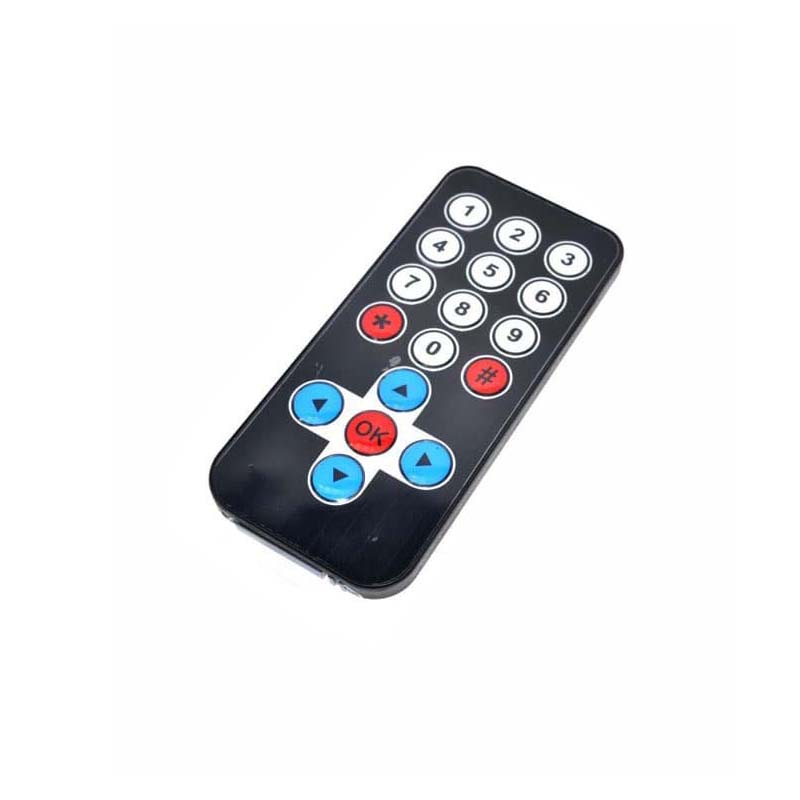

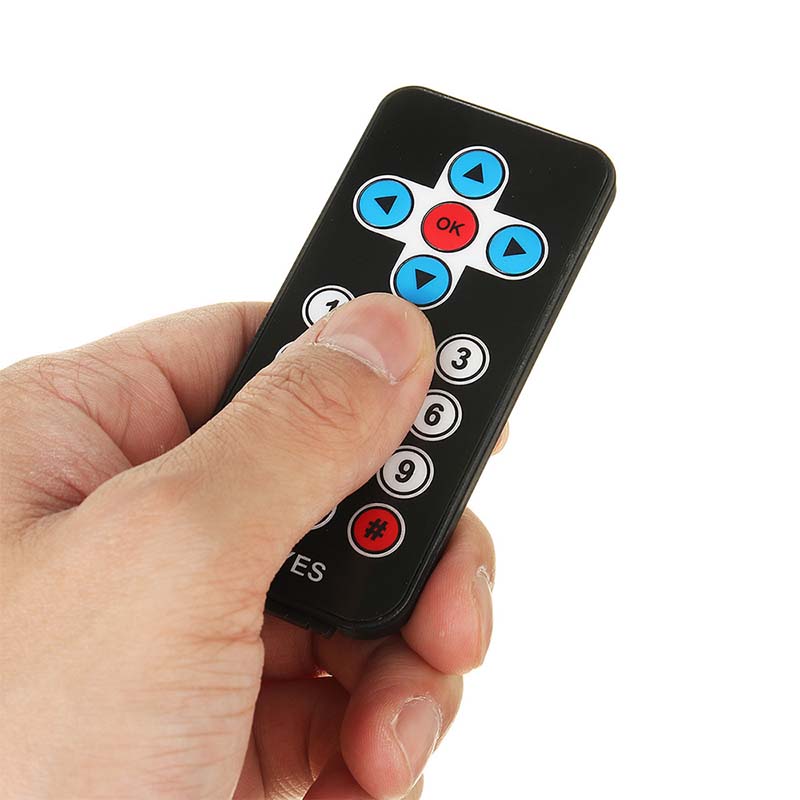

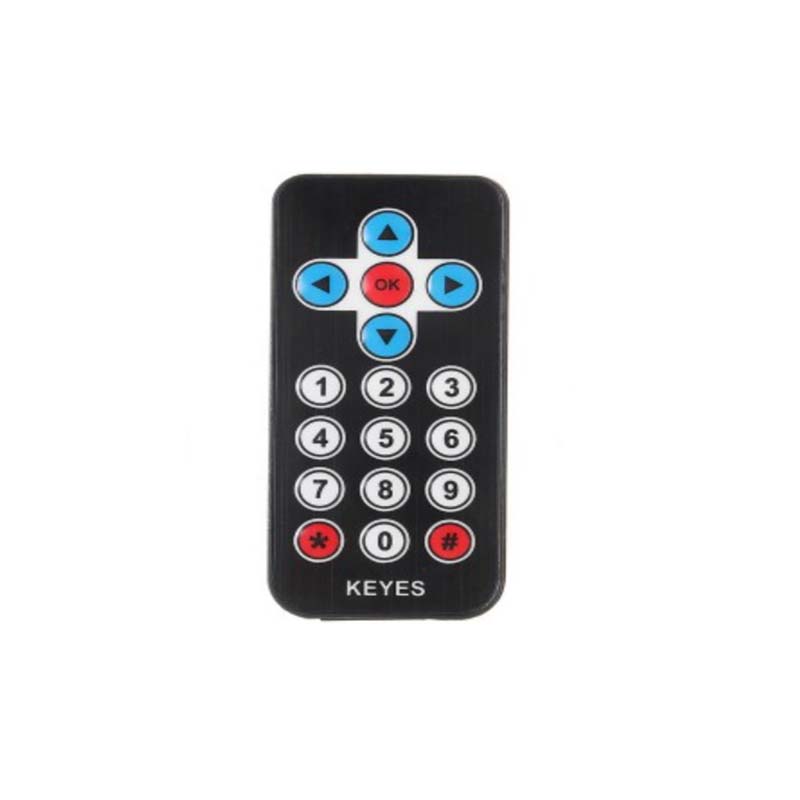

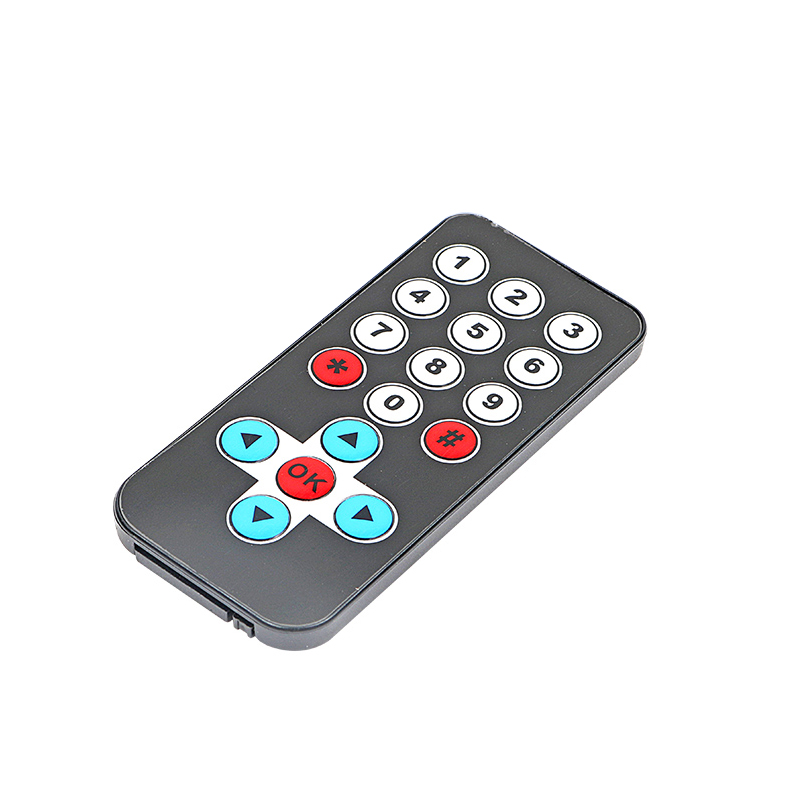

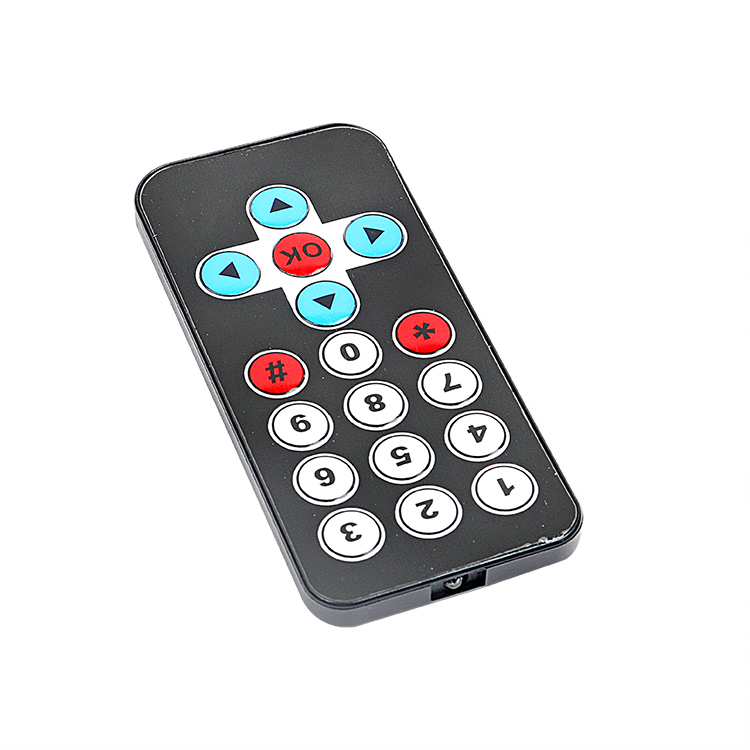

17 Key IR Remote Control

SKU: FA4049-1 Tag:

$0.26

Weight 0.014 kg

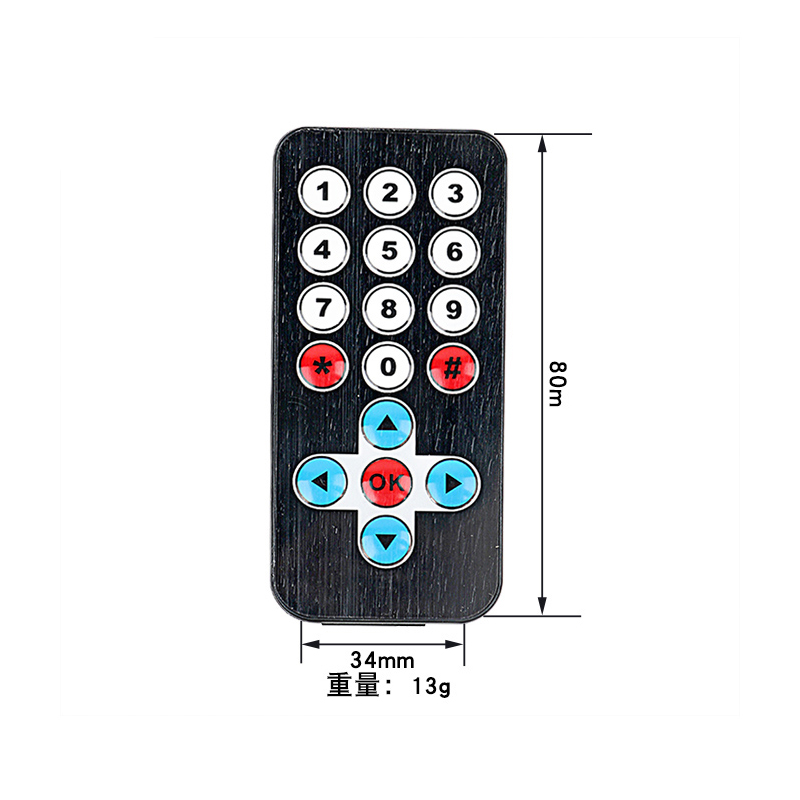

Dimensions 8.6 × 4 × 0.65 cm
Feature 1

8 meter range

Feature 2

Robotic oriented buttons

Feature 3

NEC control codes

Feature 4

Includes IR receiver module for use with MCU

Feature 5

Includes IR transmitter LED for implementing IR control via an MCU

Feature 6

Includes battery

Effective angle

60 degrees

Transmitter infrared wavelength

940Nm

Crystal frequency

455KHz crystal

Carrier frequency

38KHZ

2000 in stock

Parameters

  • 8 meter range
  • Robotic oriented buttons
  • NEC control codes
  • Includes IR receiver module for use with MCU
  • Includes IR transmitter LED for implementing IR control via an MCU
  • Includes battery

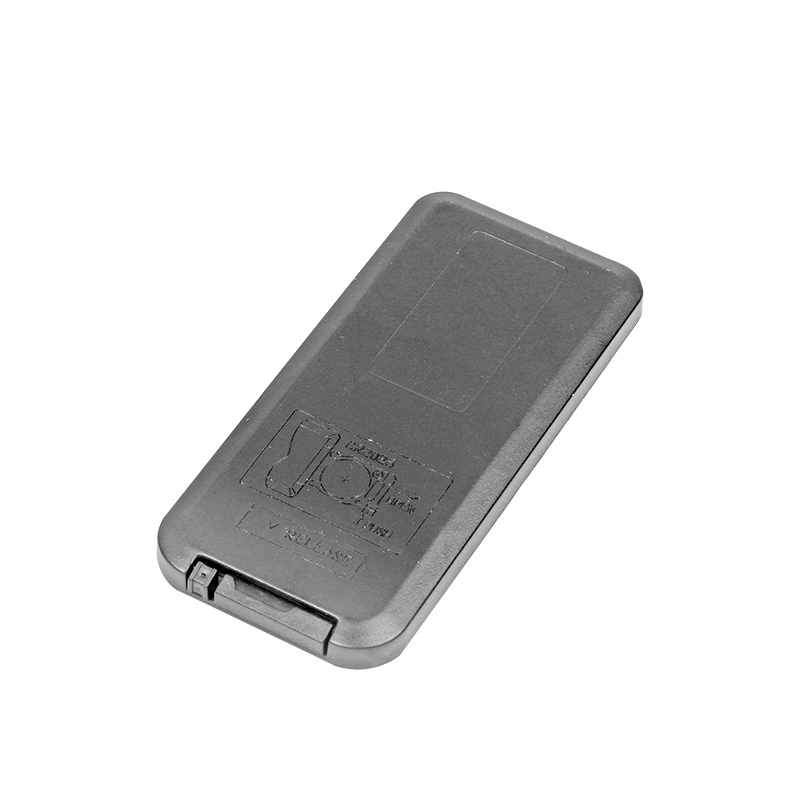

The IR remote  has a minimum control range of about 8 meters (24 feet).  It comes with a CR2025 battery installed.  Just be sure to pull out the plastic insert tab sticking out of the end of the remote to enable the battery.

The remote uses NEC codes.  The specific hex codes used for each remote control button are listed in the table below.  When used within a program, hex codes use the prefix ‘0x’ to signify they are a hex value, so the ‘1’ button would be written as ‘0xFFA25D’ within a program.  If a button is held down, a repeat code of 0xFFFFFF is sent for as long as the button is held down.

IR Remote Control Codes

Key IR Code Key IR Code
1 FFA25D 0 FF9867
2 FF629D * FF6897
3 FFE21D # FFB04F
4 FF22DD UP / FORWARD FF18E7
5 FF02FD RIGHT FF5AA5
6 FFC23D DOWN / REVERSE FF4AB5
7 FFE01F LEFT FF10EF
8 FFA857 OK FF38C7
9 FF906F REPEAT FFFFFF



Note: Please kindly contact us whether you need battery or not!!



Description

This IR Remote Control is ideal for implementing an IR remote control for many projects including controlling robotics since the remote includes direction keys and basic number keys without all the unnecessary key clutter found on remotes used for TV style control.
