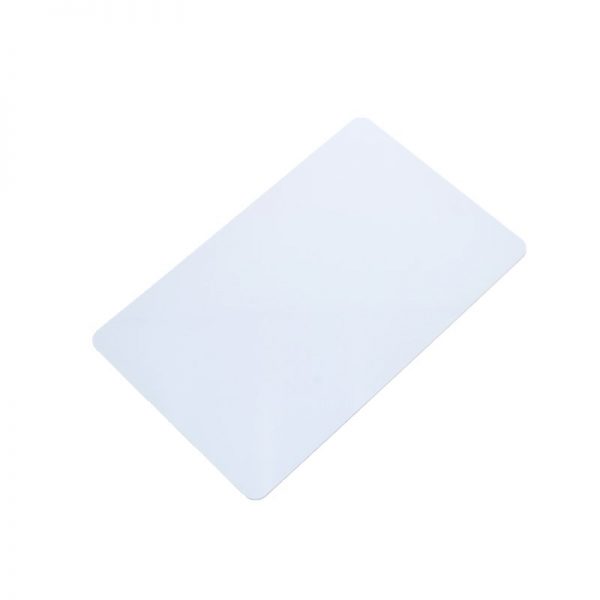

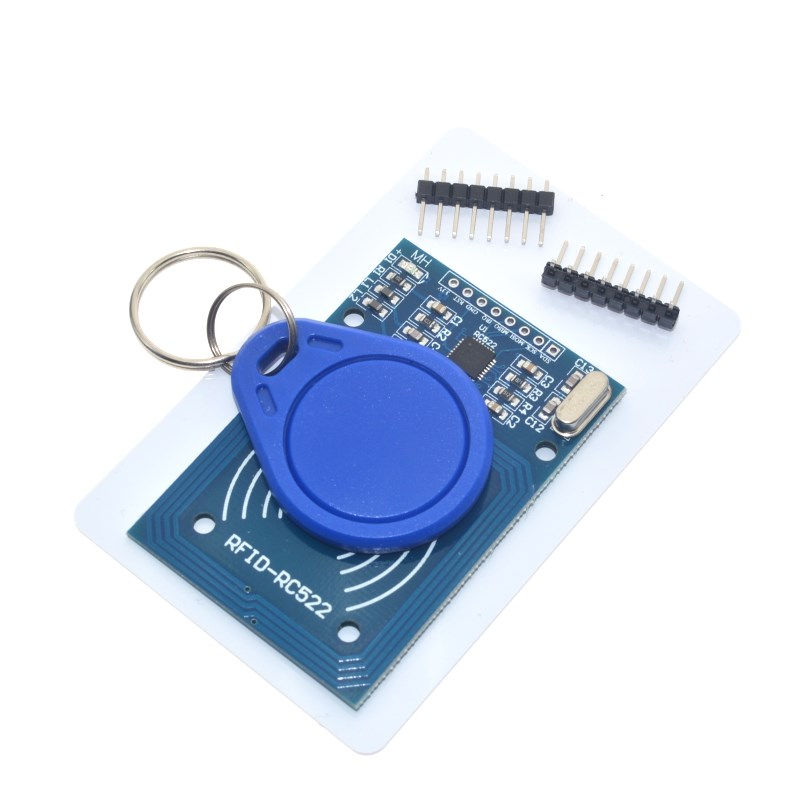

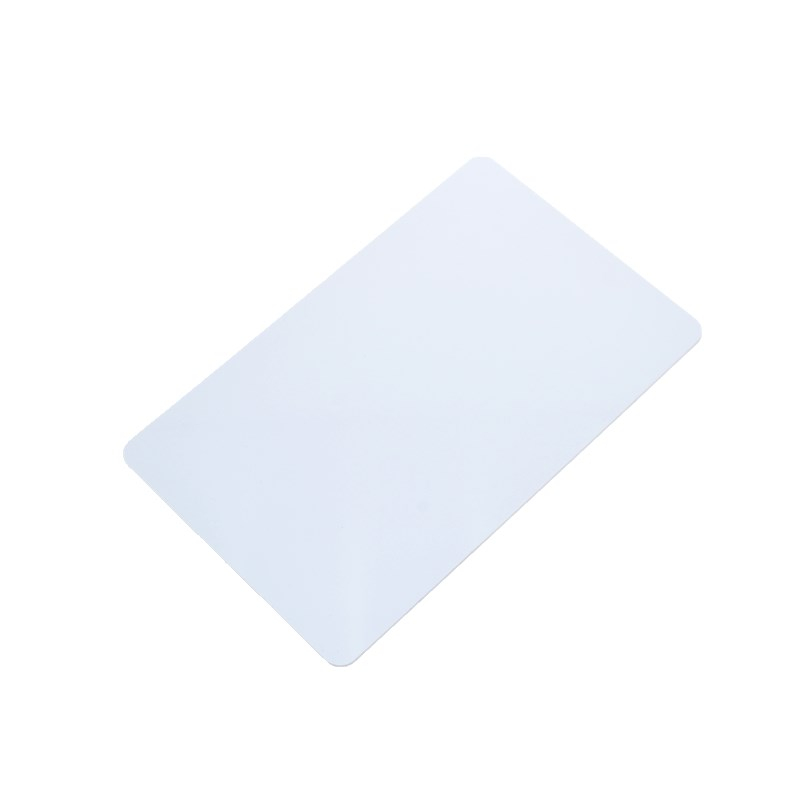

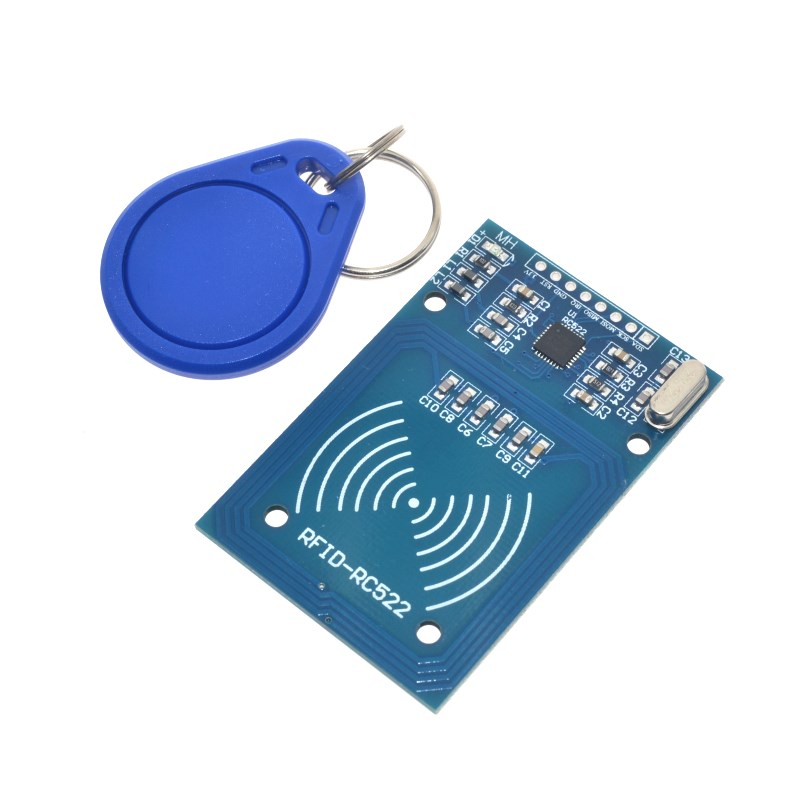

MFRC-522 RC522 RFID + S50 Card + Keychain 13.56Mhz

SKU: FA4048 Tag:

$0.89

Weight 0.014 kg
Dimensions 6 × 4 cm
Working current

1326mA/ DC 3.3V

Standby current

10-13mA/DC 3.3V

sleeping current

<80uA

peak current

<30mA

Working frequency

13.56MHz

data communication speed

Maximum 10Mbit/s

Environment

Working temperature-2080 degree
Storage temperature-4085 degree
Humidityrelevant humidity 5%

5000 in stock

Specifications

  • Module Name: MF522-ED
  • Working current:1326mA/ DC 3.3V
  • Standby current:10-13mA/DC 3.3V
  • sleeping current:<80uA
  • peak current:<30mA
  • Working frequency:13.56MHz
  • Card reading distance :060mmm ifare 1 card
  • ProtocolSPI
  • data communication speed:Maximum 10Mbit/s
  • Card types supportedmifare1 S50mifare1 S70mifare UltraLightmifare Promifare Desfire
  • Dimension:40mm×60mm
  • Environment
  • Working temperature-2080 degree
  • Storage temperature-4085 degree
  • Humidityrelevant humidity 5%95%
  • Max SPI speed: 10Mbit/s

MF RC522 is used in highly integrated 13.56MHz contactless communication card chip to read and write, of NXP for three and the application launched a low voltage, low cost, small , non-contact card chip to read and write, intelligent instruments and portable handheld devices developed better.

The MF RC522 use of advanced modulation and demodulation concept completely integrated in the 13.56MHz all kinds of passive contactless communication methods and protocols. 14443A compatible transponder signal. The digital part handles the the ISO14443A frames and error detection. In addition, support Quick CRYPTO1 encryption algorithm, the term verification MIFARE series. MFRC522 support MIFARE series of high-speed non-contact communication, two-way data transfer rates up to 424kbit/s.
As 13.56MHz highly integrated card reader series chip new family, the MF RC522 MF RC500 MF RC530 there are many similarities, but also have many of the characteristics and differences. Communication between it and the host SPI mode, helps to reduce the connection, reduce PCB board volume and reduce costs.

RFID Module Brief Introduction

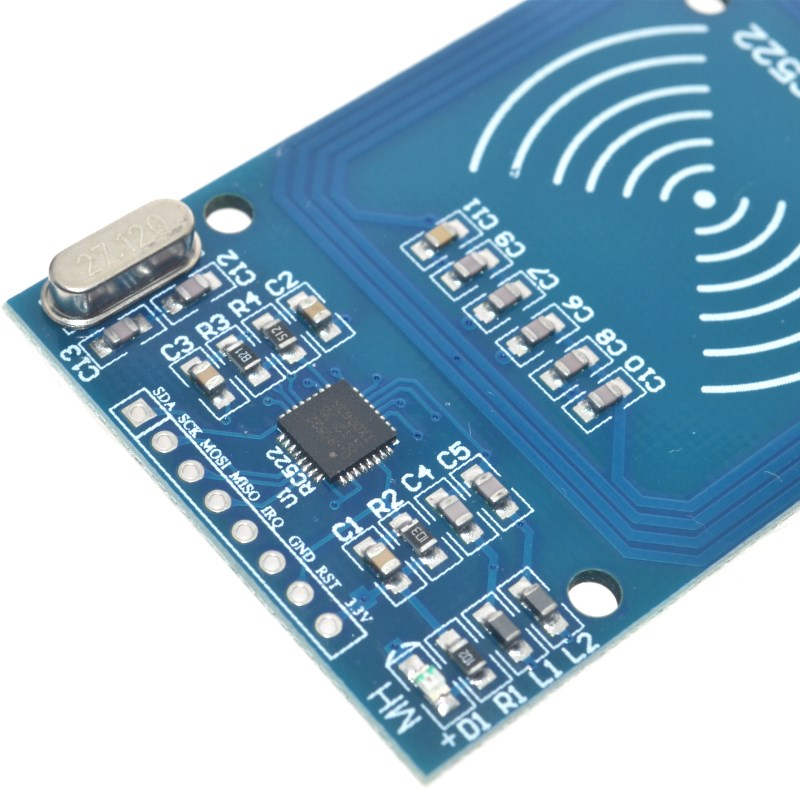

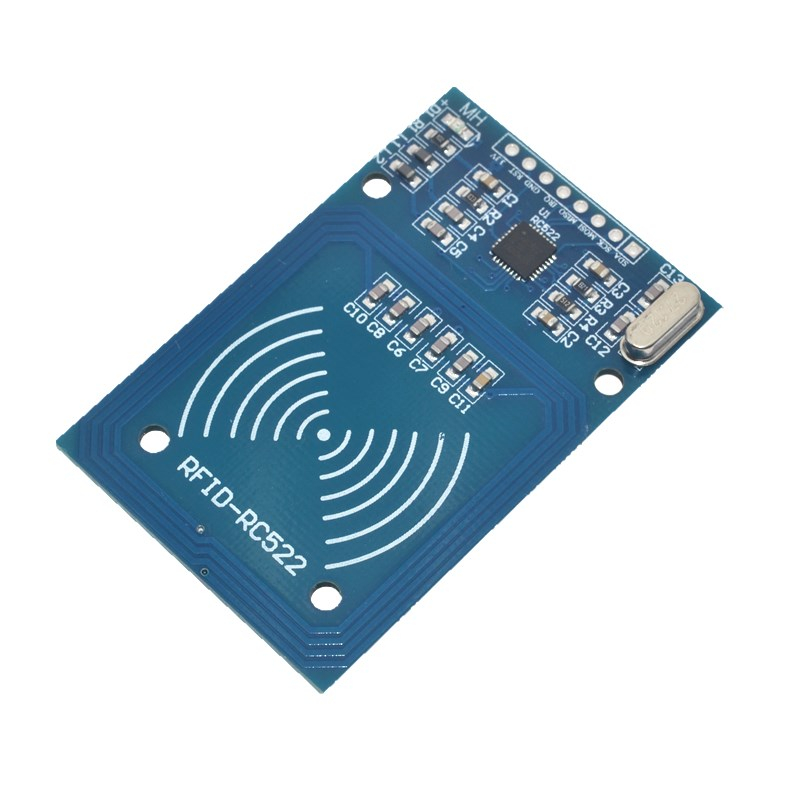

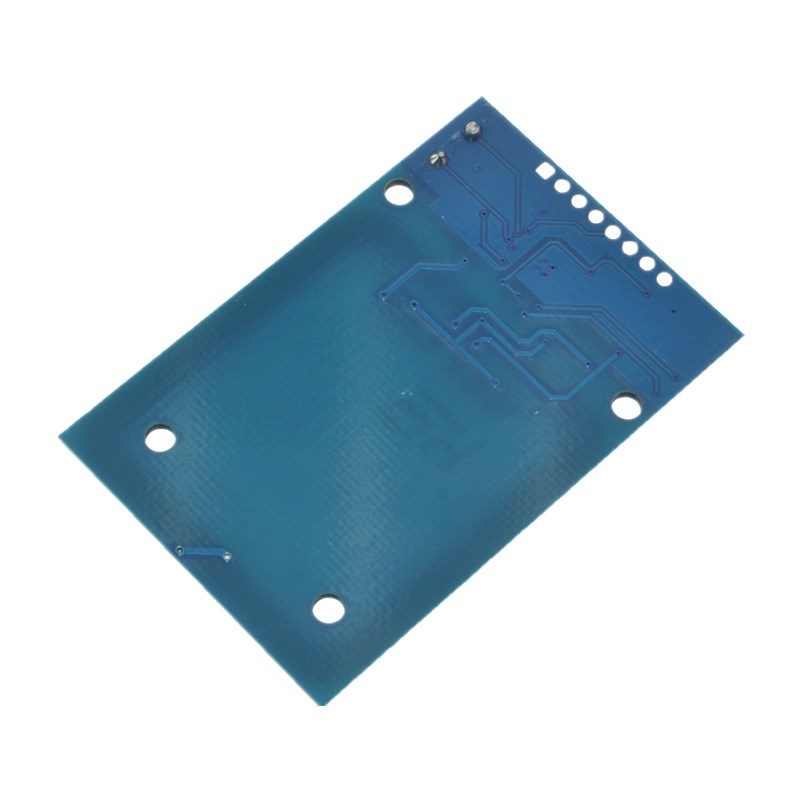

MF522-AN module uses Philips MFRC522 original chip design circuit card reader, easy to use, low cost, suitable for equipment development, the development of advanced applications reader users, the need for RF card terminal design / production users. This module can be directly loaded into the variety of reader molds.Module uses voltage of 3.3V, simple few lines through the SPI interface directly with any user CPU board is connected to the communication module can guarantee stable and reliable work, reader distance.
