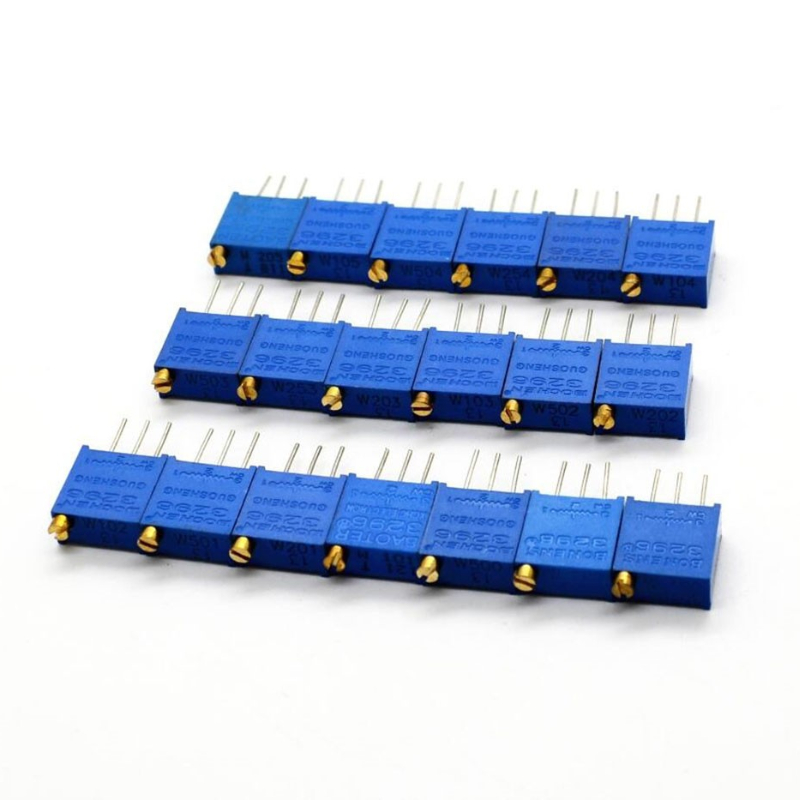

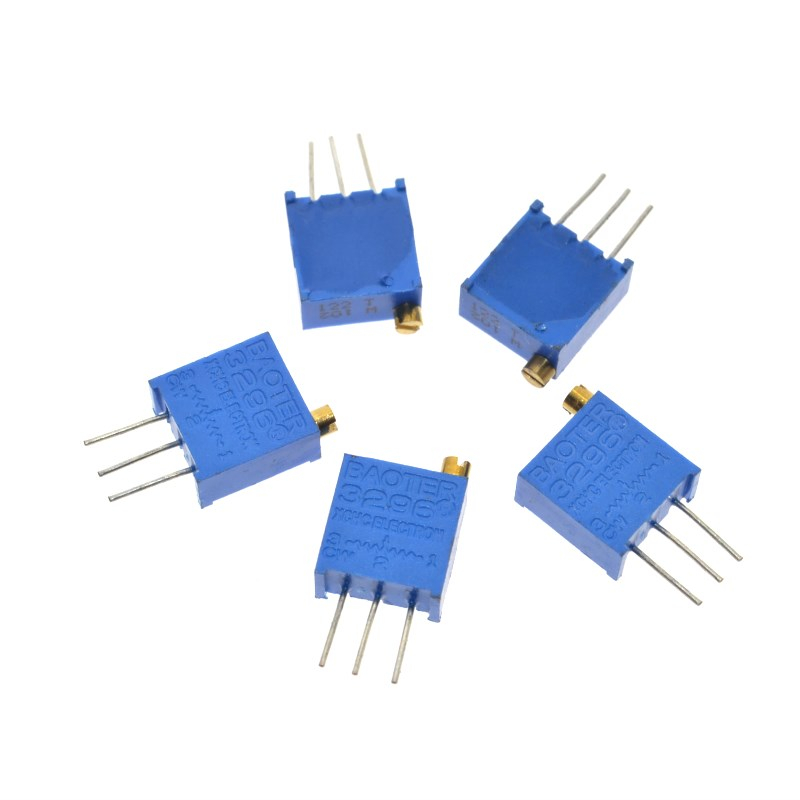

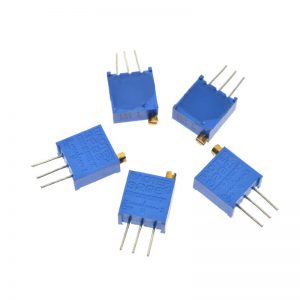

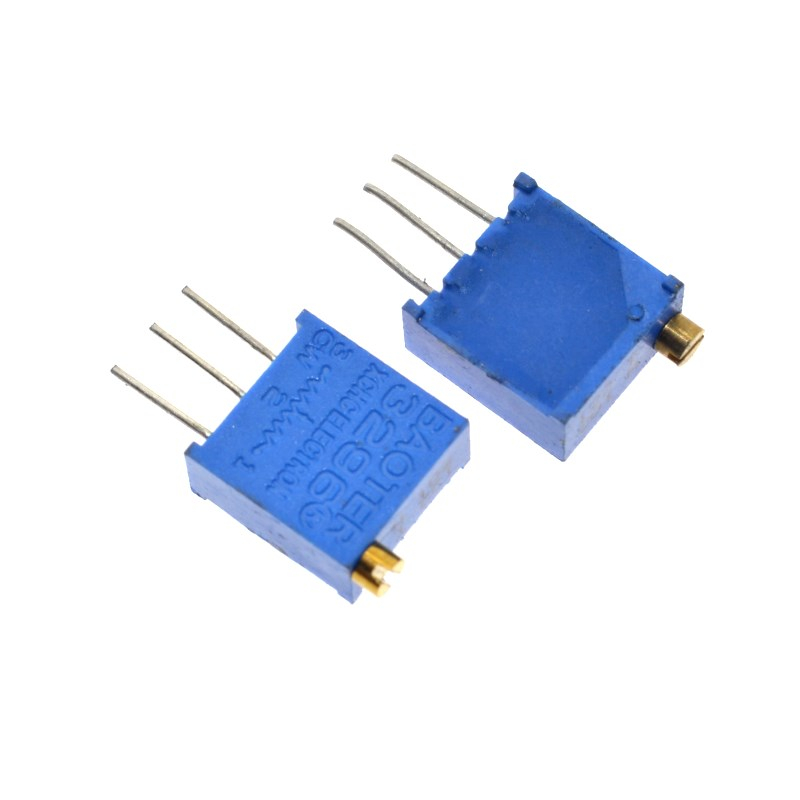

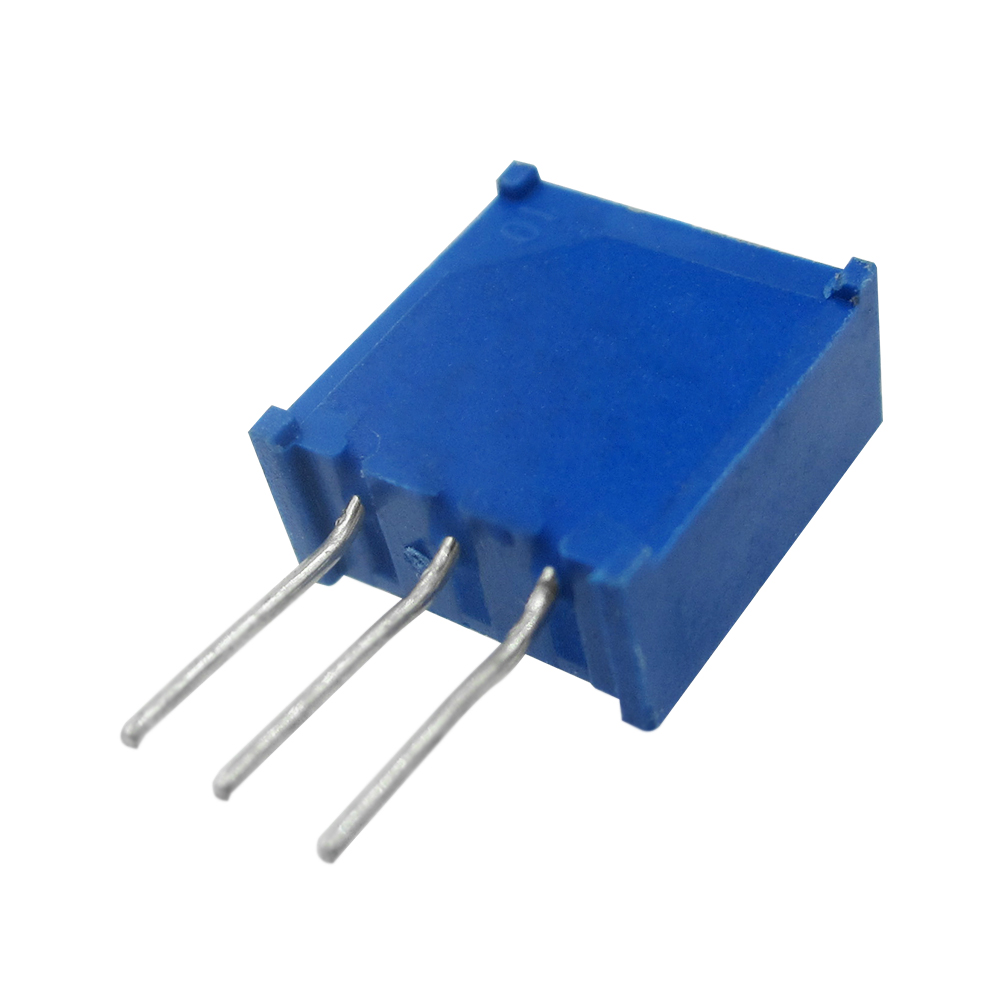

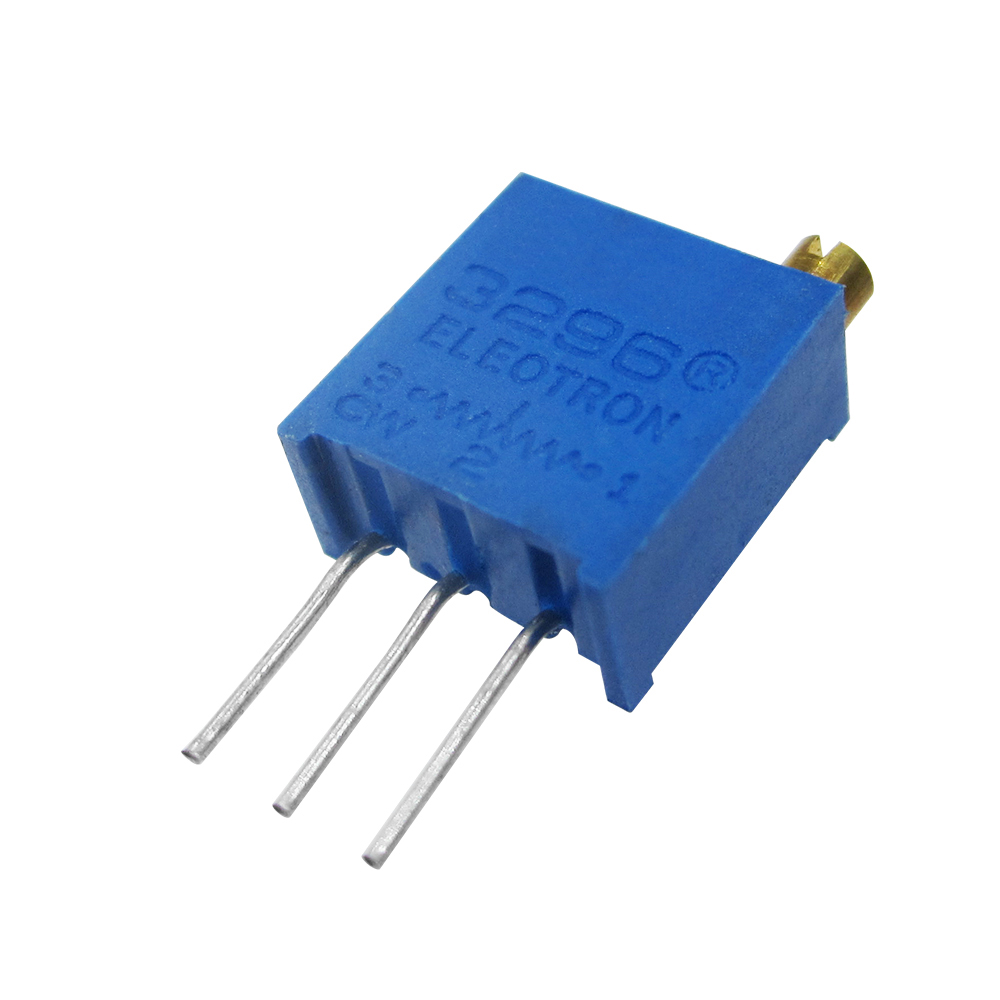

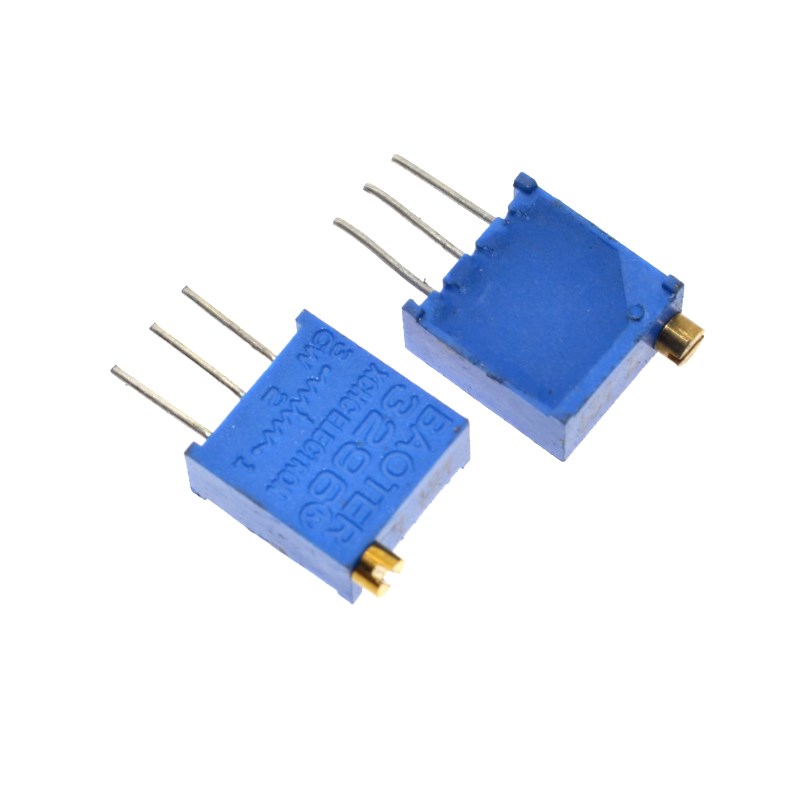

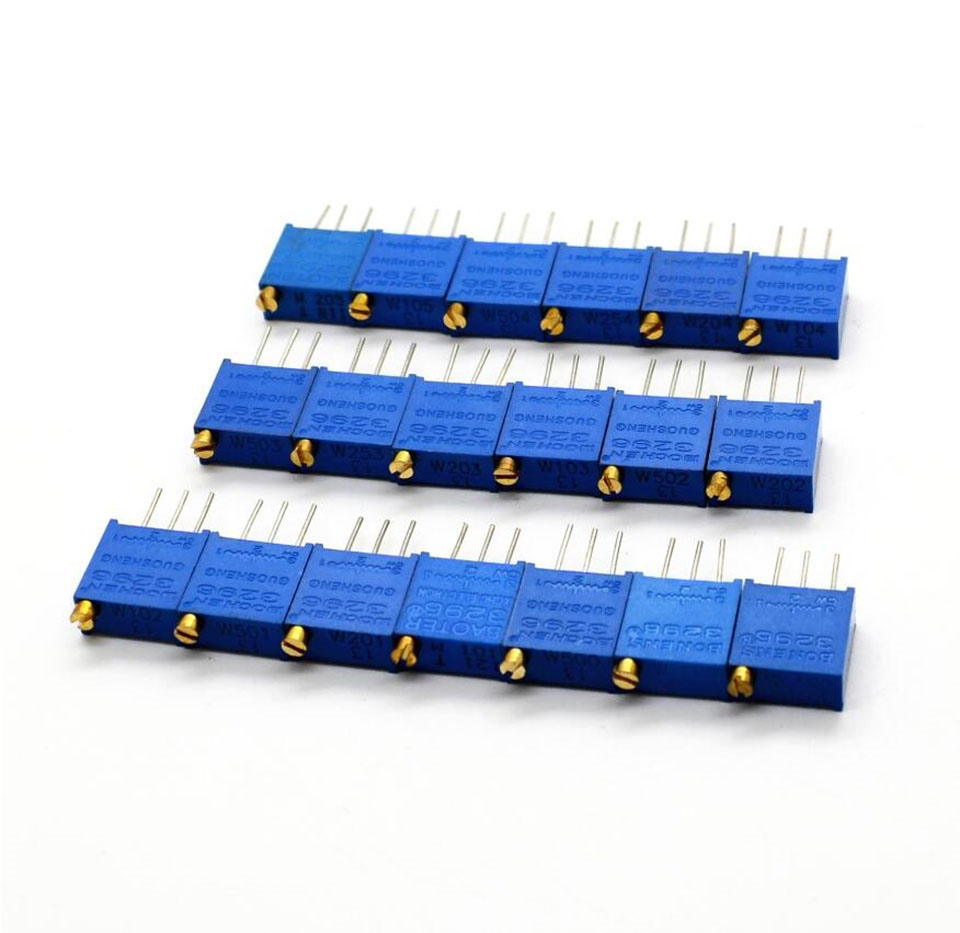

3296 103 Square Cermet 10K Ohm 1/2W Vertical Potentiometer Variable Resistors 3 Pin Leads 10K Ohm Trimpot Trimmer 103 Potentiometer 25 Turn 3 Pin 3296 Adjustment Trim Pot

$0.07

Weight 0.055 kg
Dimensions 0.9 × 0.9 cm
Max Power

0.5W,1/2W PC Pins

Withstand Voltage

500V

Rated Power

1/2W

Resistance Value

10K Ohm(100,000ohm)

Tolerance

10%

Adjustment Type

Top Adjustment

Mounting Type

Through Hole(DIP)

Resistance Change Type

Linear

Resistive Material

Cermet

Temperature Coefficient

100ppm/C

Total Length

15mm

Color

Blue

20000 in stock

Specifications

  • Max Power: 0.5W,1/2W PC Pins
  • Cermet (Ceramic / Metallic composite)
  • 25 Turn Top Adjustment
  • Product Name : Cermet Potentiometer;
  • Withstand Voltage : 500V
  • Rated Power : 1/2W;
  • Resistance Value : 10K Ohm(100,000ohm);
  • Tolerance : 10%;
  • Adjustment Type : Top Adjustment
  • Mounting Type : Through Hole(DIP);
  • Resistance Change Type : Linear;
  • Resistive Material : Cermet
  • Temperature Coefficient : 100ppm/C;
  • Square Body Size : 9 x 9mm
  • Total Length : 15mm
  • Color : Blue
  • Weight : 55g;

Features

  • High-Accuracy
  • Sealed Against Moisture and Dirt
  • Linear Type with Multi-Turn
  • 25 Turn
  • Cermet type
  • Absolute Minimum Resistance: 2ohms or 1% maximum
  • Rotational Life: 200 cycles

3296 103 Square Cermet 10K Ohm 1/2W Vertical Potentiometer Variable Resistors 3 Pin Leads 10K Ohm Trimpot Trimmer 103 Potentiometer 25 Turn 3 Pin 3296 Adjustment Trim Pot

Square Trimpot Trimming Potentiometers perform a variety of circuit adjustments in all types of electronic equipment. Multi-turn trimmers consist of three actuation types – lead screw, worm gear, and planetary gear. Lead screw actuated trimmers have a linear wiper path; worm gear and planetary gear actuated trimmers have a circular path. Multi turn trimmers are suitable for applications that require fine resistance adjustment.

A common elements in electronic devices is a three-terminal resistor with a continuously adjustable tapping point controlled by rotation of a shaft or knob. Cermet Resistive Material trimming potentiometer for device interior or Printed circuit boards which adjustable the resistance less. Through hole DIP mounting type. Multiturn design cermet potentiometer, squre linear Come with a plastic holder for holding them well.
