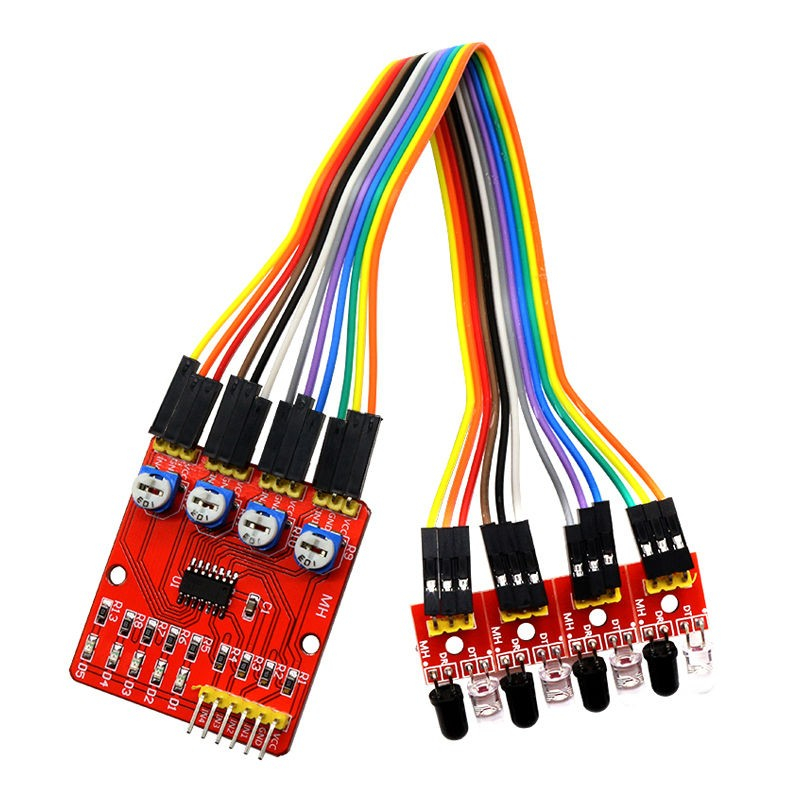

4-way infrared tracking module

Weight 0.033 kg
Dimensions 4.2 × 3.8 × 1.2 cm
Working voltage

DC 3.3V-5V

Working current

try to choose more than 1A power supply

Working temperature

– 10°C – +50°C

Mounting aperture

M3 screws

Detection range

1mm to 60 CM adjustable, the closer the performance more stable, white reflects the farthest distance

Size

in the control panel of 42mm * 38mm * 12mm (length * width * height)

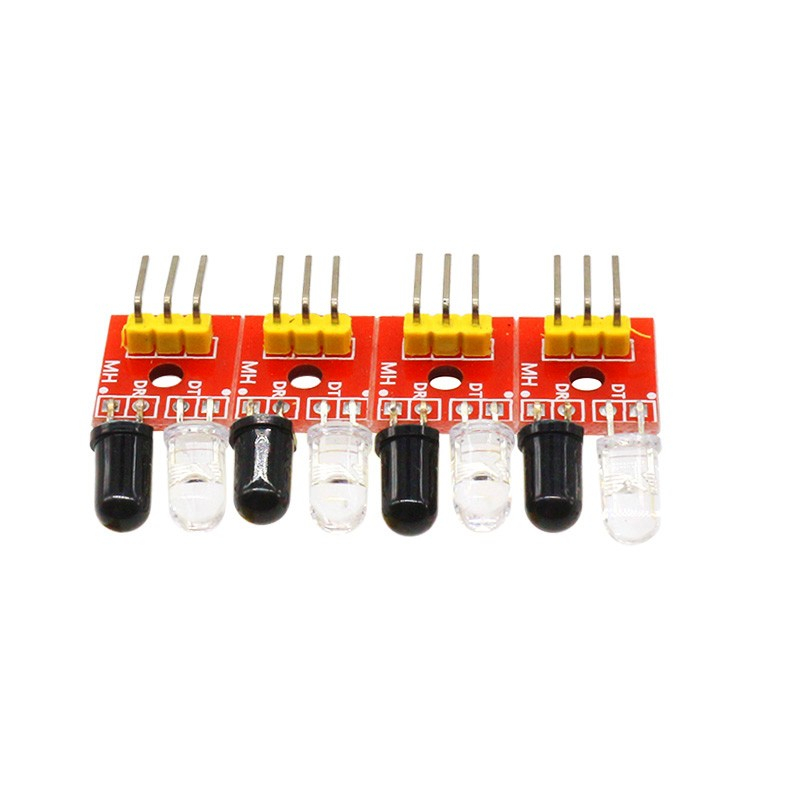

Small forward

25mm * 12mm * 12mm (length * width * height)

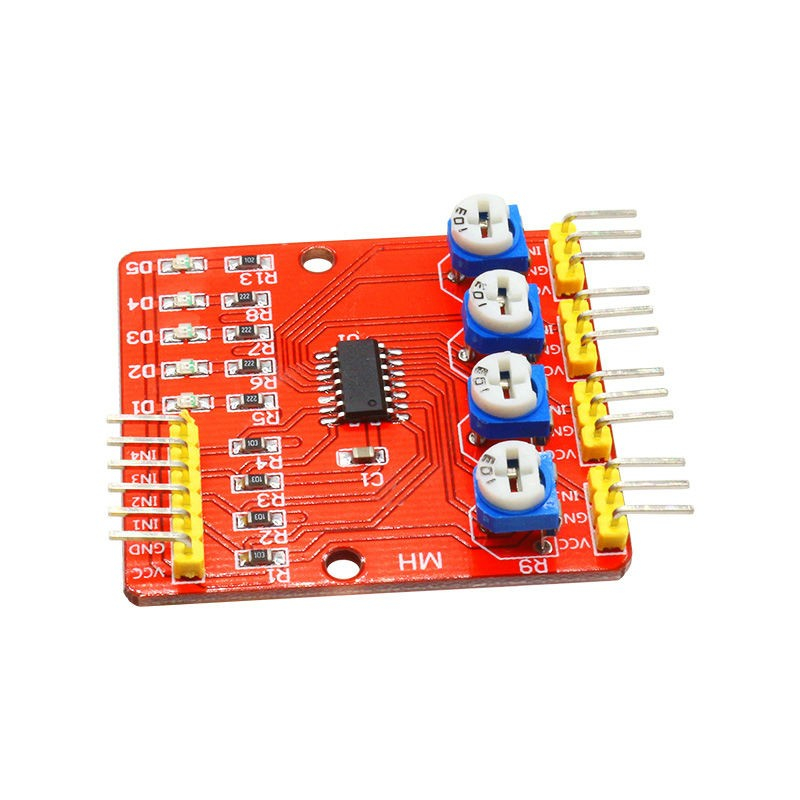

Output interface

6 wire interface (1234 to 4 signal output ends, + positive power, – for the negative power is ground)

The output signal

TTL level (can be directly connected to I/0 microcontroller, infrared light reflected back to the sensor induction, the red indicator light, output low level; no infrared light, the indicator light does not shine, the output high.)

Specifications
Working voltage: DC 3.3V-5V
Working current: try to choose more than 1A power supply
Working temperature: – 10oC – +50oC
Mounting aperture: M3 screws
Detection range: 1mm to 60 CM adjustable, the closer the performance more stable, white reflects the farthest distance.

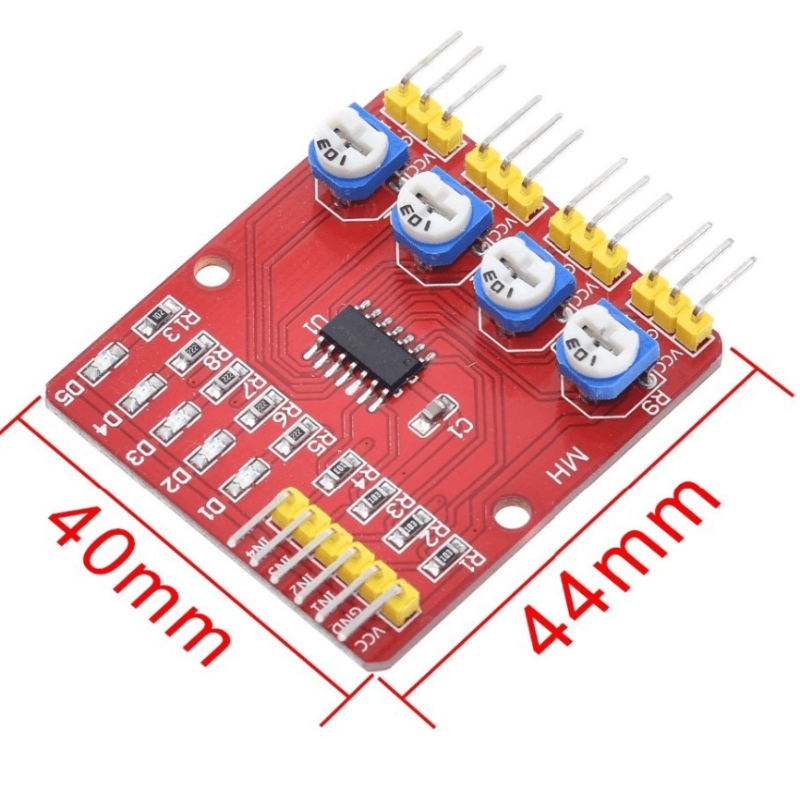

Size: in the control panel of 42mm * 38mm * 12mm (length * width * height)

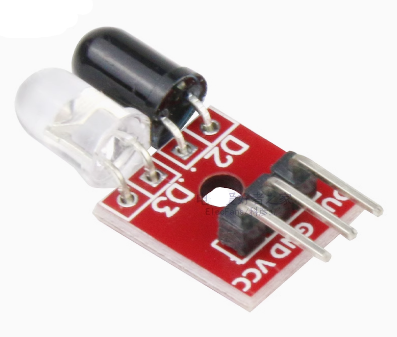

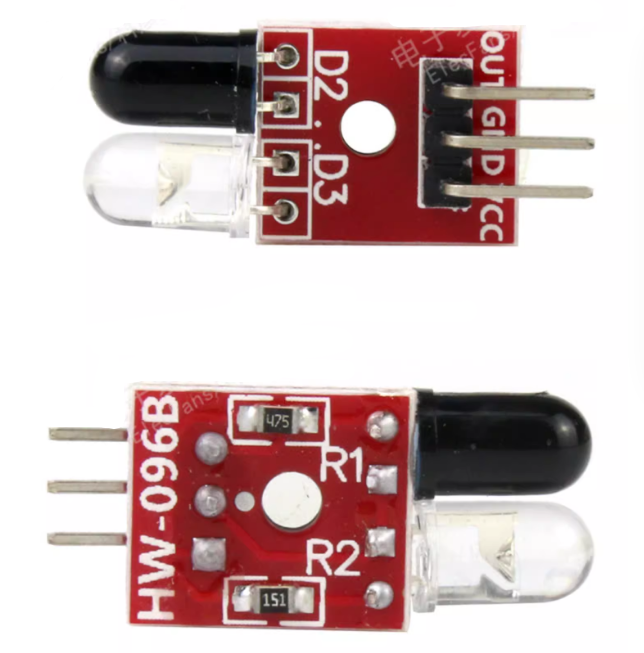

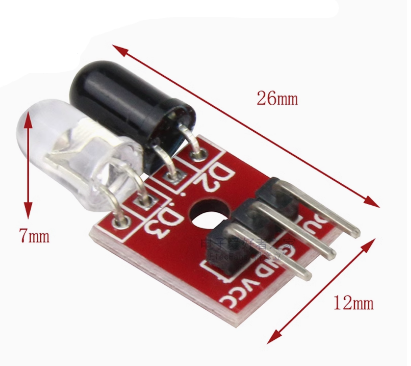

Small forward 25mm * 12mm * 12mm (length * width * height)
Output interface: 6 wire interface (1234 to 4 signal output ends, + positive power, – for the negative power is ground)
The output signal: TTL level (can be directly connected to I/0 microcontroller, infrared light reflected back to the sensor induction, the red indicator light, output low level; no infrared light, the indicator light does not shine, the output high.)

Applications
1. Smart car or a robot hunt ( including the black and white lines ) , walking along the black line path , also known as tracing.
2. Smart car to avoid the cliff , anti- fall.
3. Smart car to avoid obstacles

Package included

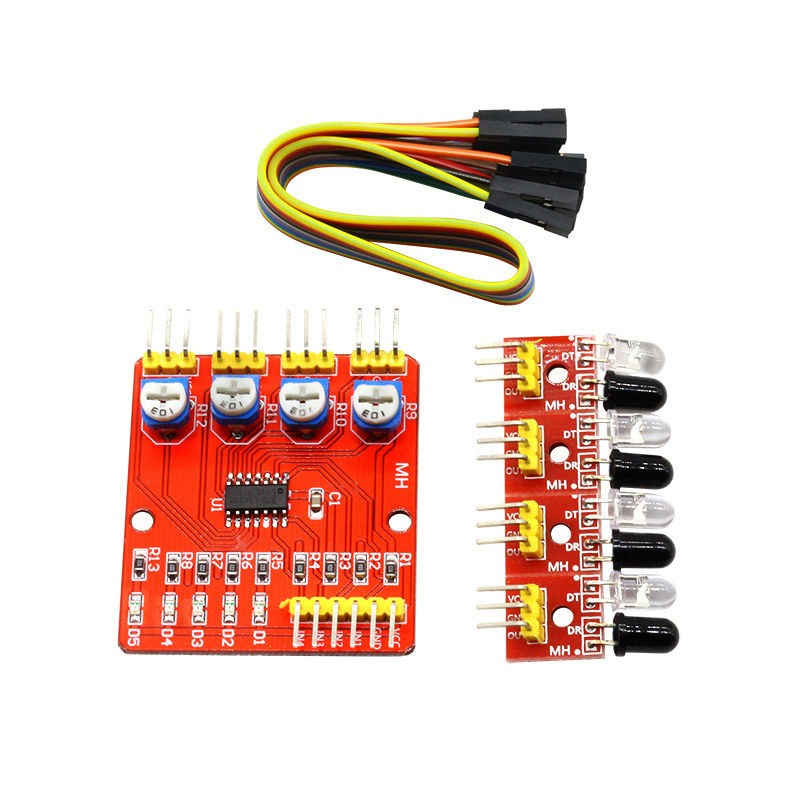

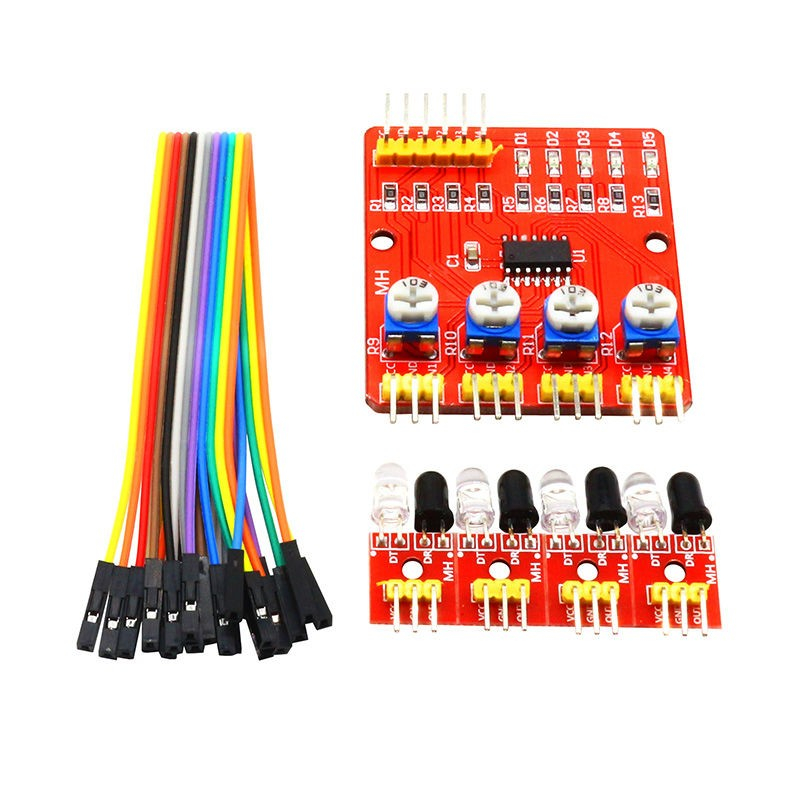

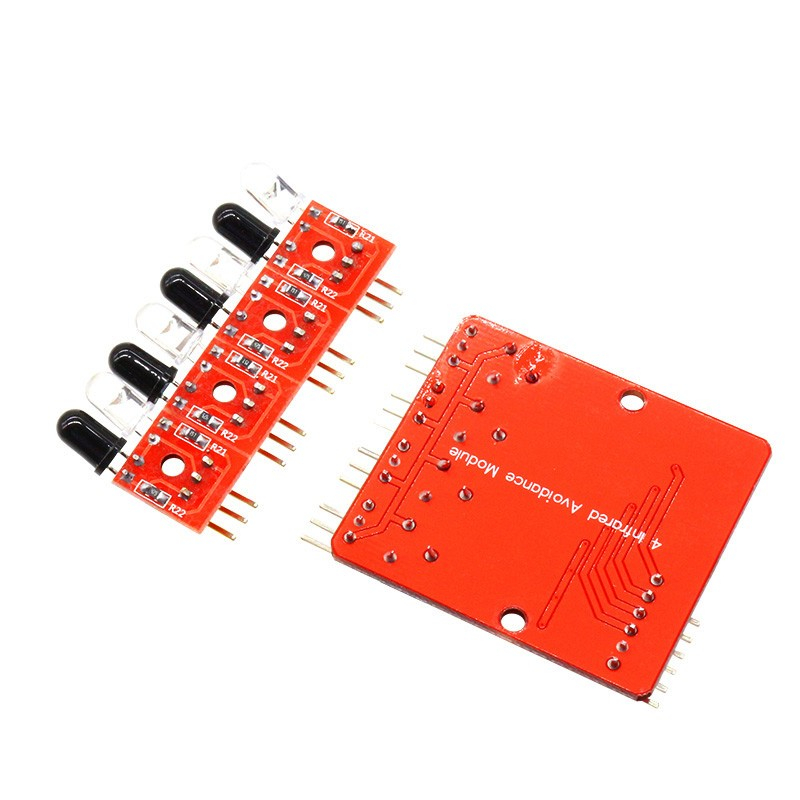

1* Four-way Infrared Tracing Module

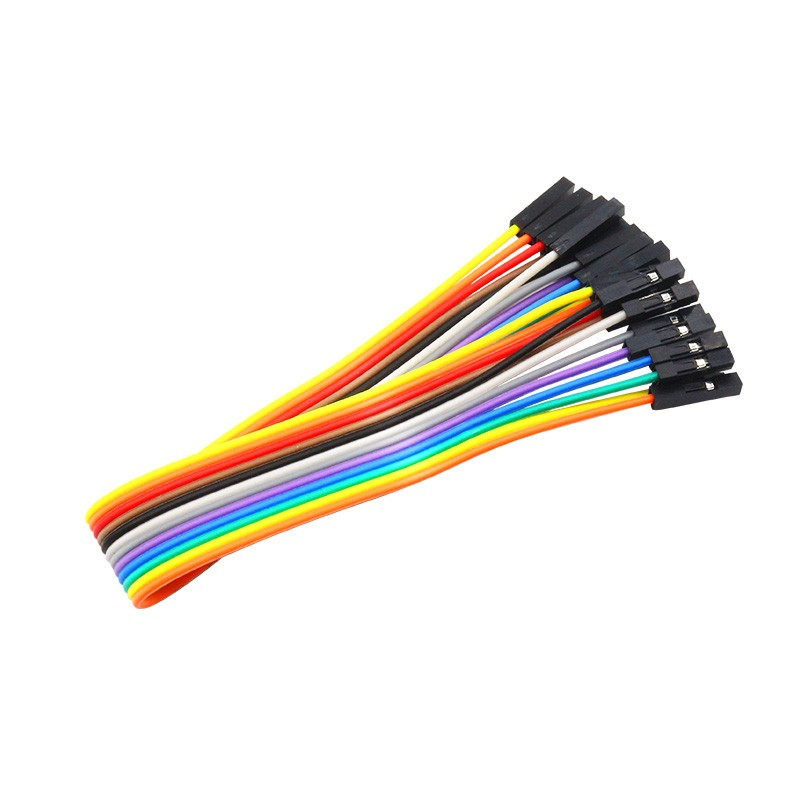

1* DuPont wires

Applications
1. Smart car or a robot hunt ( including the black and white lines ) , walking along the black line path , also known as tracing.
2. Smart car to avoid the cliff , anti- fall.
3. Smart car to avoid obstacles
