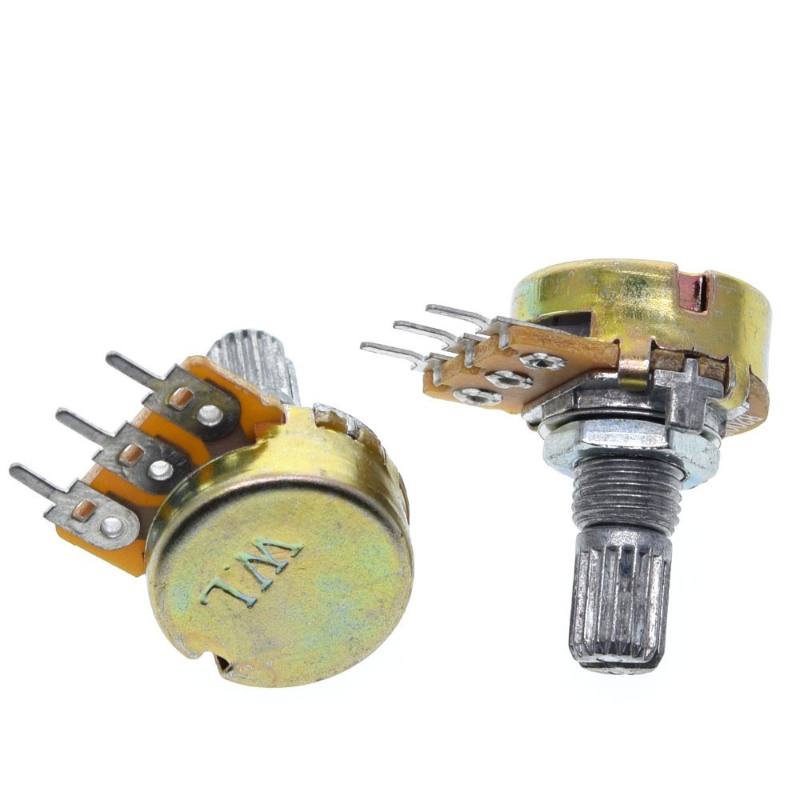

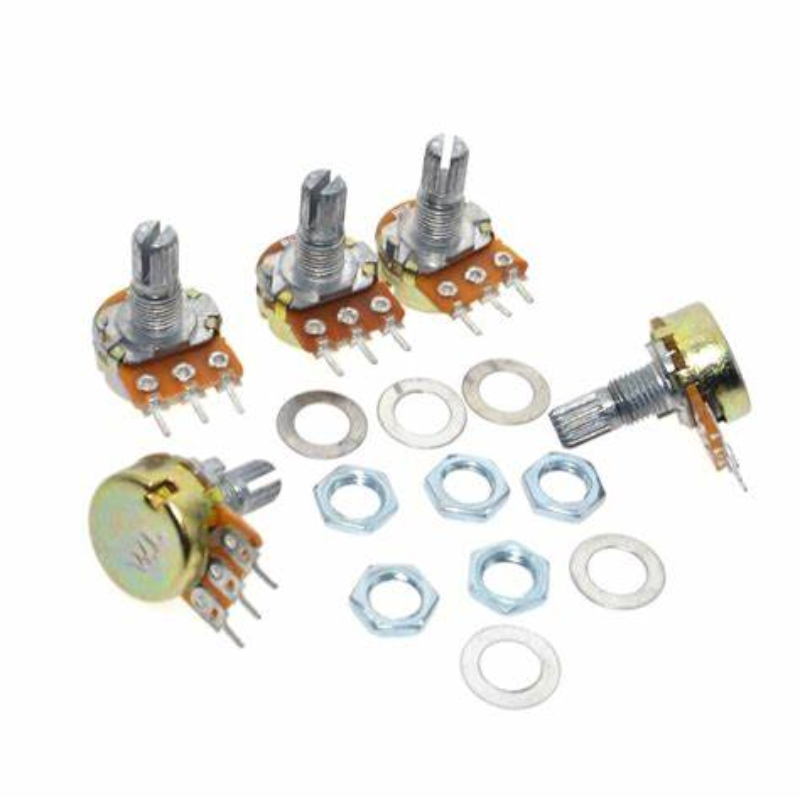

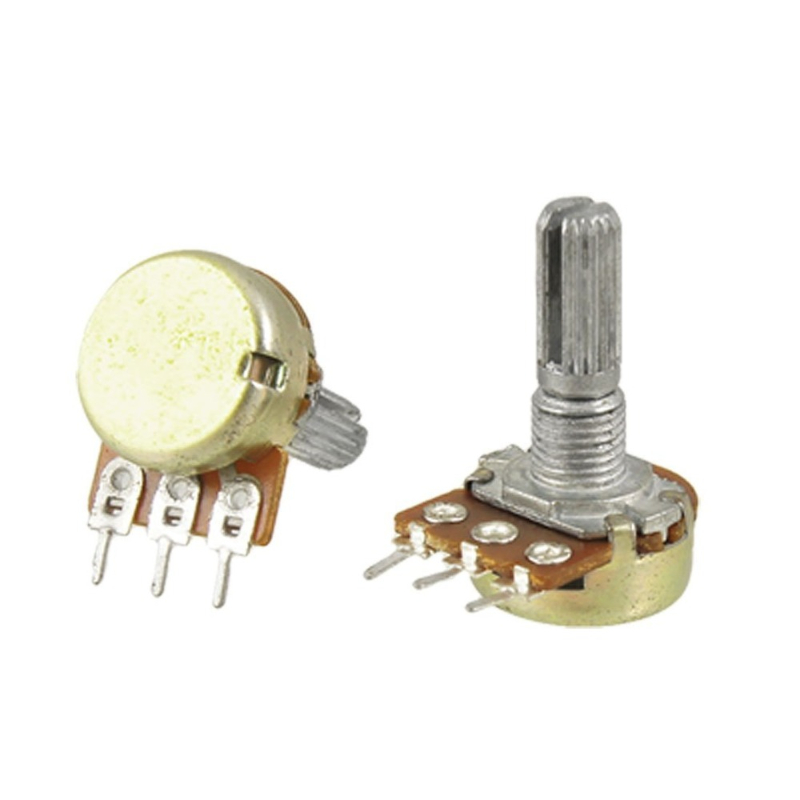

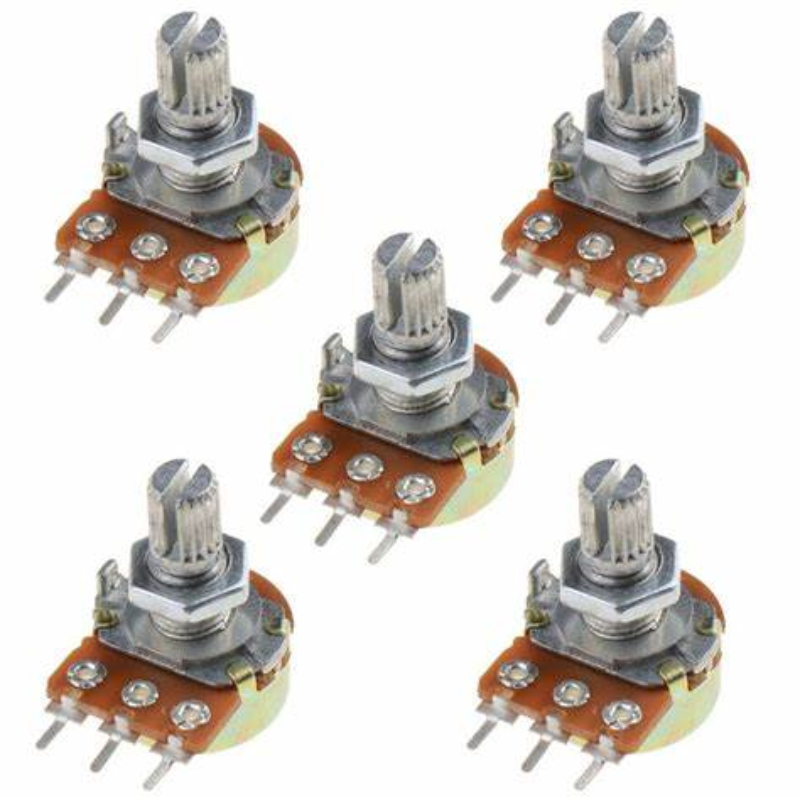

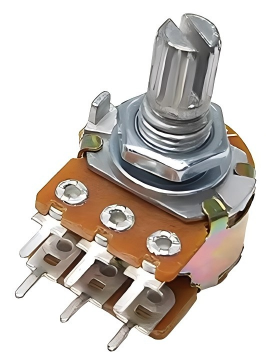

5K potentiometer 15mm shaft

SKU: FA4075 Tag:

$0.08

Weight 0.011 kg
Full resistance

5K Ohm

Type

B type linear

Technology

carbon film

Tolerance of resistance

±20%

Rated power

0.25W

Insulation resistance

Min. 100M Ohm at DC500V

Withstanding Voltage

AC500V for 1 minute

Total rotation angle

300±5 degree

Mechanical life

min. 10000 turns

Shaft length

15mm

Shaft diameter

6mm

Mounting hole

7mm

Whole length

24mm

Base diameter

16.3mm

9988 in stock

Parameters

Full resistance: 5K Ohm

Type:B type linear

Technology:carbon film

Tolerance of resistance:±20%

Rated power:0.25W

Insulation resistance:Min. 100M Ohm at DC500V

Withstanding Voltage:AC500V for 1 minute

Total rotation angle:300±5 degree

Mechanical life:min. 10000 turns

Shaft length:15mm

Shaft diameter:6mm

Mounting hole:7mm

Whole length:24mm

Base diameter:16.3mm

5K Ohm 3Pin 15mm Shaft Potentiometer is used for adjusting various parameters like voltage, current, etc in an electronic circuit. This is a three-terminal variable resistor that is used to vary or change the resistance.
