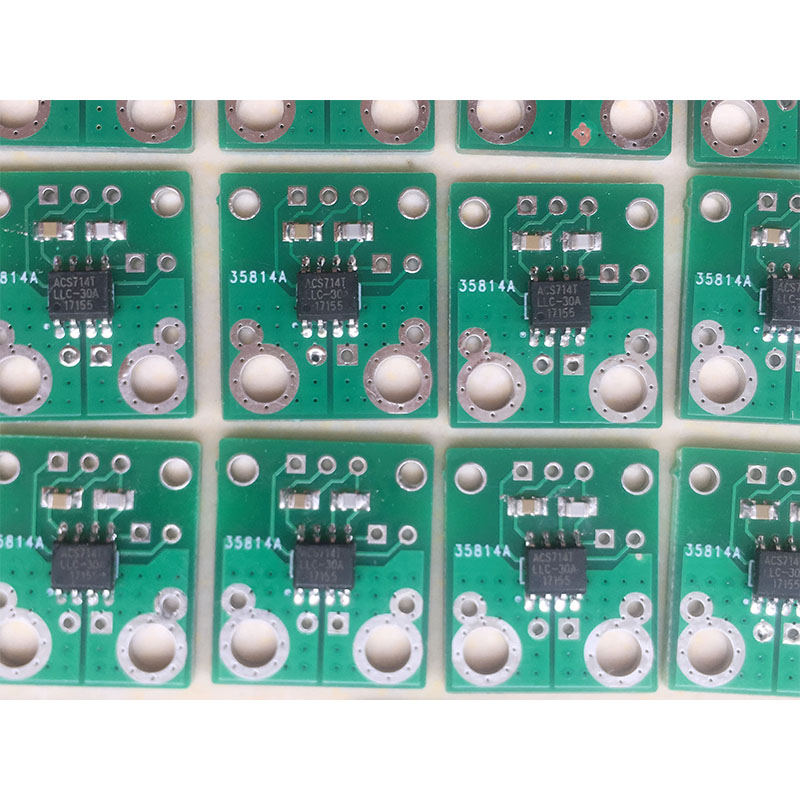

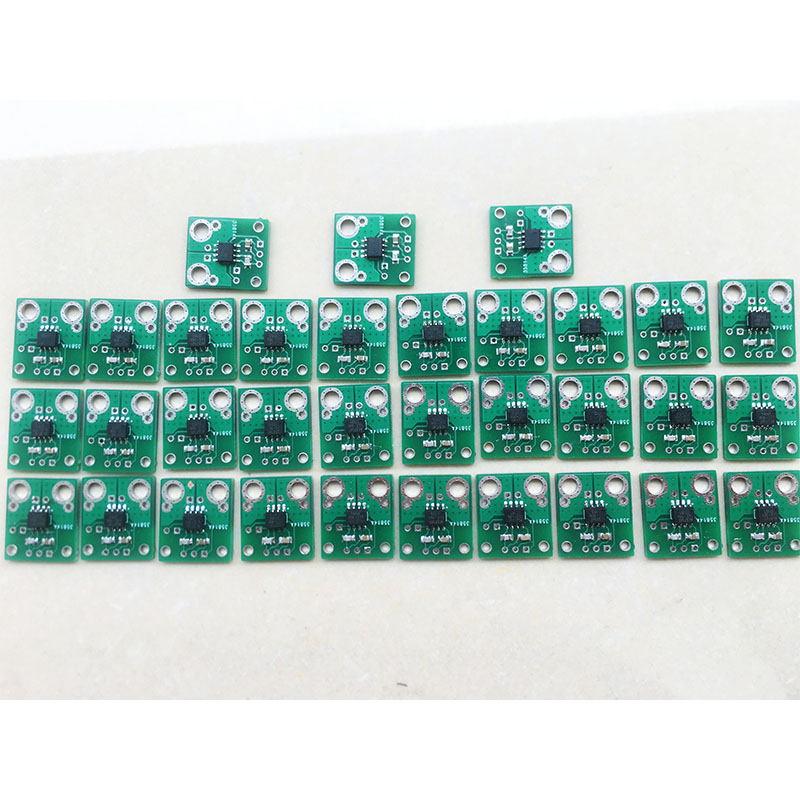

ACS714 5A 20A 30A 5V Isolate Current Sensor Breakout Board

SKU: FA3077-1 Tag:

$3.66

Weight 0.009 kg
Dimensions 2.032 × 1.778 cm
Bidirectional input current

-30 A to 30 A

Conductive path internal resistance

1.2 mΩ

Bandwidth

80 kHz

Typical total output error

±1.5%

2000 in stock

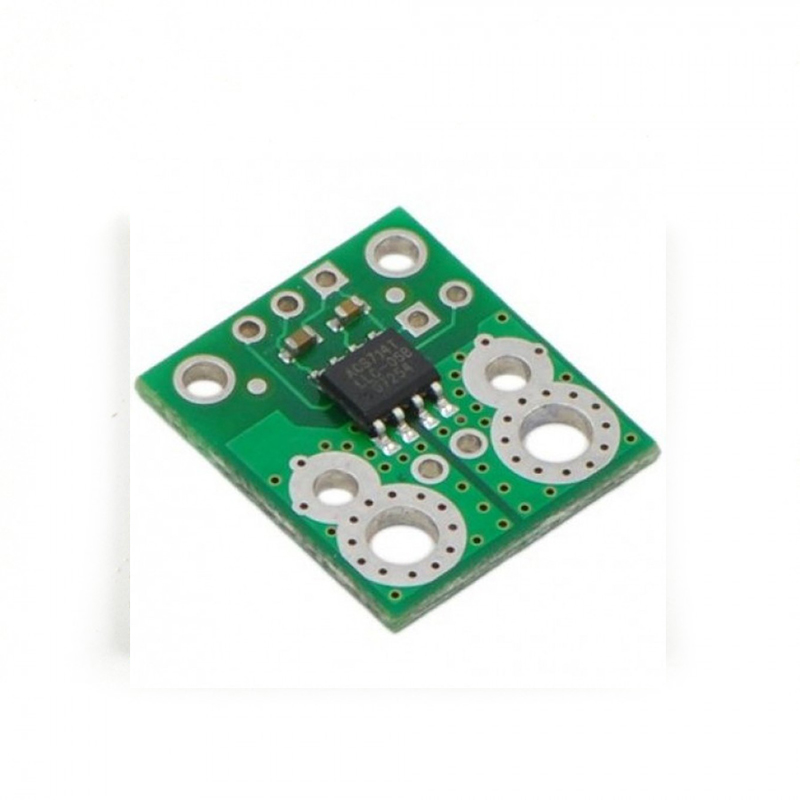

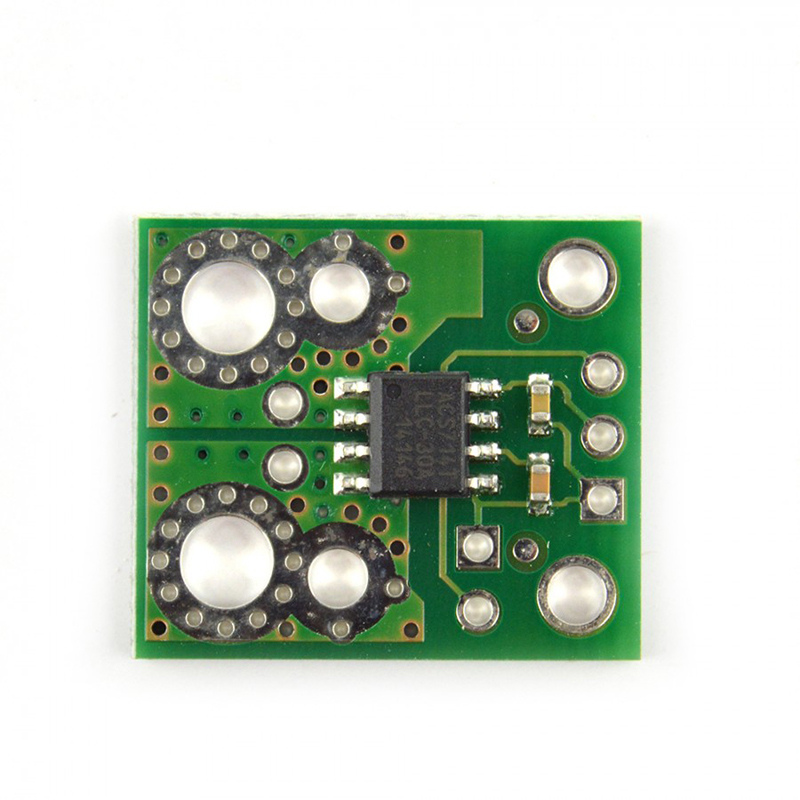

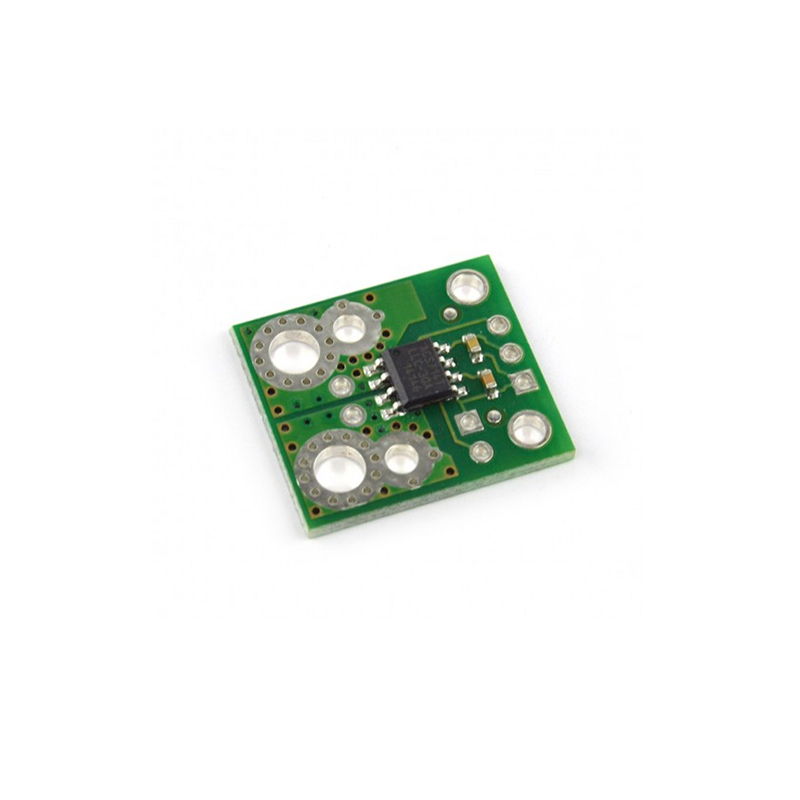

This current sensor is a carrier board or breakout board for Allegro’s ACS714LLCTR-30A-T Hall effect-based linear current sensor; we therefore recommend careful reading of the ACS714 datasheet (701k pdf) before using this product. The sensor operates at 5 V and has an output sensitivity of 66 mV/A. The board ships fully populated with its SMD components, including the ACS714, as shown in the product picture. The following list details some of the sensor’s key features:

  • Designed for bidirectional input current from -30 A to 30 A (though the robust sensor IC can survive up to five times the overcurrent condition).
  • Conductive path internal resistance is typically 1.2 mΩ, and the PCB is made with 2-oz copper, so very little power is lost in the board.
  • Use of a Hall effect sensor means the IC is able to electrically isolate the current path from the sensor’s electronics (up to 2.1 kV RMS), which allows the sensor to be inserted anywhere along the current path and to be used in applications that require electrical isolation.
  • 80 kHz bandwidth that can optionally be decreased by adding a capacitor across the board pins marked “filter”.
  • High accuracy and reliability: typical total output error of ±1.5% at room temperature with factory calibration, an extremely stable output offset voltage, and almost zero magnetic hysteresis.
  • Automotive-grade operating temperature range of -40°C to 150°C.

The pads are labeled on the bottom silkscreen, as shown in the picture to the right. The silkscreen also shows the direction that is interpreted as positive current flow via the +i arrow.



Datasheet

ACS714

This current sensor is a carrier board or breakout board for Allegro’s ACS714LLCTR-30A-T Hall effect-based linear current sensor; we therefore recommend careful reading of the ACS714 datasheet (701k pdf) before using this product. The sensor operates at 5 V and has an output sensitivity of 66 mV/A. The board ships fully populated with its SMD components, including the ACS714, as shown in the product picture
