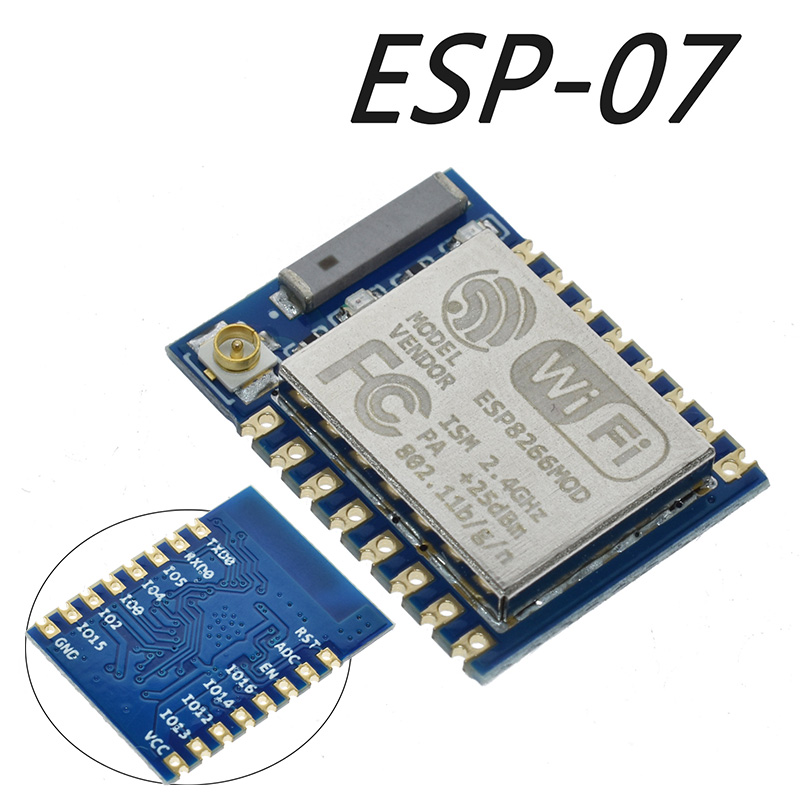

Product Overview
The ESP-07 ESP8266 Serial WiFi Module is a professional-grade wireless communication module designed for IoT applications requiring robust connectivity and flexible antenna options. Developed by Ai-Thinker, a leading manufacturer of IoT communication solutions, this module builds upon the revolutionary ESP8266 platform with enhanced features for industrial and commercial applications .
What sets the ESP-07 apart from its smaller counterpart (ESP-01) is its dual antenna capability—it features both a high-sensitivity onboard ceramic antenna and a U.FL/IPEX connector for attaching an external antenna . This design allows you to overcome signal attenuation issues common when modules are mounted inside metal enclosures or when extended range is required.
The module is based on the ESP8266EX chip from Espressif Systems, integrating a Tensilica L106 32-bit processor, Wi-Fi MAC/BB/RF/PA/LNA, and a complete TCP/IP protocol stack . It can operate either as a standalone application processor or as a Wi-Fi adapter for other microcontrollers, providing exceptional flexibility for your design needs.
With its SMD-16 package, the ESP-07 is designed for automated assembly and industrial-scale production, yet remains accessible for prototyping and custom development . Whether you’re building smart home devices, industrial wireless sensors, or wearable electronics, the ESP-07 delivers the performance, range, and reliability your project demands.
Key Features
-
Dual Antenna Design: Equipped with both a high-sensitivity onboard ceramic antenna and a U.FL/IPEX connector for external antenna attachment. This provides the flexibility to use the built-in antenna for most applications or connect an external antenna for extended range and overcoming signal attenuation .
-
Powerful 32-bit Processor: Built around the Tensilica L106 32-bit RISC processor running at 80 MHz (upgradable to 160 MHz), providing ample processing power for IoT applications without requiring an external microcontroller .
-
Industrial Temperature Range: Rated for operation from -40°C to +125°C, making it suitable for demanding industrial environments, outdoor installations, and automotive applications .
-
Complete Wi-Fi Solution: Supports 802.11 b/g/n protocols at 2.4GHz with integrated TR switch, balun, LNA, power amplifier, and matching network. Delivers up to +19.5dBm output power in 802.11b mode with excellent receiver sensitivity down to -98dBm .
-
Rich Peripheral Interfaces: Provides UART, GPIO, I2C, I2S, HSPI, PWM, and 10-bit ADC interfaces, allowing connection to a wide variety of sensors, actuators, and display devices .
-
Multiple Operating Modes: Supports Station (STA), Access Point (AP), and Station+AP modes, enabling devices to connect to existing networks or create their own .
-
Ultra-Low Power Consumption: Features multiple sleep modes with deep sleep current as low as 10µA and standby power consumption less than 1.0mW (DTIM3) , making it ideal for battery-powered applications .
-
Fast Wake-Up: Can wake from sleep, connect, and transmit data in less than 2ms, enabling efficient power management for intermittent data transmission .
-
Smart Configuration Support: Compatible with Smart Config and AirKiss one-click network configuration technologies, simplifying device onboarding .
-
SMD Package for Automated Assembly: The 16-pin SMD package is designed for automated surface-mount assembly, making it suitable for large-scale production while remaining accessible for hand soldering .
Technical Specifications
Pinout & Interface Guide

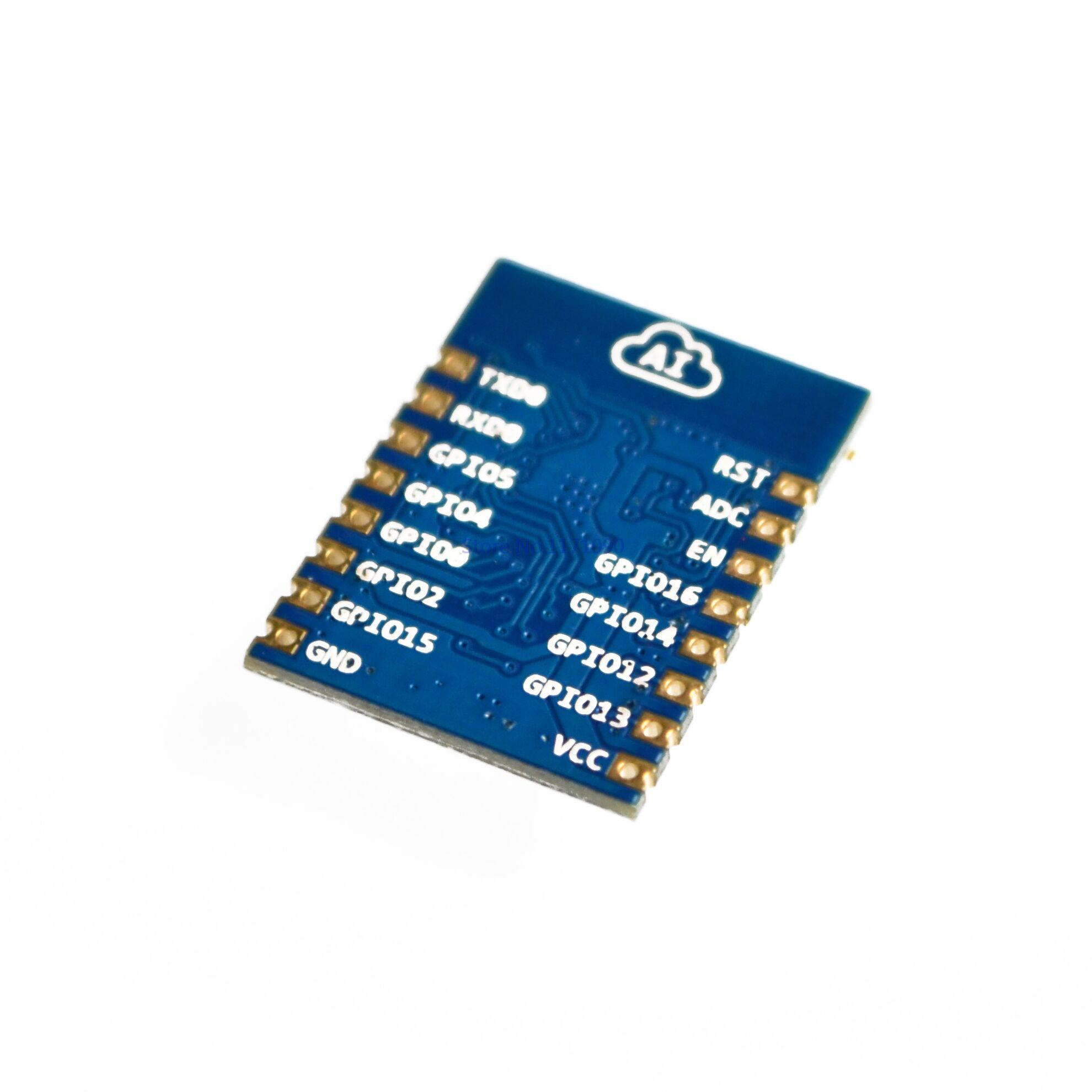

The ESP-07 features a 16-pin SMD package with the following pin assignments :
Boot Mode Configuration
The ESP-07’s boot mode is determined by the state of GPIO0, GPIO2, and GPIO15 :
Important: Pull GPIO15 LOW during boot for both modes. GPIO2 must be HIGH during boot.
Usage Guide
Power Supply Requirements
The ESP-07 requires a stable 3.3V DC power supply capable of providing at least 300mA during peak operation . For reliable operation:
-
Use a low-dropout regulator (LDO) such as AMS1117-3.3 or LM1117-3.3
-
Add a 10µF to 100µF electrolytic capacitor and a 0.1µF ceramic capacitor close to the VCC pin for power decoupling
-
Do not apply 5V to any pin—this will permanently damage the module
Programming the ESP-07
There are several ways to program the ESP-07:
Method 1: Using a USB-to-TTL Adapter
This is the simplest method for programming the module :
Enter Programming Mode:
-
Connect GPIO0 (pin 12) to GND
-
Connect GPIO15 (pin 10) to GND
-
Connect EN (pin 3) to VCC (pull HIGH)
-
Apply power or reset (pull RST LOW momentarily)
-
Upload firmware via Arduino IDE or esptool
-
After upload, disconnect GPIO0 from GND and reset
Method 2: Using an Arduino Uno as a Programmer
The ESP-07 can also be programmed using an Arduino Uno, though a level converter is recommended to protect the ESP module .
Development Environments
-
Arduino IDE: Install ESP8266 board support via Boards Manager
-
PlatformIO: Professional development environment with built-in ESP-07 board support
-
ESP8266 Non-OS SDK: Official Espressif SDK for advanced development
-
MicroPython: Lightweight Python implementation for rapid prototyping
Basic Arduino Example Code
#include <ESP8266WiFi.h>
const char* ssid = "your_SSID";
const char* password = "your_PASSWORD";
void setup() {
Serial.begin(115200);
Serial.println("\nESP-07 Wi-Fi Test");
WiFi.begin(ssid, password);
Serial.print("Connecting to Wi-Fi");
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}
Serial.println("\nConnected successfully!");
Serial.print("IP Address: ");
Serial.println(WiFi.localIP());
}
void loop() {
}

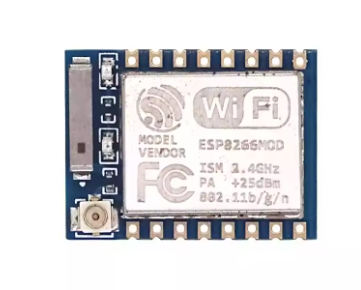

Antenna Selection
The ESP-07 provides two antenna options :
-
Onboard Ceramic Antenna: Suitable for most applications where the module is not enclosed in a metal housing. The ceramic antenna provides good sensitivity in a compact form factor.
-
External U.FL Antenna: Use when the module is installed inside a metal enclosure, when extended range is required, or when the ceramic antenna’s performance is insufficient. Connect a suitable 2.4GHz antenna (e.g., 2-3dBi rubber duck antenna) to the U.FL connector.
Important: The module uses the onboard antenna by default. To use the external antenna, you may need to modify the zero-ohm resistor configuration on the module (refer to the specific module documentation).
Q: What is the difference between ESP-07 and ESP-01?
The ESP-07 offers several advantages over the ESP-01:
-
More GPIO pins: 11 available I/O pins vs. 2 on the ESP-01
-
Dual antenna options: Onboard ceramic antenna + U.FL external antenna connector
-
Better signal performance: Superior range and stability
-
SMD package: Designed for automated assembly
-
Industrial temperature range: -40°C to +125°C
Q: Can the ESP-07 operate as a standalone microcontroller?
Yes. The ESP8266EX chip includes a 32-bit processor capable of running application code directly. You can program it with Arduino, MicroPython, or the ESP8266 SDK without requiring an external microcontroller
Q: How many GPIO pins are available on the ESP-07?
The ESP-07 provides access to 11 GPIO pins (IO0, IO2, IO4, IO5, IO12, IO13, IO14, IO15, IO16, RXD, TXD) . This is significantly more than the ESP-01’s 2 GPIO pins.
Q: What is the maximum range of the ESP-07 with external antenna?
With a suitable external antenna (e.g., 3dBi rubber duck antenna), the ESP-07 can achieve ranges of 100-300 meters in open space, depending on environmental conditions. The onboard ceramic antenna typically provides 30-50 meters range.
Q: Does the ESP-07 support Bluetooth?
No. The ESP8266 series is Wi-Fi only. For Bluetooth capability, consider the ESP32 series.
Q: What voltage does the ESP-07 require?
The ESP-07 requires a stable 3.3V DC power supply. The operating range is 3.0V to 3.6V . Never apply 5V to the VCC pin or any GPIO pin—this will destroy the module
Q: How much current does the ESP-07 draw?
Current consumption varies by operating mode :
-
Transmitting: Up to 300mA peak
-
Normal operation: Approximately 80mA average
-
Deep sleep: 10µA (with external pull-up on GPIO16 to RST)
-
Standby (DTIM3): Less than 1.0mW
Q: Can I power the ESP-07 with batteries?
Yes. The ESP-07’s low power consumption makes it suitable for battery-powered applications. A single 18650 lithium-ion cell (3.7V) can be used with a 3.3V LDO regulator. With proper deep sleep management, battery life of months to over a year is achievable
Q: Why does my ESP-07 not boot?
Common boot issues include:
-
GPIO15 not pulled LOW during boot
-
GPIO0 pulled LOW (this enters programming mode)
-
EN/CH_PD not connected to VCC
-
Insufficient power supply (current sag during startup)
-
Missing pull-up on GPIO2 (should be HIGH during boot)
Q: How do I put the ESP-07 into programming mode?
To enter programming (UART download) mode :
-
Pull GPIO0 LOW (connect to GND)
-
Pull GPIO15 LOW (connect to GND)
-
Pull GPIO2 HIGH (connect to VCC)
-
Pull EN HIGH (connect to VCC)
-
Apply power or pulse RST LOW
-
The module is now ready to receive firmware
Q: Why can't I upload code to my ESP-07?
Common upload issues:
-
GPIO0 not held LOW during power-on/reset
-
Incorrect serial connections (TX to RX, RX to TX)
-
Insufficient power supply (USB-to-TTL adapters may not provide enough current)
-
Wrong board selection in Arduino IDE (select “Generic ESP8266 Module”)
-
Missing pull-down on GPIO15
Q: What is the baud rate for programming?
The ESP-07 communicates at 115200 baud for programming by default, though the bootloader outputs diagnostic information at 74880 baud. For reliable programming, use 115200 baud
Q: Can I use the ESP-07 with Arduino IDE?
Yes. Install the ESP8266 board package via Boards Manager, then select “Generic ESP8266 Module” as the board. Configure the flash size (1MB) and upload speed (115200) appropriately
Q: How do I connect an external antenna to the ESP-07?
The ESP-07 features a U.FL/IPEX connector. Simply snap a compatible 2.4GHz antenna onto the connector. Ensure the antenna has the correct impedance (50 ohms) and is designed for 2.4GHz operation
Q: What can I build with the ESP-07?
Popular applications include :
-
Home automation systems and smart switches
-
Industrial wireless sensors and monitoring
-
Remote data logging and telemetry
-
Weather stations and environmental monitors
-
Wearable electronics and health monitors
-
Wireless location sensing and tracking
-
DIY IoT projects and prototypes
Q: Is the ESP-07 suitable for industrial applications?
Yes. The ESP-07’s industrial temperature rating (-40°C to +125°C), SMD package for automated assembly, and robust RF performance make it suitable for industrial IoT applications
Q: Can I use the ESP-07 with a PLC or industrial controller?
Yes. The ESP-07 can communicate with PLCs via UART, I2C, or SPI interfaces. The 3.3V logic level may require level shifting for compatibility with 5V or 24V PLC systems.
