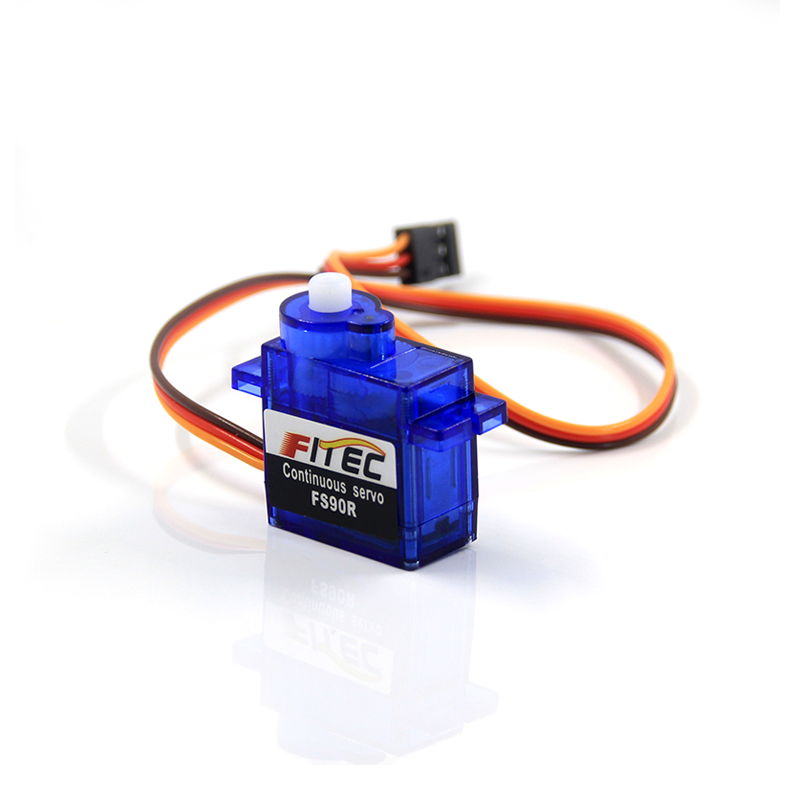

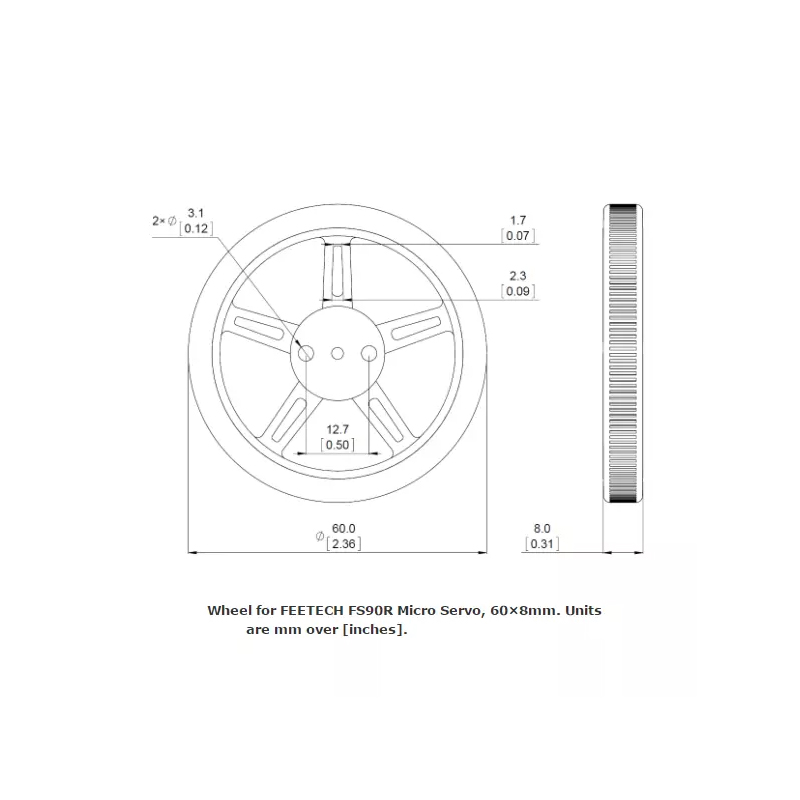

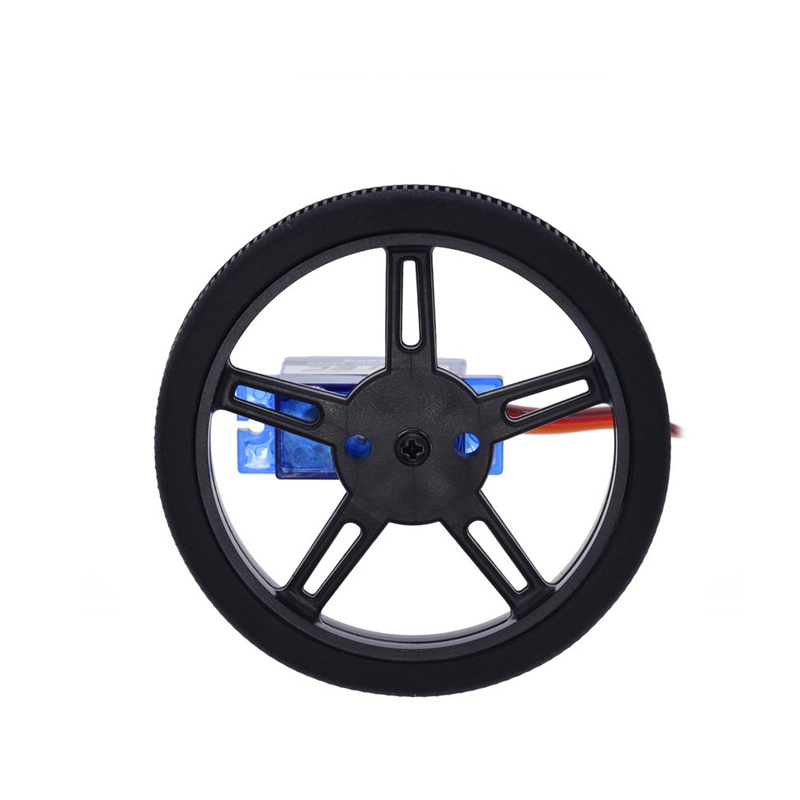

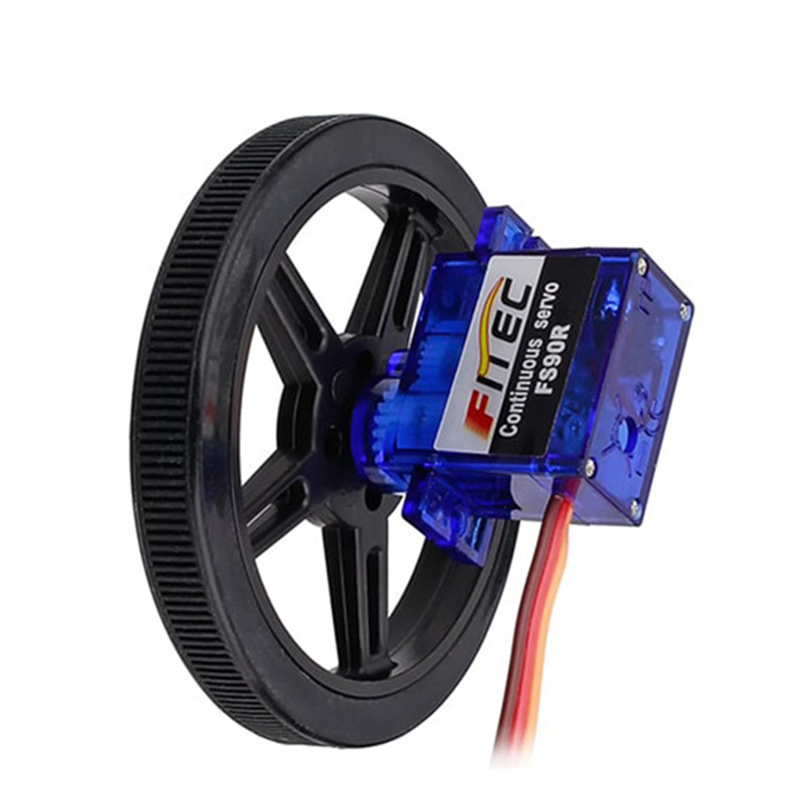

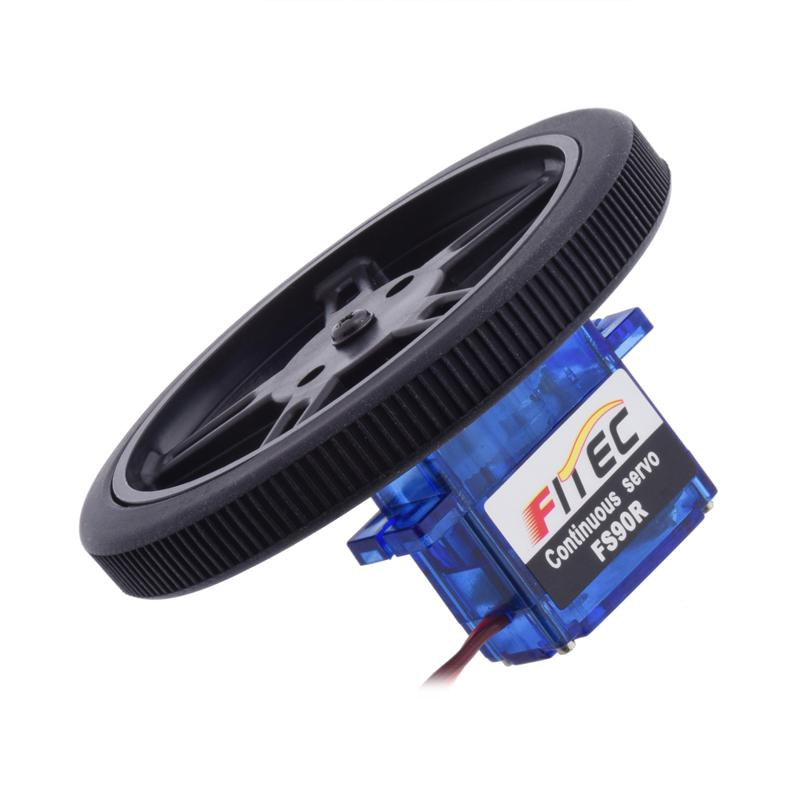

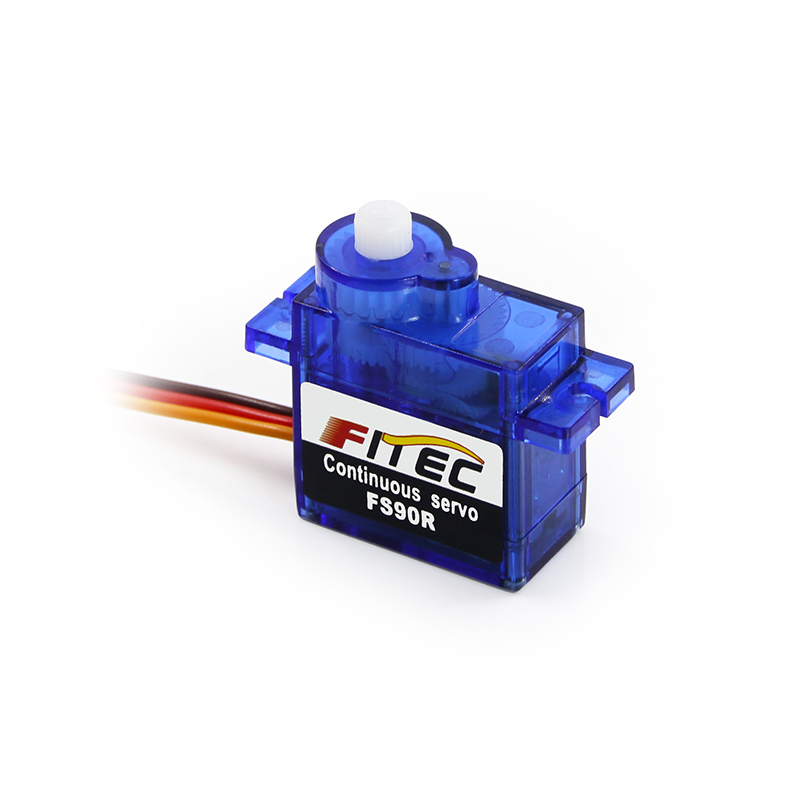

The FS90R is a micro-sized servo that has been built by FEETECH (formerly known as Fitec) specifically for continuous rotation. At 6 V, it has a maximum rotation speed of around 130 RPM (no-load) and can produce up to 21 oz-in (1.5 kg-cm) of torque. The servo can be controlled using a direct connection to a single microcontroller I/O line without any additional electronics, which makes it a great miniature actuator for beginner robotics projects; just throw on a pair of wheels and your robot is ready to roll!

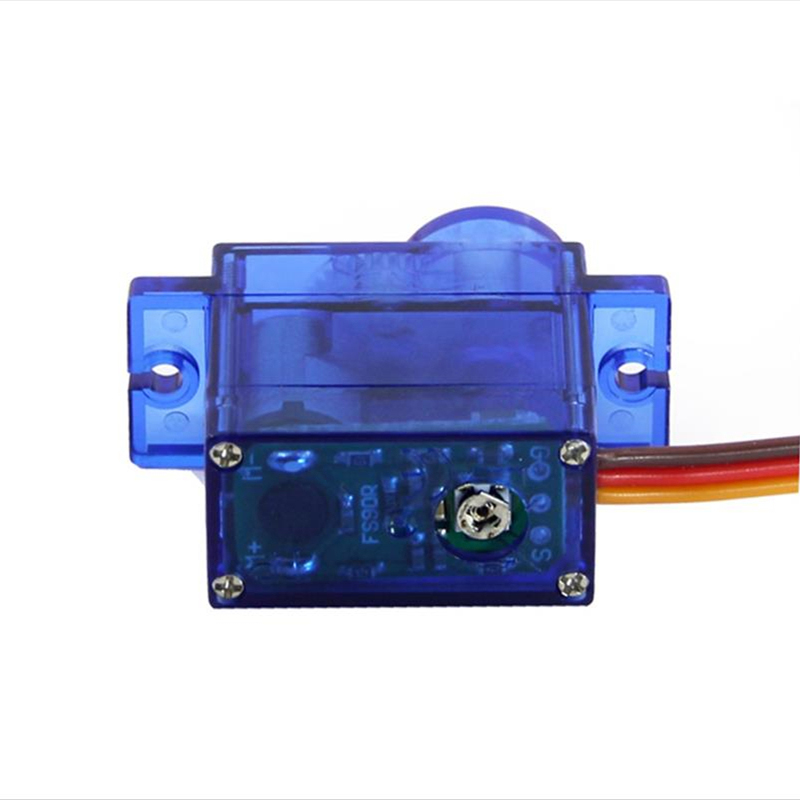

The FS90R continuous rotation servo converts standard RC servo position pulses into continuous rotation speed. The default rest point is 1.5 ms, but this can be adjusted by using a small screwdriver to turn the middle-point adjustment potentiometer. Pulse widths above the rest point result in counterclockwise rotation, with speed increasing as the pulse width increases; pulse widths below the rest point result in clockwise rotation, with speed increasing as the pulse width decreases.

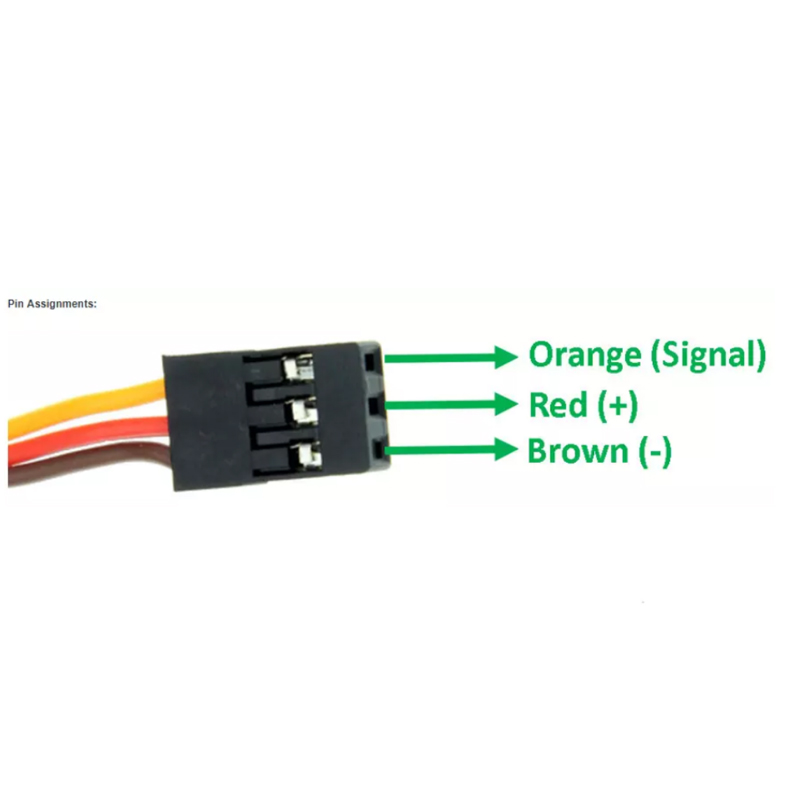

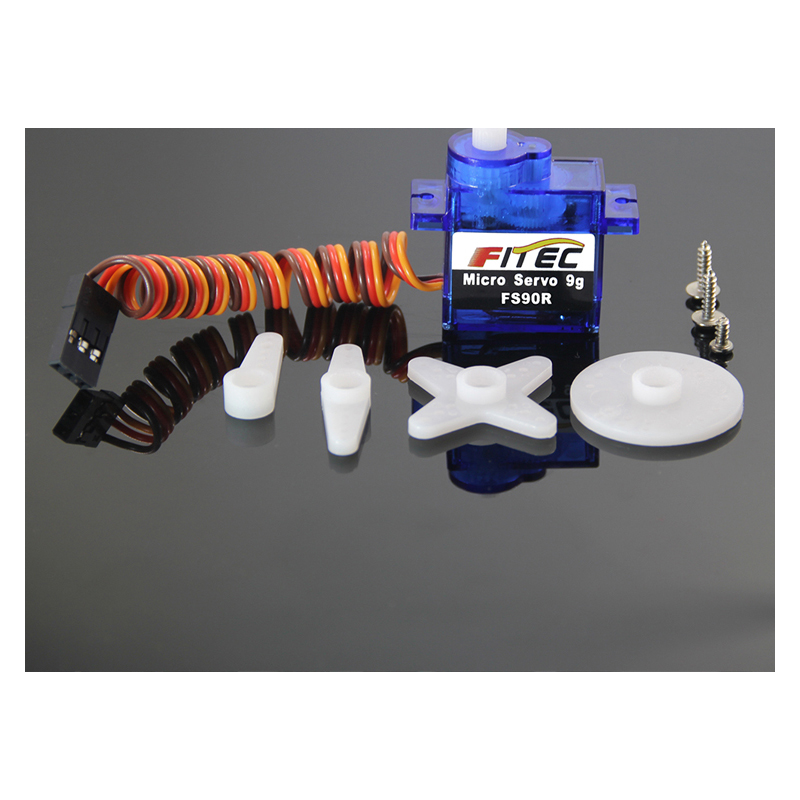

The servo has a 10″ (250 mm) lead that is terminated with a JR-style connector and includes additional servo horns and mounting hardware.
This robotics servo, which is a continuous rotation version of the FEETECH FS90, is compatible with our servo controllers. If you are looking for a similar servo that is capable of limited-range position control as opposed to continuous rotation speed control, consider the FS90, which has identical dimensions and uses the same motor, or the Power HD micro servo HD-1900A, which has almost the same weight, speed, and torque as the FS90.

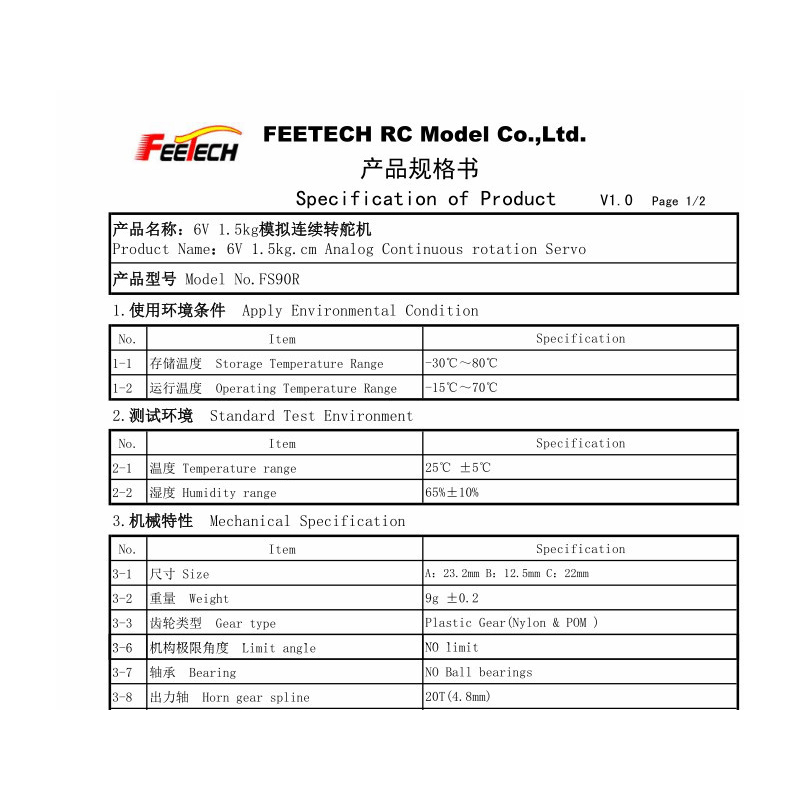

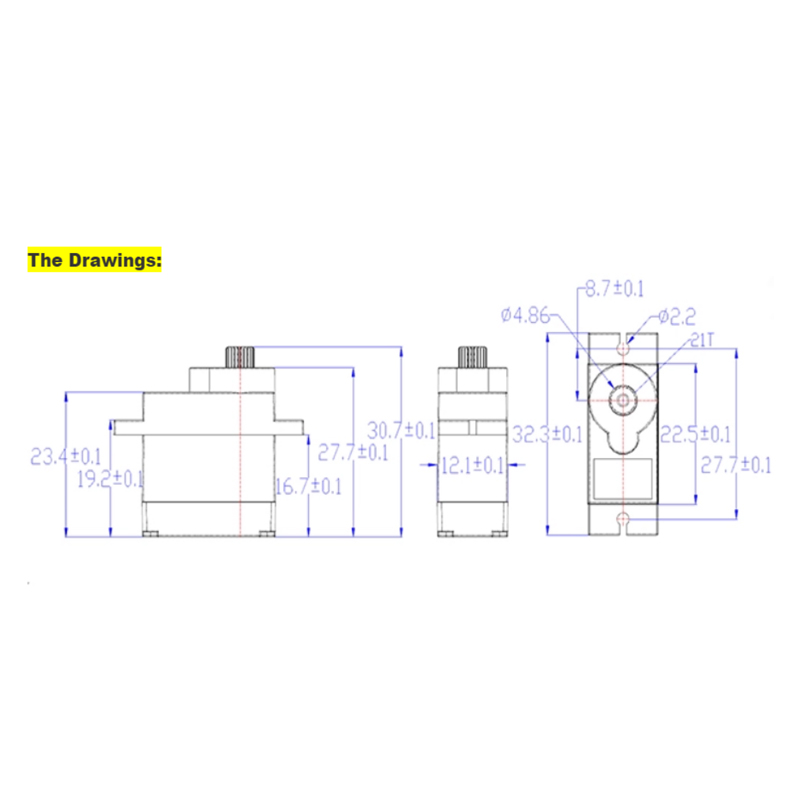

|Size:||22.5 × 12.1 × 23.4 mm|

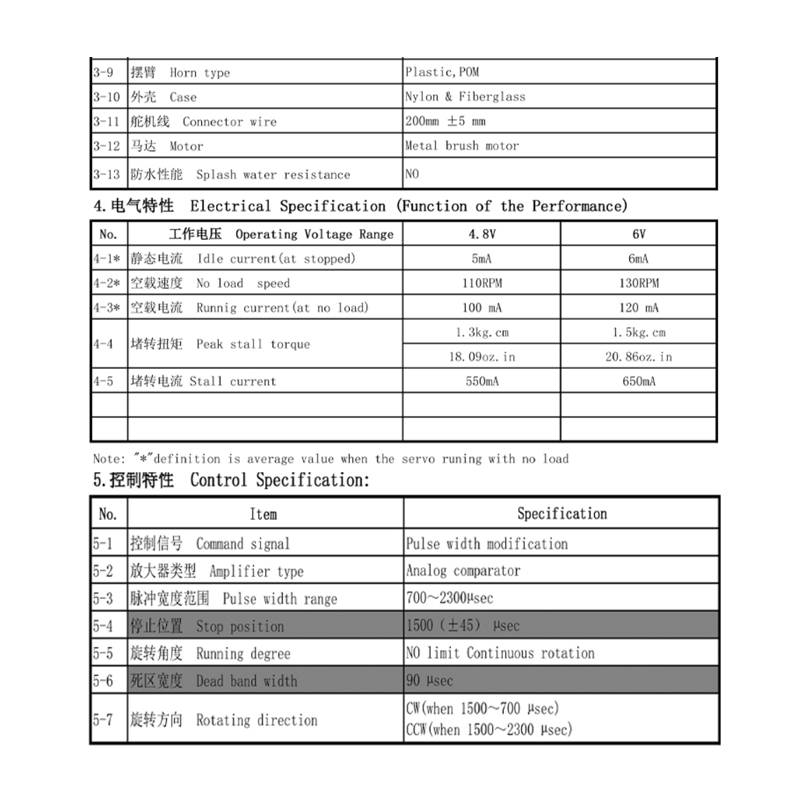

|No-load current @ 6V:||130 mA|
|Stall current @ 6V:||800 mA|
|Speed @ 6V:||130 rpm|
|Stall torque @ 6V:||21 oz·in|
|Speed @ 4.8V:||100 rpm|
|Stall torque @ 4.8V:||18 oz·in|
|Lead length:||10 in|
