Operating voltage: 4.8V~6.0V
Operating current: 200mA/60º
Operating speed: 0.12sec/60º at 4.8V; 0.10sec/60º at 6V
Stall torque: 1.5/1.8 kg.cm 20.8/24.9 oz.in (4.8V/6v)
Dead band: 1-2 uSec
Gear Material: Metal
Connector wire length: 25 cm
Connector type: Futaba/JR compatible

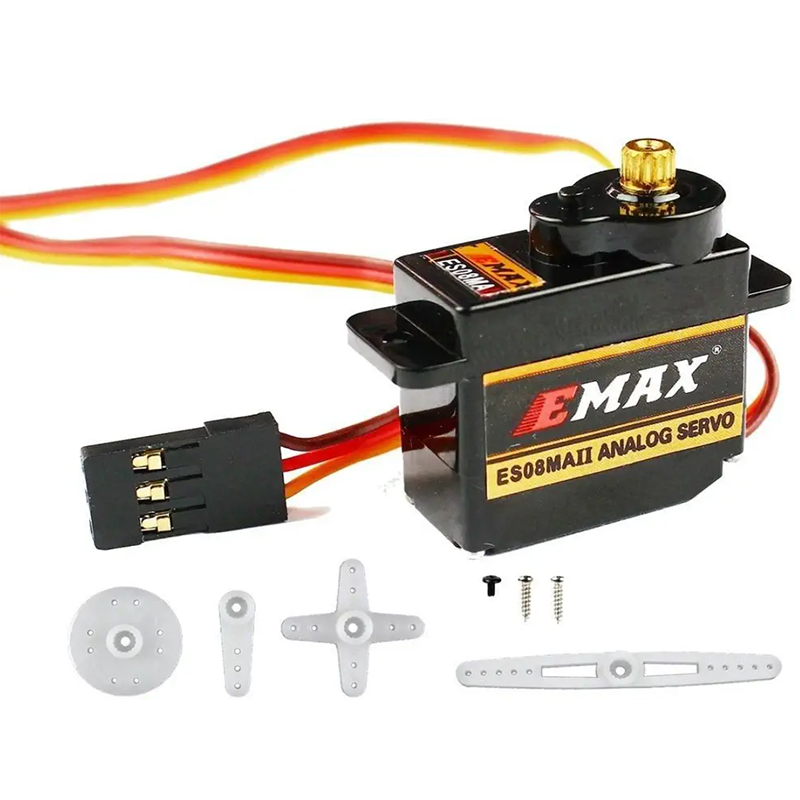

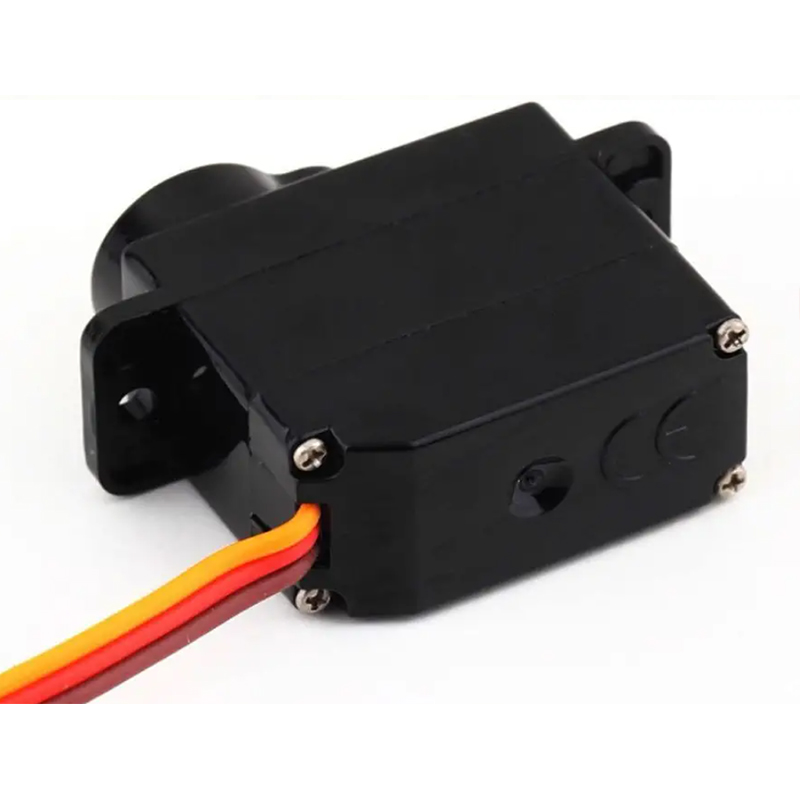

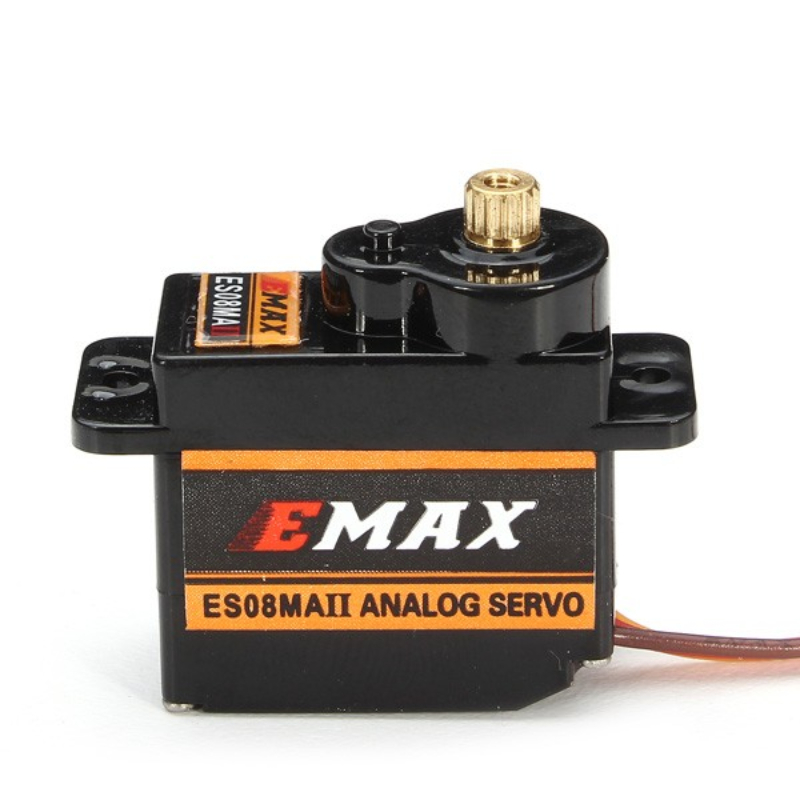

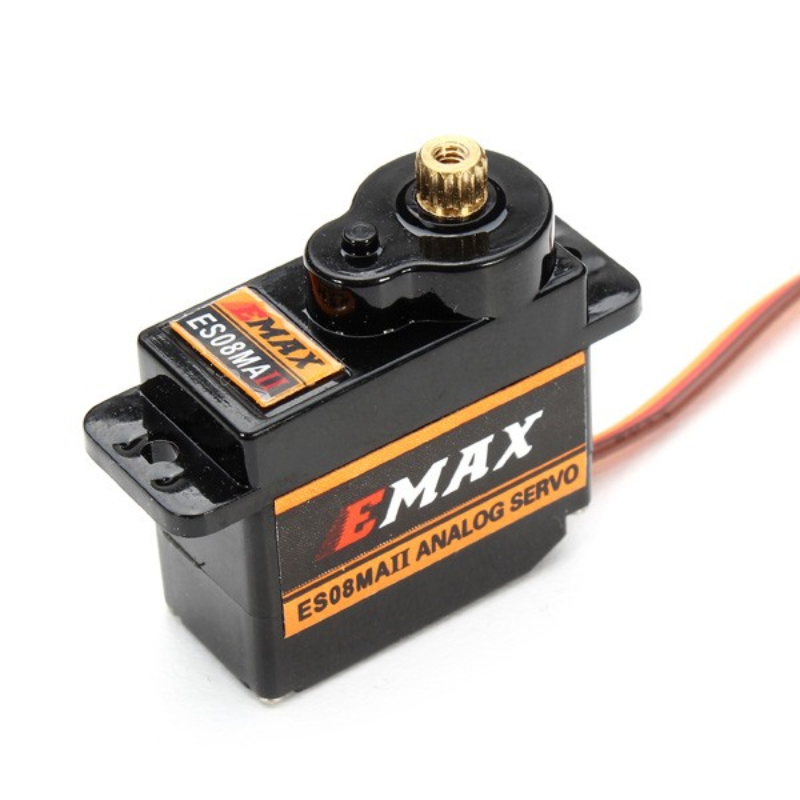

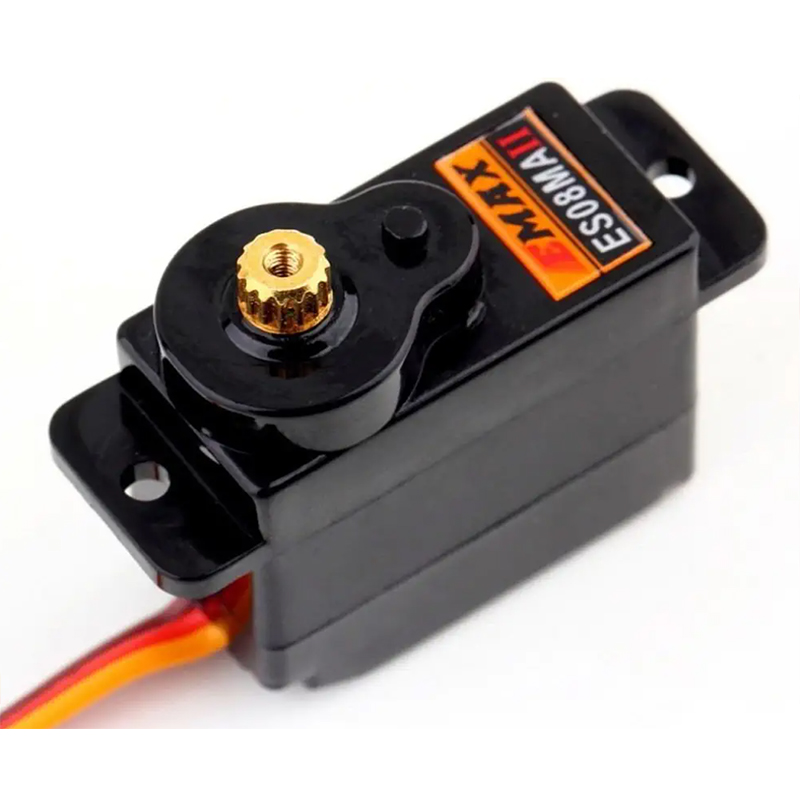

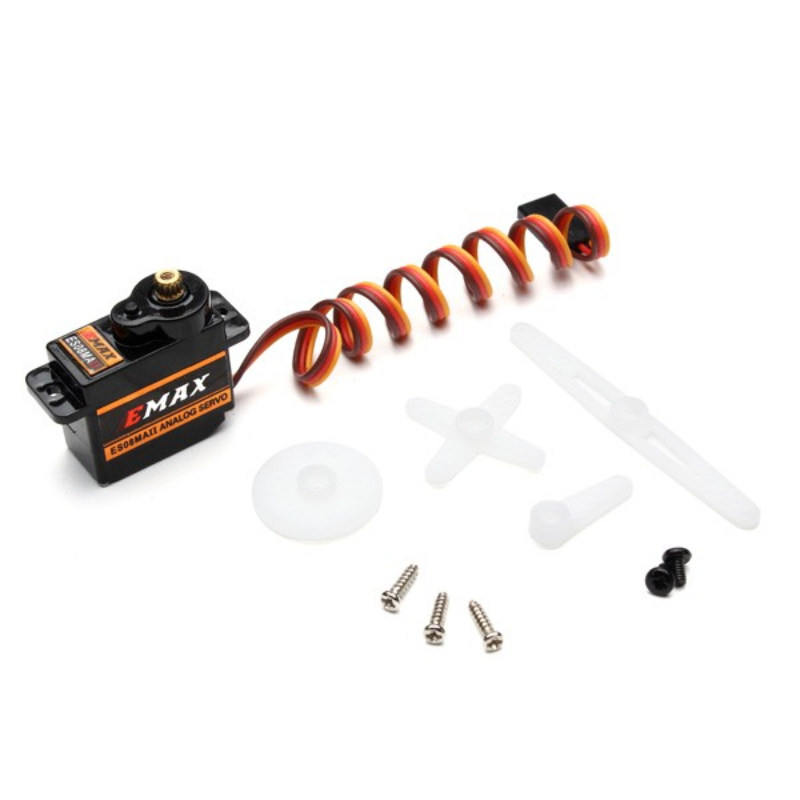

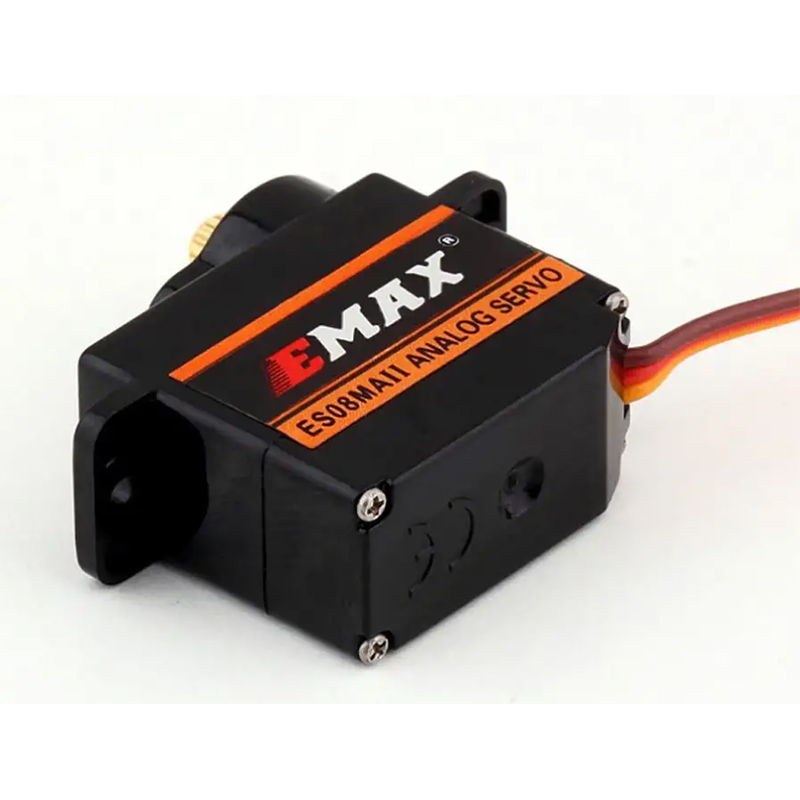

EMAX ES08MAII 12g/ 2.0kg Mini Metal Gear High-Speed 9g Servo Upgrade ES08MA
Weight | 0.012 kg |
---|---|
Dimensions | 3.2 × 2.4 × 1.15 cm |
Operating voltage | 4.8V~6.0V |
Operating current | 200mA/60º |
Operating speed | 0.12sec/60º at 4.8V; 0.10sec/60º at 6V |
Stall torque | 1.5/1.8 kg.cm 20.8/24.9 oz.in (4.8V/6v) |
Dead band | 1-2 uSec |
Gear Material | Metal |
Connector wire length | 25 cm |
Connector type | Futaba/JR compatible |
![](https://www.beemong.com/wp-content/uploads/2022/09/2022-09-14-11-17-0319.jpg)
![](https://www.beemong.com/wp-content/uploads/2022/09/2022-09-14-11-17-0519.jpg)
![](https://www.beemong.com/wp-content/uploads/2022/09/2022-09-14-11-17-0610.jpg)
![](https://www.beemong.com/wp-content/uploads/2022/09/2022-09-14-11-17-0897.jpg)
![](https://www.beemong.com/wp-content/uploads/2022/09/2022-09-14-11-17-0978.jpg)
![](https://www.beemong.com/wp-content/uploads/2022/09/2022-09-14-11-17-1192.jpg)
![](https://www.beemong.com/wp-content/uploads/2022/09/2022-09-14-11-17-1288.jpg)
Application Scope: Helicopters KT, fluttering, gliding, small robots, and other models
