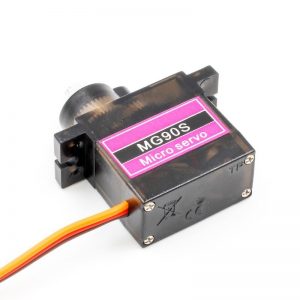

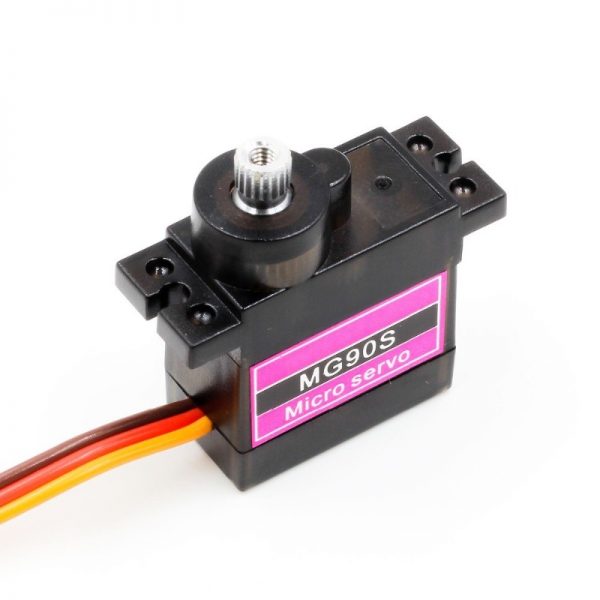

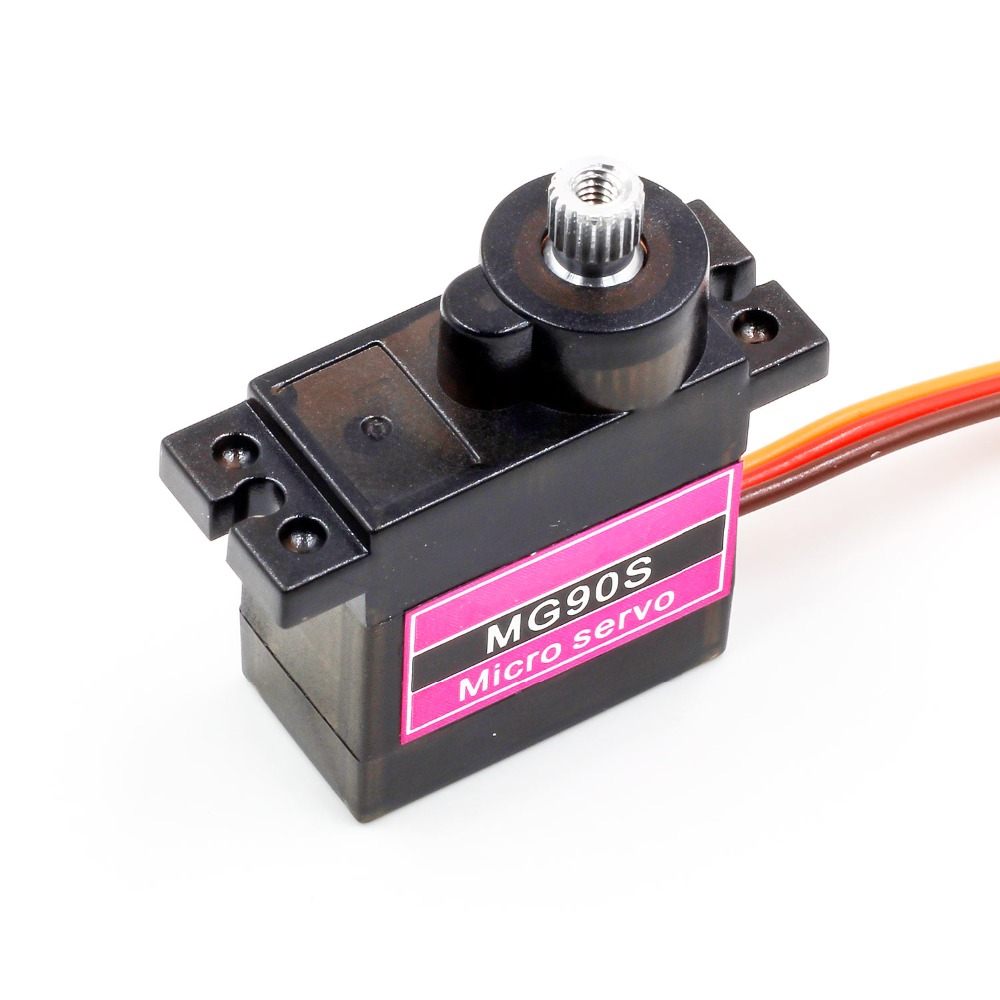

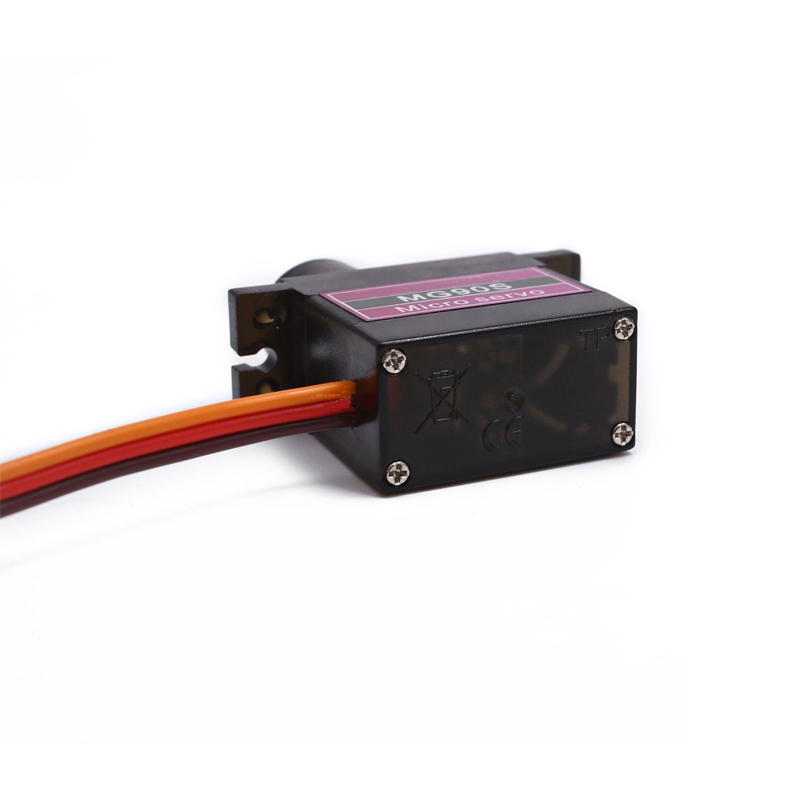

MG90 MG90S 180 degree

SKU: FA6029-1 Tag:

$1.06

Weight 0.0152 kg

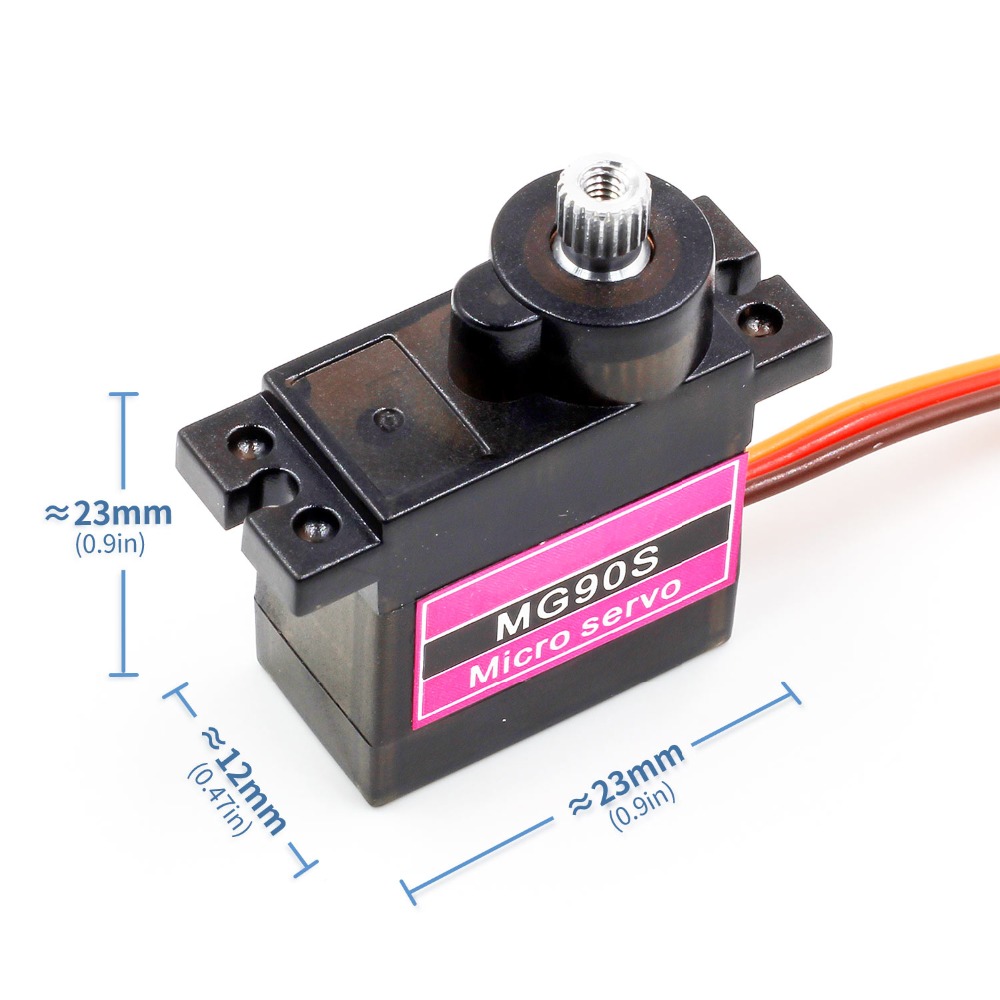

Dimensions 2.3 × 2.3 × 1.2 cm
Control angle

180 Degree, 90 degrees in each direction

Operating voltage

DC4.8V-6V

No-load speed

0.12 seconds@60 degrees

No-load current

90mA@6V

Stall torque

2.2kg.cm@6V

Stall current

860mA±10%

Quiescent Current

5mA-6mA

Control signal

Pulse width modification

Control system type

Analog controller

Midpoint position

1500usec

Pulse width range

500-2500usec

The deadband setting

5 μsec

Plug Type

JR, FUTABA General

Servo wire

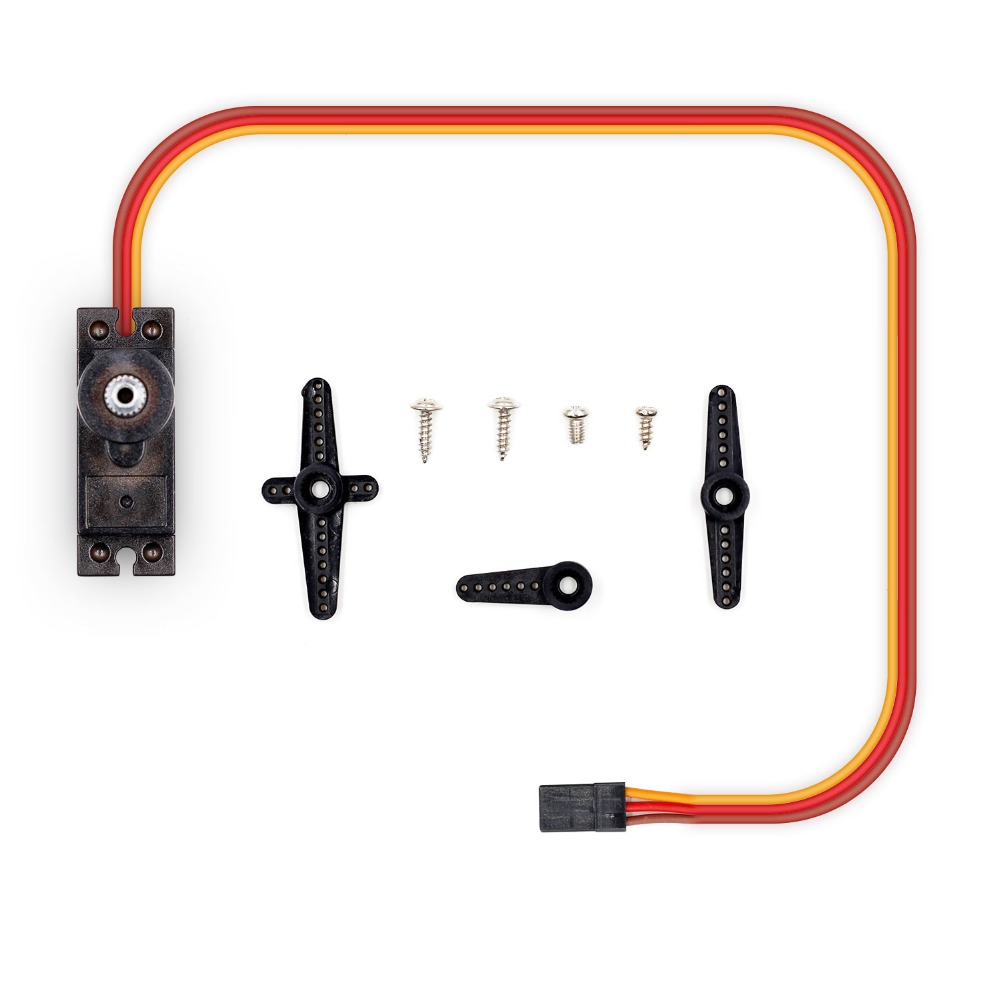

3Pin wire, around 20cm

5000 in stock

Product Description

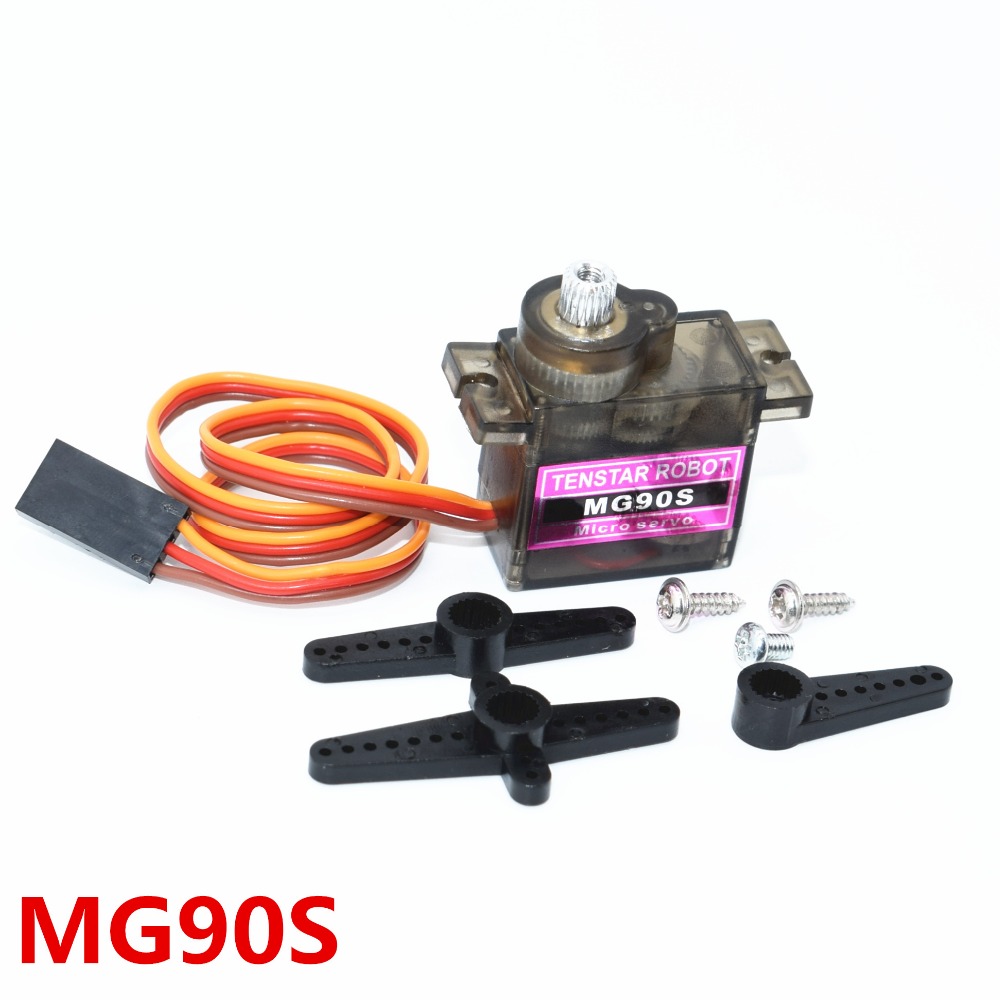

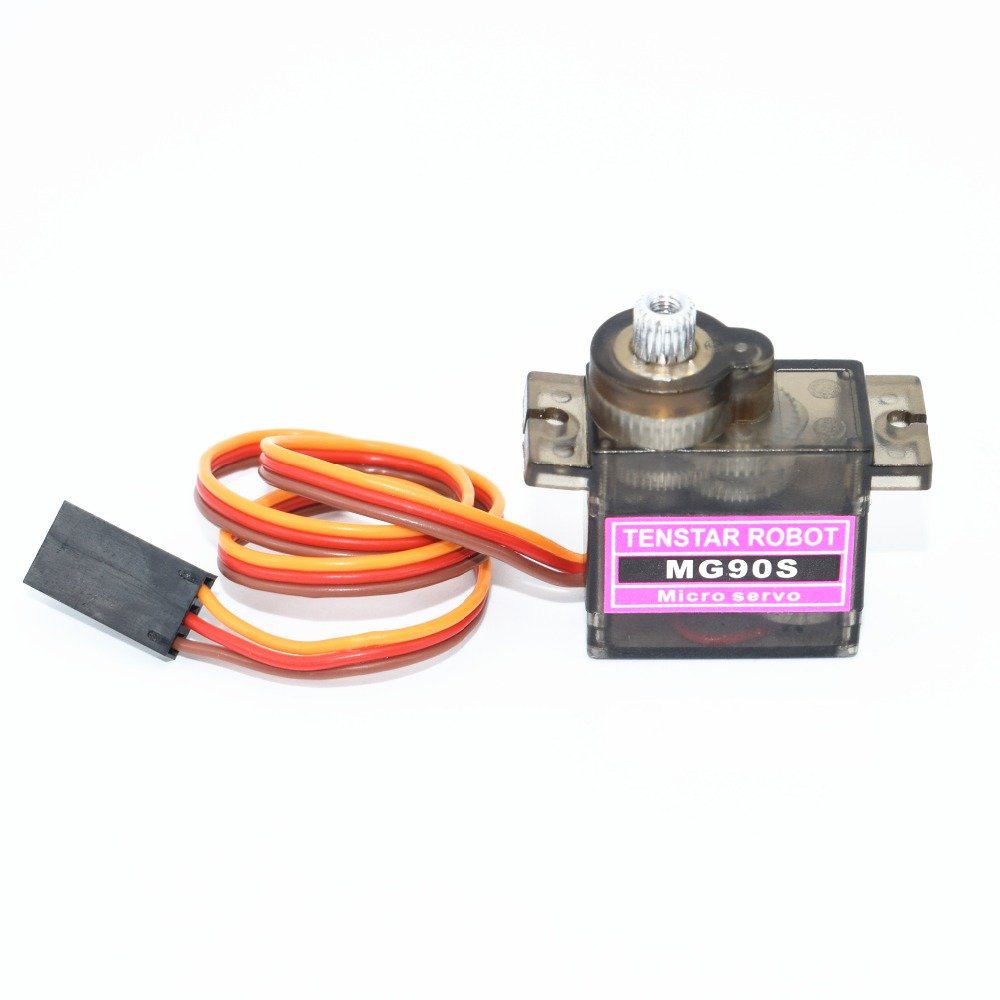

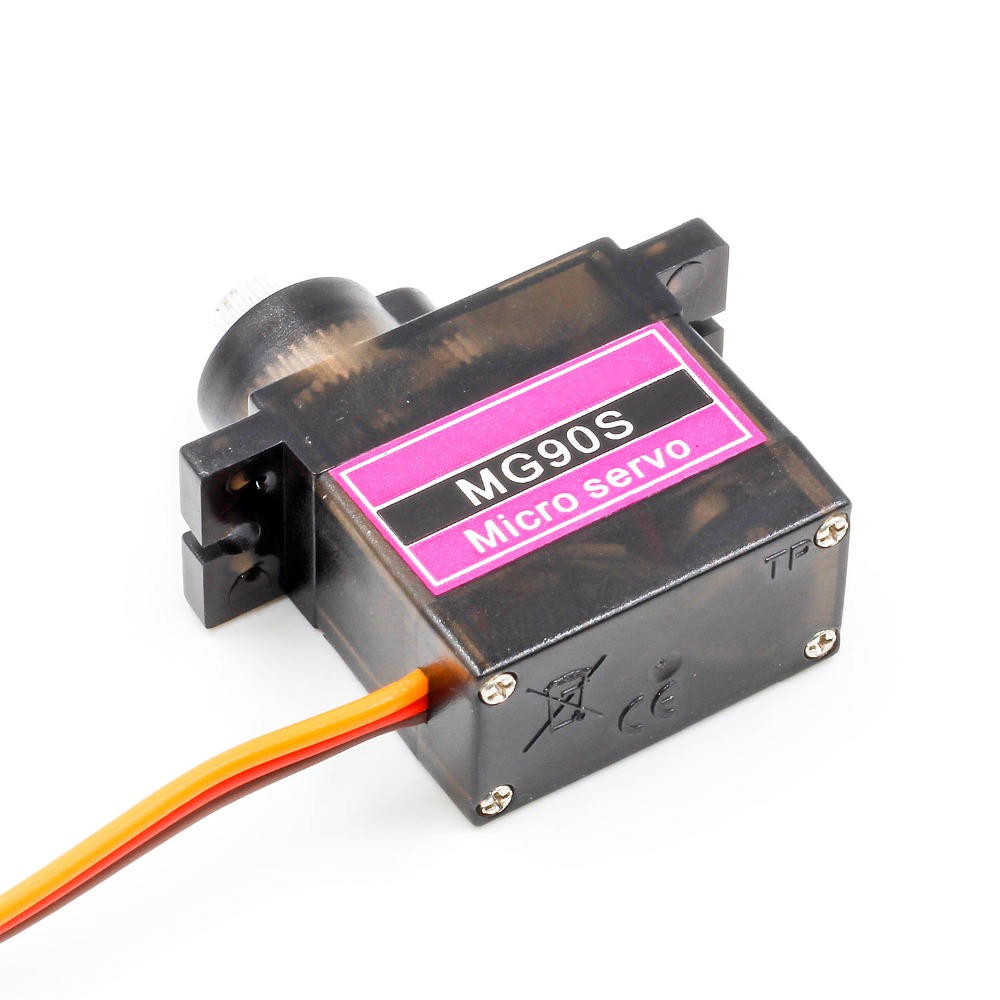

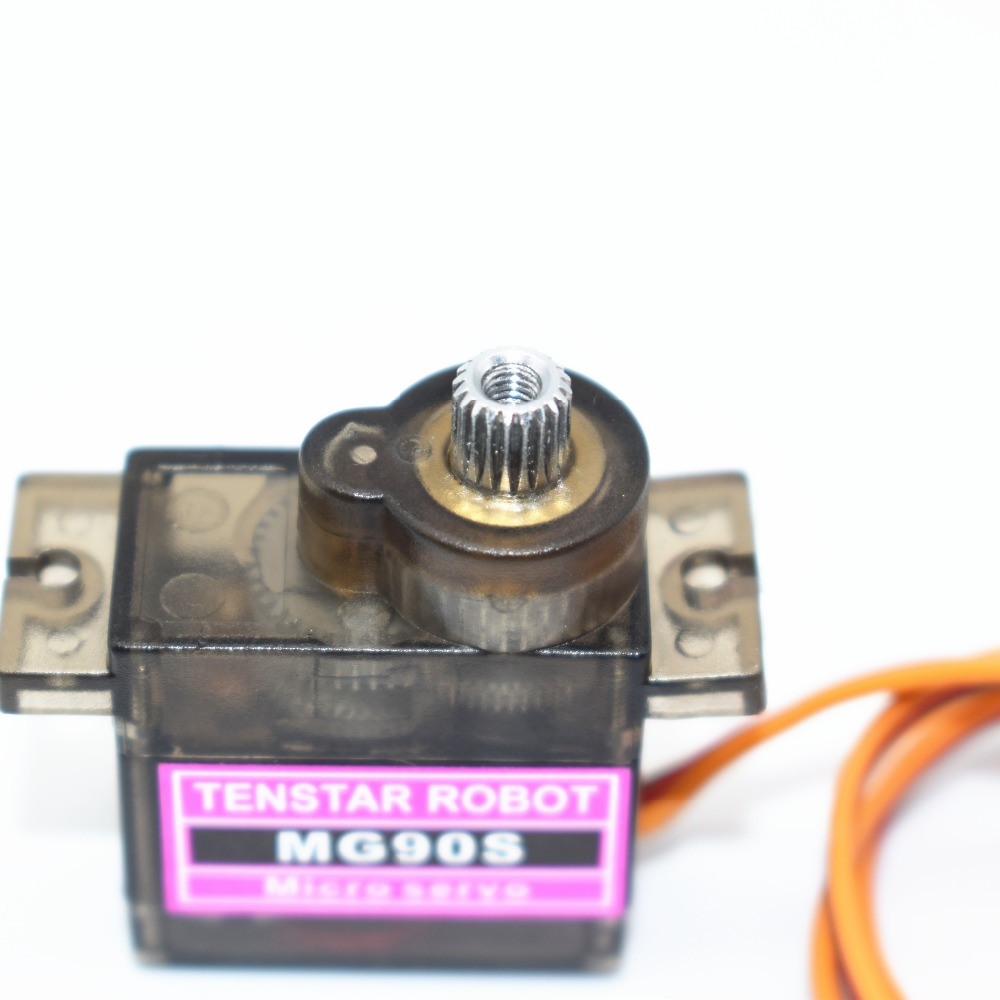

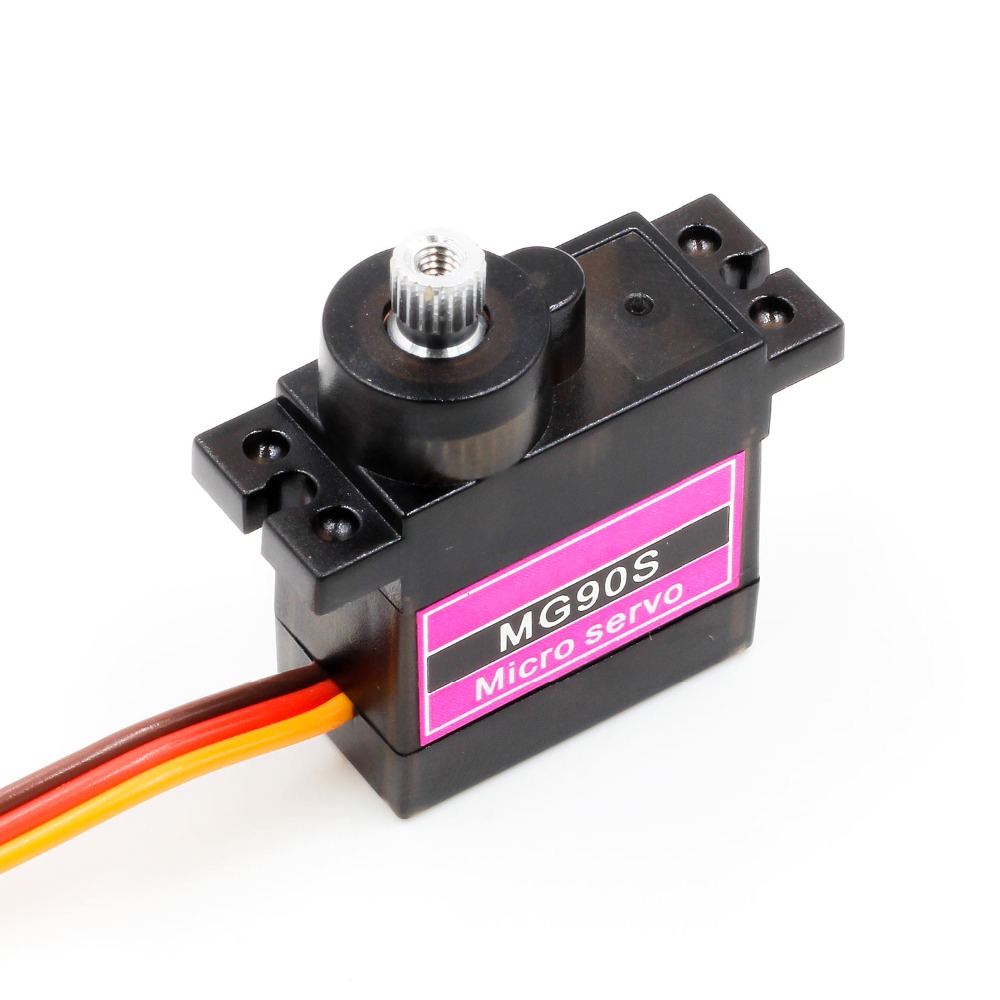

  • 1.MG90S 9G Micro Servo Motor, upgrade version based on SG90 servo, is a good choice for Smart cars, Spider Robots, Robotic Arms, RC Models, Aircrafts, not recommended in large helicopter and fixed wings models.
  • 2.Full metal gear, low noise, small servo in size around 32*32mm in light weight 15.2g/pc, with Mechanical Limit, control angle is more accurate compared with the servo without limit.
  • 3. Control system: PWM(Pulse width modification), sensitive response, Pulse width range is around 500~2500μsec.

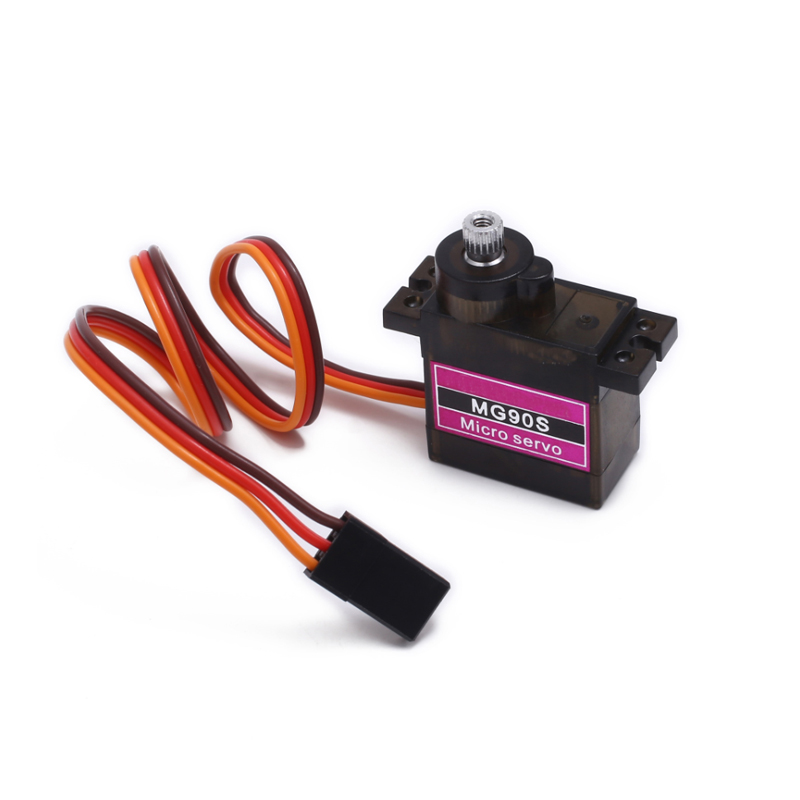

  • 4. Plug Type: JR, FUTABA General interfacen (Red wire connect to positive, Brown wire connect to negative, Yellow wire connect to signal).

Note: Please use standard PWM control signal, cycle time is 20ms, high level 0.5-2.5ms
