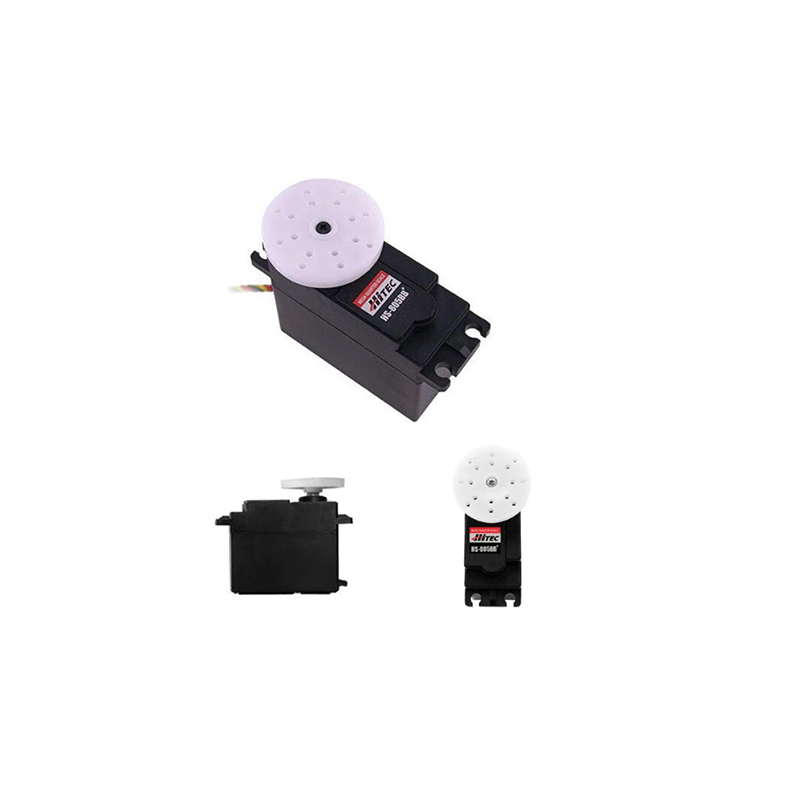

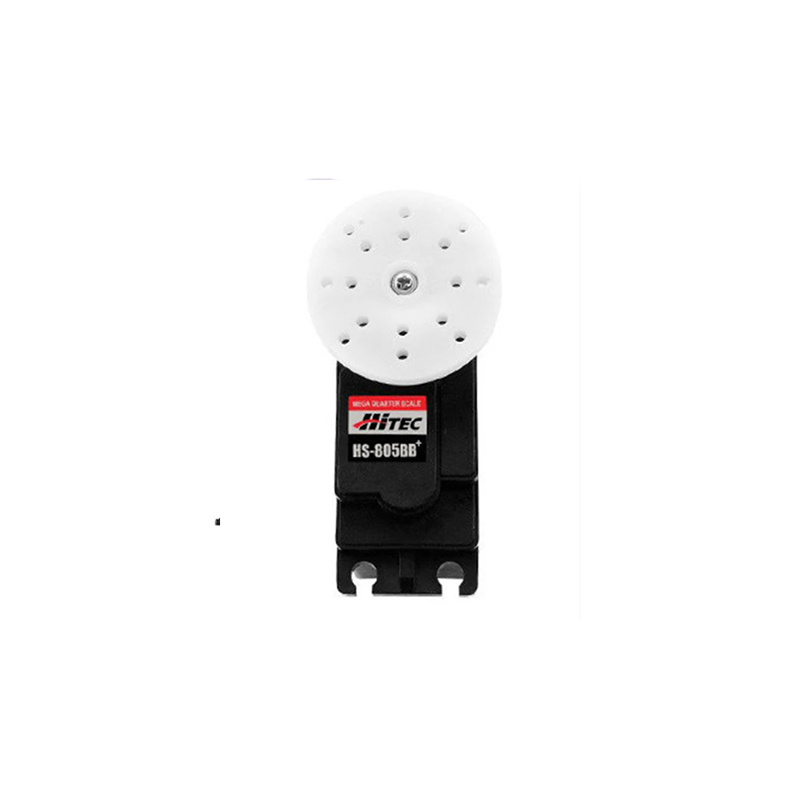

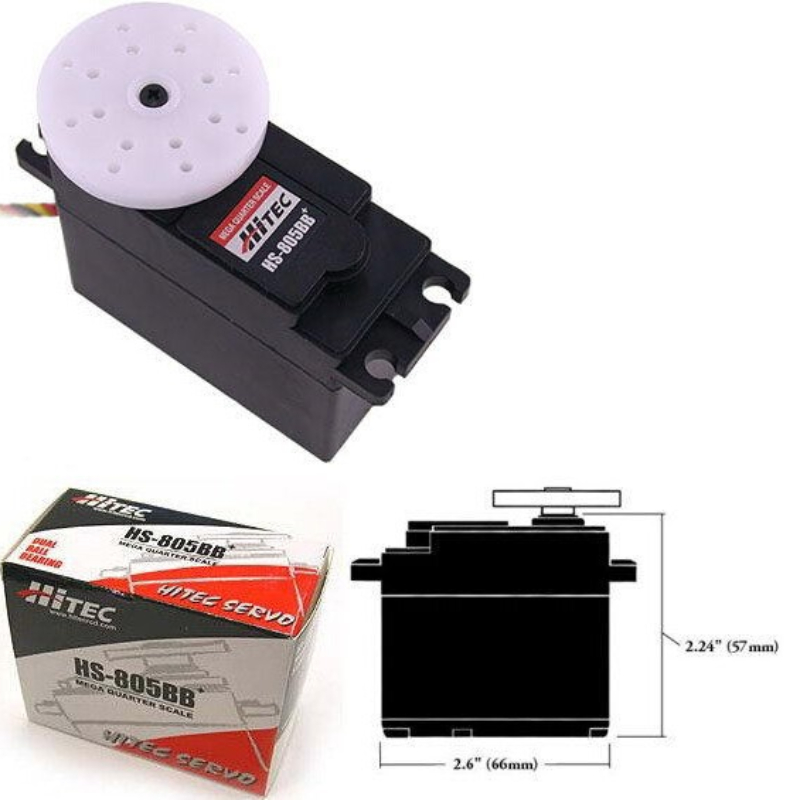

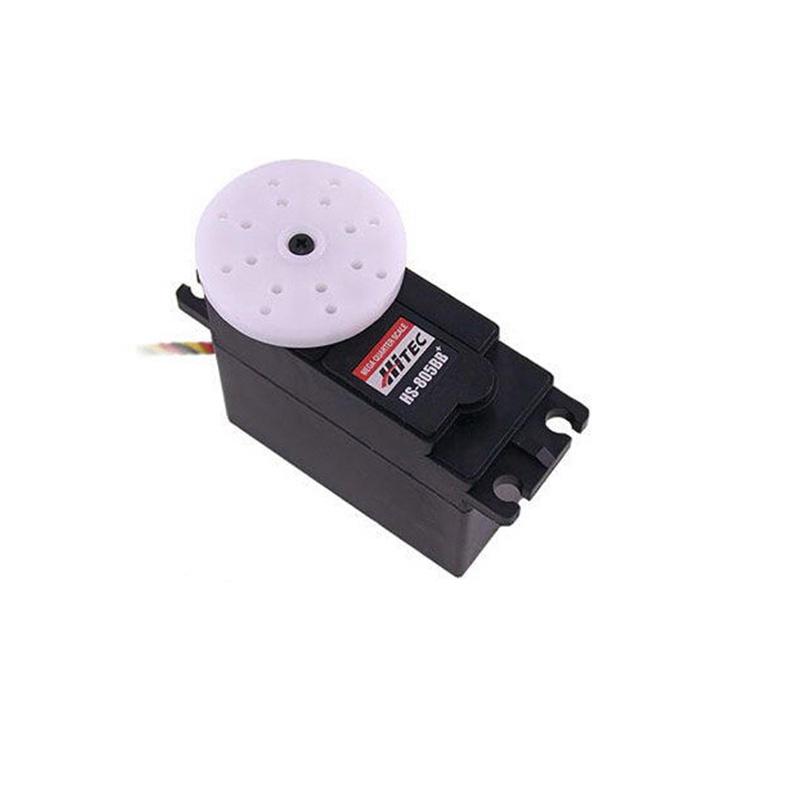

Hitec HS-805bb 152g /24.7kg Analog Servo Drop

SKU: FA6040-1 Tag:
Weight 153 kg
Dimensions 65.79 × 57.4 × 29.97 cm
Motor Type

3 hole

Bearing Type

Dual Ball Bearing

Speed(4.8V/6.0V)

0.19/0.14

.Torque oz/in (4.8V/6.0V)

275/343

.Torque kg/cm (4.8V/6.0V)

19.8/24.7

Description
Known as the monster servo the HS-805BB uses a heavy duty nylon gear train and a strong 10mm, 15 tooth output shaft to generate 343in./oz. of torque that will easily move just about any large plane, car, truck or boat!
This servo has a higher current drain (800mah) than a standard size servo.It is highly recommended that you use a separate, high capacity receiver battery (at least 1200mah) to operate this servo.If used in conjuction with an electric powered vehicle, do not utilize the BEC.The excessive power drain may damage the receiver or the ESC.



Parameters

Product Mode: HS-805BB

Motor Type: 3 hole

Bearing Type:Dual Ball Bearing

Speed(4.8V/6.0V):0.19/0.14

.Torque oz/in (4.8V/6.0V):275/343

.Torque kg/cm (4.8V/6.0V):19.8/24.7

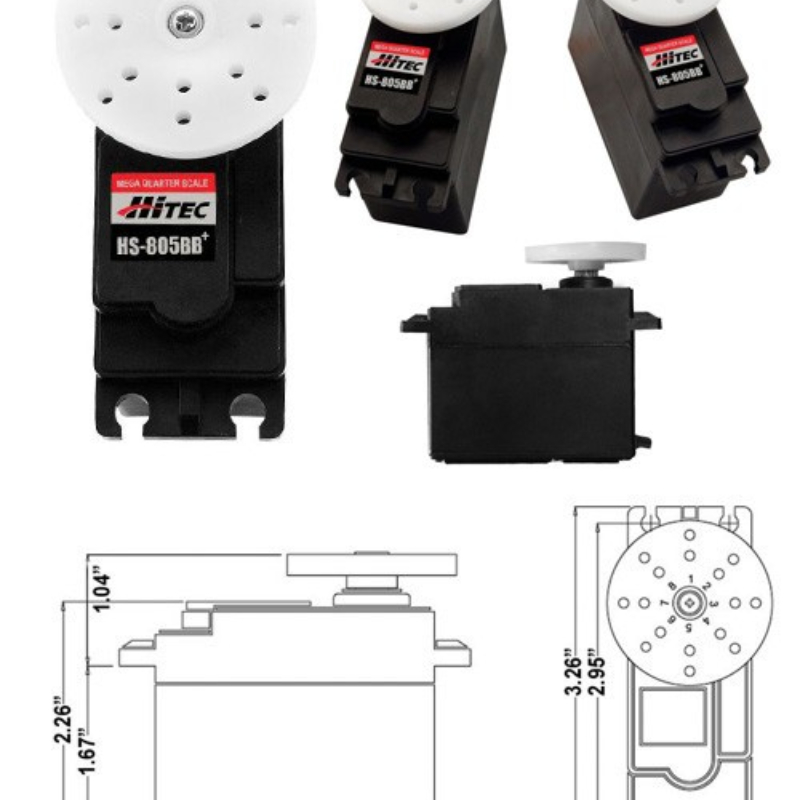

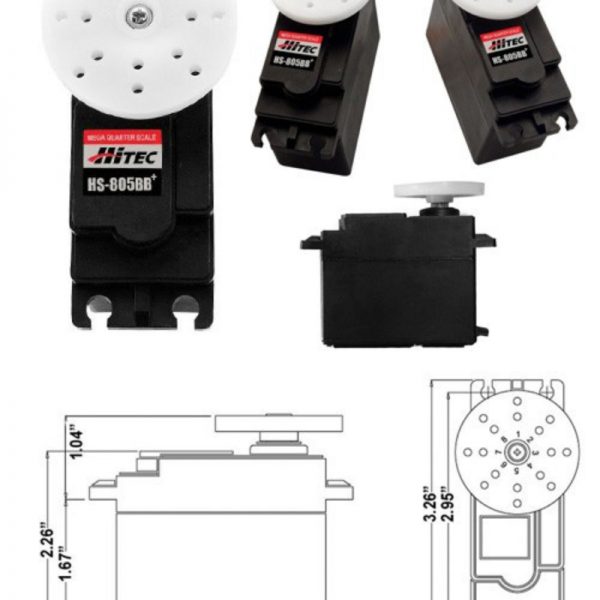

Size in Inches:2.59*1.18*2.26

Size in Millimeters:65.79*29.97*57.40

Weight ounces:5.4

Weight grams:153.09

This servo has a higher current drain (800mah) than a standard size servo.It is highly recommended that you use a separate, high capacity receiver battery (at least 1200mah) to operate this servo.If used in conjuction with an electric powered vehicle, do not utilize the BEC.The excessive power drain may damage the receiver or the ESC.
