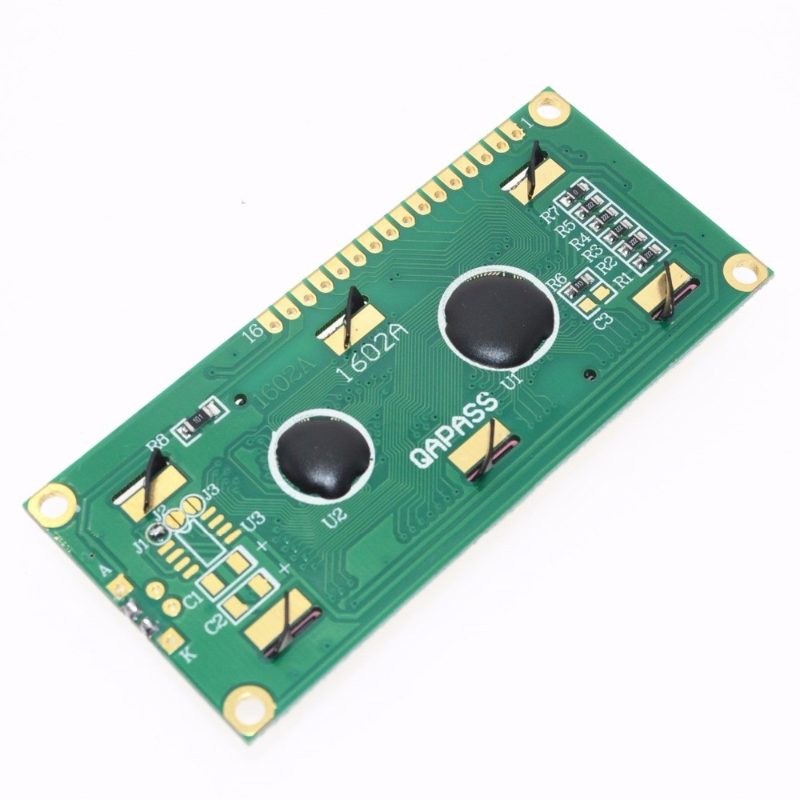

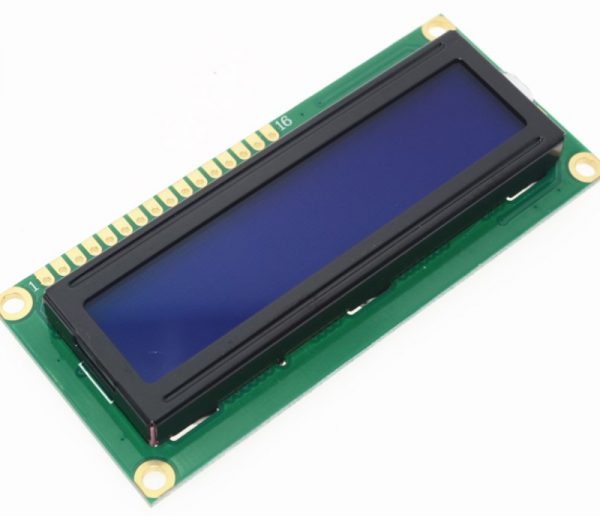

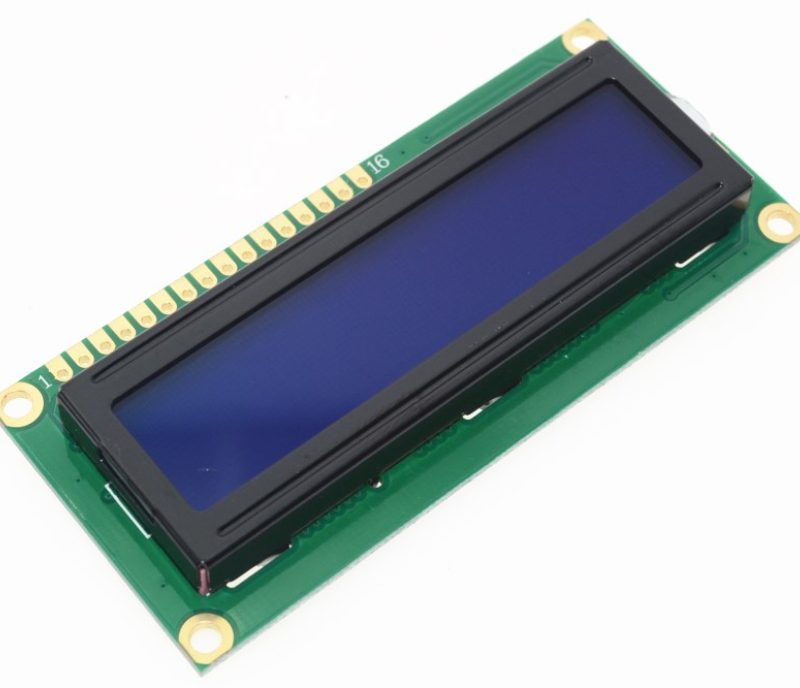

LCD1602 Blue Backlight (Model C)

SKU: FA4001-1 Tag:

$0.91

Weight 0.037 kg
Dimensions 8 × 3.6 × 1.25 cm
DRIVER IC

KS0066 (compatible with HD44780)

INTERFACE

Parallel

BACKLIGHT

White

CHARACTER SET

ASCII

500 in stock

Features

DISPLAY CONSTRUCTION 16 Characters * 2 Lines
DISPLAY MODE TN/STN
DISPLAY TYPE Positive Transflective
BACKLIGHT LED
VIEWING DIRECTION 6 o’clock
OPERATING TEMPERATURE Indoor
DRIVING VOLTAGE Single power
DRIVING METHOD 1/16 duty,1/5 bias
TYPE COB (Chip On Board)
NUMBER OF DATA LINE 8-bit parallel
CONNECTOR Pin / ZEBRA

Key Parameters

DRIVER IC KS0066 (compatible with HD44780)
INTERFACE Parallel
BACKLIGHT blue
CHARACTER COLOR White
CHARACTER SET ASCII
DIMENSION 80 * 36 * 12.5

Interface

PIN NO. SYMBOL DESCRIPTION FUNCTION
1 VSS Ground 0V (GND)
2 VCC Power Supply For Logic Circuit +5V
3 VEE LCD Contrast Adjustment
4 RS Instruction/Data Register Selection RS = 0 : Instruction Register
RS = 1 : Data Register
5 R/W Read/Write Selection R/W = 0 : Register Write
R/W = 1 : Register Read
6 E Enable Signal
7 DB0 Data Input/Output Lines 8 BIT: DB0-DB7
8 DB1
9 DB2
10 DB3
11 DB4
12 DB5
13 DB6
14 DB7
15 LED+ Supply Voltage For LED+ +5V
16 LED- Supply Voltage For LED- 0V

External Dimension

LCD1602 external dimension
