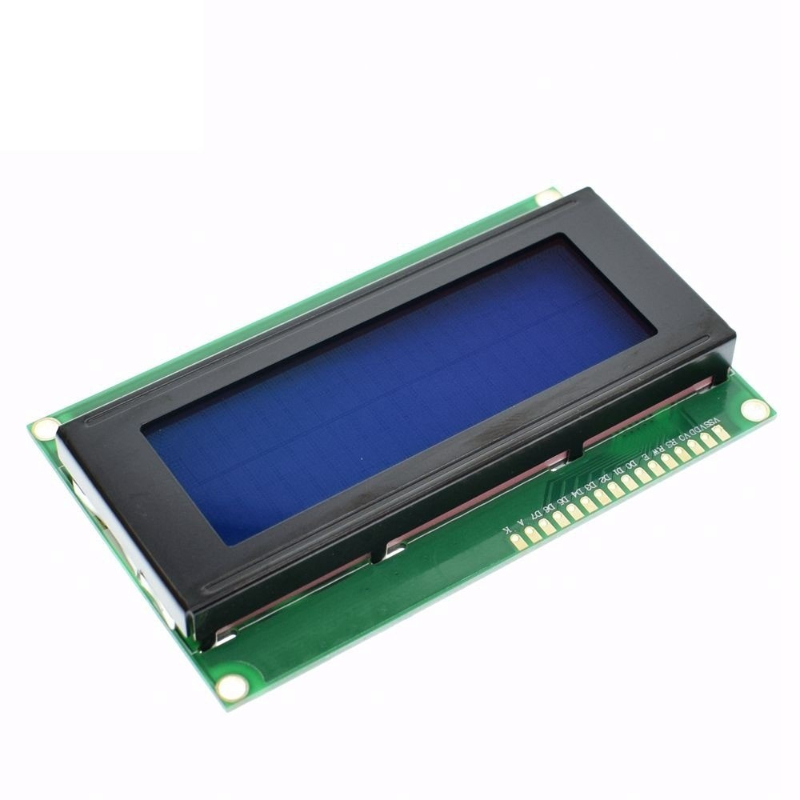

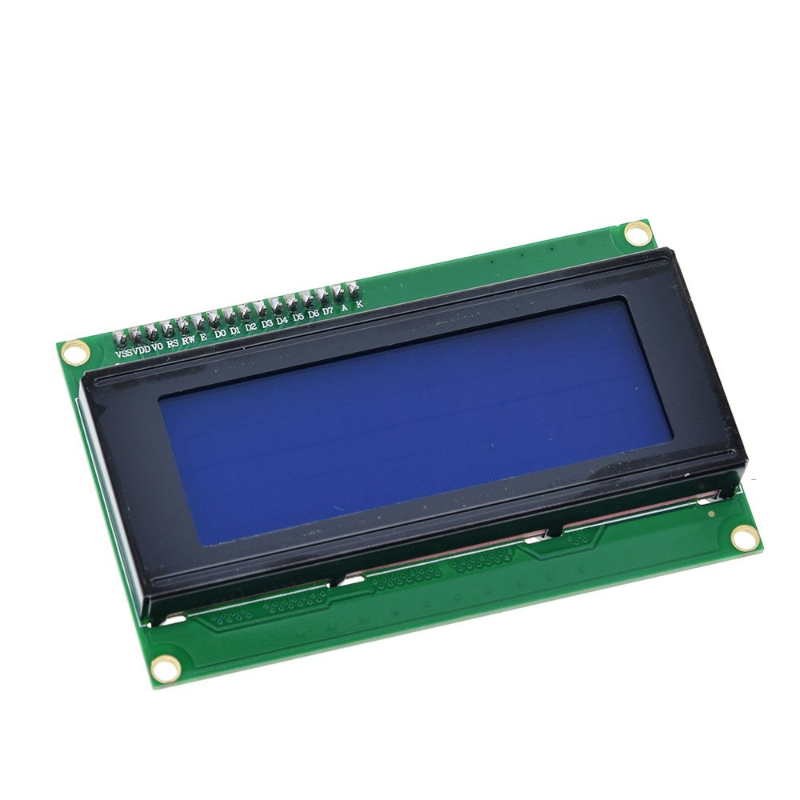

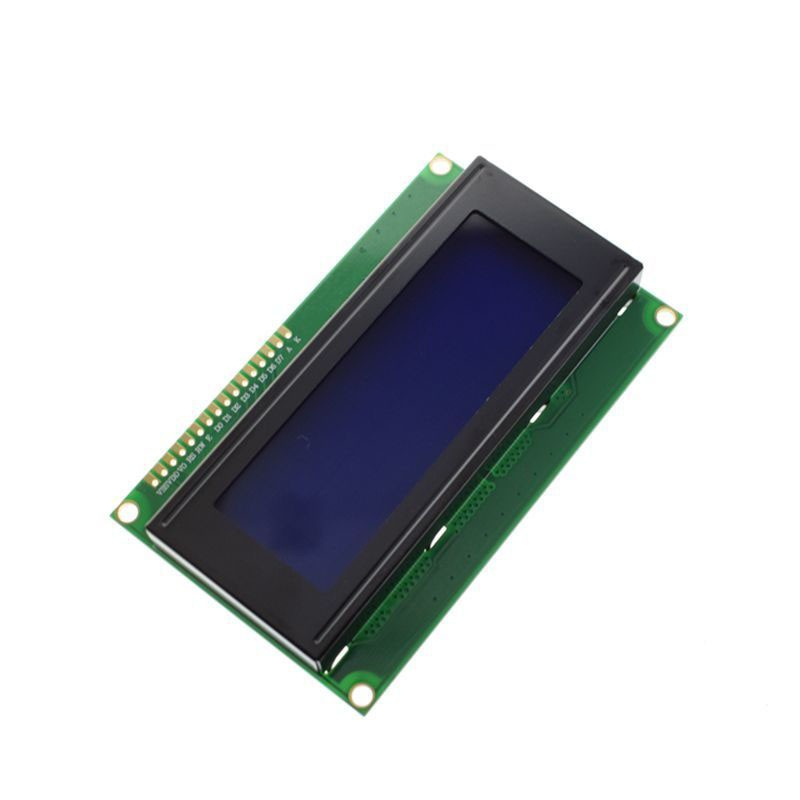

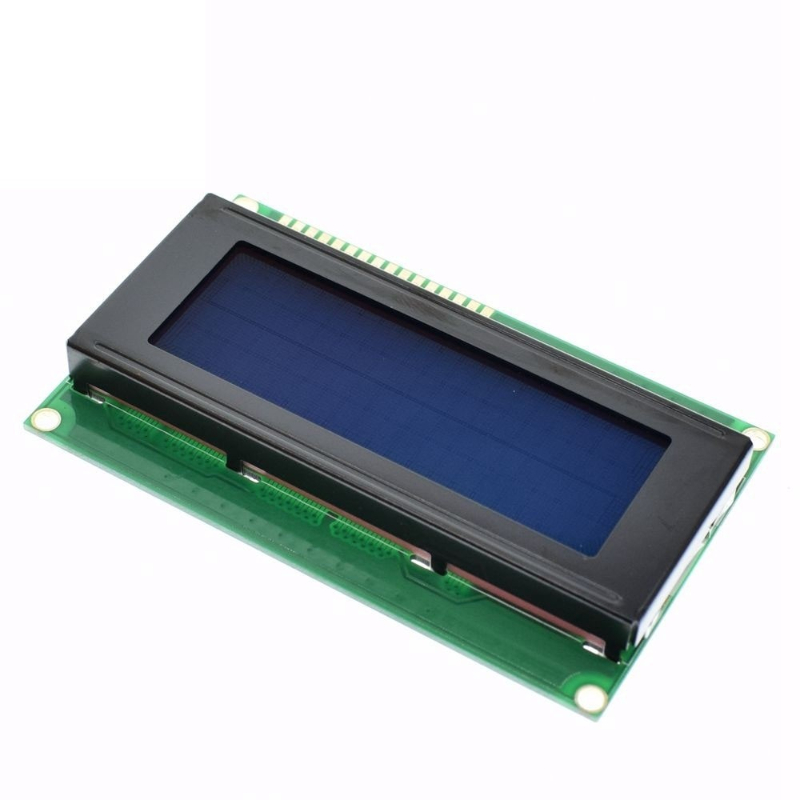

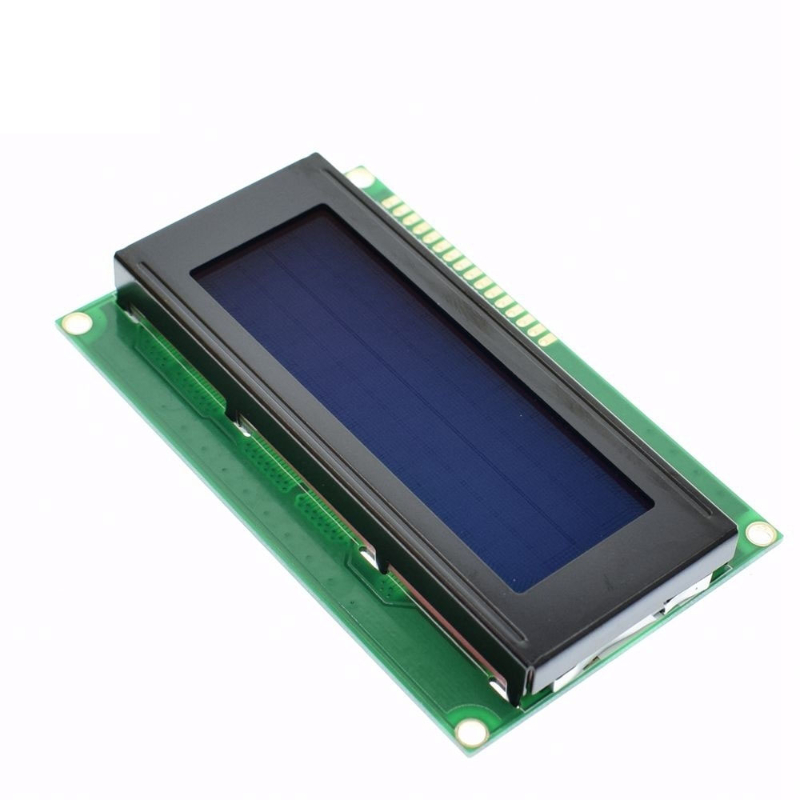

LCD2004 Blue Backlight

SKU: FA4005 Tag:

$2.54

Weight 0.064 kg
Dimensions 9.8 × 6 × 1.35 cm
DISPLAY CONSTRUCTION

20 Characters * 4 Lines

DISPLAY MODE

TN/STN

DISPLAY TYPE

Positive Transflective

BACKLIGHT

LED(B/5.0V)

VIEWING DIRECTION

6 o'clock

OPERATING TEMPERATURE

Indoor

DRIVING VOLTAGE

Single power

DRIVING METHOD

1/16 duty,1/5 bias

TYPE

COB (Chip On Board)

NUMBER OF DATA LINE

8-bit parallel

CONNECTOR

Pin / ZEBRA

500 in stock

Features

DISPLAY CONSTRUCTION 20 Characters * 4 Lines
DISPLAY MODE TN/STN
DISPLAY TYPE Positive Transflective
BACKLIGHT LED(B/5.0V)
VIEWING DIRECTION 6 o’clock
OPERATING TEMPERATURE Indoor
DRIVING VOLTAGE Single power
DRIVING METHOD 1/16 duty,1/5 bias

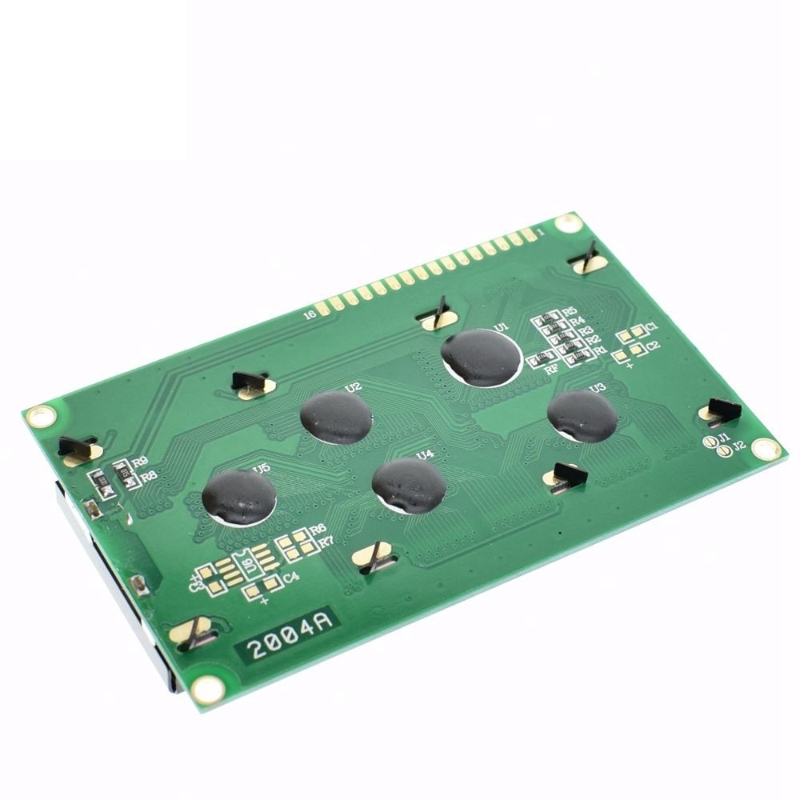

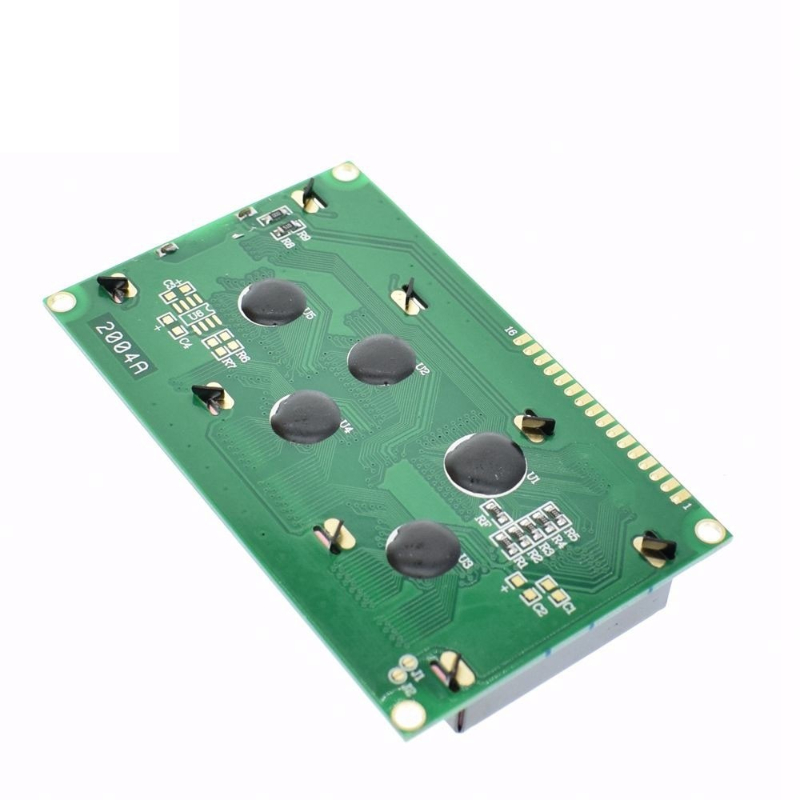

TYPE COB (Chip On Board)
NUMBER OF DATA LINE 8-bit parallel
CONNECTOR Pin / ZEBRA

Key Parameters

DRIVER IC KS0066 (compatible with HD44780)
INTERFACE Parallel
BACKLIGHT Blue
CHARACTER COLOR White
CHARACTER SET ASCII
DIMENSION 98 * 60 * 13.5

Interface

PIN NO. SYMBOL DESCRIPTION FUNCTION
1 VSS Ground 0V (GND)
2 VCC Power Supply For Logic Circuit +5V
3 VEE LCD Contrast Adjustment
4 RS Instruction/Data Register Selection RS = 0 : Instruction Register
RS = 1 : Data Register
5 R/W Read/Write Selection R/W = 0 : Register Write
R/W = 1 : Register Read
6 E Enable Signal
7 DB0 Data Input/Output Lines 8 BIT: DB0-DB7
8 DB1
9 DB2
10 DB3
11 DB4
12 DB5
13 DB6
14 DB7
15 LED+ Supply Voltage For LED+ +5V
16 LED- Supply Voltage For LED- 0V

External Dimension

LCD2004 external dimension

Datasheet Download

LCD2004

HD44780

– Arduino and Mobiflight Compatible

– Ideal for MCP / FCU / Radio Panel or other Sim panels
