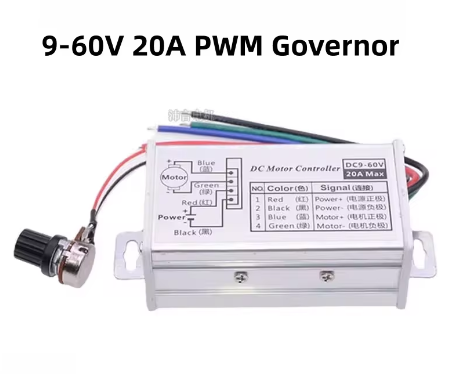

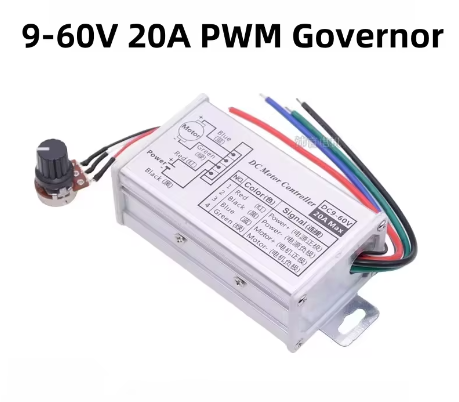

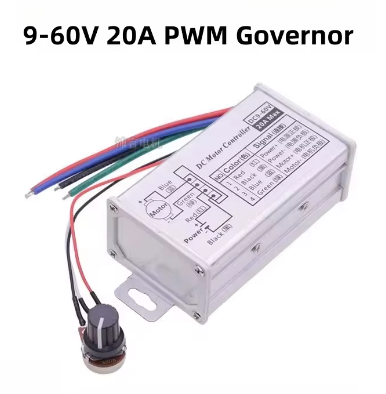

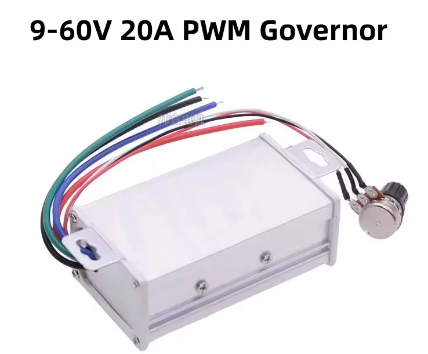

Premium 20A PWM DC Motor Controller (9-60V/1200W) – Variable Speed Regulator

Description

Product Overview

The Premium 20A PWM DC Motor Controller is a high-power, wide-voltage speed regulation module engineered for demanding DC motor applications. With an impressive input voltage range of 9V to 60V DC and a robust current handling capability of 20A continuous (25A peak) , this controller delivers up to 1200W of power to your motor, making it one of the most versatile and capable PWM controllers available in its class.

Utilizing advanced Pulse Width Modulation (PWM) technology at a switching frequency of 25kHz , this controller provides stepless speed adjustment from 0% to 100% duty cycle. The high-frequency PWM ensures quiet motor operation—eliminating the audible whine common with lower-frequency controllers—while maintaining excellent torque even at low speeds.

What sets this Premium controller apart is its integrated independent control features: a dedicated speed control knob for precise adjustments and a separate power switch for immediate power toggling, allowing you to maintain control without constantly adjusting the speed setting. The controller also features a fault indicator LED that alerts you to overcurrent, over-temperature, or low-voltage conditions, enabling quick diagnosis and protection of your equipment.

This controller is the ideal choice for a wide range of demanding applications, including:

• Industrial Automation: Conveyor systems, production line machinery, packaging equipment

• Heavy-Duty Power Tools: Bench grinders, drill presses, lathes, band saws

• Electric Vehicles: E-bikes, scooters, golf carts (within power limits)

• Robotics: Large-scale robotic platforms, heavy-duty actuators

• Marine Applications: Trolling motors, bilge pumps, livewell pumps

• Renewable Energy Systems: Solar-powered pumps and ventilation systems

Key Features

• Ultra-Wide Voltage Range: Accepts DC input from 9V to 60V, providing compatibility with 12V, 24V, 36V, 48V, and 60V systems, as well as 4S to 14S LiPo/Li-ion battery packs.

• High Current Capacity: Rated for 20A continuous current with a peak capacity of 25A, delivering up to 1200W of output power (60V × 20A).

• High-Frequency PWM Technology: Operates at a 25kHz PWM frequency, ensuring near-silent motor operation and smooth, vibration-free speed control across the entire 0-100% duty cycle range.

• Independent Control Knob & Power Switch: Features a dedicated speed control potentiometer for granular speed adjustments, plus a separate power switch for convenient on/off toggling without disturbing your speed setting.

• 0-100% Stepless Speed Control: Provides continuous, linear speed adjustment from complete stop to maximum speed via the high-quality control knob.

• Integrated Fault Protection: Includes a fault indicator LED that illuminates during overcurrent, over-temperature, or low-voltage conditions, protecting both the controller and your motor from damage.

• Heavy-Duty Construction: Built with industrial-grade components and a robust PCB designed to handle the thermal demands of continuous 20A operation. Dimensions: approximately 82mm × 49mm × 32mm; weight: approximately 135g.

• Easy Wiring: Features clearly labeled screw terminals for power input (V+/V-) and motor output (M+/M-), with a dedicated 2-pin control header for optional remote potentiometer connection.

Technical Specifications
