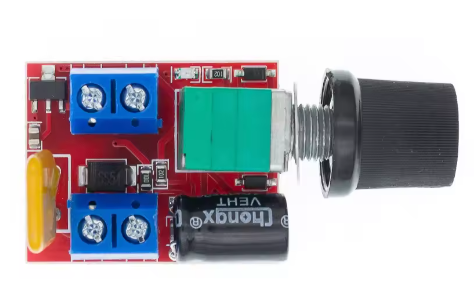

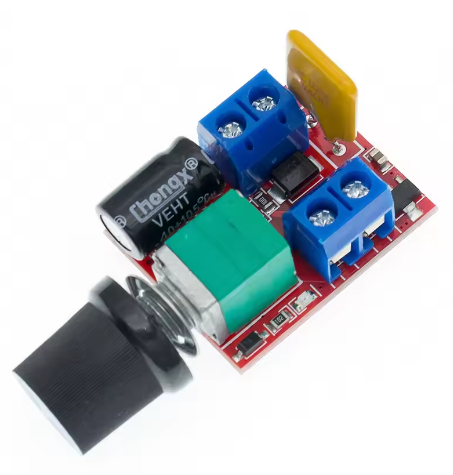

Product Overview
The 5A PWM DC Motor Speed Controller is a high-performance, versatile speed regulation module designed for a wide range of medium-power DC motor applications. Combining a robust power stage with built-in filtering capacitors (the “1203BK caps” design), this controller provides smooth, efficient, and reliable speed control for motors and other DC loads in industrial, automotive, and hobbyist projects .
Utilizing advanced Pulse Width Modulation (PWM) technology, this controller delivers stepless speed adjustment from 0% to 100% duty cycle. Unlike simple voltage regulators that reduce torque along with speed, PWM maintains excellent motor torque even at low speeds, ensuring your motor has the power to start and turn loads effectively across its entire speed range .
What sets this controller apart is its impressive power handling capability. With a maximum continuous current rating of 5A and a wide input voltage range of 3V to 35V DC, it can handle loads up to 175W (at 35V), making it suitable for pumps, fans, robotics, power tools, and automation equipment that smaller controllers cannot manage .
The inclusion of filtering capacitors (the “1203BK caps”) smooths the PWM output waveform, reducing electrical noise and ensuring stable motor operation, particularly at lower speeds where PWM ripple can cause cogging or vibration. A built-in potentiometer with an integrated on/off switch allows you to control both power and speed from a single intuitive knob, with a handy LED indicator showing power status .
This controller is the ideal choice for a vast array of applications, including:
-
Industrial automation and conveyor systems
-
Robotics and animatronics
-
Pump and fan speed control
-
DIY workshop tools (drill presses, lathes, grinders)
-
Laboratory and testing equipment
-
12V, 24V, and 36V automotive and marine applications
-
High-power LED dimming (with appropriate load considerations)
Key Features
-
High Current Capacity: Handles continuous output currents up to 5A, making it suitable for a wide range of medium-power DC motors and loads that smaller controllers cannot manage .
-
Wide Input Voltage Range: Accepts DC input from 3V to 35V, providing compatibility with common 3V, 5V, 6V, 9V, 12V, 24V, and even 36V power sources .
-
High Power Handling: Capable of controlling loads up to 175W (at 35V), delivering substantial power for demanding applications .
-
Built-In Filtering Capacitors (1203BK Caps): Includes onboard capacitors that smooth the PWM output waveform, reducing electrical noise and ensuring stable motor operation, especially at low speeds where PWM ripple can cause vibration .
-
PWM Technology for Smooth Control: Provides vibration-free speed adjustment with excellent torque retention even at low speeds, ensuring your motor has the power it needs throughout the speed range .
-
Integrated Potentiometer with On/Off Switch: Features a robust rotary potentiometer that combines on/off control and stepless speed adjustment in a single knob. Turn the knob to power on and increase speed; turn it fully counter-clockwise to switch off .
-
Power-On Indicator LED: An onboard LED provides clear visual confirmation when power is applied and the controller is active .
-
0%-100% Duty Cycle Adjustment: Allows full range speed control from completely stopped to maximum speed, with linear response to knob rotation .
-
Easy 4-Terminal Wiring: Simple screw terminal connections for power input (VIN/GND) and motor output (OUT/GND) make installation quick and error-free.
-
Wide Application Compatibility: Perfect for DC motors, fans, pumps, and other medium-power DC loads requiring speed regulation .
-
Compact and Rugged Design: Housed in a durable PCB with a compact footprint, designed for reliable operation in various environments .
Technical Specifications
Pinout & Interface Guide
The controller features clearly labeled screw terminals for all connections.
Power Terminals
-
VIN / + (Power Input): Connect your DC power source (3V-35V) here. Observe correct polarity (+ to +, – to -). The module accepts a wide range of power sources including batteries, DC power supplies, and automotive systems .
-
GND / – (Power Ground): Connect to the negative terminal (ground) of your DC power source.
Motor Terminals
Control Interface
Status Indicators
Usage Guide
Important Safety Warnings
-
DC ONLY: This controller is designed strictly for DC circuits. Never connect it to AC mains power (e.g., 110V or 220V AC). Doing so will instantly destroy the controller and poses a serious fire hazard .
-
Voltage Limits: Do not exceed the maximum input voltage of 35V DC. Applying higher voltage can permanently damage the module .
-
Current Limits: The module is rated for 5A continuous current. Do not exceed this rating. Sustained operation above this rating may overheat the module and cause failure .
-
Motor Type: This controller is for brushed DC motors only . It is NOT compatible with brushless DC motors (BLDC), stepper motors, or AC motors.
-
Thermal Management: At sustained currents near 5A, the module may generate significant heat. Ensure adequate ventilation and consider mounting in a well-ventilated area.
Wiring Guide
Step-by-Step Operation
-
Mount the Controller: Secure the module in your project enclosure using mounting tape or standoffs. Ensure adequate ventilation for high-current operation.
-
Connect the Motor: Connect your DC motor to the OUT + and OUT – terminals. If the motor runs in the wrong direction later, simply swap these two wires (with power off).
-
Connect the Power Supply: Connect your DC power source (battery or power supply) to the VIN + and GND – terminals. Ensure the power supply is turned OFF or disconnected during wiring .
-
Set Initial Speed: Turn the potentiometer knob fully counter-clockwise to its OFF position .
-
Apply Power: Turn on your DC power source or connect your battery. The motor should remain off.
-
Adjust Speed: Slowly turn the potentiometer knob clockwise. You will feel a slight click as the switch engages, and the motor will begin to spin. Continue turning clockwise to increase speed .
-
Stop the Motor: Turn the knob fully counter-clockwise until you feel the click. This disconnects power to the motor.
-
Change Direction (if needed): To reverse the motor’s direction, turn off the power, swap the two motor wires at the OUT + and OUT – terminals, and then reapply power.
Q: What types of motors can I use with this controller?
This controller is designed for brushed DC motors only operating at 3V to 35V . It is ideal for medium-power motors found in pumps, fans, robotics, power tools, and automation equipment. It is not suitable for brushless motors (BLDC), stepper motors, or AC motors.
Q: What is the advantage of the built-in "1203BK caps"?
The built-in filtering capacitors serve two main purposes:
-
Noise Reduction: They smooth out the PWM waveform, reducing electrical noise that can interfere with nearby sensitive electronics .
-
Smoother Low-Speed Operation: They help reduce the “cogging” or vibration that can occur when running a motor at very low speeds with PWM, resulting in smoother rotation.
Q: Can this controller handle 24V or 36V motors?
Yes. With an input range of 3V to 35V, this controller can handle standard 12V, 24V, and even 36V motors (provided the motor’s rated voltage does not exceed 35V). It can deliver up to 175W of power at 35V .
Q: Can I use this controller to change the direction of my motor?
This model provides speed control only. It does not have a direction switch. However, you can easily change the motor’s direction by swapping the two motor wires at the OUT + and OUT – terminals . Always turn the power off before doing this.
Q: What power supply should I use?
Use a DC power source with a voltage between 3V and 35V that matches your motor’s rating . The power source must be capable of delivering at least the current your motor will draw (up to 5A). Examples include:
-
12V, 24V, or 36V battery packs
-
12V or 24V regulated power supplies
-
24V-36V industrial power supplies
-
Solar panel systems (with appropriate regulation)
Q: What is the real-world current limit for this controller?
The controller is rated for 5A continuous current. For sustained operation at currents approaching 5A, ensure adequate ventilation and consider that the module may become warm. The 5A rating is for continuous use; brief surges may be higher.
Q: The controller gets warm. Is this normal?
Some warmth is normal when switching currents near 3-5A. The module is designed to dissipate heat through its PCB and components. However, if it becomes too hot to touch, you may be exceeding the recommended continuous current rating. Reduce the load or ensure adequate ventilation.
Q: Does the potentiometer have an off position?
Yes. The potentiometer has an integrated switch. Turning the knob fully counter-clockwise until you feel a click will completely disconnect power to the motor .
Q: The controller doesn't work. The motor doesn't move.
Follow this checklist:
-
Check Power: Verify with a multimeter that you have the correct DC voltage at the VIN + and GND – terminals (3V-35V) .
-
Check Polarity: Ensure your power supply is connected with the correct polarity (+ to +, – to -) .
-
Check Knob Position: Ensure the knob is turned clockwise past the initial “click” to turn the power ON .
-
Check Connections: Ensure all wires are securely fastened in the screw terminals.
-
Test the Motor: Connect your motor directly to the power source (briefly) to ensure it works.
Q: The motor runs at full speed all the time, and the knob doesn't control it.
This indicates that the PWM control circuit may have failed. This can happen if the module was overloaded or experienced a short circuit. You will likely need to replace the controller.
Q: The motor runs in the wrong direction.
This is easily fixed. Turn off the power, swap the two motor wires at the OUT + and OUT – terminals, and then reapply power.
Q: Can I use this controller to dim LEDs?
With caution. This is a PWM controller, which can be used for dimming single-color LEDs. However:
-
Ensure the LED voltage matches your power supply voltage.
-
Ensure the total LED current does not exceed 5A.
-
This will not work with RGB or addressable LED strips.
Q: The motor vibrates or runs roughly at low speeds.
This can sometimes happen with PWM controllers. The built-in capacitors should help with this issue. If the problem persists:
-
The motor itself may have mechanical issues .
-
Ensure your power supply is stable and well-regulated.
-
Some motors have a minimum speed below which they cannot run smoothly due to their design.
