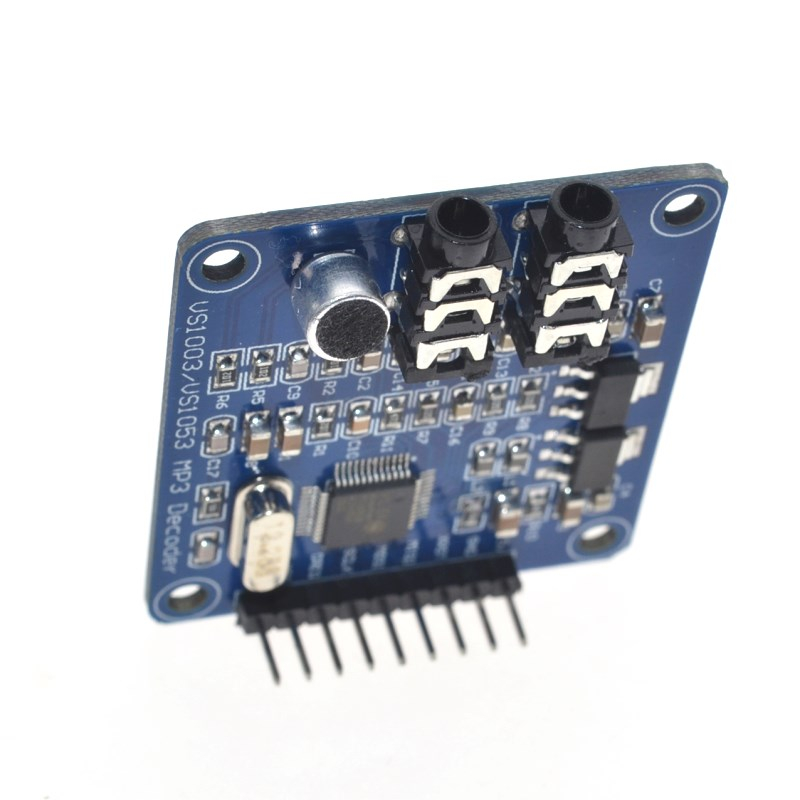

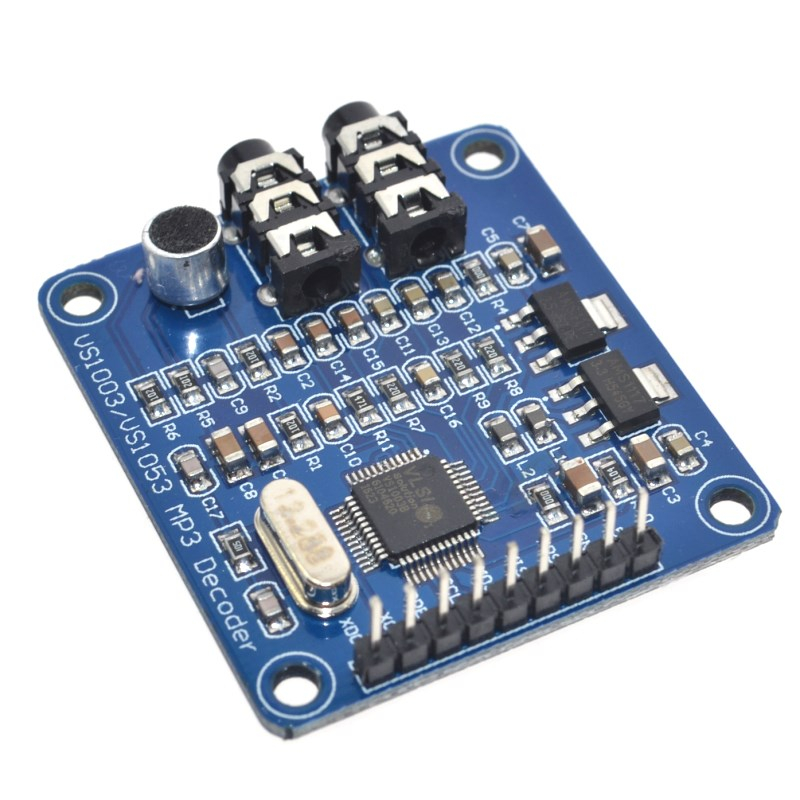

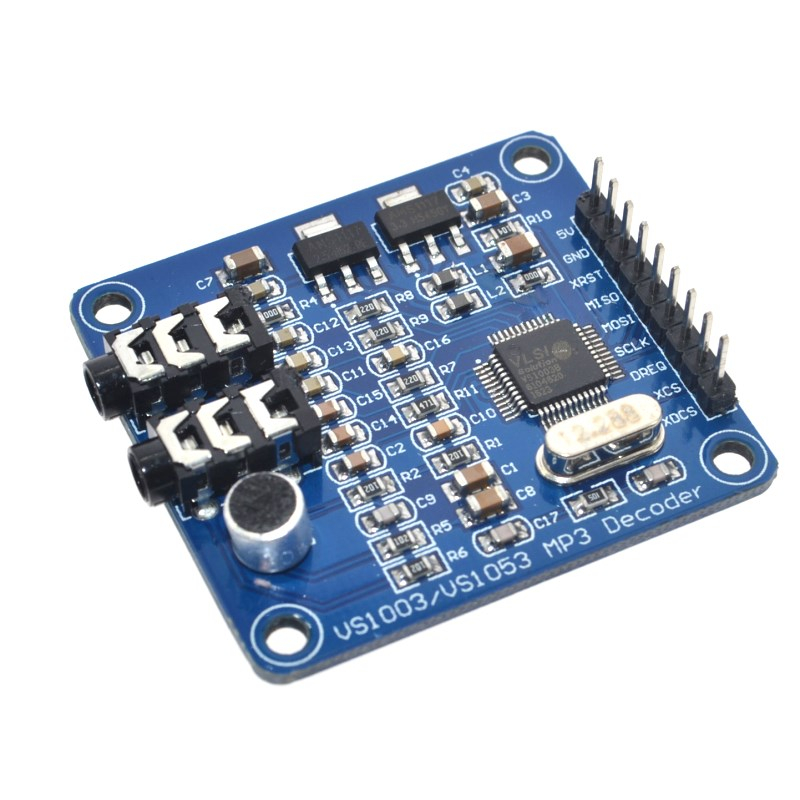

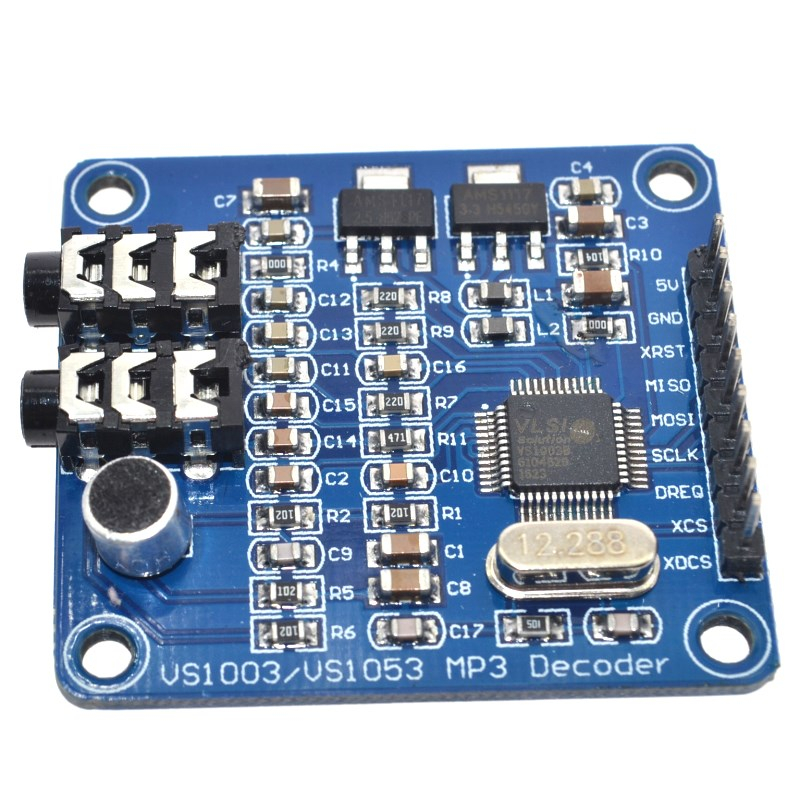

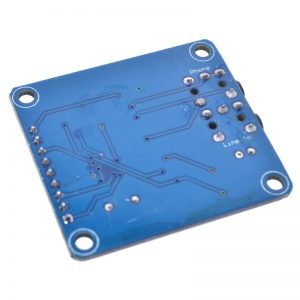

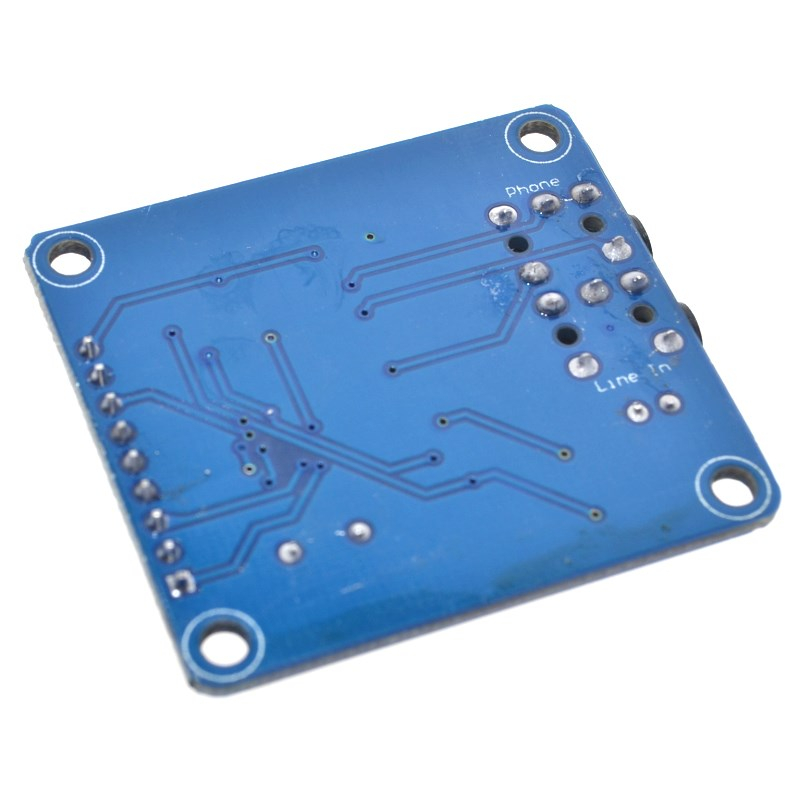

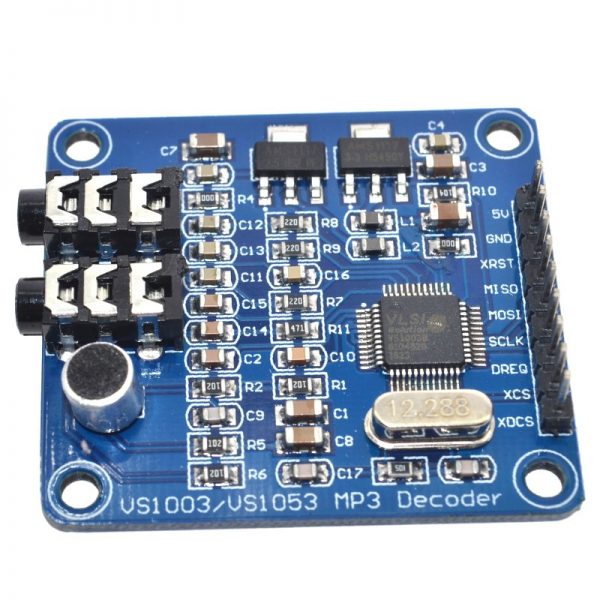

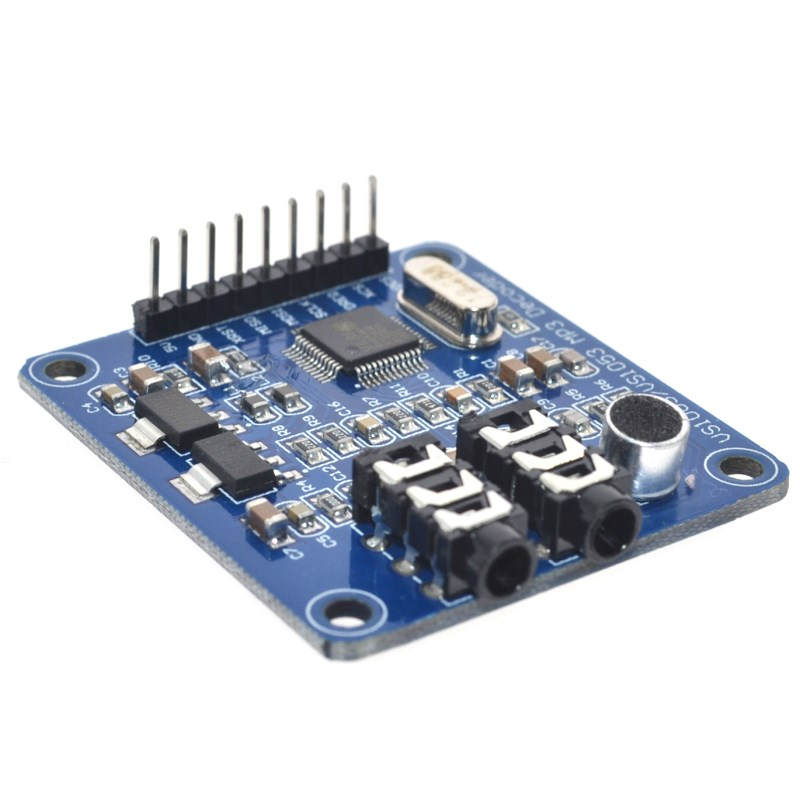

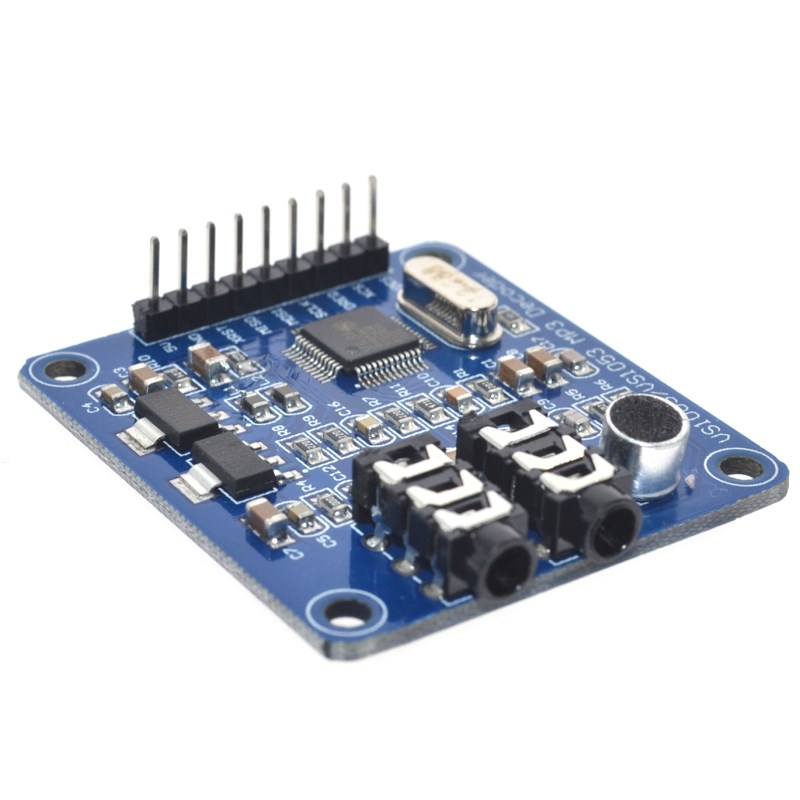

VS1003B/VS1053 MP3 decoding module With MIC

SKU: FA2008-2 Tag:

$4.43

Weight 0.032 kg
Dimensions 5 × 4 cm
Feature 1

Separate analog, digital, and IO power supply

Feature 2

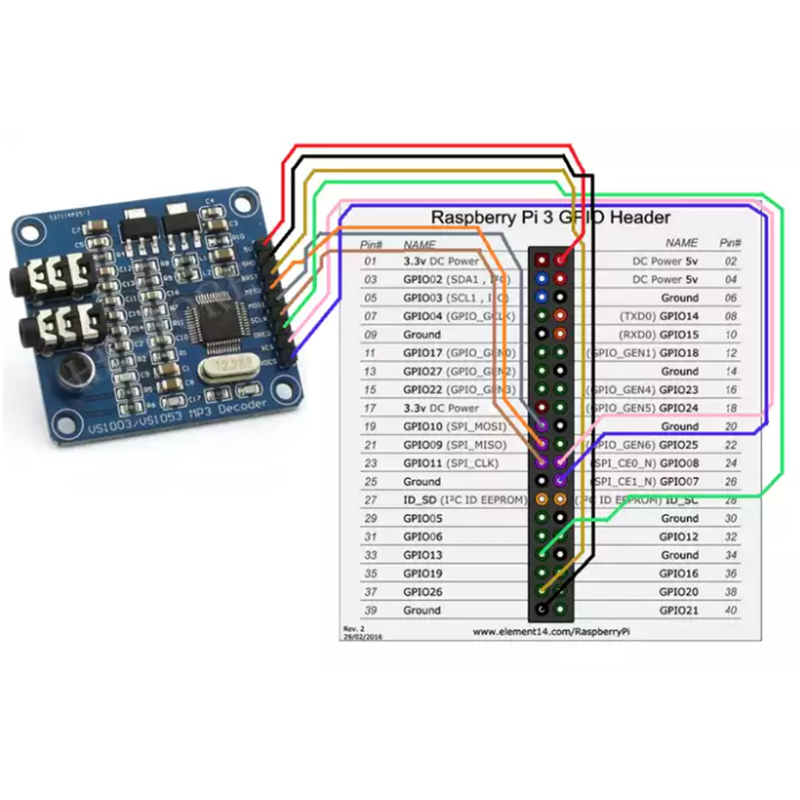

Serial data and control interface (SPI)

Feature 3

1 headphone and audio output interface

Feature 4

1 microphone for recording, support audio encoding format

Feature 5

1 line input interface; supports MP3 and WAV stream

Feature 6

Power indicator light

Feature 7

On-board 3.3 V and 2.5 V LDO chip AMS-1117, maximum current of 800 mA

Feature 8

Single Power Supply: +5 VDC, capacitor filter

Feature 9

12.288 MHz crystal

100 in stock

Overview

The VS1003 audio codec module is a complete MP3/WMA/MIDI audio decoder and ADPCM encoder which features a high quality stereo DAC (Digital to Analog Converter), a 16-bit adjustable ADC (Analog to Digital Converter) and a high quality stereo earphone driver (30 Ohm). This module is ideal for adding audio decoding and encoding capabilities to embedded systems.

Specifications
Separate analog, digital, and IO power supply
Serial data and control interface (SPI)
1 headphone and audio output interface
1 microphone for recording, support audio encoding format
1 line input interface; supports MP3 and WAV stream
Power indicator light
On-board 3.3 V and 2.5 V LDO chip AMS-1117, maximum current of 800 mA
Single Power Supply: +5 VDC, capacitor filter
12.288 MHz crystal

The VS1003 audio codec module is a complete MP3/WMA/MIDI audio decoder and ADPCM encoder which features a high quality stereo DAC (Digital to Analog Converter), a 16-bit adjustable ADC (Analog to Digital Converter) and a high quality stereo earphone driver (30 Ohm). This module is ideal for adding audio decoding and encoding capabilities to embedded systems.
