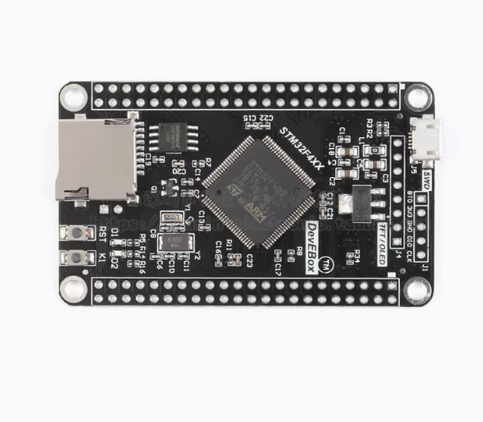

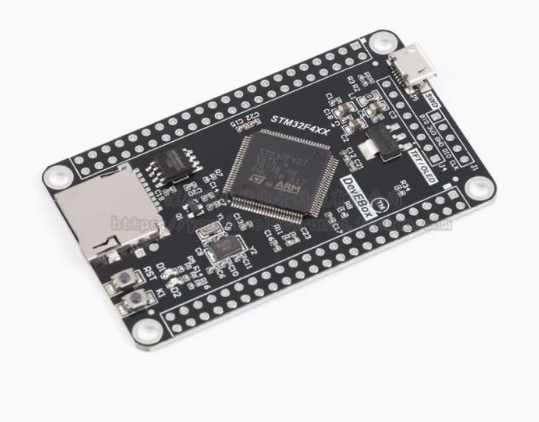

The STM32F407VGT6 Core Board is a lightweight, high-performance development platform built around STMicroelectronics’ STM32F407VGT6 microcontroller. It is designed for developers, students, and engineers who need serious processing power in a compact, accessible form factor without unnecessary onboard peripherals. Whether you are learning ARM embedded development, building control systems, or prototyping connected devices, this board provides a solid foundation.
At its heart is an ARM Cortex-M4 32-bit RISC core with a Floating Point Unit (FPU) and DSP instructions, running at up to 168 MHz and delivering 210 DMIPS of processing power. This makes it well suited for applications requiring real-time signal processing, motor control algorithms, and floating-point calculations that would overwhelm slower microcontrollers.
The chip integrates 1024 KB (1MB) of Flash memory and 192 KB of SRAM (including 64 KB of Core Coupled Memory), providing ample space for complex firmware, data buffers, and runtime variables. A 3×12-bit ADC with up to 16 channels and 2×12-bit DAC handle analog signal conversion, while 14 timers (including two 32-bit timers and two advanced motor-control timers) support precise timing and PWM generation.
Connectivity is a major strength. The board exposes multiple communication interfaces, including USART, UART, SPI/I2S, I2C, CAN, USB OTG (full-speed and high-speed), and a 10/100 Ethernet MAC. A parallel camera interface and SDIO support add flexibility for imaging and storage applications.

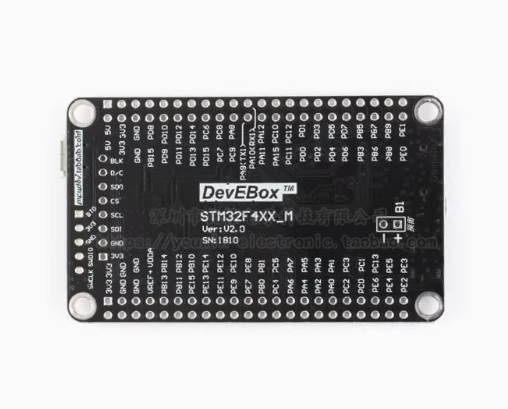

The board follows a lightweight core board design, exposing all available GPIO pins on standard headers for easy integration into custom setups or breadboard prototypes. This minimalist approach keeps the board compact and affordable while giving you full access to the MCU’s capabilities. An onboard voltage regulator and USB power management simplify powering the board, while boot mode selection and a reset button provide convenient control.
Development is supported by STM32CubeIDE, ST’s free integrated development environment, along with Keil MDK and IAR toolchains. The HAL library and CubeMX graphical configuration tool make peripheral setup accessible to beginners, while experienced developers can work at the register level when needed.
Whether you are building a motor control system, a data acquisition device, a network gateway, or an educational project, the STM32F407VGT6 Core Board offers the performance and flexibility to bring your ideas to life. It is suitable for individual makers, students, and businesses purchasing in bulk for education, research, or product development.
Features
-
ARM Cortex-M4 @ 168 MHz with FPU and DSP — 210 DMIPS processing power for demanding applications.
-
1024 KB (1MB) Flash / 192 KB SRAM — Generous memory for complex firmware and data processing.
-
Full I/O expansion — All available GPIO pins exposed on standard headers for flexible integration.
-
Multiple communication interfaces — USART, UART, SPI/I2S, I2C, CAN, USB OTG, and Ethernet MAC.
-
3×12-bit ADC / 2×12-bit DAC — Up to 16 analog input channels and dual analog outputs.
-
14 timers including 2 advanced motor-control timers — Precise PWM, input capture, and encoder interface support.
-
Onboard voltage regulation and USB power management — Simplifies powering from USB or external supply.
-
JTAG/SWD debug interface — Standard programming and debugging via external debugger.
-
Lightweight minimalist design — Compact form factor with full pin access for custom integration.
-
Boot mode selection and reset button — Convenient control for flexible operation.
Technical Specifications
| # | Parameter | Specification |
|---|---|---|
| 1 | Microcontroller | STM32F407VGT6 (ARM Cortex-M4 with FPU and DSP) |
| 2 | Maximum Clock Speed | 168 MHz (210 DMIPS) |
| 3 | Flash Memory | 1024 KB (1MB) |
| 4 | SRAM | 192 KB (including 64 KB CCM) |
| 5 | GPIO Count | 82 pins (up to 138 5V-tolerant I/Os) |
| 6 | Operating Voltage | 1.8V – 3.6V |
| 7 | ADC / DAC | 3×12-bit ADC (16 channels) / 2×12-bit DAC |
| 8 | Package / Debug | LQFP-100 / JTAG, SWD |
