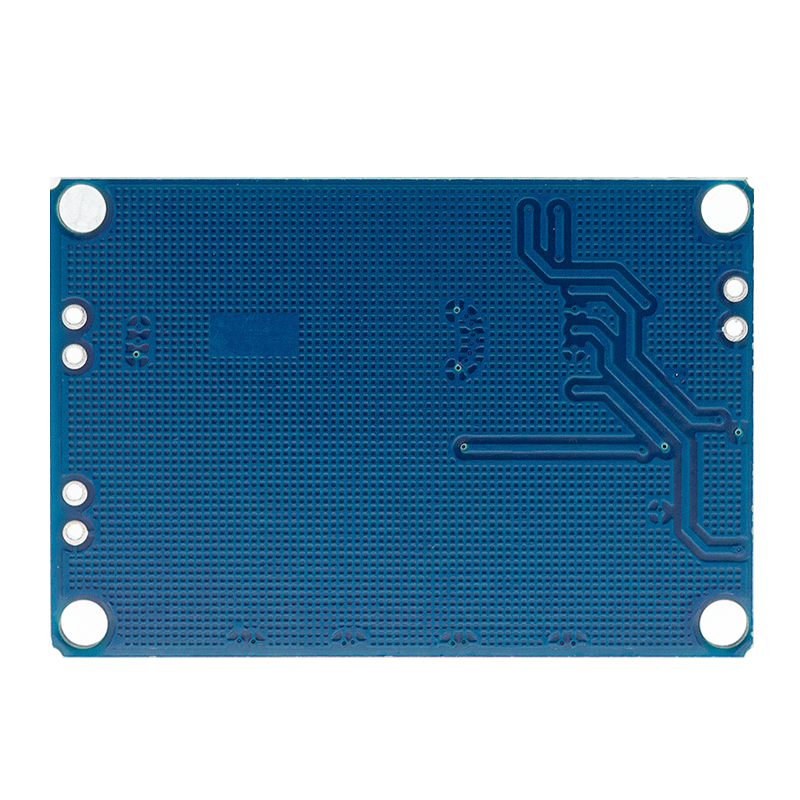

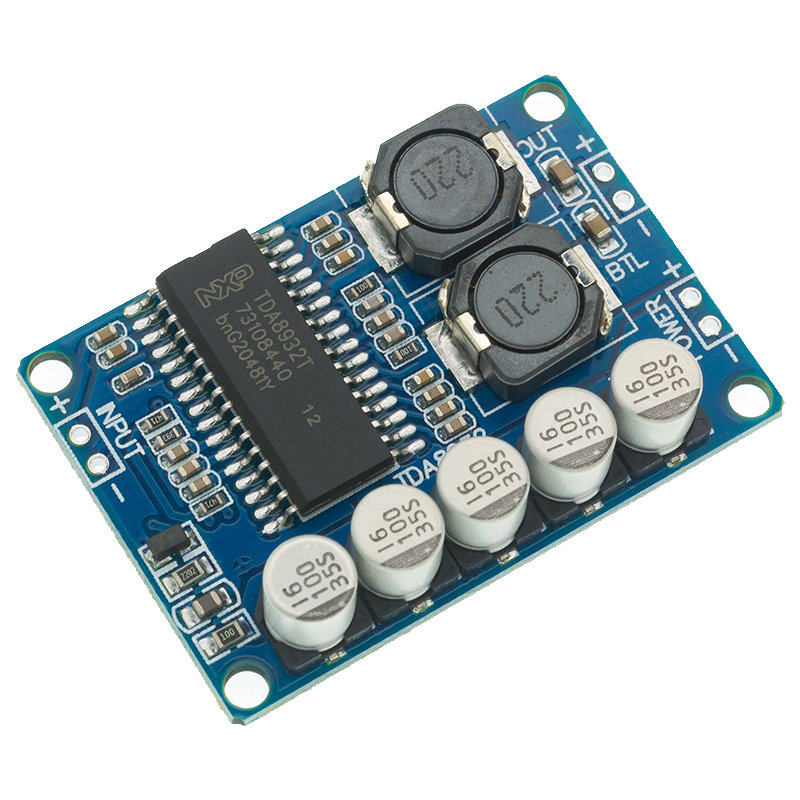

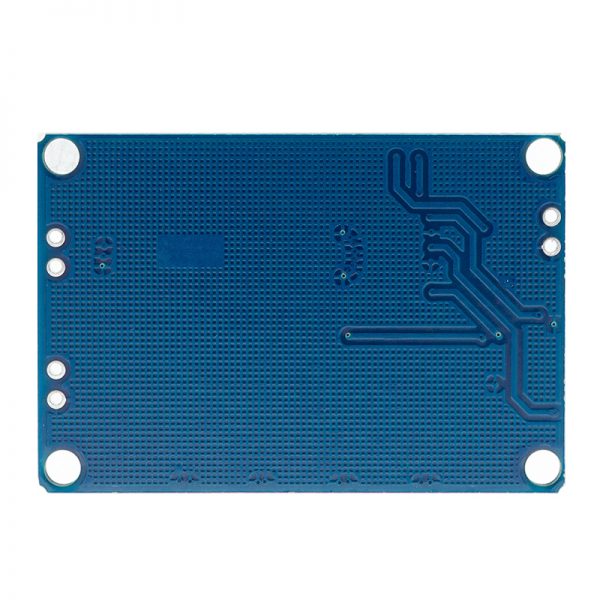

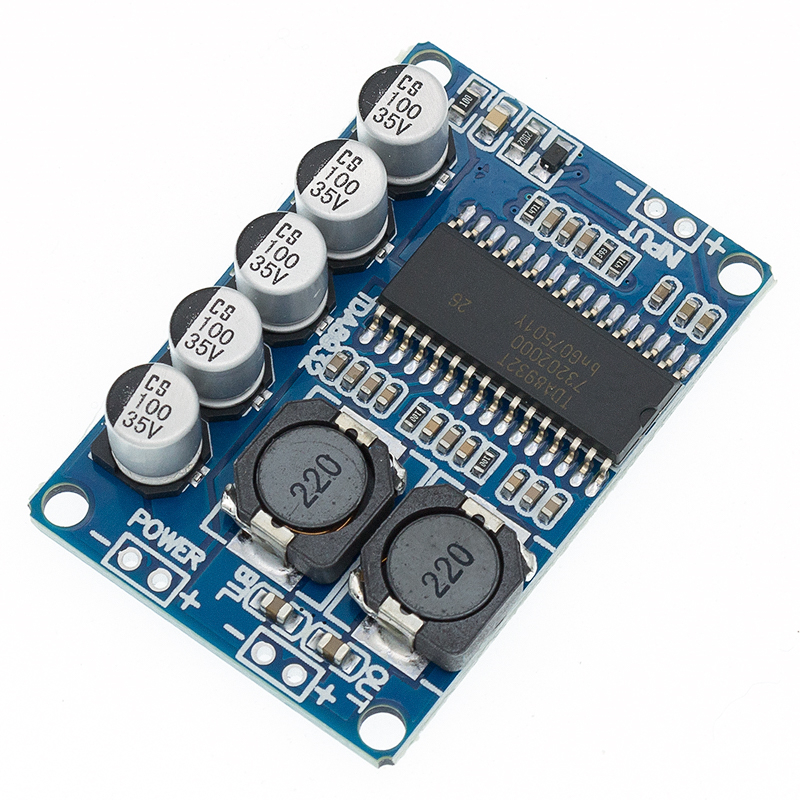

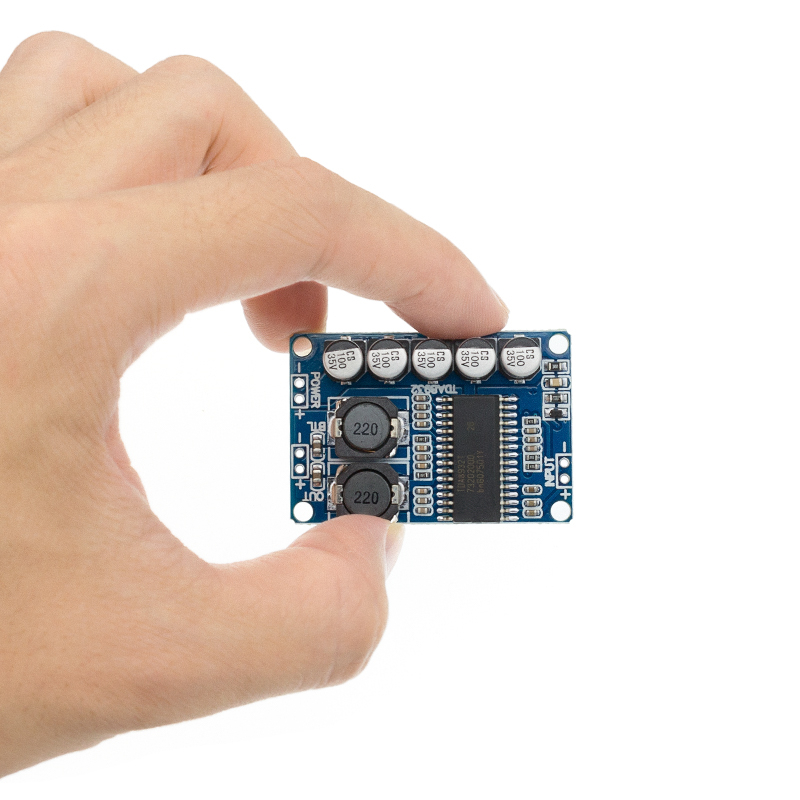

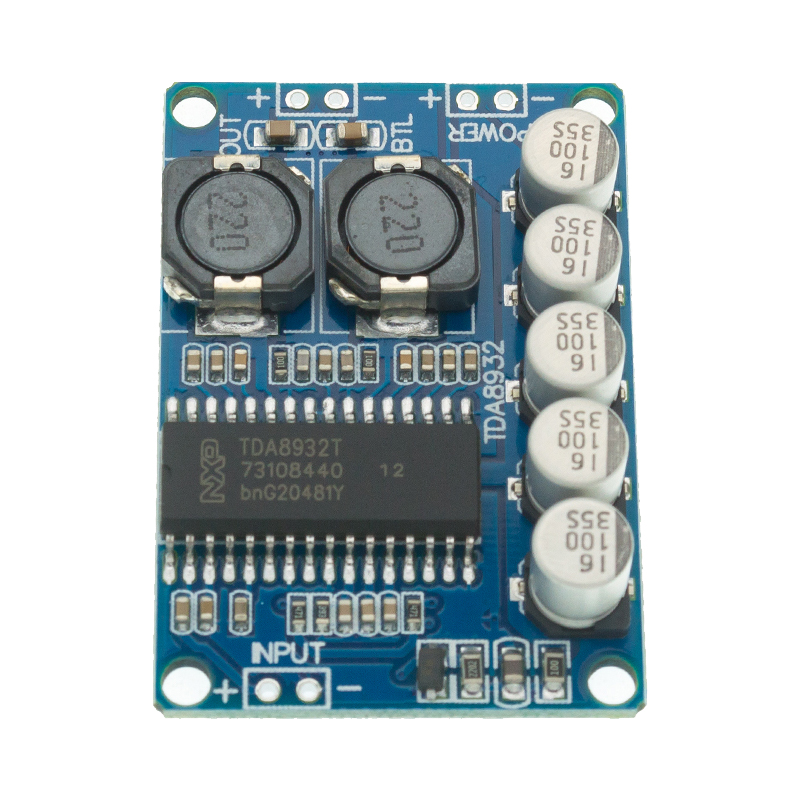

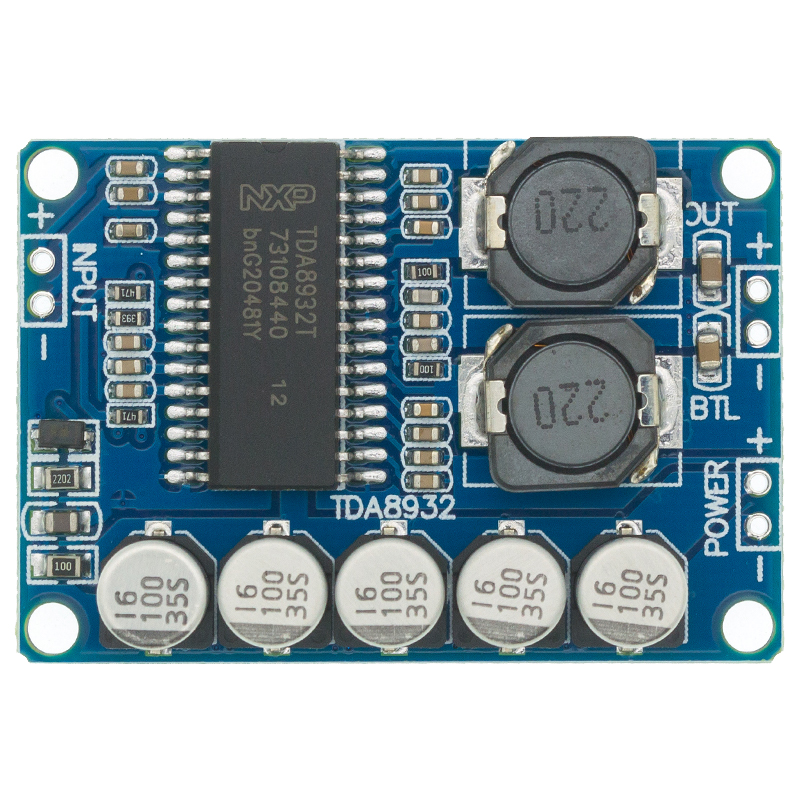

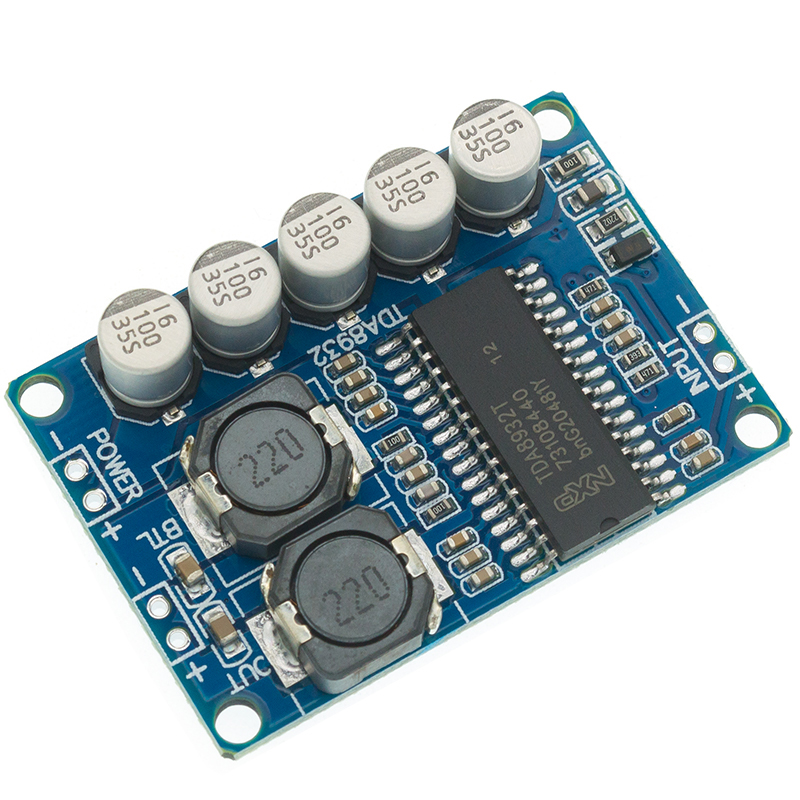

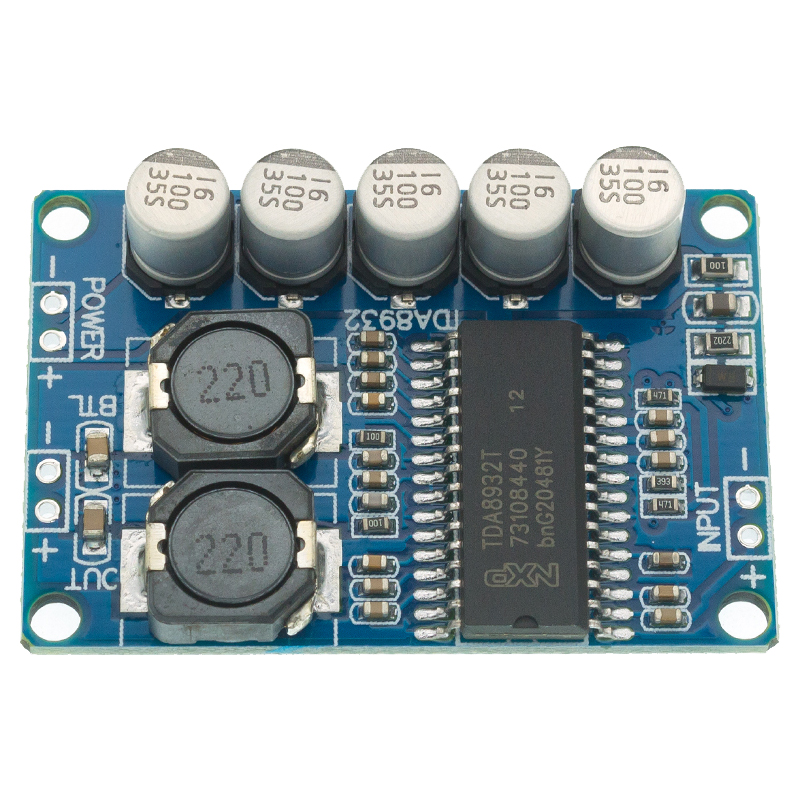

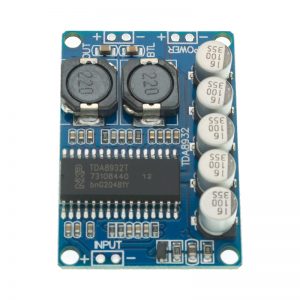

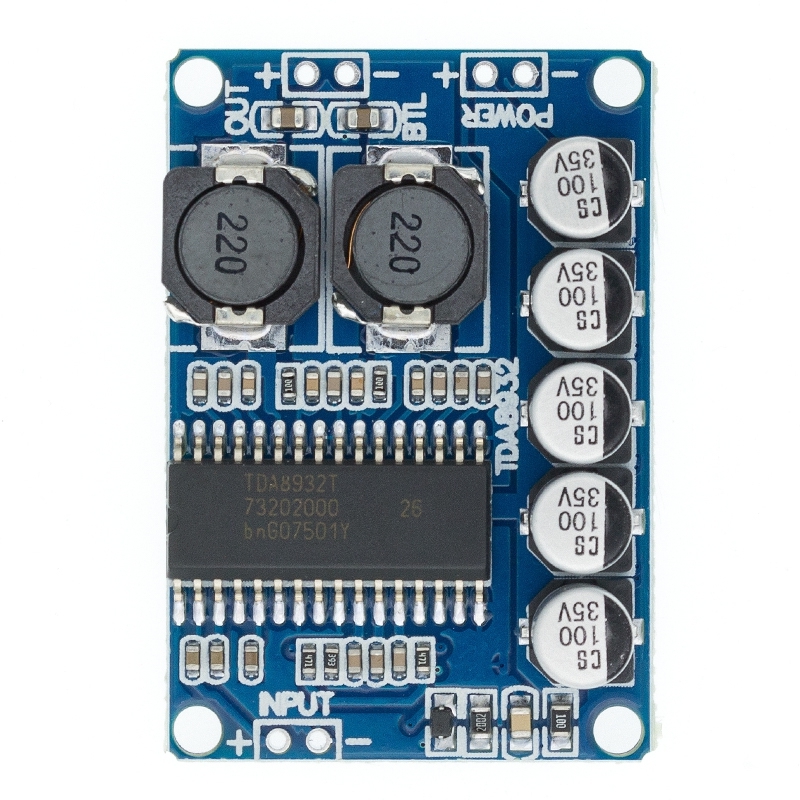

TDA8932 Digital power amplifier board 35W Mono Amplifier Module

Weight 0.017 kg
Dimensions 4.5 × 3.1 cm
Operating Voltage

Single DC10 ~ 30V

Current

Above 2A Switching Power Supply

Output power

35W * 1

Speaker Impedance

4-8 ohm, 8 ohm best

Circuit configuration

Mono BTL output

Description

TDA8932 Digital power amplifier board 35W Mono Amplifier Module uses a high-performance digital amplifier TDA8932 chip, a small size, high efficiency, high power, good sound quality, without additional installation of radiator, very suitable for the transformation of active speakers, electro-acoustic project implementation, product development and other audio applications.

Specification

Module Type TDA8932 35W
Operating Voltage Single DC10 ~ 30V
Recommended voltage 24V
Current Above 2A Switching Power Supply
Output power 35W * 1
Speaker Impedance 4-8 ohm, 8 ohm best
Circuit configuration Mono BTL output

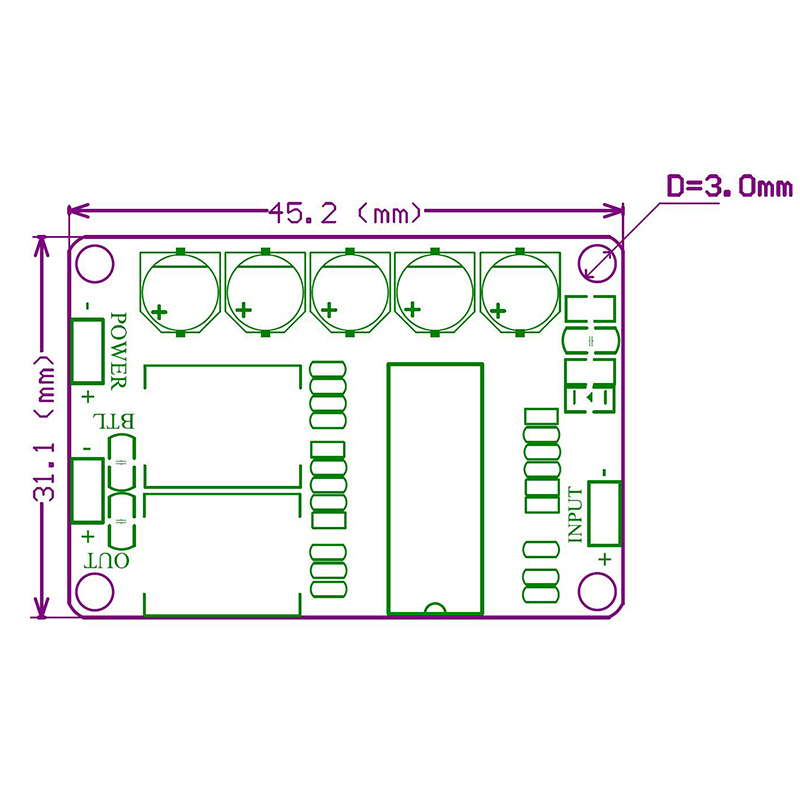

Dimensions 45 * 31MM

Package Includes

  • 1 x TDA8932 Digital power amplifier board 35W Mono Amplifier Module

Looking for TDA8932? The product is used for the digital power supply of various types of highpower electronic equipment, such as computers, televisions, and other devices that need to be measured by TDA interface. At the same time, the product is a new type of digital audio signal amplifier module, high quality switch board, suitable for most of the common PH meter. And the product is an integrated digital power amplifier board with high efficiency, low power consumption, and can be used for HD video acquisition, production lines or photography of audio. This is a multifunctional digital amplifier board module with the addition of subwoofer, shortcircuit and other functions of the input and output can be used as a normal speaker.
