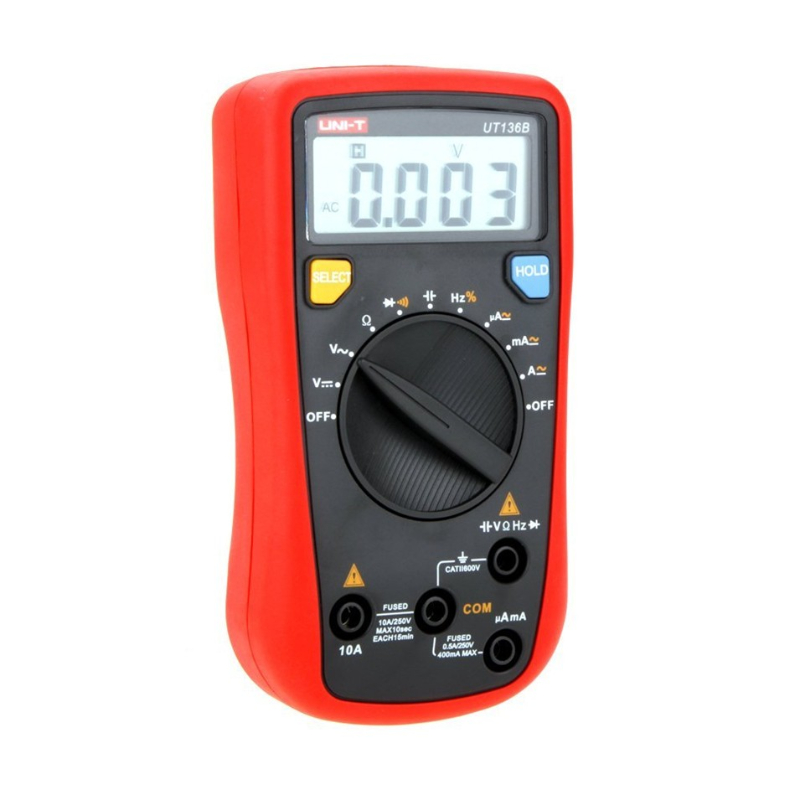

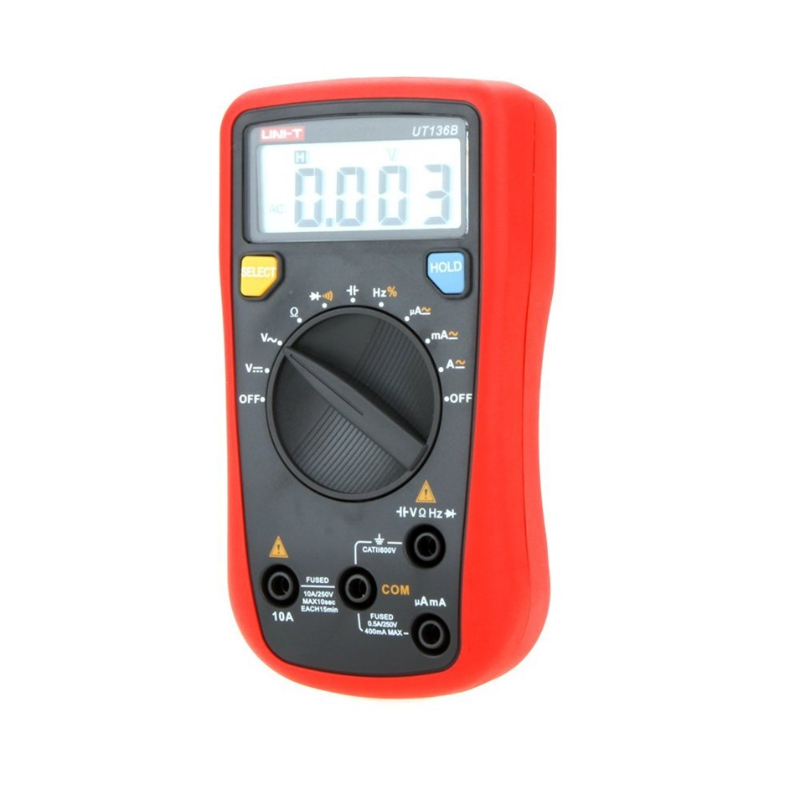

UNI-T UT136B Digital Multimeter DC/AC V/A Cap Frequency Res Diode Tester

SKU: FA4102 Tag:
Weight 0.315 kg
Dimensions 13.5 × 6.5 × 3.5 cm

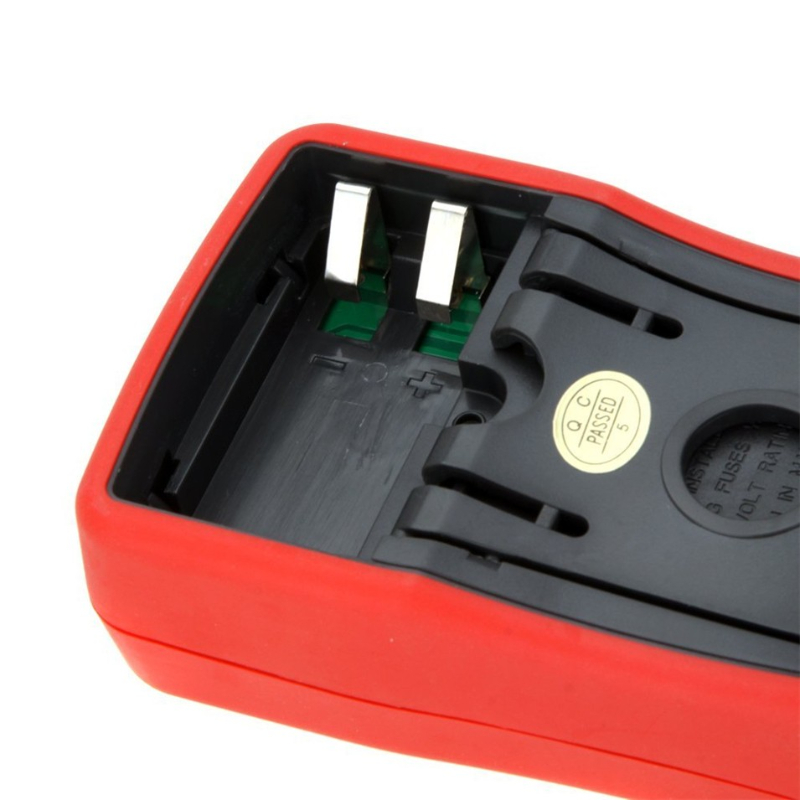

9V Battery

Product Color

Red and Iron Grey

The max display


Work Environment


Storage Environment




Auto Power Off ;

Low Battery Display;

Diode Test;

Continue Buzzer Auto Data Hold;

Max. Display: 3999

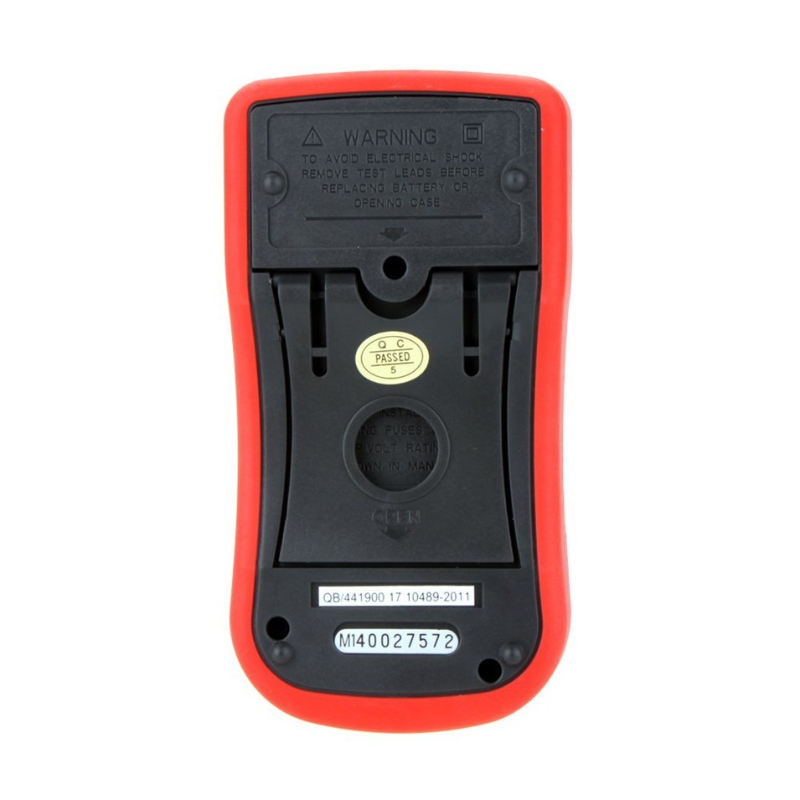

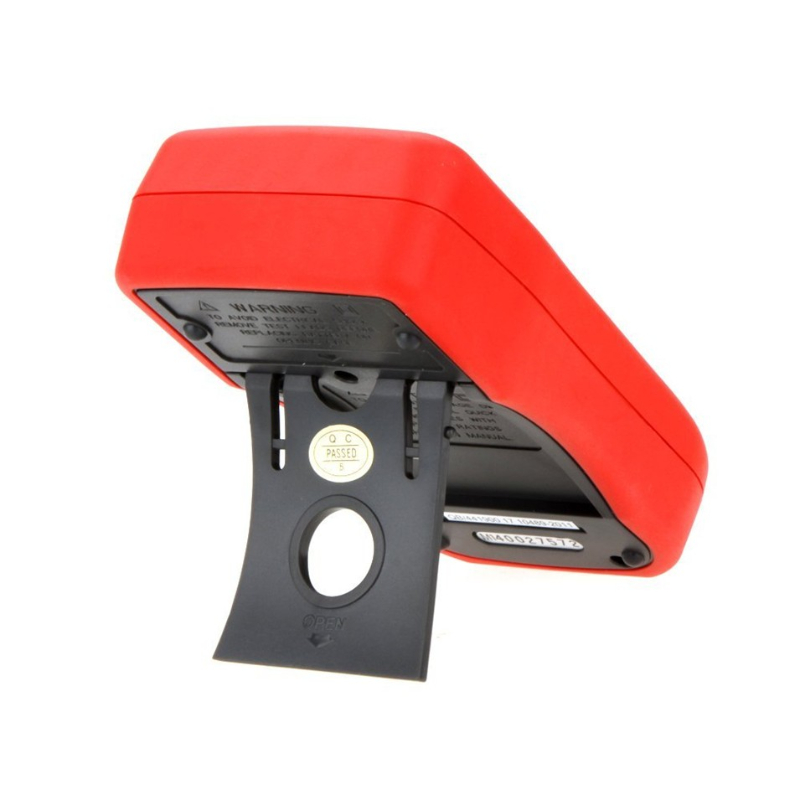

Tilt stand design, three observation angles is in favor of reading display
High sensitivity AC / DC voltage DC current measurement
Fit for schools, factories, families, and amateur wireless
Small and compact design
It is made of superior material, durable and practical

Overload protection:
mA range: F1 fuse 5x20mm, F 0.5A H 250V
10A range: F2 fuse 5x20mm, F 10A H 250V

Basic Function
DC voltage : 400mV/4V/40V/400V/500V ;±(0.8%+1)
AC voltage : 400mV/4V/40V/400V/500V ; ±(1.2%+3)
DC current : 400uA/4mA/40mA/400mA/4A/10A ; ±(1.0%+2)
AC Current : 400uA/4mA/40mA/400mA/4A/10A ; ±(1.2%+5)
Resistance : 400ohm/4000ohm/40kohm/400kohm/4Mohm/40Mohm ;±(1.0%+2)
Capacitance : 4nF/40nF/400nF/4uF/40uF/100uF ; ±(4.0%+3)
Frequency : 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ; ±(0.5%+3)
Duty cycle : 0.1% ~ 99.9%
Frequency: 40Hz ~ 400Hz. Display effective value of sine
wave(average value) each measurement is applicable from 5% of range as reference.

Power: 9V Battery
Product Color: Red and Iron Grey
The max display: 3999
Work Environment: 0℃-40℃
Storage Environment: -10℃-50℃
Function: DCV,ACV,DCA,ACA ,Diode
Product Dimensions: (13.5 x 6.5 x 3.5)cm / (5.31 x 2.56 x
1.38)”(L x W x H)
Product Net weight: 315g / 11.11oz


  • mini handheld auto-ranging digital multimeters that offer users complete functions, stable performance, low power consumption, novel structural design, high degree of safety and reliability.
  • an ideal portable tool for maintenance and repairing.
  • Applicable fields are homes, schools, metallurgy, communications, manufacturing, national defense, electric power, chemical industry.
  • best choice for electric circuit/equipment maintenance and repairing.
  • basic function/ low cost Multimeter not with high accuracy.
