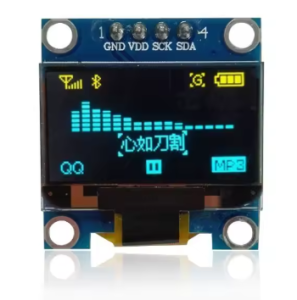

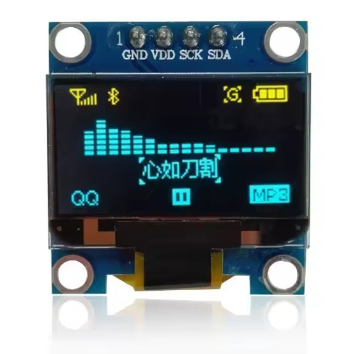

0.96″ Inch Yellow+Blue I2C IIC OLED LCD Module 4pin SSD1306 Chip with Transparent box (GND VDD SCK SDA)

Description

Product Overview

The 0.96-inch Yellow+Blue I2C OLED Display Module is a compact, high-contrast dual-color screen that adds a vibrant visual interface to your electronics projects. Featuring a distinctive yellow top section and blue bottom section powered by the SSD1306 driver IC, this 128×64 pixel display delivers crisp text, detailed graphics, and custom icons in an eye-catching two-tone format .

Unlike traditional LCDs that require a power-hungry backlight, OLED (Organic Light Emitting Diode) technology allows each pixel to emit its own light. This self-emissive design provides true blacks (inactive pixels are completely off), an exceptional 10,000:1 contrast ratio, and wide viewing angles (>160°) . The result is a professional-looking display where text and graphics appear to “float” on a pure black background—all while consuming minimal power.

The module uses the I2C communication protocol, requiring only two data lines (SCL and SDA) to connect to your microcontroller . This 4-pin interface (VCC, GND, SCL, SDA) preserves valuable I/O pins for other sensors and peripherals while simplifying wiring to a minimum .

With support for both 3.3V and 5V logic, this module is directly compatible with Arduino, ESP32, ESP8266, Raspberry Pi, STM32, and most other development boards—no level shifters required . The ultra-low power consumption (approximately 0.06W during normal operation) makes this display ideal for battery-powered IoT devices, wearable projects, smart home interfaces, data loggers, and portable instruments .

Each module comes packaged in a transparent acrylic protective box that shields the display from dust, moisture, and physical damage during transport and storage, extending its service life .

Key Features

• 128×64 Pixel Resolution: High-definition display with 128 columns and 64 rows—capable of showing detailed graphics, bitmaps, and up to 8 lines of small text (16 characters per line)

• Yellow+Blue Dual-Color Display: Distinctive yellow top section (first 32 scan lines) and blue bottom section (remaining 32 scan lines). The color division is fixed—the display controller cannot change individual pixel colors

• SSD1306 Driver IC: Industry-standard controller with built-in display buffer (128×64-bit SRAM), charge pump oscillator, and extensive software library support

• I2C Interface: 2-wire communication protocol requires only 2 data lines (SDA and SCL), preserving valuable I/O pins for other components

• Wide Voltage Compatibility: Operates on both 3.3V and 5V logic (2.8V–5.2V range)—directly compatible with Arduino, ESP32, ESP8266, Raspberry Pi, STM32, and most other microcontrollers

• Ultra-Low Power Consumption: Consumes approximately 0.06W (typical 12-15mA at 3.3V) during normal operation—ideal for battery-powered projects. With all pixels off, standby current is <10µA

• Wide Viewing Angle: >160° visibility ensures clear readouts from almost any angle without contrast shift

• Self-Emitting OLED Technology: No backlight required—true blacks provide 10,000:1 contrast ratio and superior readability in all lighting conditions

• Compact Size: Small 27.3mm × 27.3mm footprint for easy integration into space-constrained projects

• Transparent Protective Box: Includes a durable clear acrylic case for safe storage and protection during transport

Technical Specifications
