Audio Power Amplifier DC 6 to 18V TDA7297 Module Double Channel 10-50W 7W*2 dual channel

SKU: FA2008-4 Tag:

$1.88

Weight 0.025 kg
Dimensions 4.5 × 3.3 cm
Feature 1

It is made of electronic accessories, nickel plating on surface(anti-oxidatioan), inner conductor: pure copper. It is long lasting and durable for you to use.

Feature 2

Input power: Input power is about 4-8 Ohms, 5-15W. Working Voltage is about DC 6 ~ 18V

Feature 3

High Power High Efficiency: High reliability, strong vibration resistance, good electromechanical performance. Sound quality is very good by using this module. Mono digital audio power amplifier chip.High output and low power consumption.

Feature 4

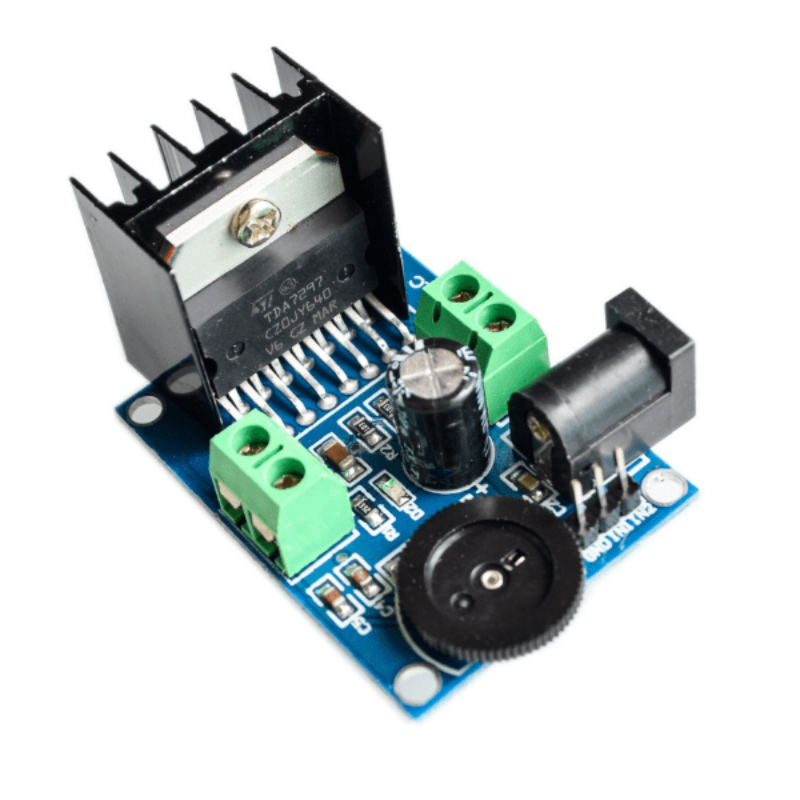

On-board TDA7266 audio amplifier chip, dual-channel 7W +7 W,
suitable for 4-8 Euro 5-15W speakers use

200 in stock

Features

  • Make sure this fits by entering your model number..
  • Super material: It is made of electronic accessories, nickel plating on surface(anti-oxidatioan), inner conductor: pure copper. It is long lasting and durable for you to use..
  • A large area of copper and dense vias hole enhance heat dissipation. it has current limiting, short circuit and over temperature protection. Even if the output is short circuit, it will not burn out the module and it is safer.
  • Input power: Input power is about 4-8 Ohms, 5-15W. Working Voltage is about DC 6 ~ 18V ..
  • High Power High Efficiency: High reliability, strong vibration resistance, good electromechanical performance. Sound quality is very good by using this module. Mono digital audio power amplifier chip.High output and low power consumption..
  • A wide range of applications: Applicable speaker impedance is 4-8 ohms (8 ohms is the best. This module can be applied to audio system, household power system, DIY speaker etc..

Description

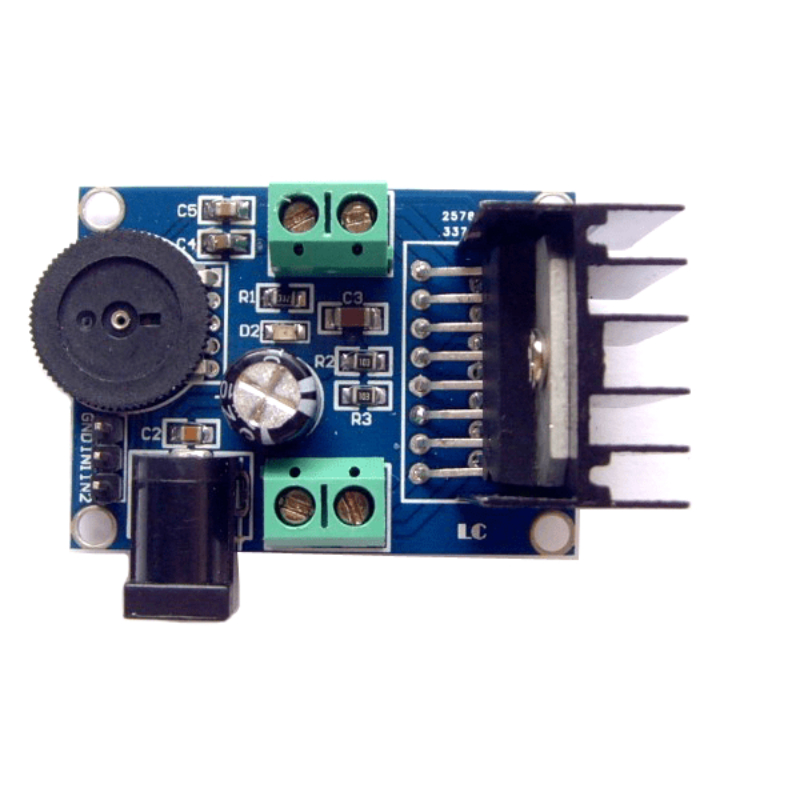

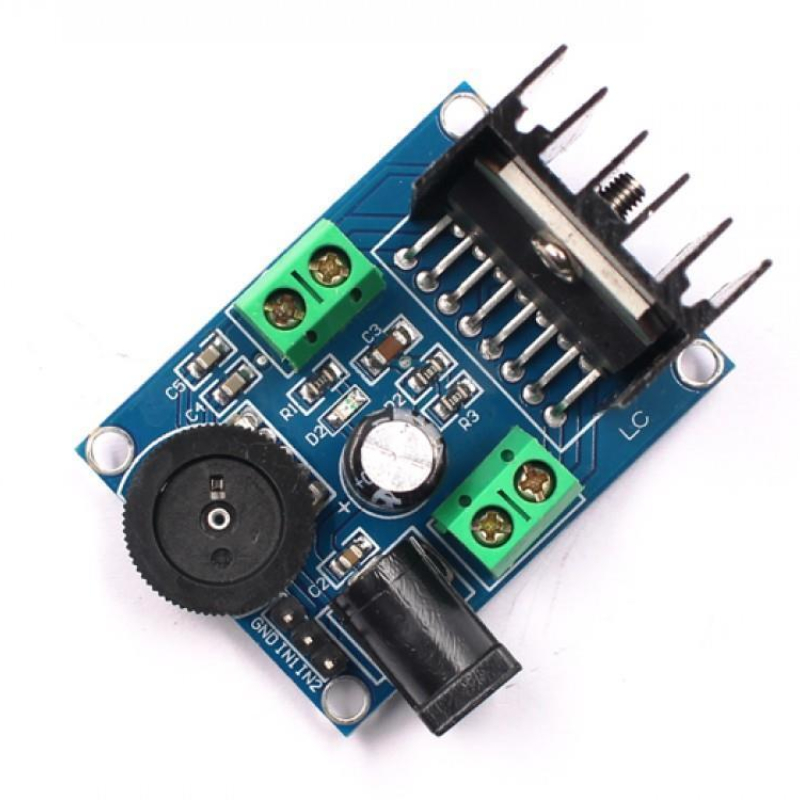

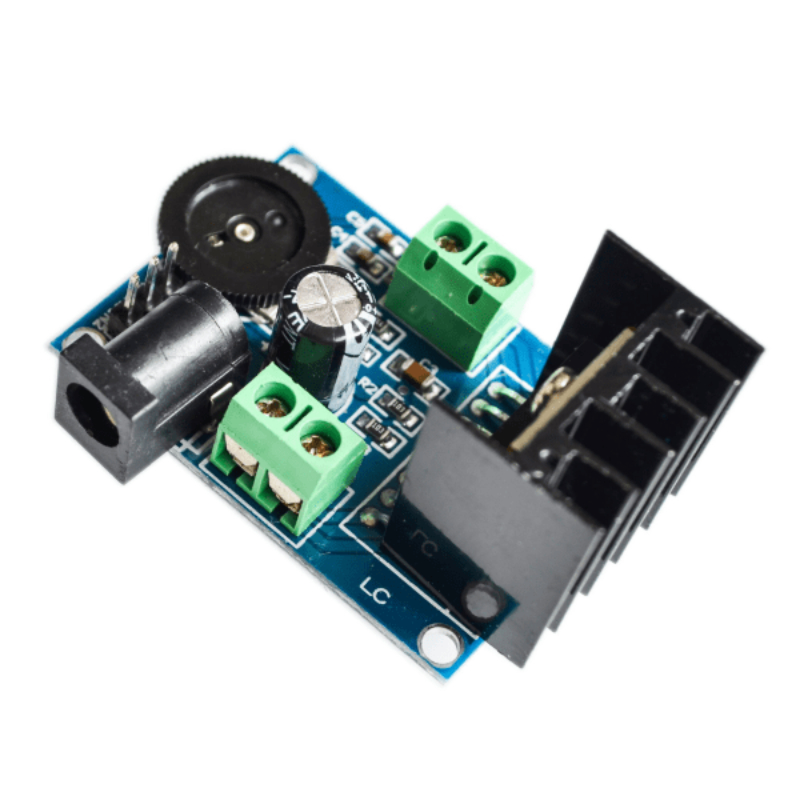

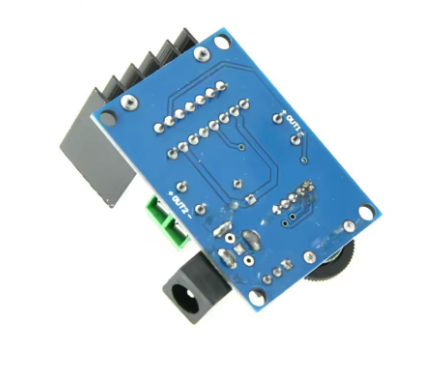

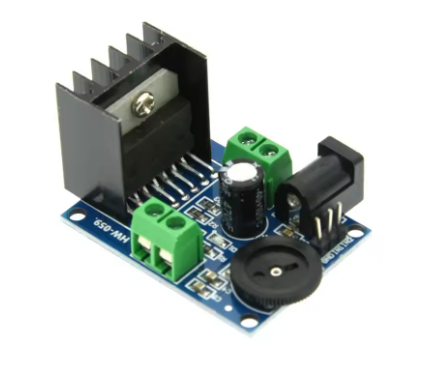

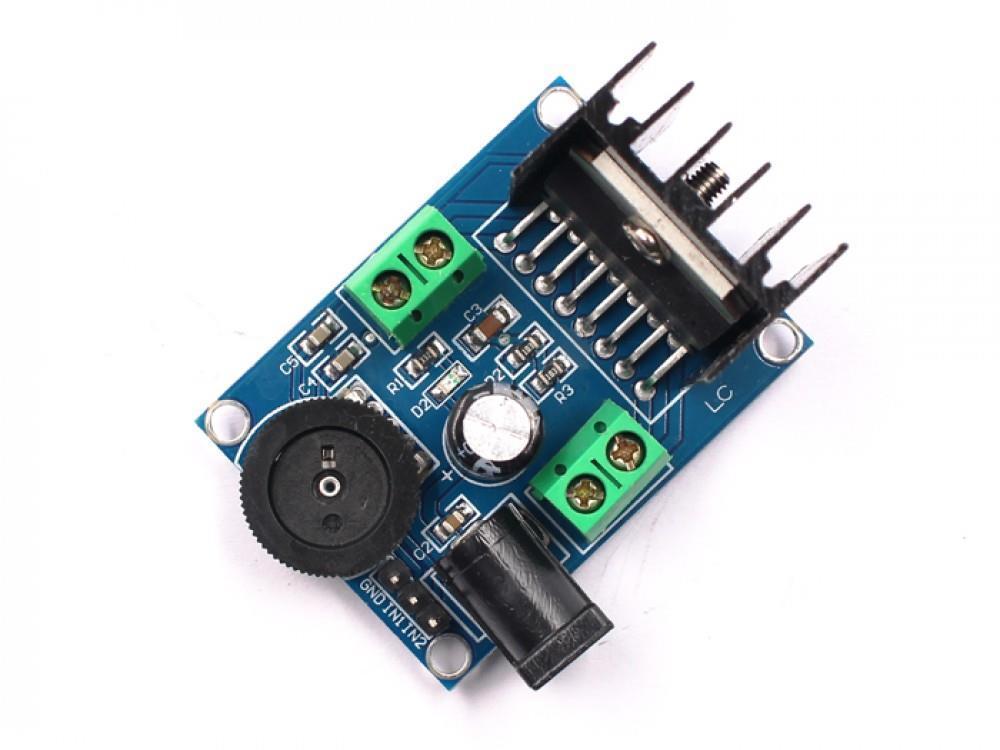

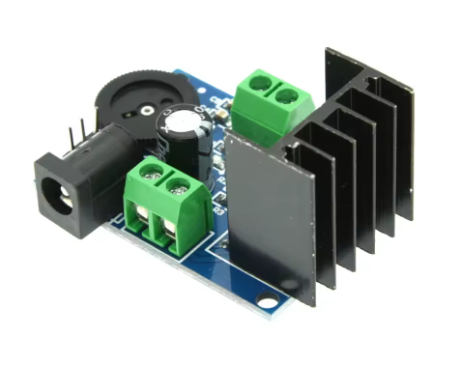

On-board TDA7266 audio amplifier chip, dual-channel 7W +7 W, suitable for 4-8 Euro 5-15W speakers use. Main chip pin has led, easy to control external devices, on-board 2-way 5.08 (mm) pitch 2P terminal, left and right channels are output wiring. Onboard potentiometer dial, you can adjust the volume output size. Support DC Block, terminals, pin 3 of the power input, the
default is DC Block,

voltage :3-18V
Board size: 45.5mm * 33.5mm * 30.5mm(L * W * H)





Applicable speaker impedance is 4-8 ohms (8 ohms is the best. This module can be applied to audio system, household power system, DIY speaker etc..
