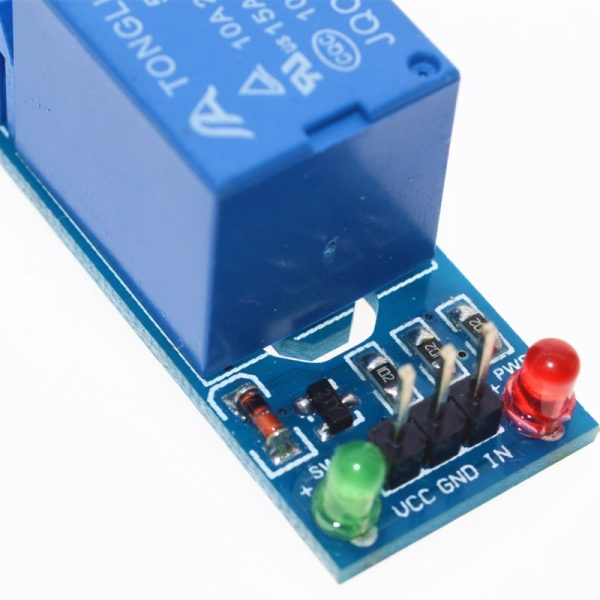

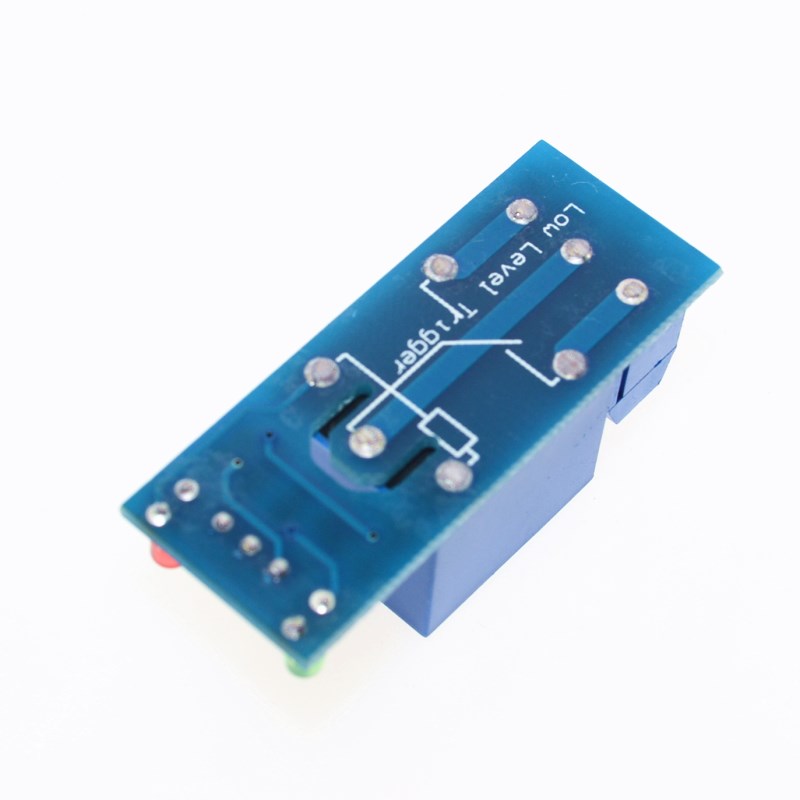

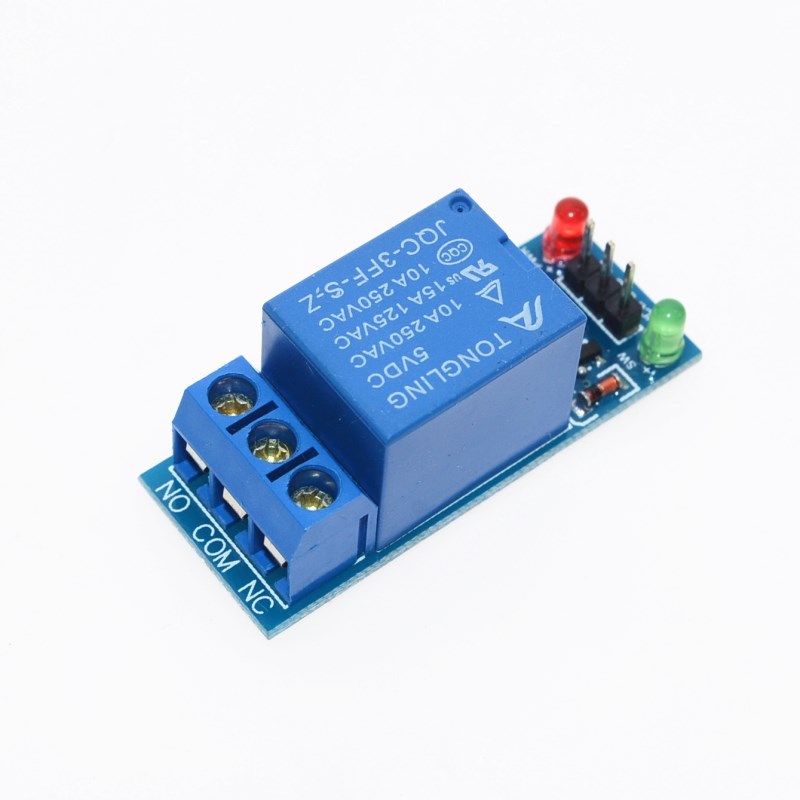

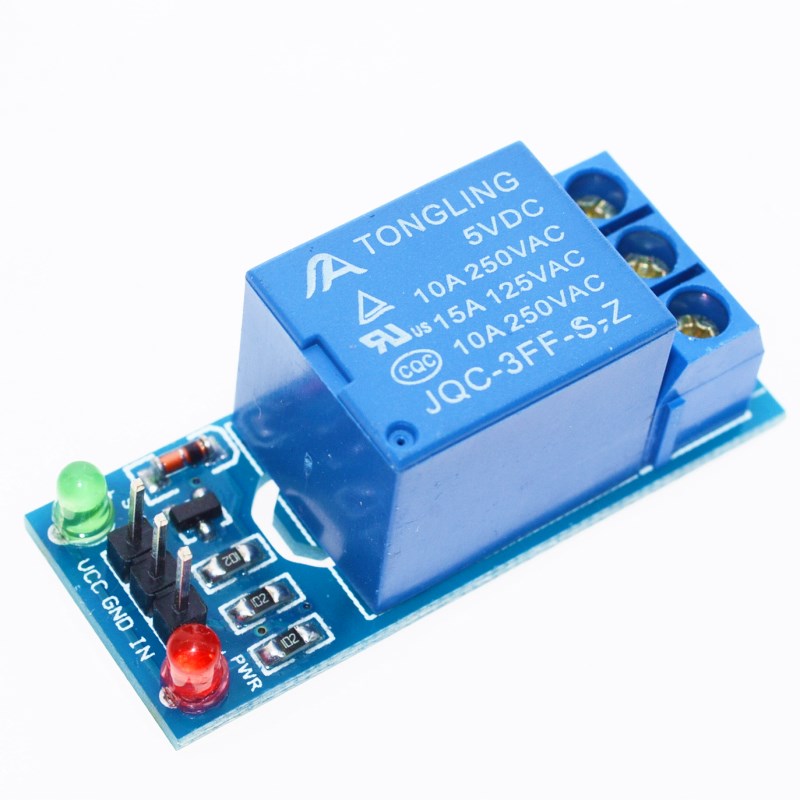

1 Channel Relay Module Interface Board Shield for Arduino 5V Low Level Trigger One PIC AVR DSP ARM MCU DC AC 220V

SKU: FA2082-0-0 Tag:
Dimensions 4.1 × 1.6 × 1.6 cm
Current Rating

4 Amps

Operation Mode


Coil Voltage

5 Volts

Maximum Switching Voltage

220 Volts

  • The module complies with international safety standards, the control area and the load region isolation trench.
  • With the power supply and relay instructions, pull off, disconnect does not shine.
  • The control DC or AC signal, you can control 220V AC load.

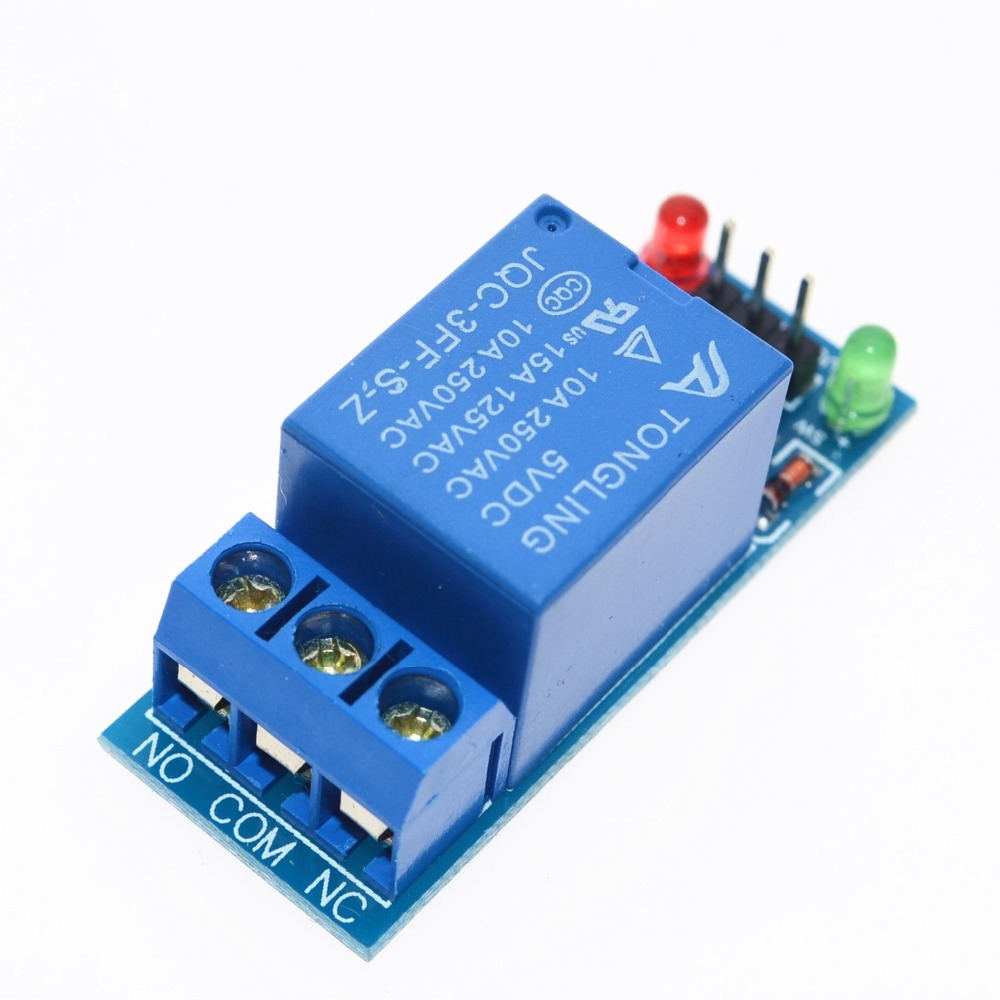

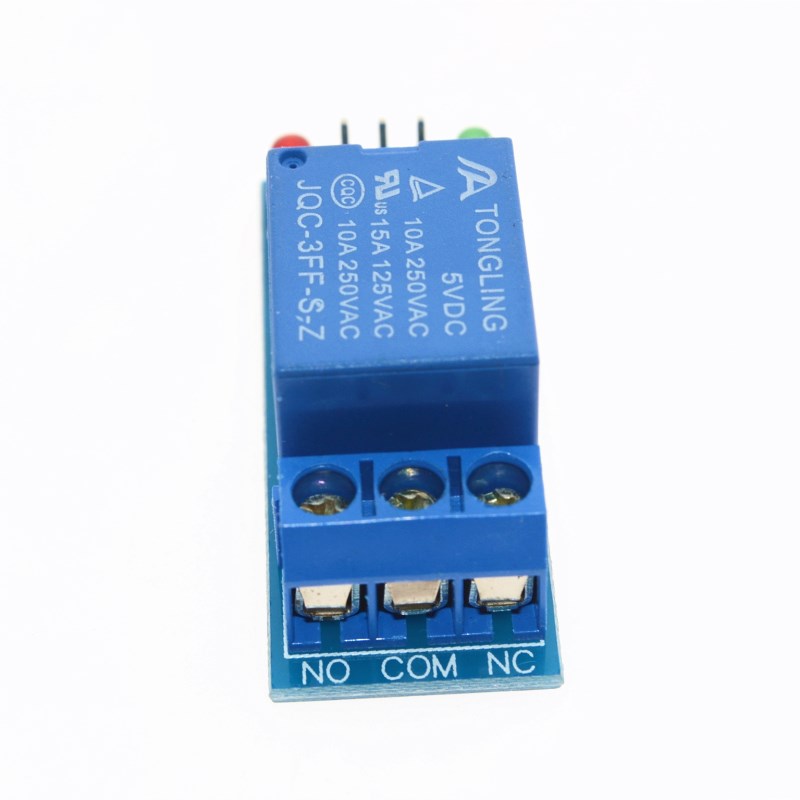

  • There is a normally open and one normally closed contact.
  • Blue KF301 terminals to the control line is more convenient.

This is a Relay Module that can be used to control high loads such as heaters, stepper motors, servo motors…etc with low trigger input level of 5V (Compatible with 5V level of Arduino Boards), and output up to 220V 10A.

You can connect your microcontroller to the input terminal, and the heater to the output terminal.

The product is practical for beginners and professional use.
