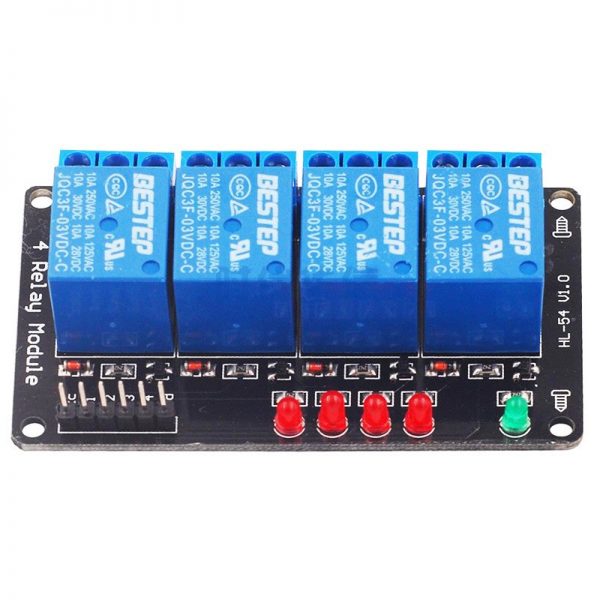

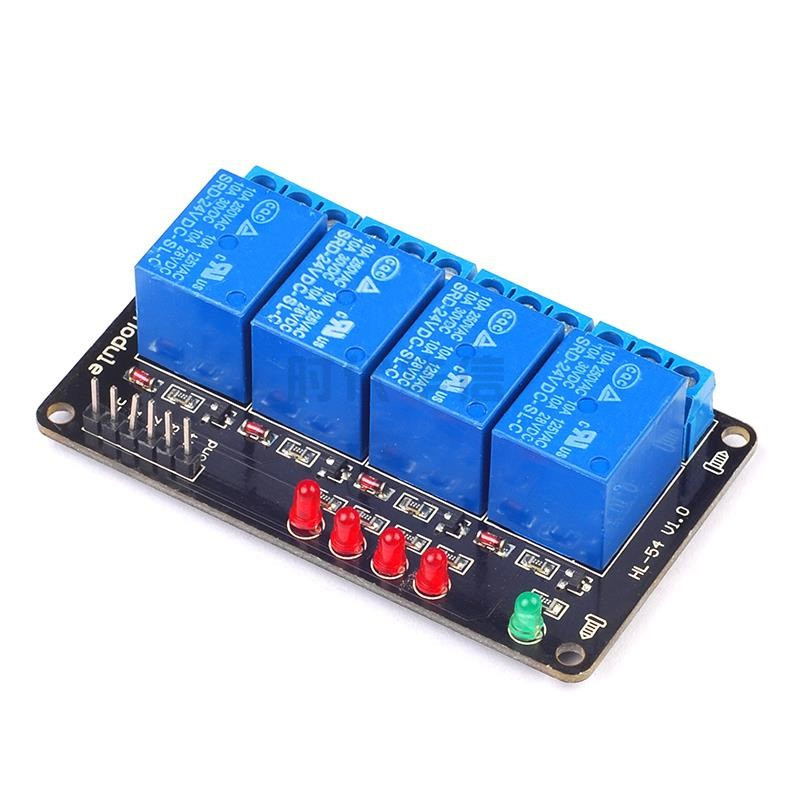

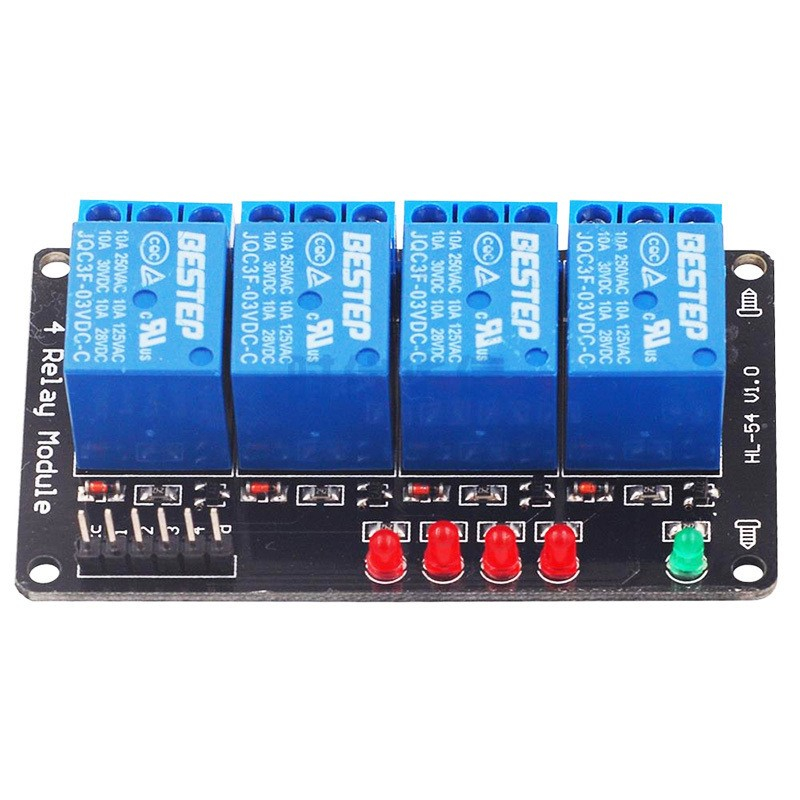

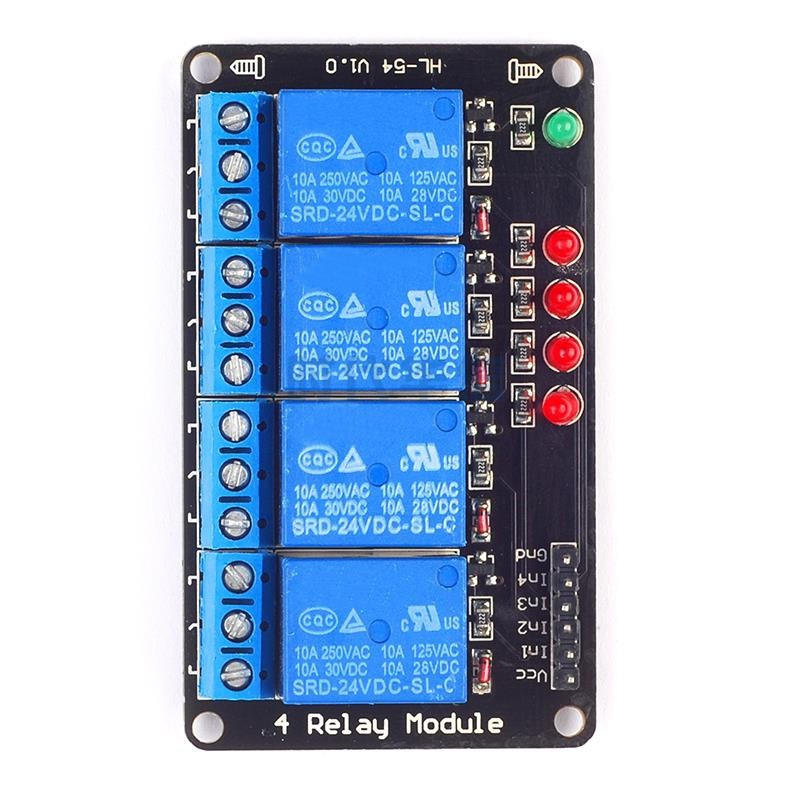

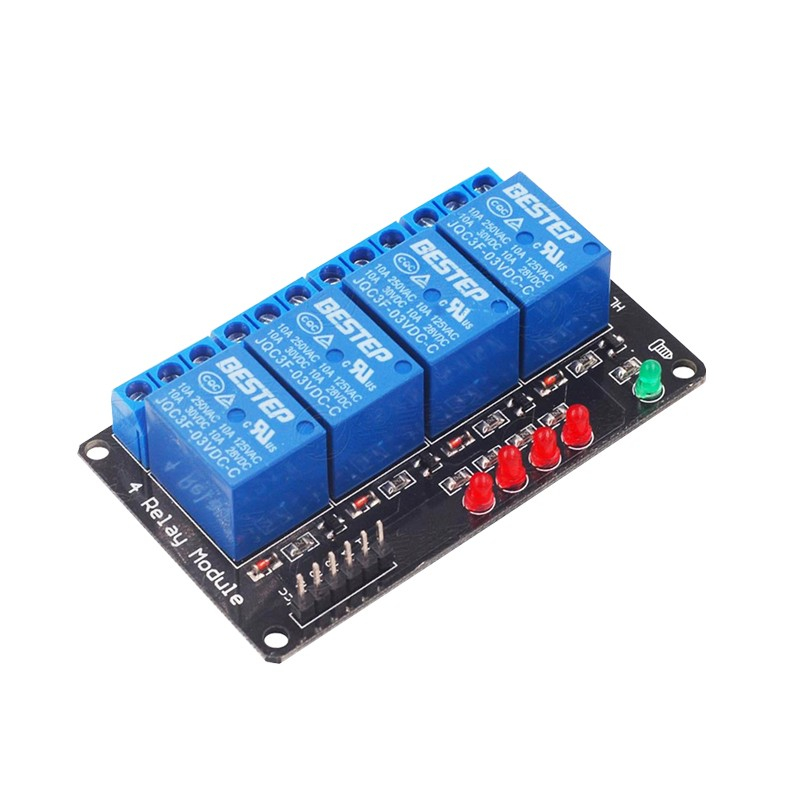

4 way electromagnetic relay module low level trigger without optocoupler with light 3.3v/5v/12v/24v

$1.54

Weight 0.062 kg
Dimensions 7.4 × 4.3 cm
Parameter 1

The module adopts genuine high-quality relay, the maximum load of the normally open interface: AC 250V/10A, DC 30V/10A

Parameter 2

Using patch optocoupler isolation, strong driving ability, stable performance, trigger current 5A

Parameter 3

Module working voltage: 3V 5V 12V 24V

Parameter 4

The module can be triggered by low level setting by jumper

Parameter 5

Fault-tolerant design, even if the control line is broken, the relay will not act

Parameter 6

Power indicator (green), relay status indicator (red)

Parameter 7

The interface design is user-friendly, all interfaces can be directly connected through the terminal block, which is very convenient

Parameter 8

There are 4 fixing bolt holes, the hole is 3.1mm

500 in stock

Product Description
Note: The relay is a passive output, it only acts as a switch and does not output any electricity!
The following accessories are also required to purchase this item:
M3 copper column, screwdriver, switching power supply, switching power supply module, double-ended DuPont line

Module description
1. The module adopts genuine high-quality relay, the maximum load of the normally open interface: AC 250V/10A, DC 30V/10A
2. Using patch optocoupler isolation, strong driving ability, stable performance, trigger current 5A
3. Module working voltage: 3V 5V 12V 24V
4. The module can be triggered by low level setting by jumper
5. Fault-tolerant design, even if the control line is broken, the relay will not act
6. Power indicator (green), relay status indicator (red)
7. The interface design is user-friendly, all interfaces can be directly connected through the terminal block, which is very convenient
8. There are 4 fixing bolt holes, the hole is 3.1mm

Tip: If the function of this product cannot meet your needs, you can contact us to customize it for you. Go to contact us for contact details.

Module interface

  1. DC+: connect to the positive pole of the power supply (voltage according to the requirements of the relay)
  2. DC-: connect to the negative pole of the power supply
  3. IN: The relay can be controlled at low levenl to pull in
  4. VCC external 3V
  5. GND External GND

Relay output
1.NO: The relay is normally open interface, the relay is suspended before it is closed, and it is short-circuited with COM after it is closed.
2. COM: relay common interface
3.NC: Relay normally closed interface, short-circuit with COM before the relay is pulled in, and vacant after the pull-in

Note: The relay is a passive output, it only acts as a switch and does not output any electricity!
The following accessories are also required to purchase this item:
M3 copper column, screwdriver, switching power supply, switching power supply module, double-ended DuPont line
