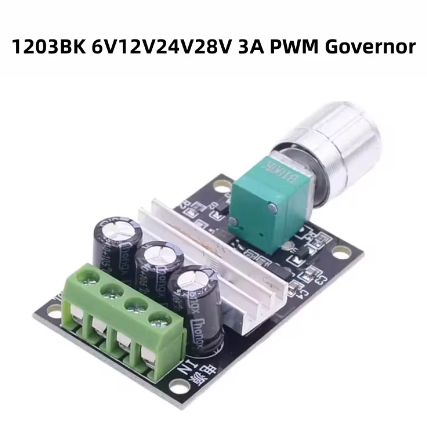

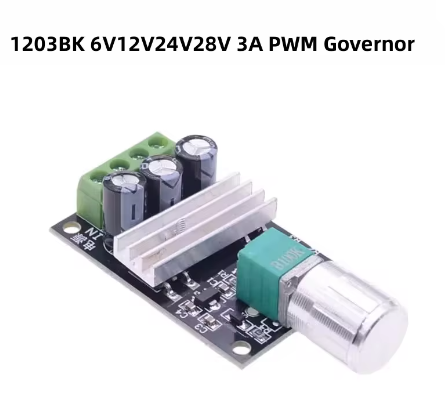

Product Overview
The 1203BK PWM DC Motor Speed Controller is a robust and reliable speed regulation module designed for medium-power DC motor applications. Utilizing advanced Pulse Width Modulation (PWM) technology, this controller provides smooth, stepless speed adjustment from 0% to 100% duty cycle, allowing you to precisely control the speed of your motors with a simple twist of a knob .
Engineered for versatility, the 1203BK accepts a wide input voltage range of 6V to 28V DC, making it compatible with a vast array of common power sources including 6V, 9V, 12V, and 24V batteries, power supplies, and even some 28V industrial systems . With a maximum current capacity of 3A, it can handle loads up to 84W (at 28V), suitable for a wide range of pumps, fans, robotics, and automation equipment .
A key design feature of this module is the inclusion of built-in filtering capacitors . These capacitors smooth the output waveform, reduce electrical noise, and help ensure stable motor operation, particularly at lower speeds where PWM ripple can cause cogging or vibration .
The 1203BK serves as an excellent choice for a wide range of applications, including:
-
Industrial automation and conveyor systems
-
Robotics and animatronics
-
Pump and fan speed control
-
DIY workshop tools (drill presses, lathes)
-
Laboratory and testing equipment
-
12V and 24V automotive and marine applications
Key Features
-
Wide Input Voltage Range: Accepts DC input from 6V to 28V, providing compatibility with common 6V, 9V, 12V, and 24V power sources as well as higher-voltage industrial systems .
-
3A High Current Capacity: Handles continuous output currents up to 3A (maximum output power 84W) , making it suitable for a wide range of medium-power DC motors and loads .
-
Built-In Filtering Capacitors: Includes onboard capacitors that smooth the PWM output waveform, reducing electrical noise and ensuring stable motor operation, especially at low speeds where PWM ripple can cause vibration .
-
PWM Technology for Smooth Control: Uses high-frequency Pulse Width Modulation (approximately 21kHz on some variants) to provide vibration-free speed adjustment with excellent torque retention even at low speeds .
-
0%-100% Duty Cycle Adjustment: Allows full-range speed control from completely stopped to maximum speed, with linear response to knob rotation .
-
Integrated Potentiometer: Features a robust rotary potentiometer (typically B100K resistance value) for easy and intuitive speed adjustment. The knob may also feature an integrated on/off switch on some variants .
-

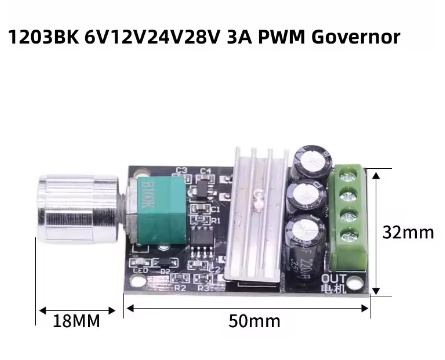

Compact and Rugged Design: Housed in a durable PCB with dimensions of approximately 32mm x 50mm x 15mm , the module is compact enough for tight spaces while providing robust mounting points .
-
Easy 4-Terminal Wiring: Simple screw terminal connections for power input (VIN/GND) and motor output (OUT/GND) make installation quick and error-free .
-
High PWM Frequency (Select Models): Some versions of the 1203BK operate at a 21kHz PWM frequency , which is above the range of human hearing, eliminating the annoying whine often associated with lower-frequency PWM controllers .
-
Wide Operating Temperature: Engineered to perform reliably in various environments, with an operating temperature range suitable for industrial and hobby applications .
Technical Specifications
Pinout & Interface Guide

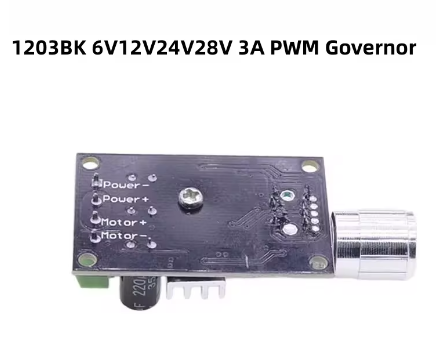

The 1203BK controller features clearly labeled screw terminals for all connections.
Power Terminals
-
VIN / IN+ (Power Input +): Connect the positive terminal of your DC power source (6V-28V) here. Observe correct polarity. Reverse polarity can damage the controller .
-
GND / IN- (Power Input -): Connect the negative terminal (ground) of your DC power source here.
Motor Terminals
Control Interface
Usage Guide
Important Safety Warnings
-
DC ONLY: This controller is designed strictly for DC circuits. Never connect it to AC mains power (e.g., 110V or 220V AC). Doing so will instantly destroy the controller and poses a serious fire hazard .
-
Voltage Limits: Do not exceed the maximum input voltage of 28V DC. Applying higher voltage can permanently damage the module .
-
Current Limits: Do not exceed the maximum continuous current rating of 3A. Sustained operation above this rating may overheat the module and cause failure .
-
Polarity: Always double-check your power supply connections for correct polarity before applying power. The 1203BK does not typically include reverse polarity protection, so incorrect polarity can instantly destroy the controller .
-
Motor Type: This controller is for brushed DC motors only . It is NOT compatible with brushless DC motors (BLDC), stepper motors, or AC motors.
Wiring Guide
Step-by-Step Operation
-
Mount the Controller: Secure the module in your project enclosure using mounting tape or standoffs. Avoid mounting on conductive surfaces.
-
Connect the Motor: Connect your DC motor to the OUT + and OUT – terminals. If the motor runs in the wrong direction later, simply swap these two wires (with power off).
-
Connect the Power Supply: Connect your DC power source (battery or power supply) to the VIN + and GND – terminals. Ensure the power supply is turned OFF or disconnected during wiring .
-
Set Initial Speed: Turn the potentiometer knob fully counter-clockwise to its minimum speed position.
-
Apply Power: Turn on your DC power source or connect your battery.
-
Adjust Speed: Slowly turn the potentiometer knob clockwise. The motor will begin to spin and increase in speed as you turn. Adjust until you reach the desired speed.
-
Stop the Motor: Turn the knob fully counter-clockwise to return to minimum speed. On models with an integrated switch, you may feel a click as the motor completely shuts off .
-
Change Direction (if needed): To reverse the motor’s direction, turn off the power, swap the two motor wires at the OUT + and OUT – terminals, and then reapply power.
Q: What types of motors can I use with the 1203BK controller?
This controller is designed for brushed DC motors only operating at 6V to 28V . It is ideal for medium-power motors found in pumps, fans, robotics, and automation equipment. It is not suitable for brushless motors (BLDC), stepper motors, or AC motors.
Q: What is the advantage of the built-in capacitors?
The built-in filtering capacitors serve two main purposes:
-
Noise Reduction: They smooth out the PWM waveform, reducing electrical noise that can interfere with nearby sensitive electronics .
-
Smoother Low-Speed Operation: They help reduce the “cogging” or vibration that can occur when running a motor at very low speeds with PWM, resulting in smoother rotation .
Q: What is the difference between the 1203BK and smaller controllers like the 1803BW?
The 1203BK is designed for higher power applications. Key differences include:
-
Higher Voltage: Supports up to 28V vs. 12V on the 1803BW .
-
Higher Current: Supports 3A continuous vs. 2A on the 1803BW .
-
Higher Power: Can handle up to 84W vs. 30W on the 1803BW .
-
Larger Size: The 1203BK is physically larger to accommodate the higher power components and filtering capacitors .
Q: Can I use this controller to change the direction of my motor?
This model provides speed control only. It does not have a direction switch. However, you can easily change the motor’s direction by swapping the two motor wires at the OUT + and OUT – terminals . Always turn the power off before doing this.
Q: What power supply should I use?
Use a DC power source with a voltage between 6V and 28V that matches your motor’s rating. The power source must be capable of delivering at least the current your motor will draw (up to 3A). Examples include:
-
6V, 12V, or 24V battery packs
-
12V or 24V regulated power supplies
-
24V industrial power supplies
-
28V systems (check your motor compatibility)
Q: What is the PWM frequency and why does it matter?
The PWM frequency is the rate at which the controller switches the power on and off to regulate speed. The 1203BK typically operates at around 21kHz . This is above the range of human hearing, so it eliminates the annoying high-pitched whine often heard with lower-frequency (e.g., 1kHz) controllers .
Q: The controller gets warm. Is this normal?
Some warmth is normal when switching currents near 3A. The module is designed to dissipate this heat through its PCB and components. However, if it becomes too hot to touch, you may be exceeding the recommended continuous current rating. Reduce the load or ensure adequate ventilation.
Q: Does the module have reverse polarity protection?
Generally, no. Most standard 1203BK modules do not include reverse polarity protection . Accidentally connecting the power supply with reversed polarity (+ to -) can instantly destroy the controller. Always double-check your connections before applying power .
Q: The controller doesn't work. The motor doesn't move.
Follow this checklist:
-
Check Power: Verify with a multimeter that you have the correct DC voltage (6V-28V) at the VIN + and GND – terminals.
-
Check Polarity: Ensure your power supply is connected with the correct polarity (+ to +, – to -). If reversed, the module may already be damaged .
-
Check Connections: Ensure all wires are securely fastened in the screw terminals.
-
Check Knob Position: Ensure the knob is turned clockwise past the minimum speed position. On some models, you may need to turn past a slight “click” to power on the module .
-
Test the Motor: Connect your motor directly to the power source (briefly) to ensure it works.
Q: The motor runs at full speed all the time, and the knob doesn't control it.
This indicates that the PWM control circuit (typically a MOSFET) may have failed “shorted.” This can happen if the module was overloaded, experienced a short circuit, or had reverse polarity applied. You will likely need to replace the controller.
Q: The motor runs in the wrong direction.
This is easily fixed. Turn off the power, swap the two motor wires at the OUT + and OUT – terminals, and then reapply power .
Q: The motor vibrates or runs roughly at low speeds.
This can sometimes happen with PWM controllers. Try the following:
-
The built-in capacitors should help with this, but if the problem persists, the motor itself may have mechanical issues .
-
Ensure your power supply is stable and well-regulated.
-
Some motors simply have a minimum speed below which they cannot run smoothly due to their design.
Q: Does the potentiometer have an off position?
On some variants of the 1203BK, the potentiometer includes an integrated on/off switch. Turning the knob fully counter-clockwise until you feel a click will completely disconnect power to the motor . Not all versions include this feature; check your specific module.
