12864 5V LCD Blue

SKU: FA4010 Tag:

$5.39

Weight 0.090 kg
Dimensions 9.3 × 7 cm
DISPLAY CONSTRUCTION

128*64 DOTS

DISPLAY MODE

TN/STN

DISPLAY TYPE

Positive Transflective

BACKLIGHT

VDD5.0V, Idd250mA

VIEWING DIRECTION

6 o'clock

OPERATING TEMPERATURE

Indoor

DRIVING VOLTAGE

Single power

DRIVING METHOD

1/64 duty,1/9 bias, VOP10.5V, VDD5.0V

TYPE

COB (Chip On Board)

NUMBER OF DATA LINE

8-bit parallel

CONNECTOR

Pin / ZEBRA

500 in stock

Features

DISPLAY CONSTRUCTION 128*64 DOTS
DISPLAY MODE TN/STN
DISPLAY TYPE Positive Transflective
BACKLIGHT VDD5.0V, Idd250mA
VIEWING DIRECTION 6 o’clock
OPERATING TEMPERATURE Indoor
DRIVING VOLTAGE Single power
DRIVING METHOD 1/64 duty,1/9 bias, VOP10.5V, VDD5.0V
TYPE COB (Chip On Board)
NUMBER OF DATA LINE 8-bit parallel
CONNECTOR Pin / ZEBRA

Key Parameters

DRIVER IC KS0107 / KS0108 / S6B0108
INTERFACE Parallel
BACKLIGHT Blue
CHARACTER COLOR White
CHARACTER SET ASCII
DIMENSION 93 * 70 * 14

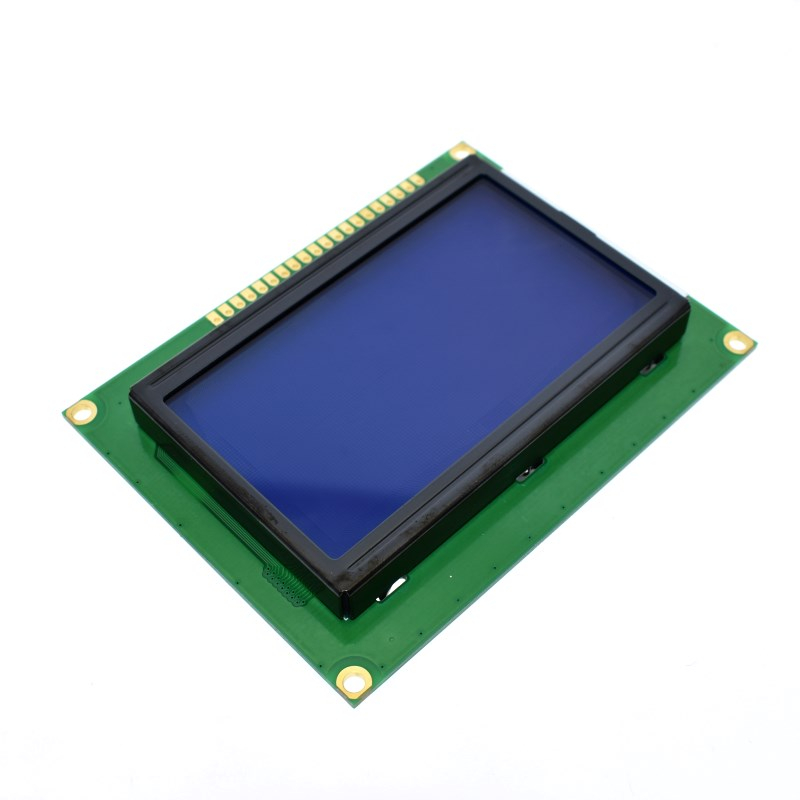

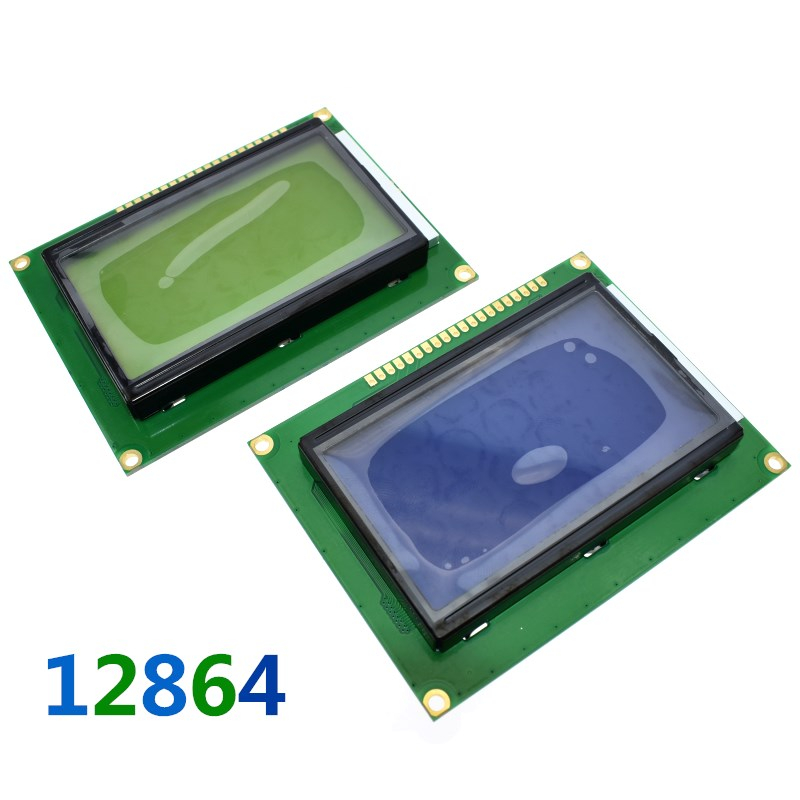

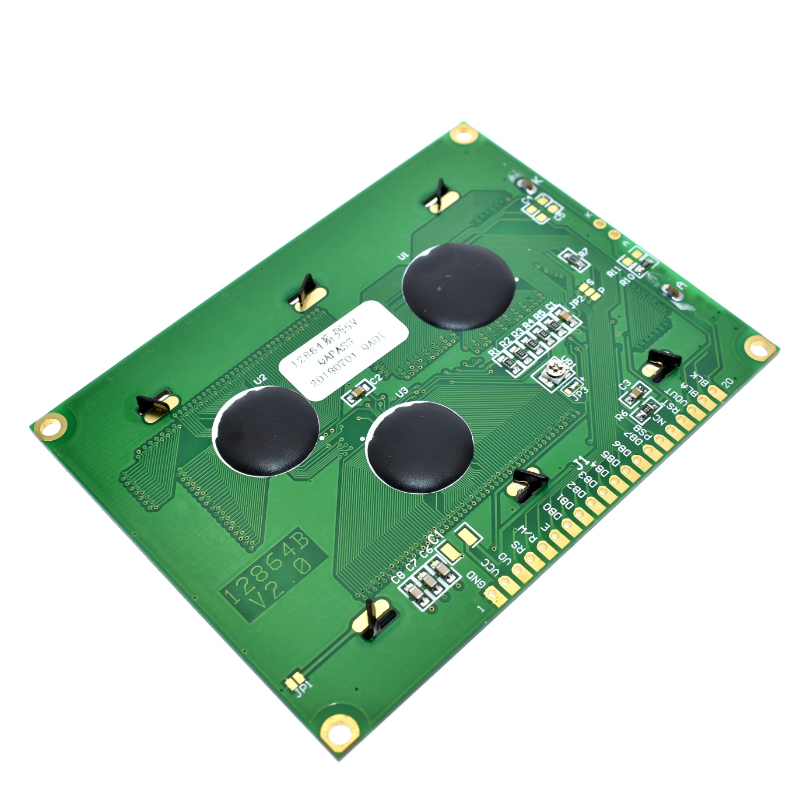

Photos

Interface

PIN NO. SYMBOL DESCRIPTION FUNCTION
1 VSS Ground 0V (GND)
2 VDD Power Supply For Logic Circuit +5V
3 V0 LCD Contrast Adjustment / Operating Voltage For LCD
4 RS Instruction/Data Register Selection RS = 0 : Instruction Register
RS = 1 : Data Register
5 R/W Read/Write Selection R/W = 0 : Register Write
R/W = 1 : Register Read
6 E Enable Signal
7 DB0 Data Bus DB0-DB7
8 DB1
9 DB2
10 DB3
11 DB4
12 DB5
13 DB6
14 DB7
15 CS1 Chip 1 Select
16 CS2 Chip 2 Select
17 /RST Reset Reset Signal (Low)
18 VEE Negative Voltage Output/Input (-10V)
19 LEDA Power Supply For Backlight+ +5V
20 LEDK Power Supply For Backlight- 0V

External Dimension

LCD12864-KS external dimension

– Arduino and Mobiflight Compatible

– Ideal for MCP / FCU / Radio Panel or other Sim panels
