Sale!

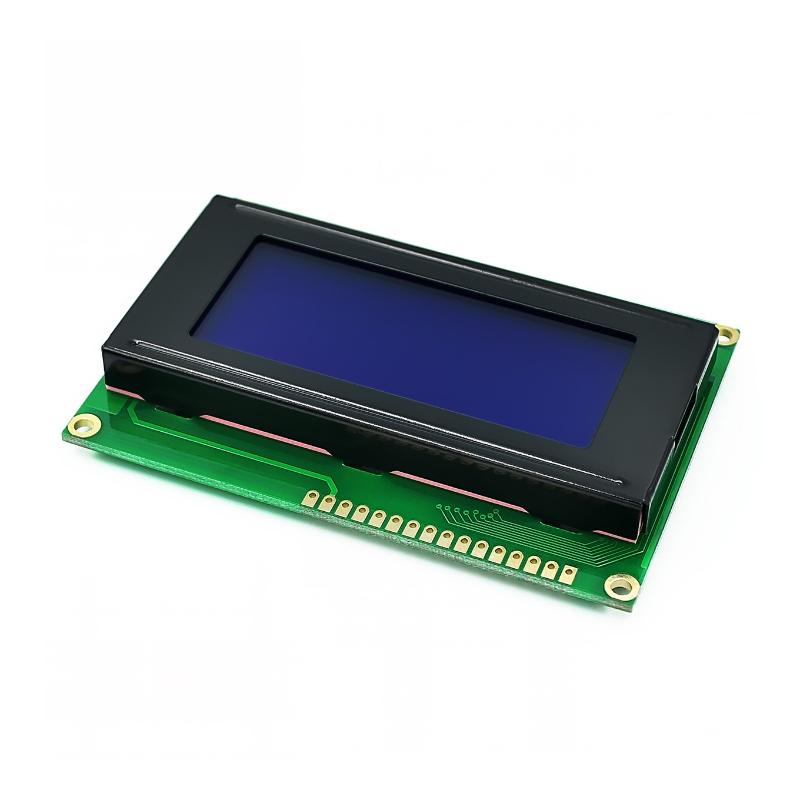

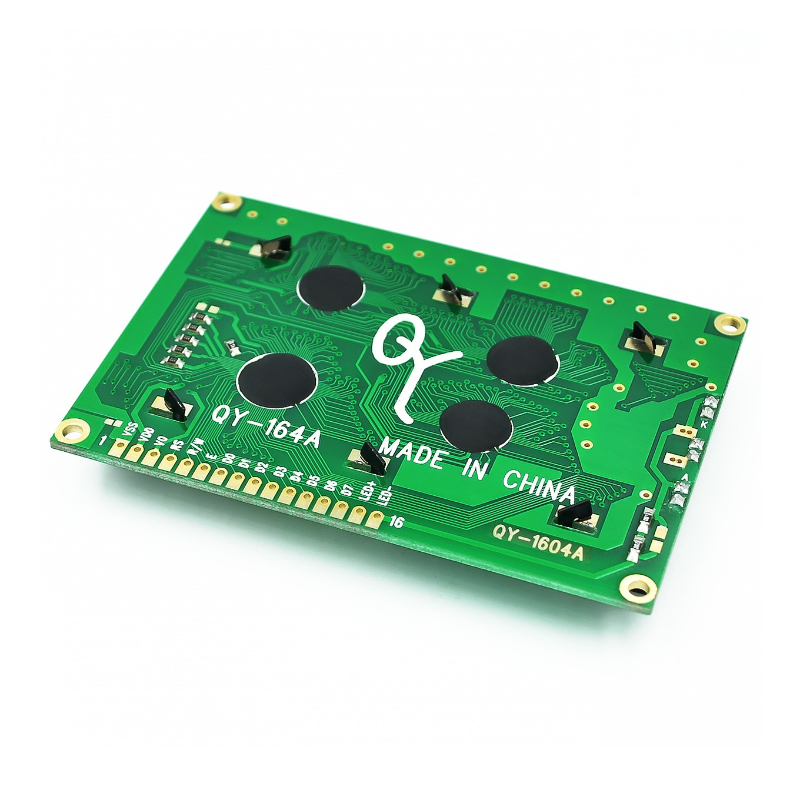

LCD1604 Blue

SKU: FA4009 Tag:

$3.35

Weight 0.070 kg
Dimensions 8.7 × 6 cm
DISPLAY CONSTRUCTION

16 Characters * 4 Lines

DISPLAY MODE

TN/STN

DISPLAY TYPE

Positive Transflective

BACKLIGHT

LED/4.2VDC

VIEWING DIRECTION

6 o'clock

OPERATING TEMPERATURE

Indoor

DRIVING VOLTAGE

Single power

DRIVING METHOD

1/16 duty,1/4 bias

TYPE

COB (Chip On Board)

NUMBER OF DATA LINE

8-bit parallel

CONNECTOR

Pin / ZEBRA

500 in stock

Features

DISPLAY CONSTRUCTION 16 Characters * 4 Lines
DISPLAY MODE TN/STN
DISPLAY TYPE Positive Transflective
BACKLIGHT LED/4.2VDC
VIEWING DIRECTION 6 o’clock
OPERATING TEMPERATURE Indoor
DRIVING VOLTAGE Single power
DRIVING METHOD 1/16 duty,1/4 bias
TYPE COB (Chip On Board)
NUMBER OF DATA LINE 8-bit parallel
CONNECTOR Pin / ZEBRA

Key Parameters

DRIVER IC KS0066 (compatible with HD44780)
INTERFACE Parallel
BACKLIGHT Blue
CHARACTER COLOR White
CHARACTER SET ASCII
DIMENSION 87 * 60 * 13.5



Interface

PIN NO. SYMBOL DESCRIPTION FUNCTION
1 VSS Ground 0V (GND)
2 VCC Power Supply For Logic Circuit +5V
3 VEE LCD Contrast Adjustment
4 RS Instruction/Data Register Selection RS = 0 : Instruction Register
RS = 1 : Data Register
5 R/W Read/Write Selection R/W = 0 : Register Write
R/W = 1 : Register Read
6 E Enable Signal
7 DB0 Data Input/Output Lines 8 BIT: DB0-DB7
8 DB1
9 DB2
10 DB3
11 DB4
12 DB5
13 DB6
14 DB7
15 LED+ Supply Voltage For LED+ +5V
16 LED- Supply Voltage For LED- 0V

External Dimension

LCD1604 external dimension

– Arduino and Mobiflight Compatible

– Ideal for MCP / FCU / Radio Panel or other Sim panels
