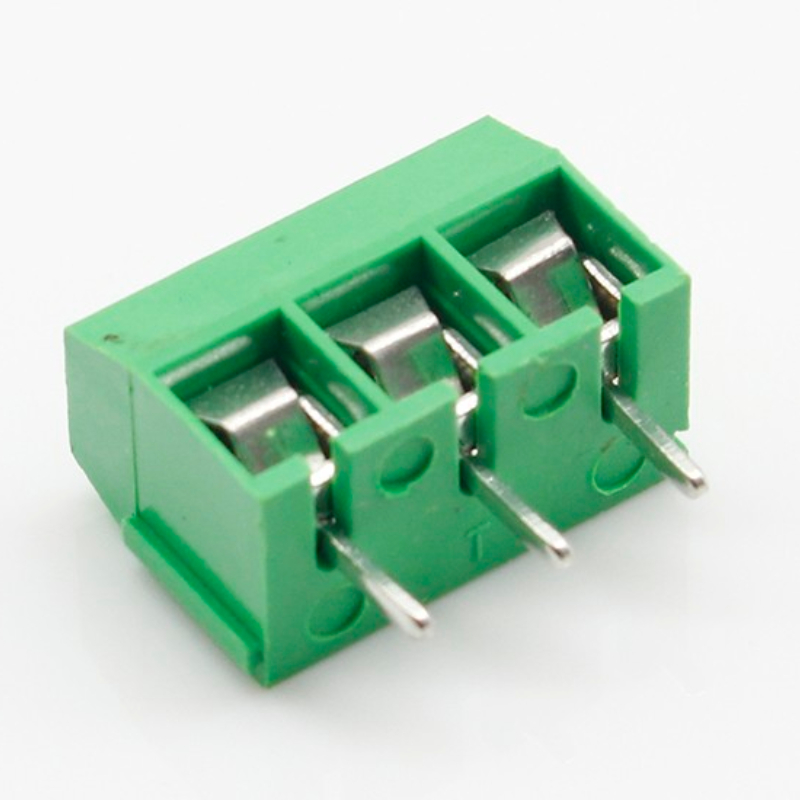

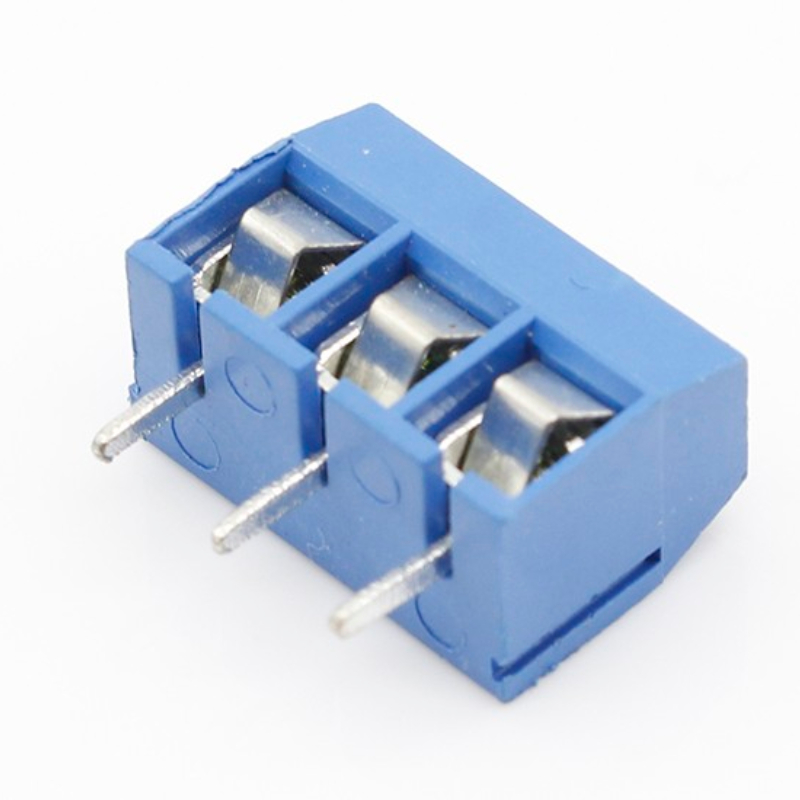

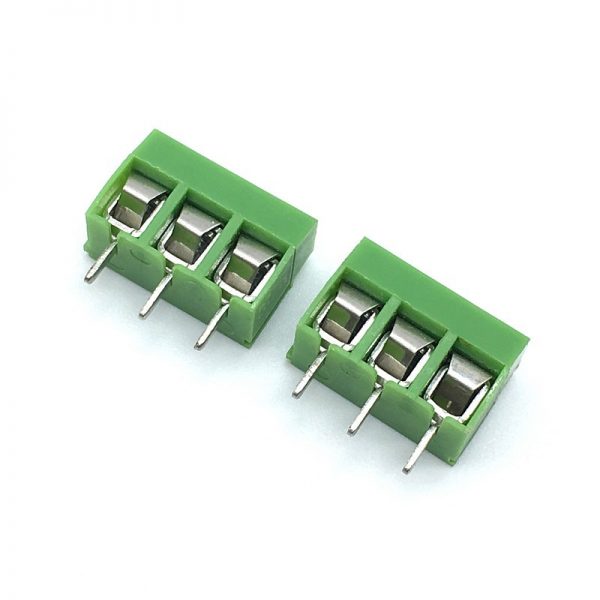

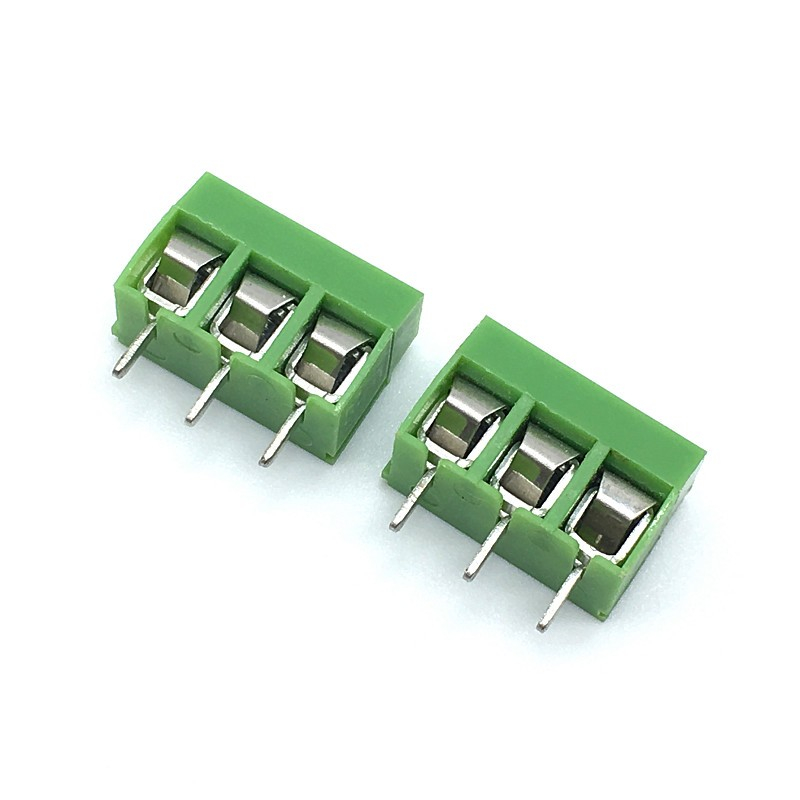

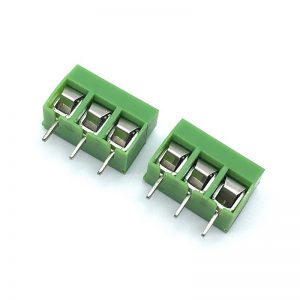

3.5mm 3pin Straight Pin PCB Screw Terminal Block (Blue/Green)

SKU: FA4098 Tag:
Weight 0.010 kg
Pitch

Pitch

Poles

3 Pin

Part Number

KF350-3P

Rated voltage

300 V

Rated current

10 A

Contact Resistance

20mΩ MAX

Withstanding voltage

AC 1500V/1Min

Wire range

24-18A WG

Temperature range

-40 °C ~ +105 °C

MAX soldering

+250°C for 5sec

Torque

0.2Nm(1.8lb.in)

Withstand length

4.5~5 mm

Features

  • BRAND NEW!

  • Pitch: 3.5 mm

  • Poles: 3 Pin

  • Color: Green/Blue

  • Part Number: KF350-3P

     Electrical

  • Rated voltage: 300 V

  • Rated current: 10 A

  • Contact Resistance: 20mΩ MAX

  • Withstanding voltage: AC 1500V/1Min

  • Wire range: 24-18A WG

     Mechanical

  • Temperature range: -40 °C ~ +105 °C

  • MAX soldering: +250°C for 5sec

  • Torque: 0.2Nm(1.8lb.in)

  • Withstand length: 4.5~5 mm

     Part & Material

  • Housing: PA66. UL94 V-0

  • Screw: M2 Steel Zinc plated

  • Wire guard: phosphor bronze, Ni plated or stainless steel

  • Pin header: Brass, Tin plated

For Automatic Projects
