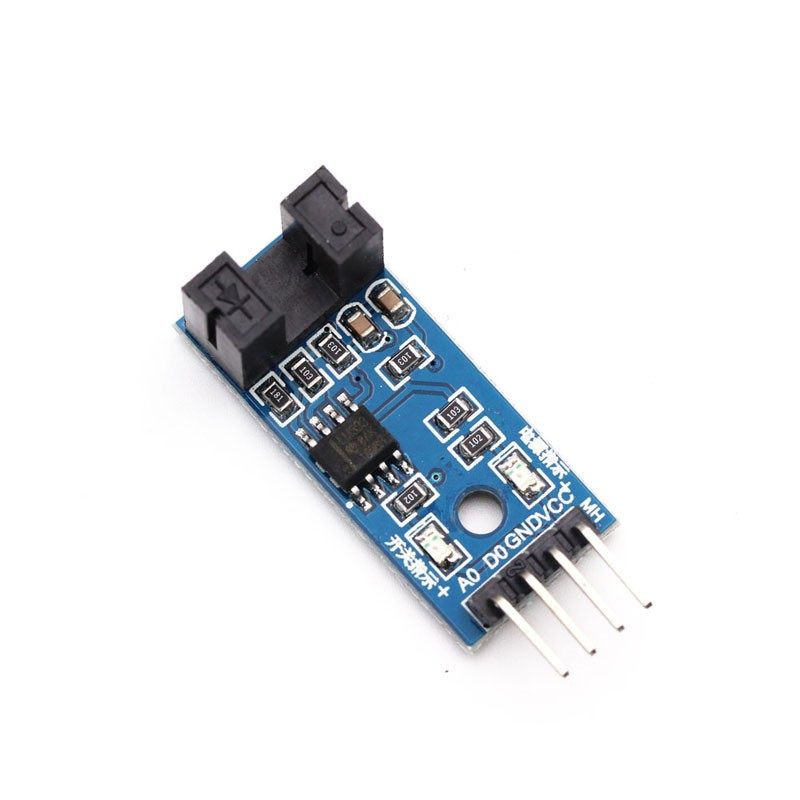

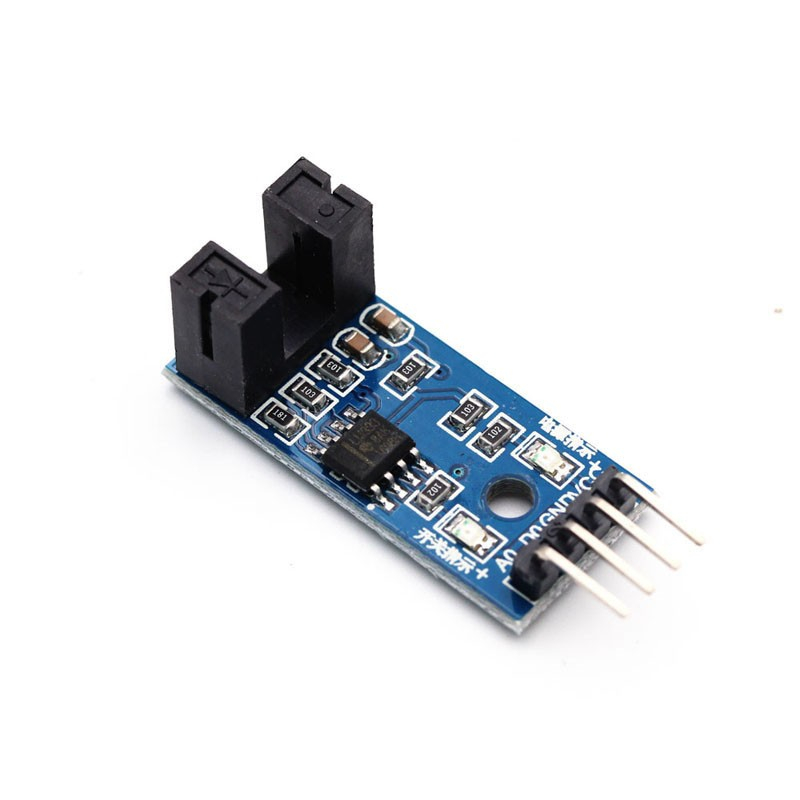

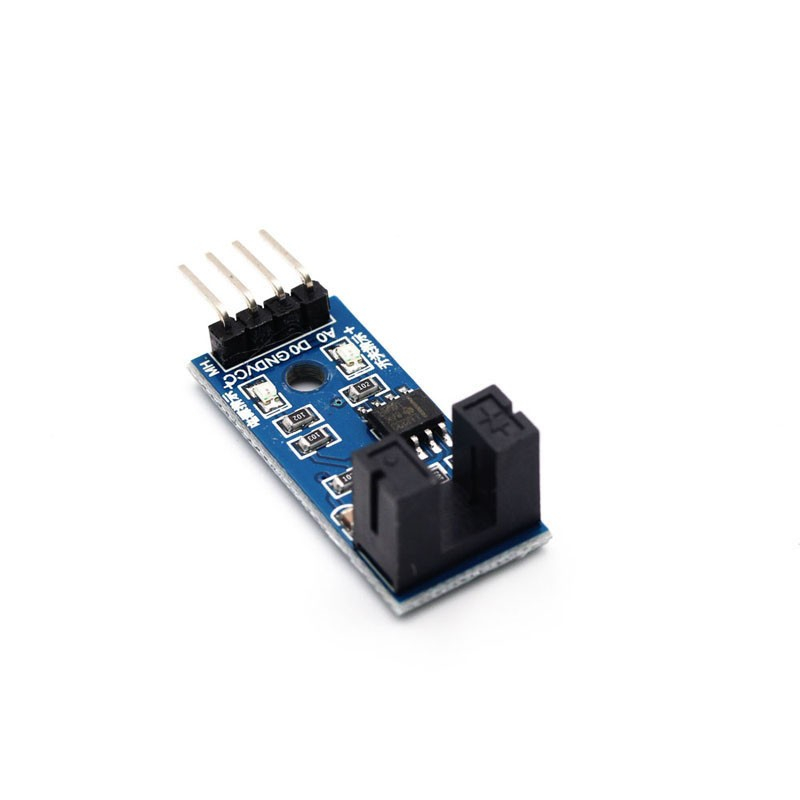

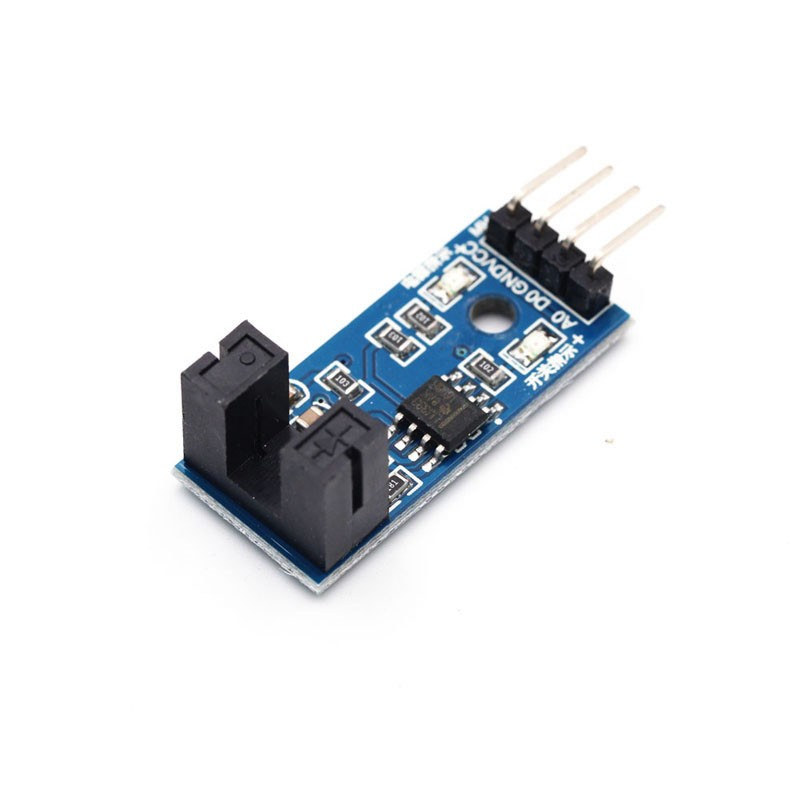

Photoelectric Beam Speed Sensor Module 3.3V-5V Slot-Type Optocoupler Tacho-Generator Counter

SKU: FA3016-1
Weight 0.031 kg
Dimensions 1.43 × 3.1 cm
Output:

Switching Transducer

Working voltage

3.3V-5V

Model Number:

counter module

Groove width

5mm

Using wide voltage

LM393 comparator

Type:

Optical-Electronics Sensor

Blue speed sensor:
Widely used in motor speed detection, pulse counting, position limit and so on.
Module features:
1, the use of imported groove coupler sensor, slot width 5mm.
2, output status indicator lamp output high, output low lights.
3, block, output high; no shelter, output low.
4, the comparator output signal clean, good waveform, driving ability, than 15mA.
5, the working voltage of 3.3V-5V
6, the output format: digital switching output (0 and 1)
7, a fixed bolt holes for easy installation

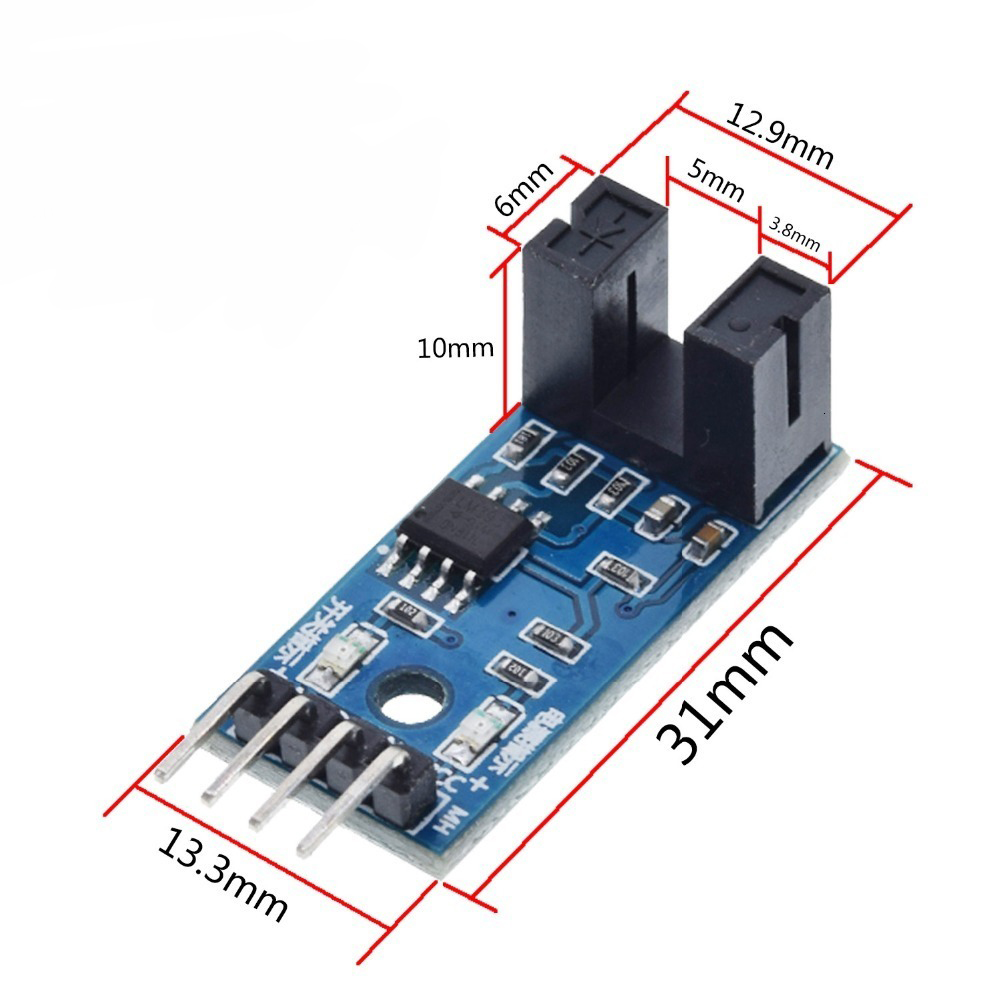

8, small PCB board size: 3.2cm x 1.4cm
9, using a wide voltage comparator LM393
Module for use:
1. module slot unobstructed, receiver tube conduction module DO output low, when blocked, DO output high;
2, DO output interface can be directly connected to the microcontroller IO port, whether the sensor with barriers, such as the motor speed can be detected with the motor encoder.
2. DO module can be connected to relays, limit switches and other functional composition, and to be connected with active buzzer module, consisting of alarm.

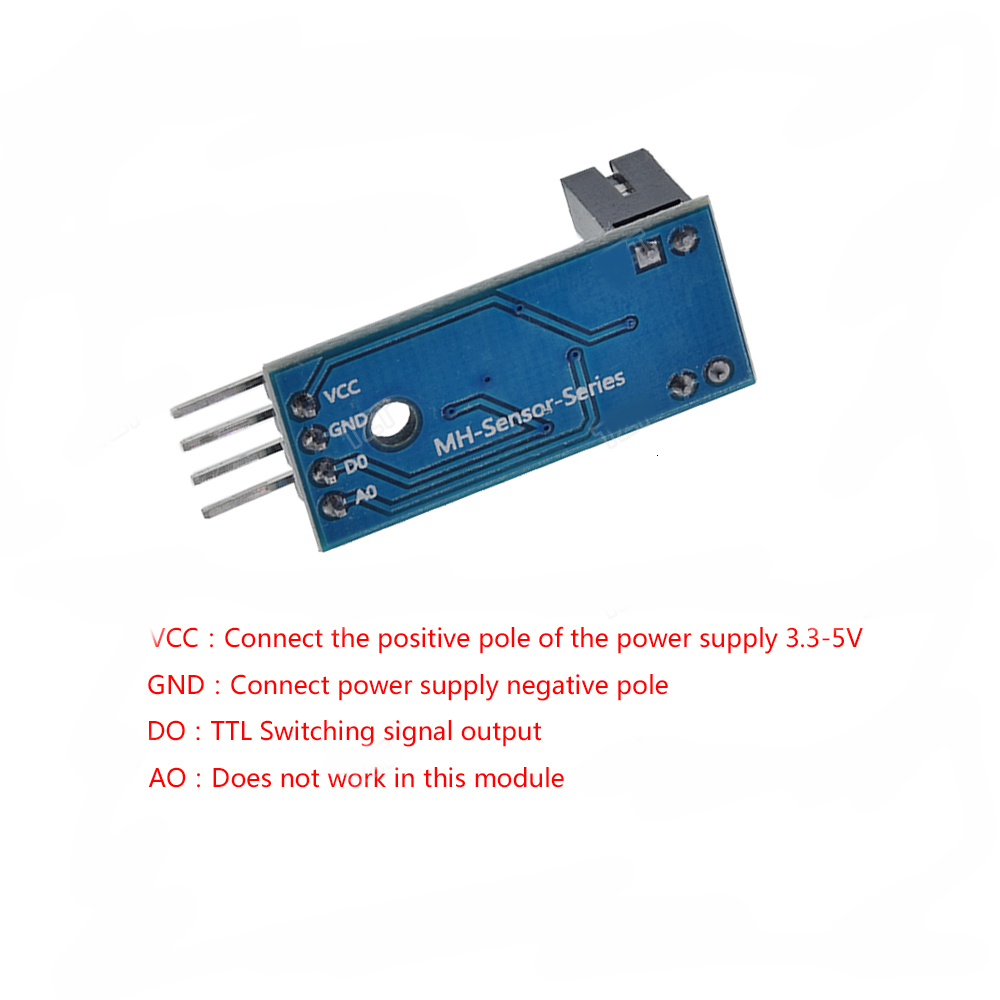

Product wiring instructions:
1, VCC positive power supply 3.3-5V
2, GND power supply is negative
3, DO TTL switching signal output
4, AO this module does not work
Module for use:
1. module slot unobstructed, receiver tube conduction module DO output low, when blocked, DO output high;
2, DO output interface can be directly connected to the microcontroller IO port, whether the sensor with barriers, such as the motor speed can be detected with the motor encoder.
3,DO module can be connected to relays, limit switches and other functional composition, and to be connected with active buzzer module, consisting of alarm.
