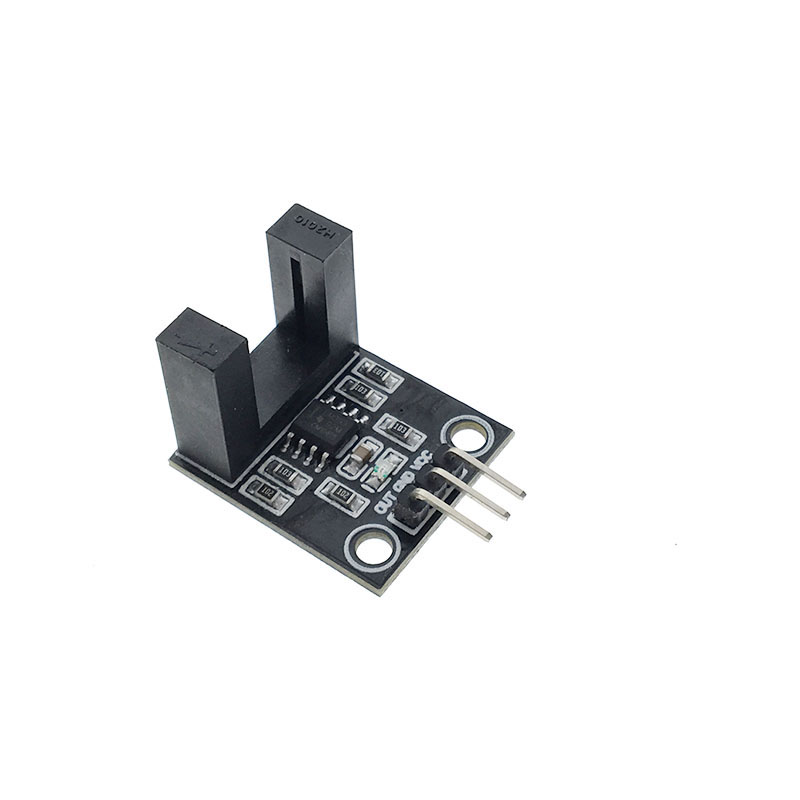

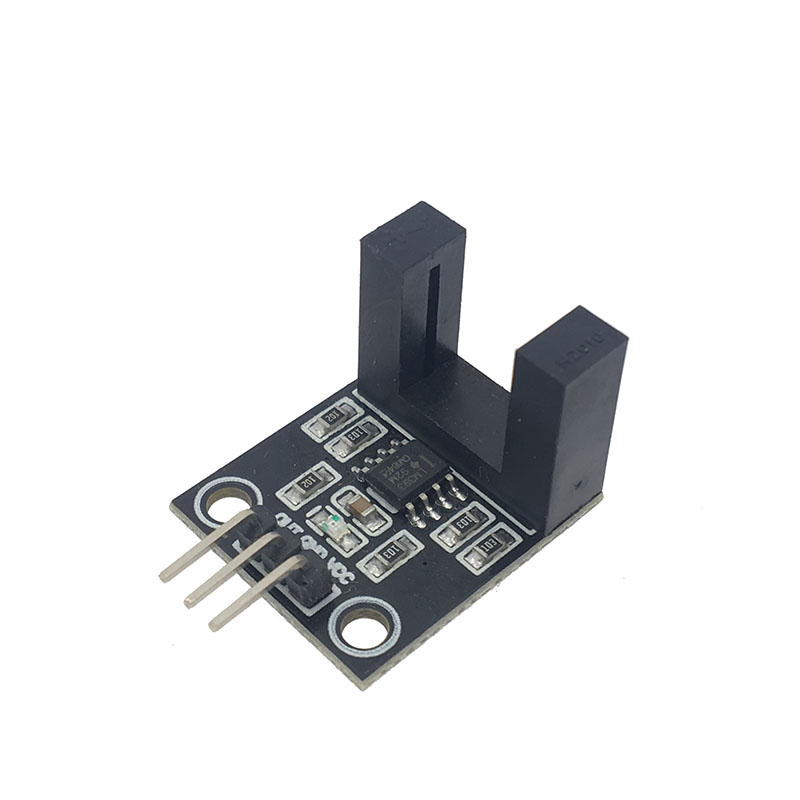

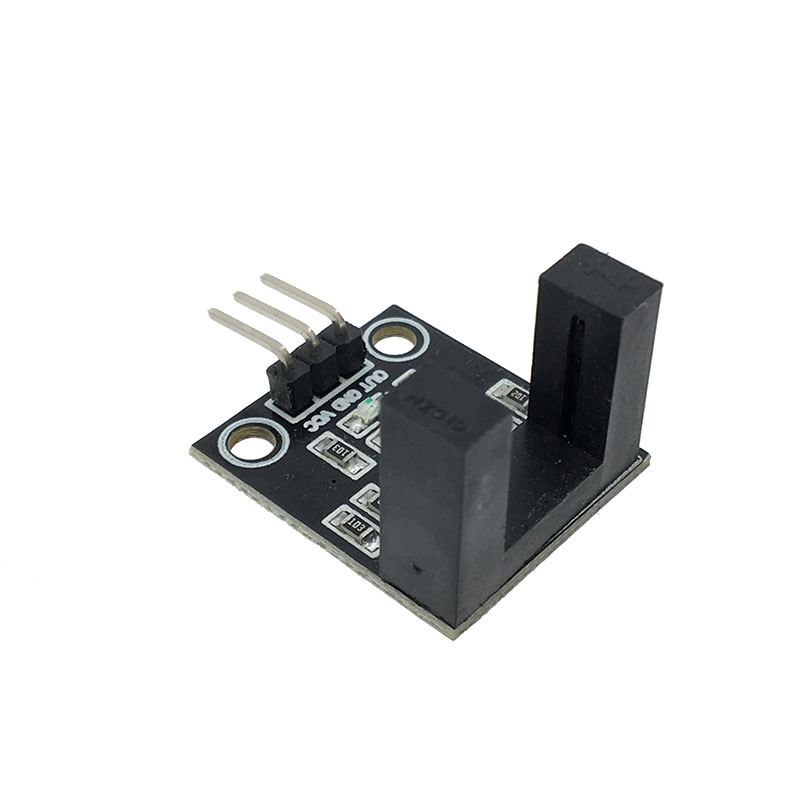

Correlation photoelectric Infrared correlation count sensor module

SKU: FA3016

$0.36

Weight 0.032 kg
Dimensions 2.3 × 2 cm
Type:

Acceleration Sensor

Output:

Analog Sensor

Material:

Mixture

Theory:

Current Sensor

Model Number:

speed sensor module

working voltage

3.3V-5V

output form: digital switch output

0 and 1

small board PCB size:

2.3cmx2cm

1000 in stock

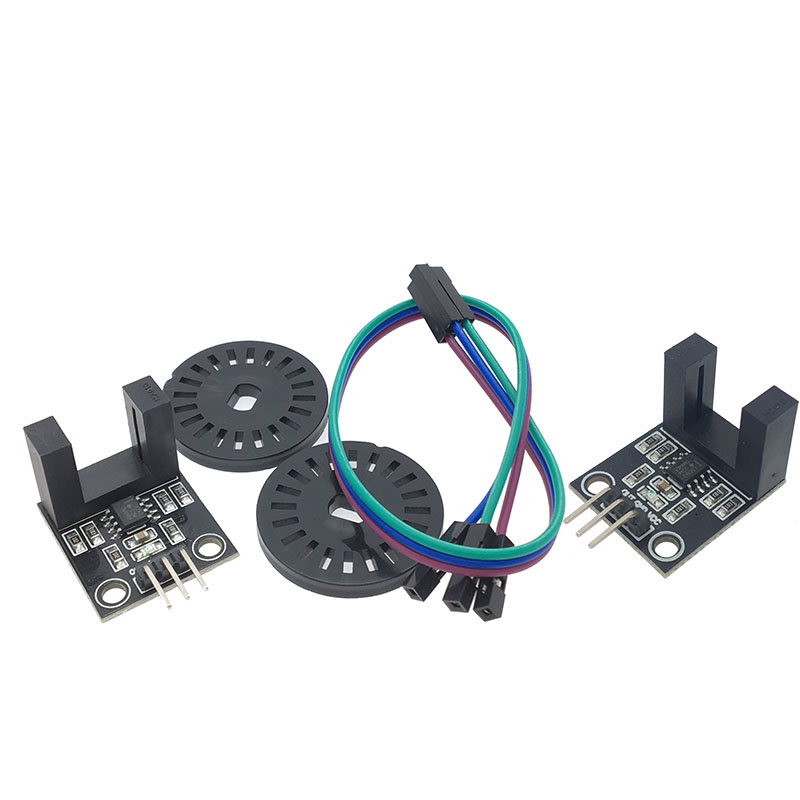

Widely used in motor speed detection, pulse counting, position limit, etc.

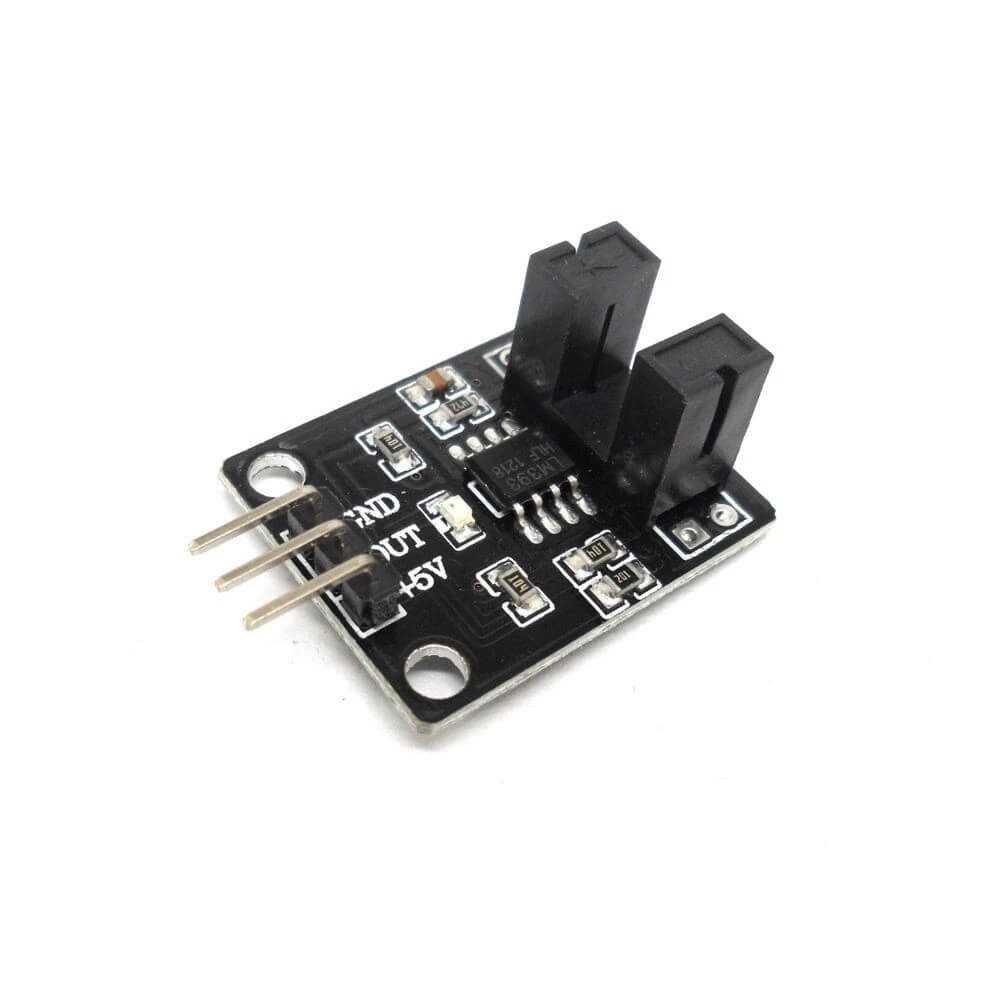

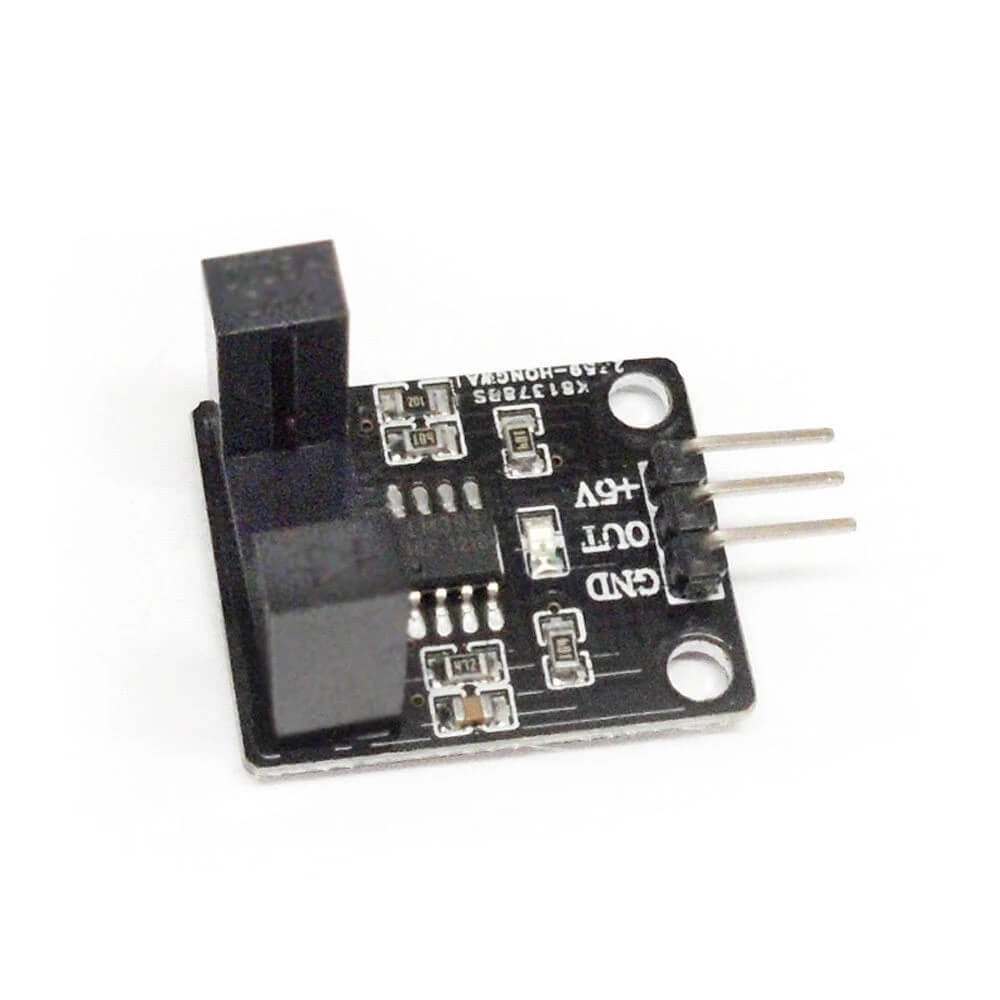

Module features:
1, using imported slot type optocoupler sensor

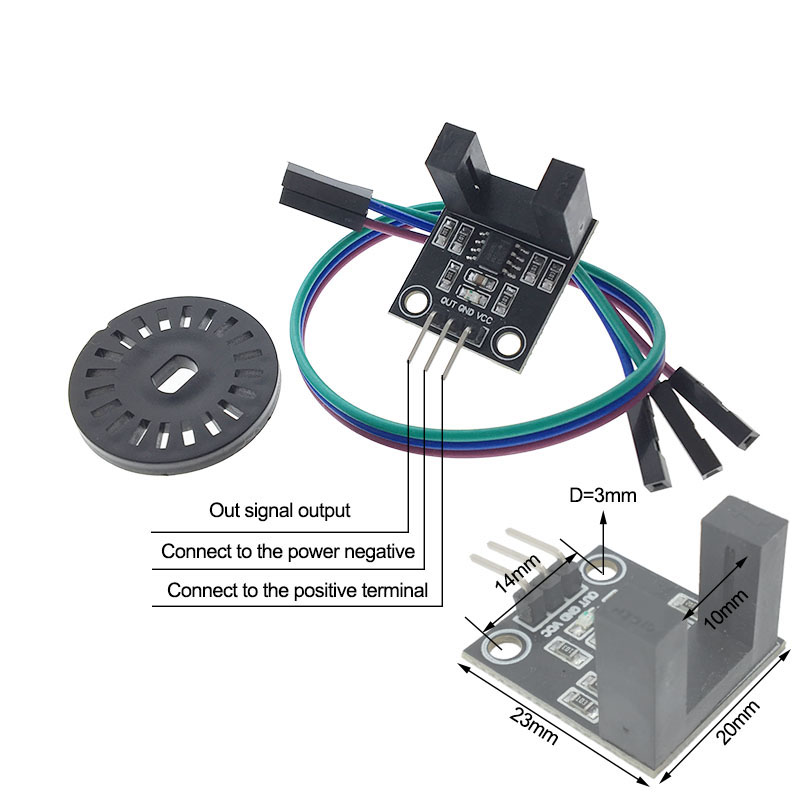

2. The groove width is 10mm.
3. There is an output status indicator, the output high level light is off, and the output low level light is on.
4, there is occlusion, output high level; no occlusion, output low level.
5, the comparator output, the signal is clean, the waveform is good, the driving ability is strong, more than 15mA.
6, working voltage 3.3V-5V
7, output form: digital switch output (0 and 1)
8, with fixed bolt holes for easy installation
9, small board PCB size: 2.3cmx2cm

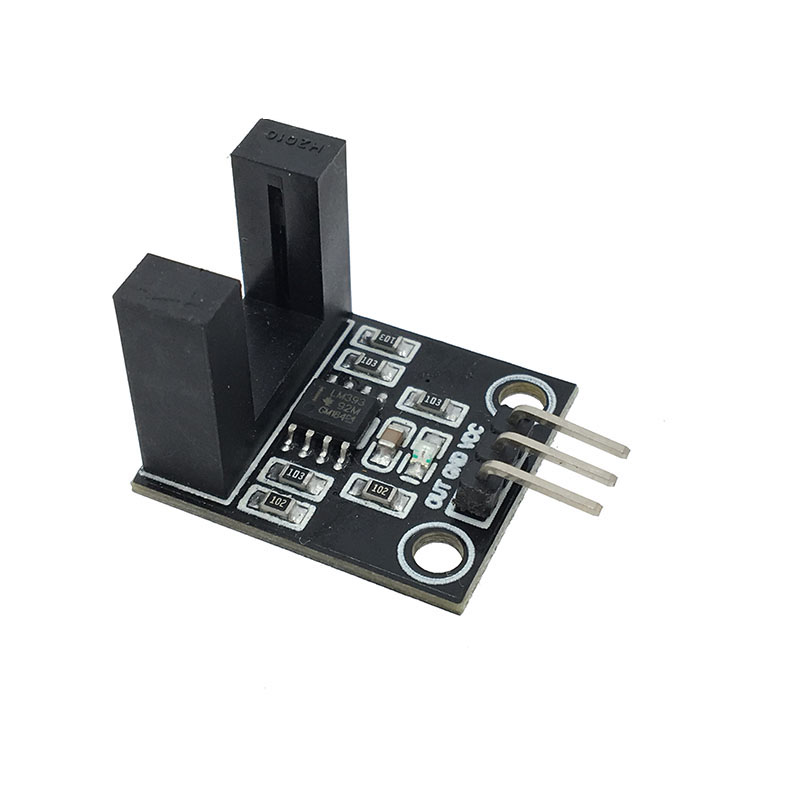

10. Use a wide voltage LM393 comparator
Module instructions:
1. When there is no occlusion in the module slot, the receiving tube is turned on, and the module DO outputs a low level. When occluding, the DO outputs a high level;

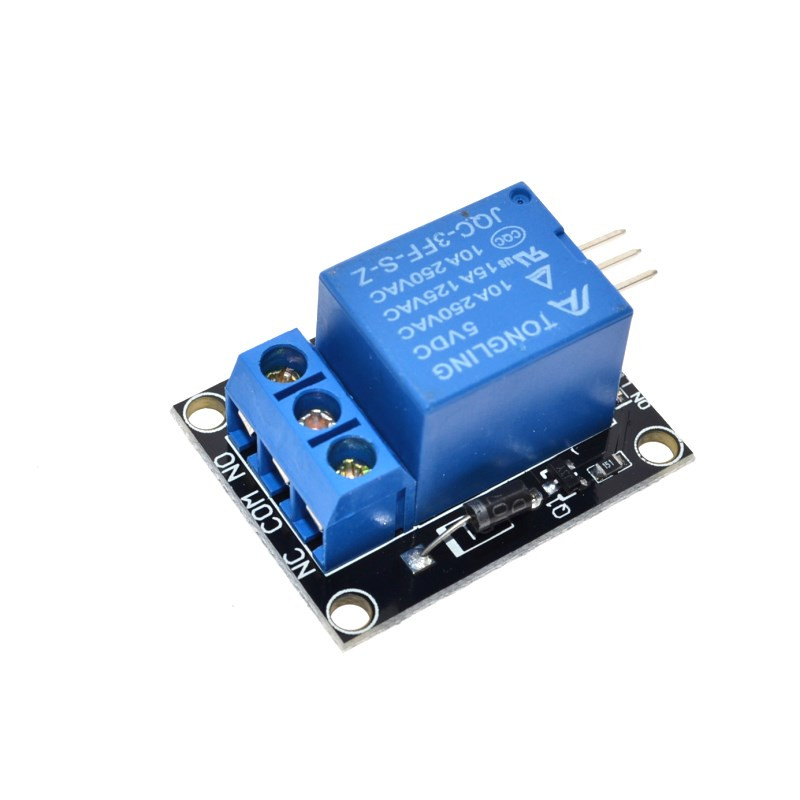

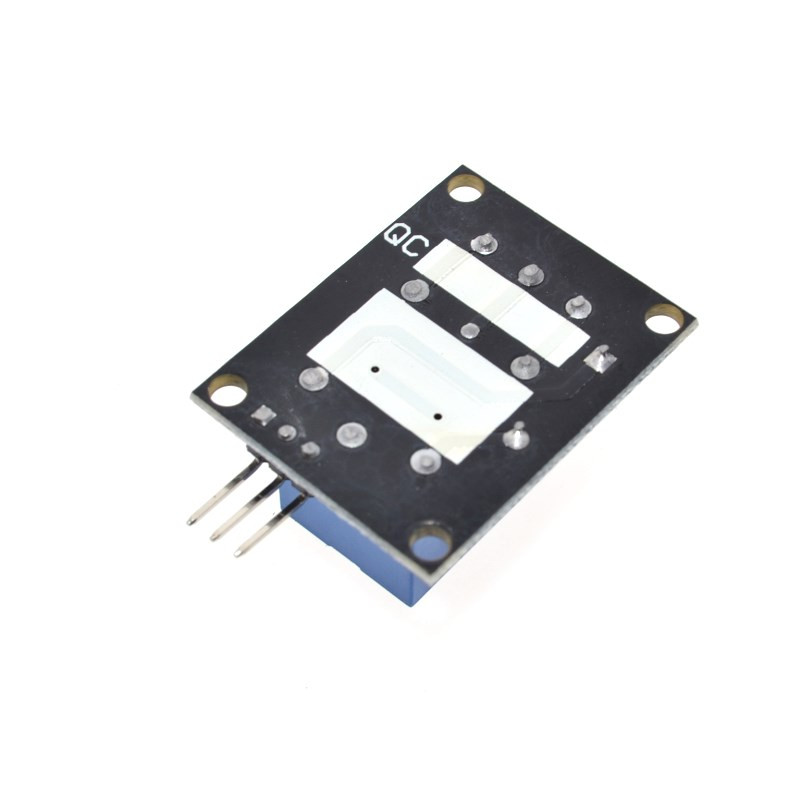

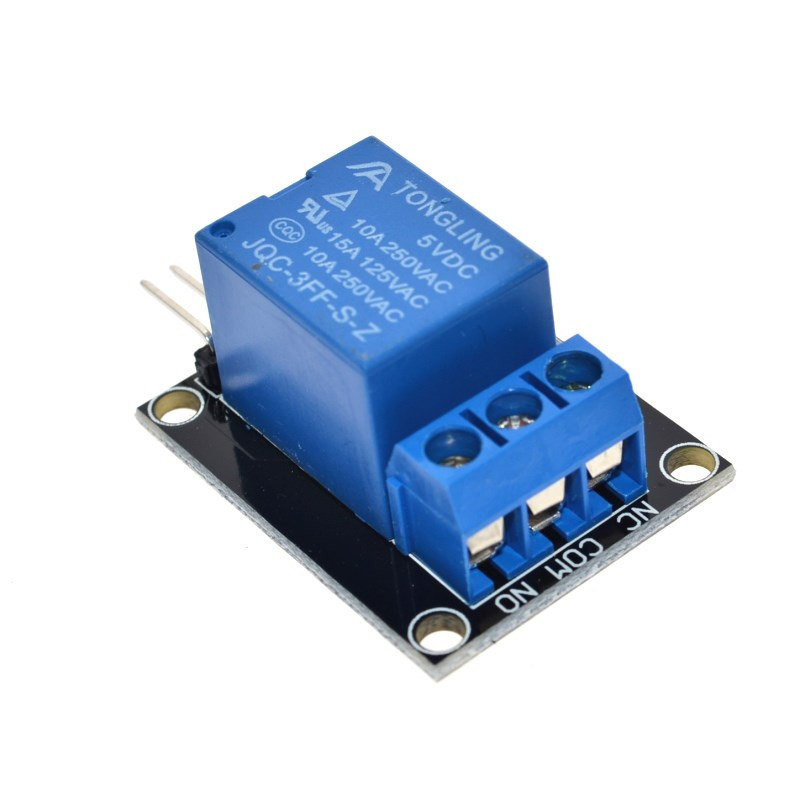

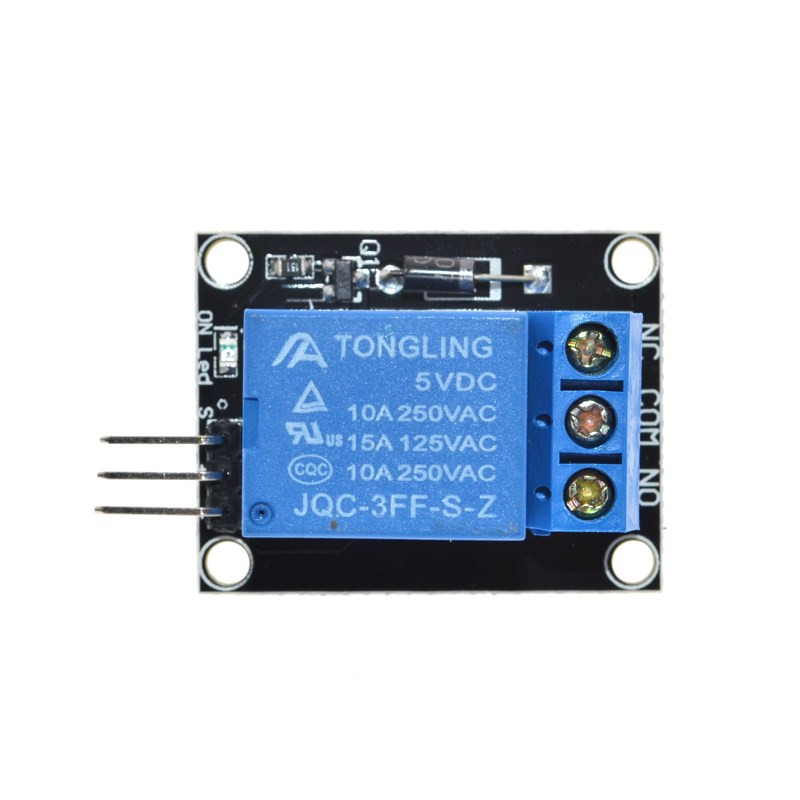

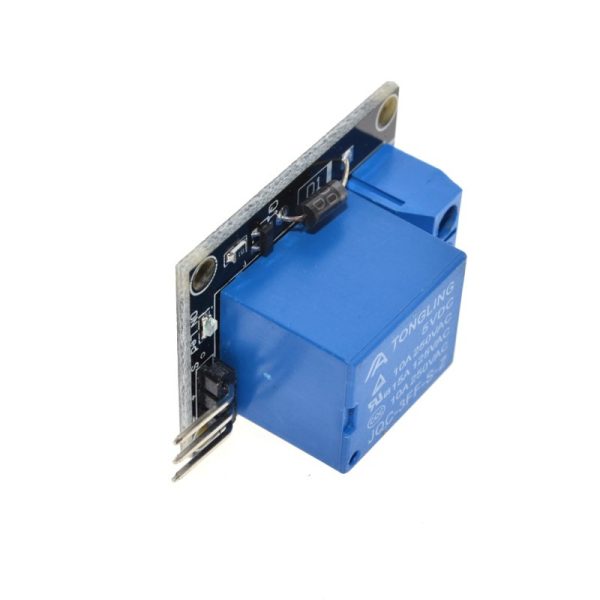

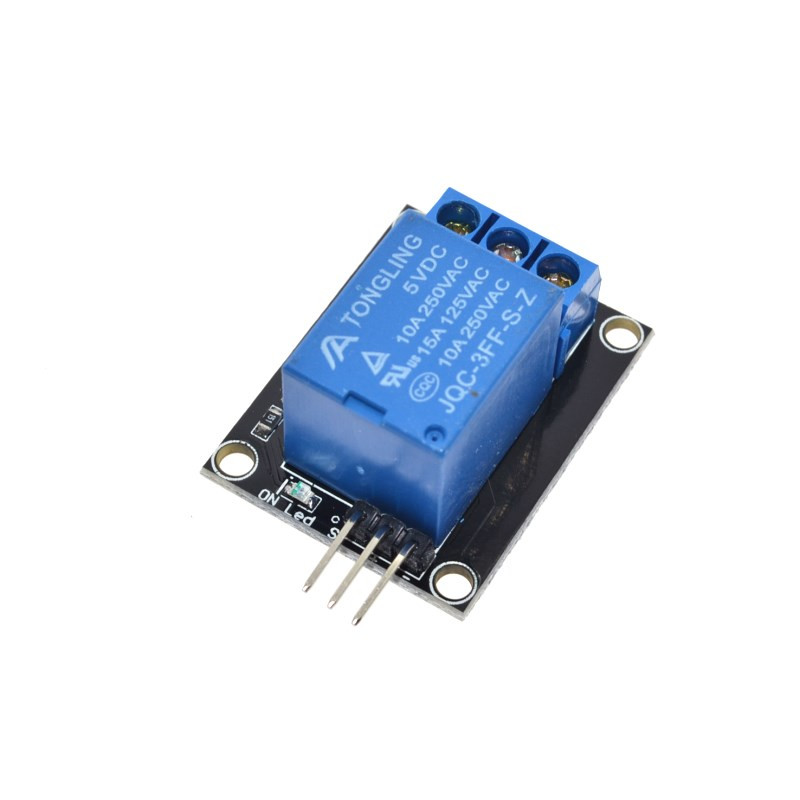

2. The module DO can be connected to the relay to form a limit switch and other functions. It can also be connected to the active buzzer module to form an alarm.

Widely used in motor speed detection, pulse counting, position limit, etc.

Module instructions:
1. When there is no occlusion in the module slot, the receiving tube is turned on, and the module DO outputs a low level. When occluding, the DO outputs a high level;
2. The module DO can be connected to the relay to form a limit switch and other functions. It can also be connected to the active buzzer module to form an alarm.
