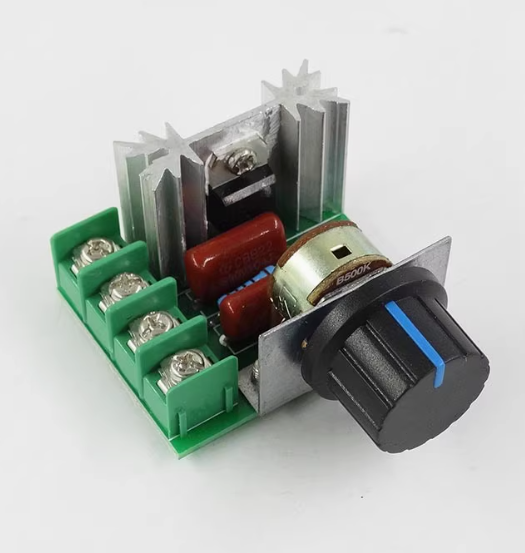

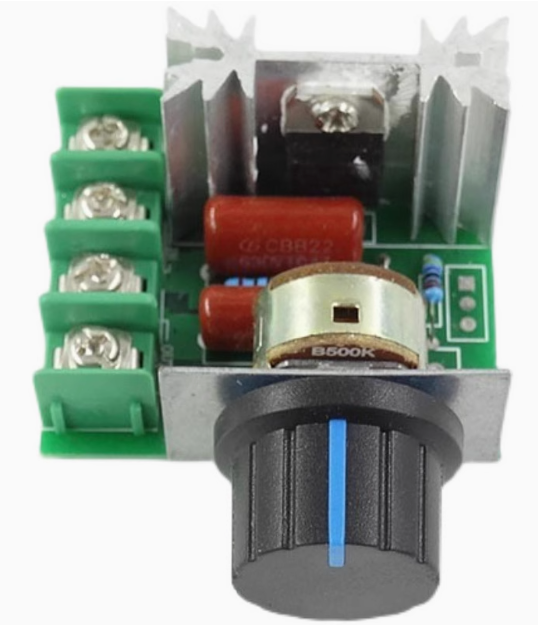

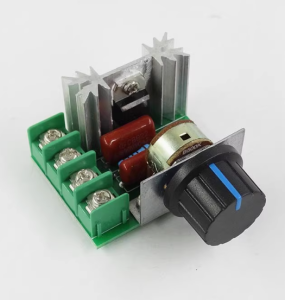

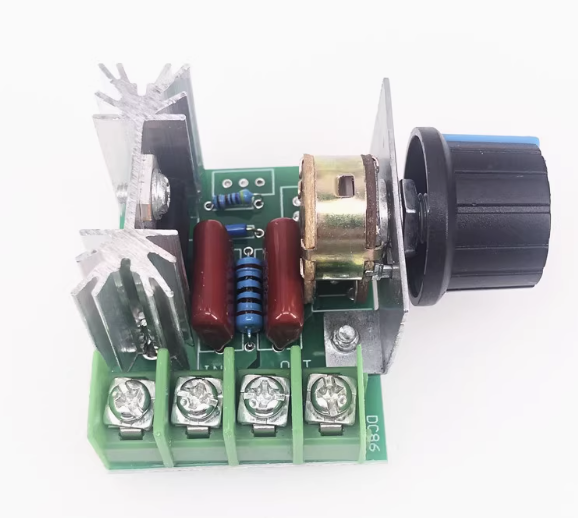

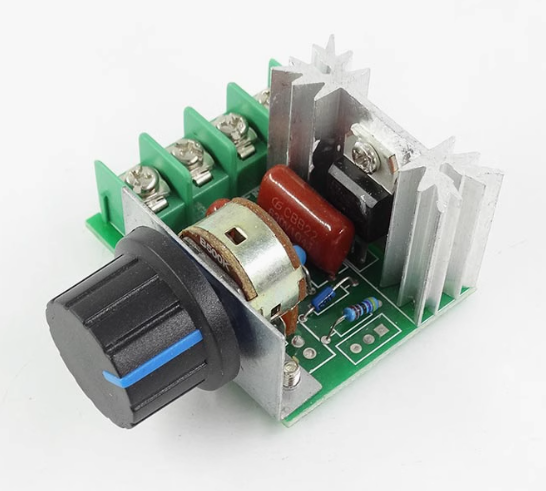

This AC 220V 2000W SCR Voltage Regulator is a versatile power control solution designed for high-efficiency voltage adjustment across a wide range of AC appliances. Featuring an integrated Physical ON-OFF Switch, this upgraded model allows users to completely cut power to the load without unplugging the unit, providing an extra layer of safety and convenience.
Utilizing a high-performance Silicon Controlled Rectifier (SCR), this device provides smooth, stepless control for dimming lights, adjusting the speed of brushed motors, and regulating the temperature of heating elements. It is an essential tool for workshops, kitchens, laboratories, and industrial maintenance.
Key Features

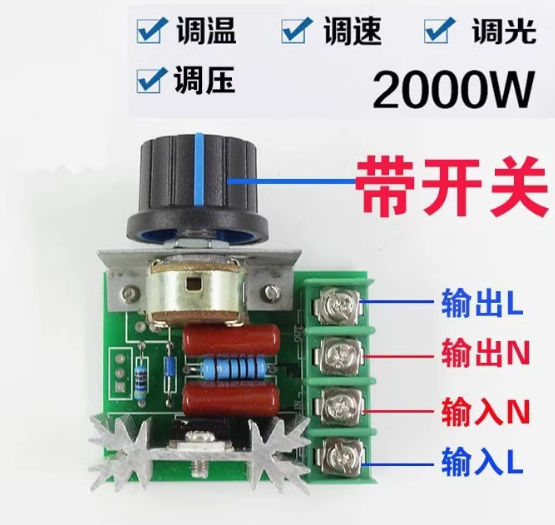

- Integrated Power Switch: Unique ON-OFF toggle allows for immediate circuit isolation without altering your precise voltage settings.
- Stepless Regulation: Provides a smooth linear output from 50V to 220V, allowing for granular control of motor speeds and heat intensity.
- High-Temperature Resistant PCB: Built on an FR-4 circuit board designed to withstand high thermal loads during extended operation.
- Advanced Protection: Equipped with a high-voltage absorption capacitor and an RC snubber circuit to protect the SCR from voltage spikes and surges.
- Robust Aluminum Heatsink: Features an oversized internal cooling fin to maintain optimal operating temperatures even at high wattage.
- All-Metal Housing: (On enclosed models) Provides durability and electrical shielding for use in rugged environments.
Q: Can I use this to dim LED or CFL light bulbs?
No. This regulator is designed for resistive loads (incandescent/halogen) and brushed motors. Using it with non-dimmable LED or fluorescent bulbs may cause flickering or permanent damage to the bulb’s internal driver.
Q: Will this work on my refrigerator or air conditioner?
No. Refrigerators and AC units use Induction Motors (Brushless) with start capacitors. This regulator is only compatible with Brushed (Universal) Motors, typically found in power drills, angle grinders, and small kitchen blenders.
Q: Why does the voltage not drop to 0V?
Most SCR regulators have a starting threshold (typically around 50V). This is normal for thyristor-based circuits and ensures the connected motor has enough torque to begin spinning without stalling and overheating.
Q: Is this suitable for commercial catering or industrial heating?
Yes. Business purchasers frequently use these for commercial food warmers, heat sealers, and plastic bending machines. For 24/7 industrial use, we recommend keeping the load under 1200W to ensure the longevity of the thyristor.
Q: What is the benefit of the built-in ON-OFF switch?
Standard dimmers are always “live” even at the lowest setting. The physical switch provides a mechanical break in the circuit, ensuring the load is truly off without needing to reset your desired speed or temperature level on the knob.
Q: Can I use this for a 110V AC input?
This specific model is optimized for 220V. Using it with 110V will result in a significantly reduced adjustment range and lower power efficiency.
