Description
This Sensor Shield Arduino allows you to connect to various modules like sensors, servos, relays, buttons, potentiometers. It is an open-source physical computing platform based on a simple i/o board and a development environment that implements the processing/wiring language. This Arduino sensor shield can be used to develop stand-alone interactive objects or can be connected to software on your computer (e.g. Flash, Processing, MaxMSP). The open-source IDE can be downloaded for free (currently for Mac OS X, Windows, and Linux).
Each functional module has a buckled port with VCC, GND, and Output, which has a corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, make the connections easier, secure, and more professional looking.

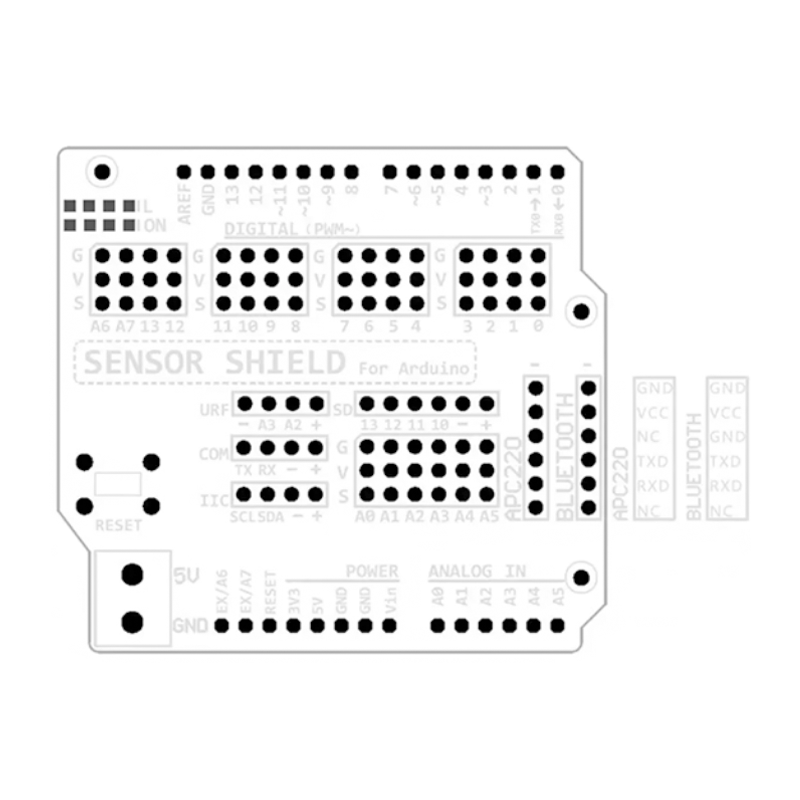

Specifications:
- PIN13 LED Pilot
- Digital IO Ports D0-D13
- Analog IO Ports A0-A5
- Reset Button
- Power In
- Power LED
- SD Card Interface
- Ultrasonic Interface
- RS232 Interface(TTL)
- Bluetooth Interface
- APC220 Interface
- Servo interface
- IIC Interface
- 12864 LCD Parallel Interface
- 12864 LCD Serial Interface
I/O Port:
14 Digital I/O ports: D0-D13 (includes 6 ports for PWM function)
8 analog I/O ports: A0 – A5
Packing List:
1*Sensor Shield V5.0 expansion board
