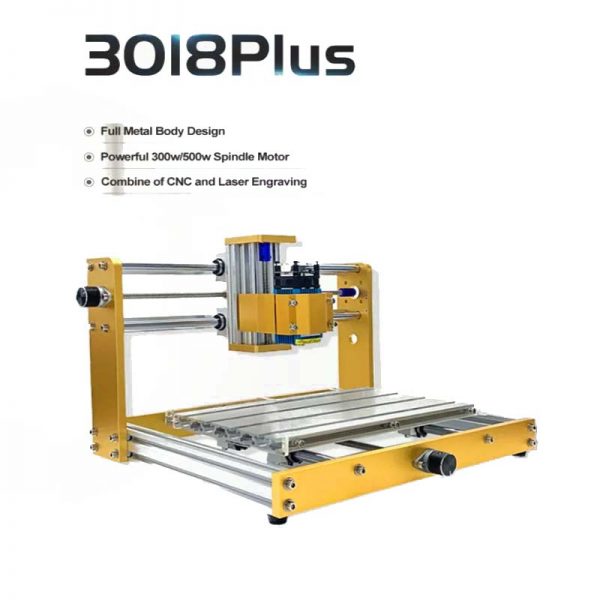

Model
|
CNC3018PLUS+ 30W laser head
|
|||
Material
|
Aluminum
|
|||
Color
|
Yellow -white
|
|||
Spindle
|
300W spindle motor
|
|||
Step Motor
|
42HS34 1.5A, 12V. Torque 0.25N/M
|
|||
Power Supply
|
48V 350W/500W Switching power supply
|
|||
Software
|

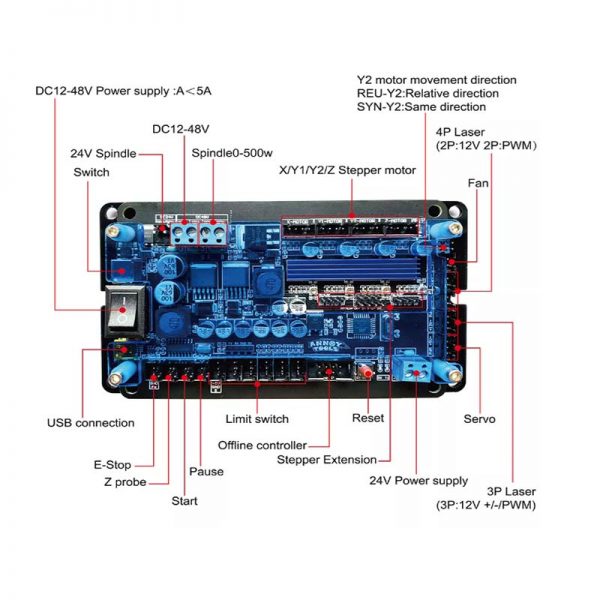

GRBL1.1 controller
|
|||
Support System
|
WindowsXP; Windows7 32/64 bits; Windows8; Windows10
|
|||
Laser
|
40x70mm 5.5w/15w
|
|||
Package Size
|
640x350x140mm
|

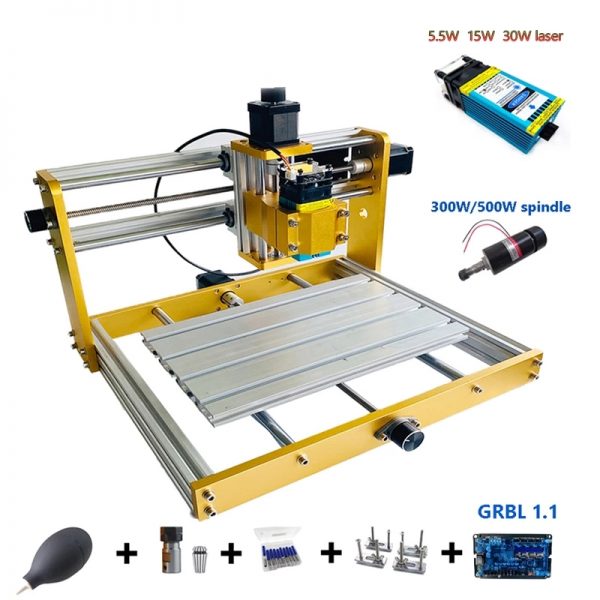

CNC 3018 Plus Laser Cutting Machine +300W Spindle Motor + 30W laser head Engraving Machine
Weight | 12.5 kg |
---|---|
Dimensions | 42.4 × 41.5 × 35 cm |
Range of Spindle Speed(r.p.m) | 1 – 20000 rpm |
Positioning Accuracy (mm) | 0.01 mm |
Number of Axes | 3 |
Travel (X Axis)(mm) | 300 mm |
Travel (Y Axis)(mm) | 180 mm |
Repeatability (X/Y/Z) (mm) | 0.01 mm |
Spindle Motor Power(kW) | 0.3/0.5 |
Voltage | 48V |
Weight (KG) | 12.5 |
Power Supply | 48V 350W/500W Switching power supply |
Software | GRBL1.1 controller |

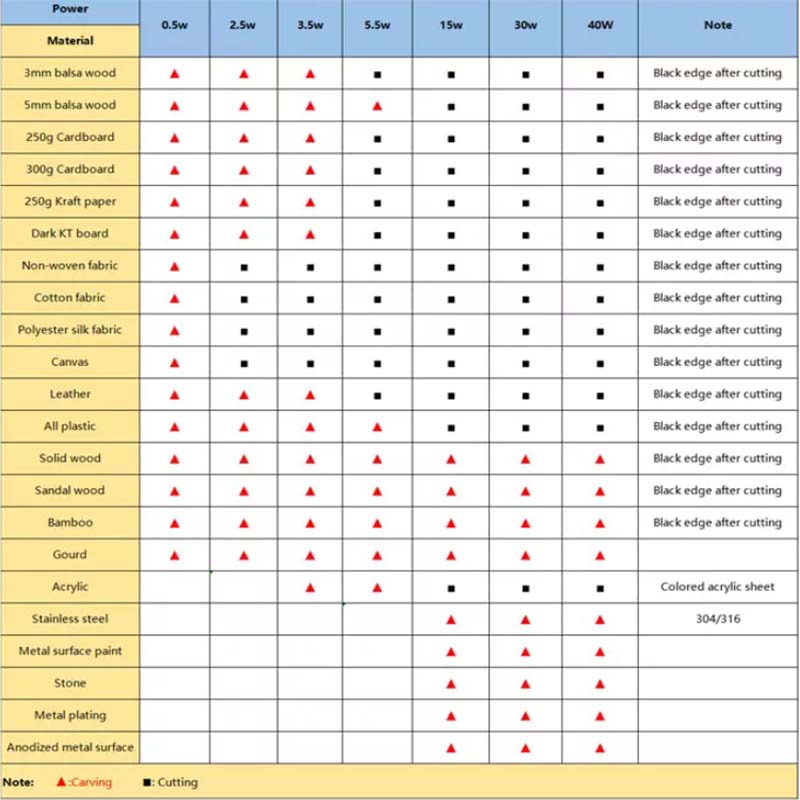

Paper, bamboo, glass, wood, plastic, leather, stainless steel, aluminum, stone, cloth.
Cork wood, paper, thin leather, thin plastic.
There are several important items: Working area, Spindle, Laser, Be Carved and so on. After confirming some of these items, please contact us and we will recommend the most suitable machine for you.
Yes, we test every product before delivery.
Yes, you can get the software, contact us please.
The software only support the Windows system.
The laser module have over 6,000 hours lifetime.
It can work continuously for 45 minutes, after the laser mould cool down (about half an hour), then start work again. Long time work continuously will shorten the service life of the laser module.
