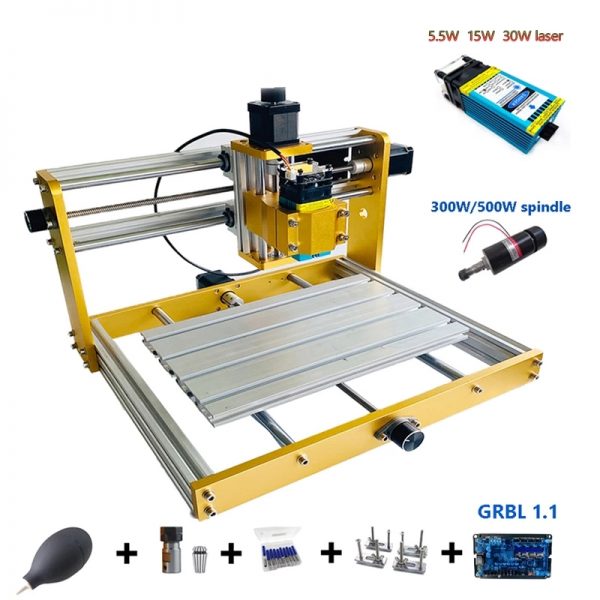

CNC 3018 Plus Laser Cutting Machine +300W Spindle Motor + 5.5W laser head Engraving Machine

SKU: FA9002-1 Tag:
Weight 12.5 kg
Dimensions 42.4 × 41.5 × 35 cm
Range of Spindle Speed(r.p.m)

1 – 20000 rpm

Positioning Accuracy (mm)

0.01 mm

Number of Axes


Travel (X Axis)(mm)

300 mm

Travel (Y Axis)(mm)

180 mm

Repeatability (X/Y/Z) (mm)

0.01 mm

Spindle Motor Power(kW)




Weight (KG)


Power Supply

48V 350W/500W Switching power supply


GRBL1.1 controller

CNC3018PLUS+ 5.5W laser head
Yellow -white
300W spindle motor
Step Motor
42HS34 1.5A, 12V. Torque 0.25N/M
Power Supply
48V 350W/500W Switching power supply
GRBL1.1 controller
Support System
WindowsXP; Windows7 32/64 bits; Windows8; Windows10
40x70mm 5.5w/15w
Package Size

Q: What materials can it engrave?

Paper, bamboo, glass, wood, plastic, leather, stainless steel, aluminum, stone, cloth.

Q: What materials can it cut?

Cork wood, paper, thin leather, thin plastic.

Q: How to choose the suitable laser engraving machine?

There are several important items: Working area, Spindle, Laser, Be Carved and so on. After confirming some of these items, please contact us and we will recommend the most suitable machine for you.

Q: Did you test all the goods before they were shipped?

Yes, we test every product before delivery.

Q: Are there software and instructions can I get it?

Yes, you can get the software, contact us please.

Q: Which type computer system can run its software?

The software only support the Windows system.

Q: What's the laser's lifetime?

The laser module have over 6,000 hours lifetime.

Q: How long can the machine work continuously?

It can work continuously for 45 minutes, after the laser mould cool down (about half an hour), then start work again. Long time work continuously will shorten the service life of the laser module.
