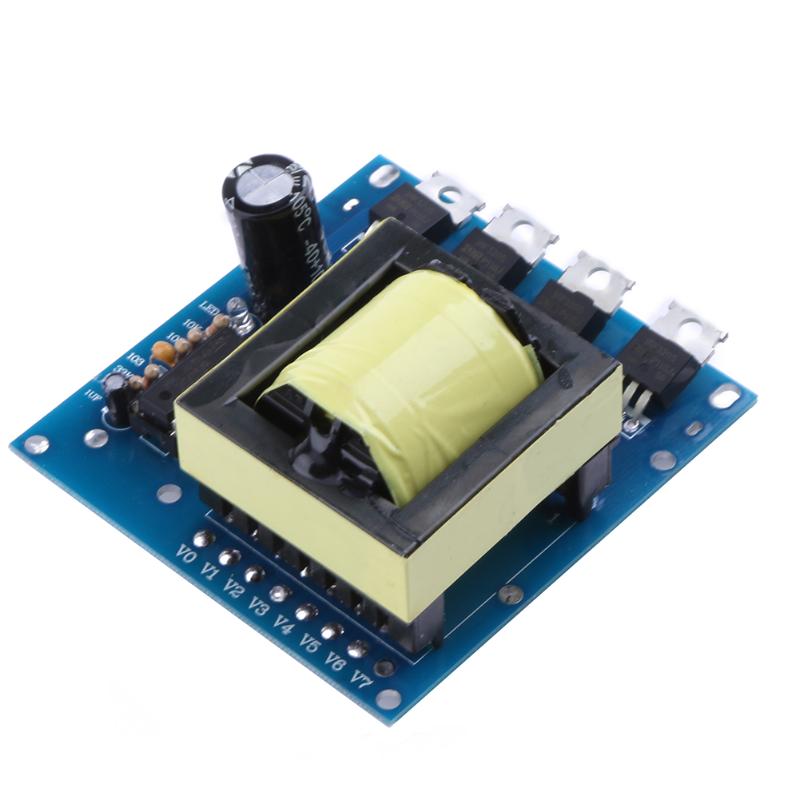

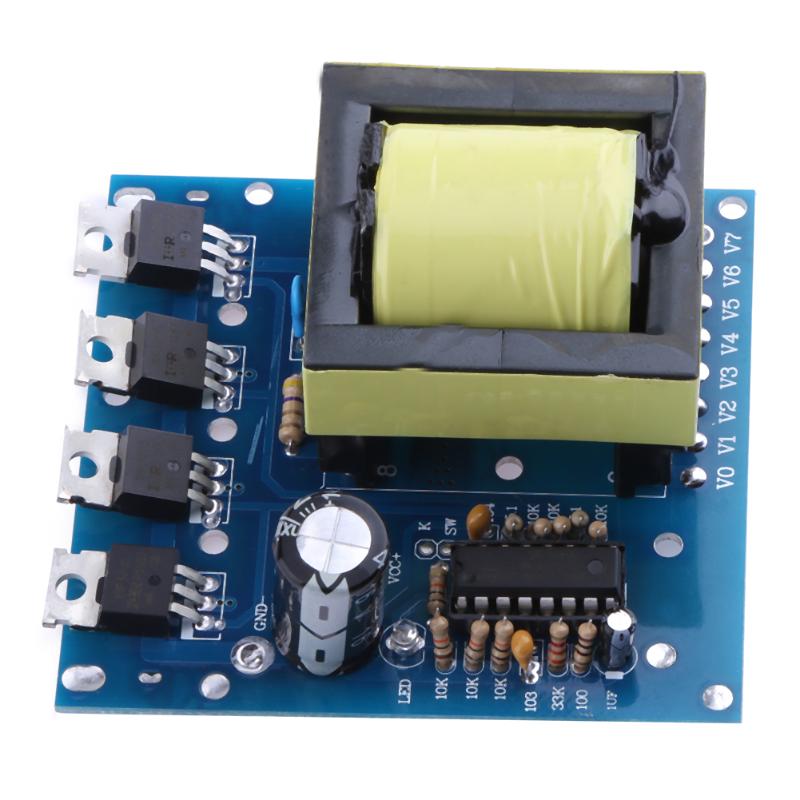

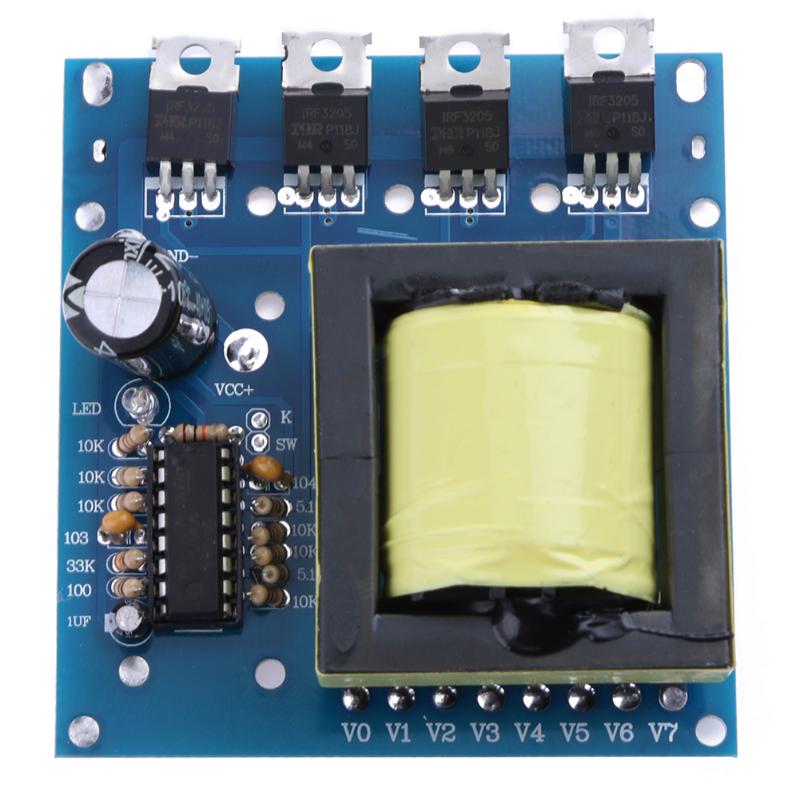

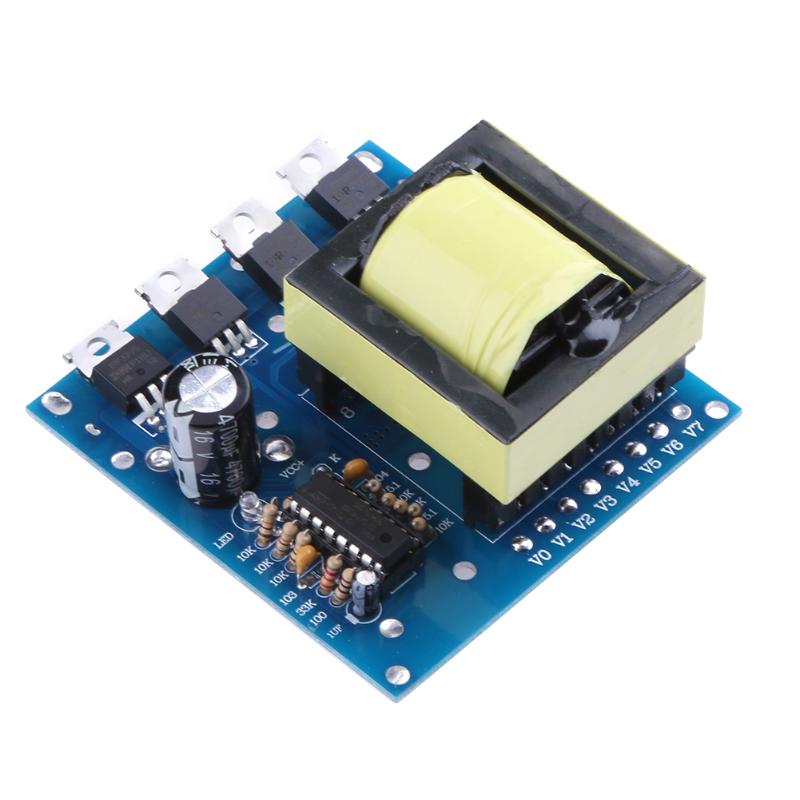

Inverter Boost Module Board, Inverter Boost Module 500W DC 12V/24V to AC 18V 0-220V-380V Power Converter Board

SKU: FA2186 Tag:
Dimensions 8 × 7.5 × 4 cm



DC 12V/24V

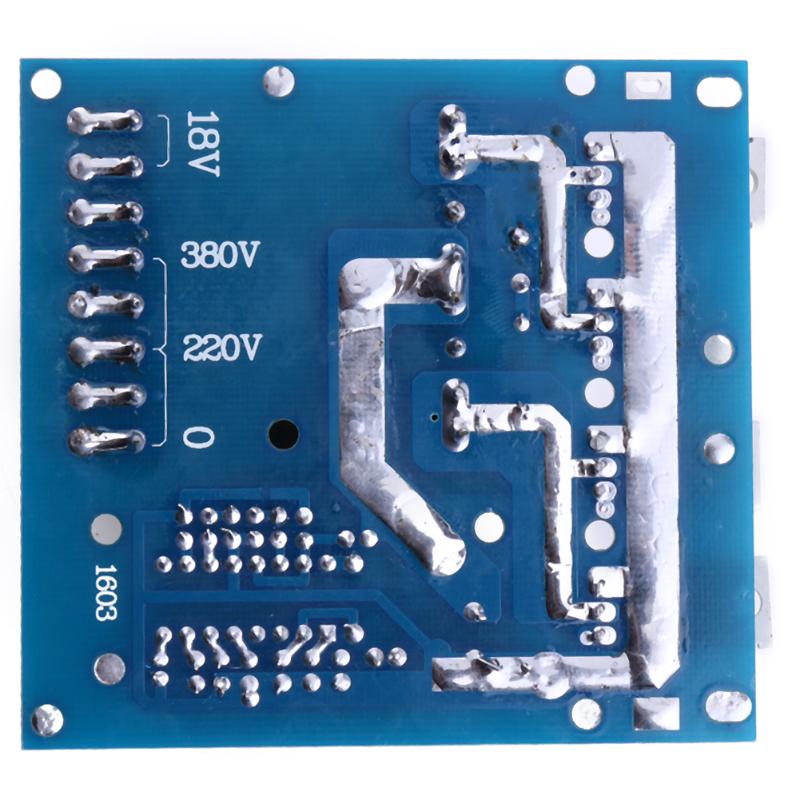

AC 0-220V-380V and AC18V

Static No-load Current

Approx. 0.35A

Output Frequency

Approx. 20KHZ

High Frequency Protection

Without Any Protection


Approx. 186g

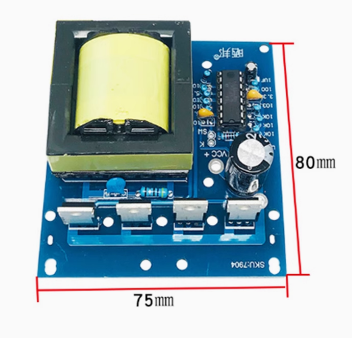

8 x 7.5 x 4 cm / 3.1 x 3.0 x 1.6in


  • The PCB board adopts military grade board, the size is 8 cm x 7.5 cm
  • Long life, convenient and safe to use
  • High energy efficiency, low power consumption, energy saving and durable
  • It can be used as the front-stage boost inverter circuit of pure sine wave, modified sine wave, single-silicon machine, and four-silicon machine. For electronic enthusiasts DIY production, maintenance and replacement, manufacturers’ control cabinet supporting products, etc.
  • It is a good helper in the field, night camps, night market vendors, and driving families in case of power outages.
  • Electrical appliances can be used (for Reference Only): 0.1W-500W lamps, non-inductive household appliances, small electric rice cookers, (note: support all “electronic products”) such as “energy-saving lamps\solder\switching power supply\satellite TV receiver\light bulbs\ LED lamp\LED energy-saving lamp luorescent lamp\DVD player\VCD player\EVD player\LCD TV\color screen TV lat screen TV otebook\computer\various computer monitors\all electronic charger products\etc.


Special reminder: For electronic products, it is recommended to connect a series of high-frequency diodes to the output of our board to rectify into a DC output, because the rectification part of many switching power supplies such as electrical appliances uses ordinary rectifiers in order to save costs, so it is connected to the “high-frequency AC output. “The rectifier diodes of the conductors are rapidly heated and damaged, and the diodes are broken down. Eventually cause the board to burn out.

  • [Adopt High-end Board] The PCB board adopts military-grade board, wear and resistant, the size is 8 cm X 7.5 cm.
  • [High Performance] The inverter module has the characteristics of high energy efficiency, low power consumption, energy conservation and durability.
  • [Multi-function] This inverter board can be used as front-stage boost inverter circuit of pure sine wave, trimming sine wave, single-silicon machine and four-silicon machine.
  • [Suitable for Electronic Enthusiasts DIY Production] This product can be used for electronic enthusiasts DIY production, maintenance replacement.
  • [Wide Compatibility] The inverter board is a good helper for field and night market vendors, traffic, and family power failure emergency.
