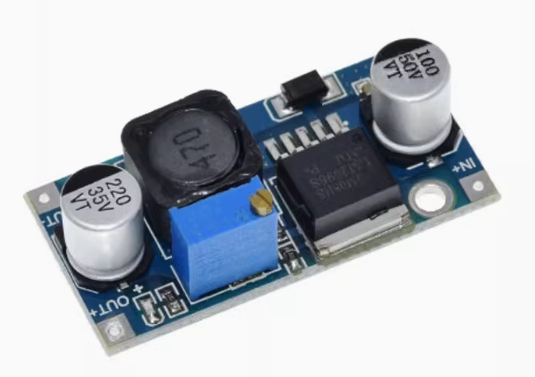

Product Overview
The LM2596 DC-DC Buck Converter Module is a high-performance, fixed-output step-down switching regulator designed to convert higher DC voltages (such as 24V) into a stable 12V output. Based on the industry-standard LM2596-12 chip from Texas Instruments, this module provides a simple, reliable, and efficient solution for powering 12V devices from higher voltage sources like 24V industrial power supplies, 36V battery banks, or 48V solar systems .
Unlike traditional linear voltage regulators that dissipate excess energy as heat, this switching regulator utilizes Pulse Width Modulation (PWM) technology to achieve conversion efficiencies of up to 92%. This means it runs much cooler and wastes significantly less power, making it ideal for battery-powered or enclosed applications . The module is capable of delivering up to 3A of continuous output current, enough to power 12V LED strips, fans, pumps, relays, sensors, and other 12V equipment.
The fixed 12V output version eliminates the need for manual voltage adjustment—simply connect your input power and the module provides a precise, regulated 12V output. This makes it a perfect choice for applications where a stable, preset voltage is required without the risk of accidental misadjustment .
Key Features
-
Fixed 12V Output: Factory-preset to deliver a precise 12V output, eliminating the need for manual voltage adjustment and potential misconfiguration
-
High-Efficiency Step-Down Conversion: Utilizes the LM2596 switching regulator to achieve up to 92% efficiency, minimizing power loss and heat generation compared to linear regulators
-
Wide Input Voltage Range: Accepts DC input from 4.5V to 40V (some variants support up to 60V), making it compatible with 12V, 24V, 36V, and 48V systems
-
3A High Output Current: Capable of delivering up to 3A of continuous output current. For loads above 2A, a heatsink is recommended
-
Fixed 150kHz Switching Frequency: Allows for smaller-sized filter components and lower output ripple compared to older regulator designs
-
Comprehensive Protection: Includes built-in thermal shutdown and current-limit protection to safeguard the module and your connected devices under fault conditions
-
Low Output Ripple: Delivers clean power with output ripple typically less than 30mV, suitable for sensitive electronics
-
Requires Only 4 External Components: Simple design with minimal external components, making the module compact and reliable
Technical Specifications

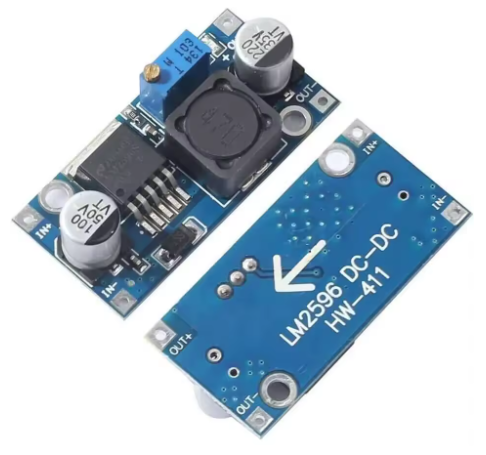

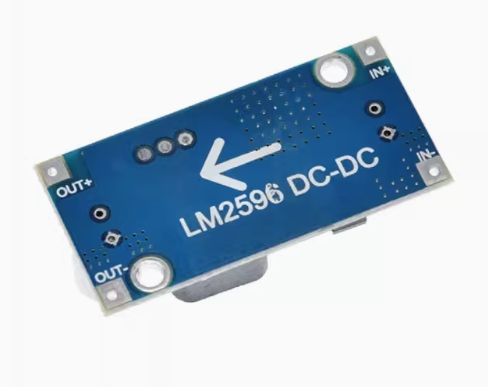

Pinout & Interface Guide
The module is clearly labeled for easy wiring. Connection points include:
Input Side (Power Source)
-
IN+ (VIN): Connect to the positive terminal of your DC power source (e.g., 24V battery, 36V power supply)
-
IN- (GND): Connect to the negative terminal (ground) of your DC power source
Output Side (Load Connection)
-
OUT+ (VOUT): Connect to the positive terminal of your 12V device (e.g., 12V LED strip, fan, relay)
-
OUT- (GND): Connect to the negative terminal (ground) of your device
Status Indicators
Usage Guide
Wiring Instructions
IMPORTANT: Always disconnect the input power source before wiring or modifying connections. Reverse polarity may damage the module as there is no built-in reverse protection .
-
Connect Input: Connect the positive wire of your DC power source (e.g., 24V battery) to the IN+ terminal. Connect the negative wire to the IN- terminal.
-
Connect Load: Connect the positive wire of your 12V device to the OUT+ terminal. Connect the negative wire to the OUT- terminal.
-
Power On: Apply power to the input. The power LED should illuminate, and your 12V device will be powered.
Example: Powering 12V Devices from a 24V Industrial Supply
This is a common and highly effective application for the LM2596-12 module. Many industrial sensors, fans, and LED lighting systems require 12V power, while industrial control panels often provide 24V DC. This module efficiently steps down 24V to a stable 12V output .
-
Connect the 24V power supply’s positive rail to IN+ and the negative rail to IN-
-
Connect your 12V device (e.g., 12V fan, LED strip, sensor) to OUT+ and OUT-
-
The module will efficiently provide clean 12V power, even in a noisy industrial environment
Example: Powering 12V Equipment from a 36V Solar Battery Bank
In solar power systems, battery banks often operate at higher voltages (24V, 36V, or 48V) while many devices require 12V. This module provides an efficient step-down solution .
-
Connect the 36V battery bank’s positive terminal to IN+ and negative to IN-
-
Connect your 12V equipment to OUT+ and OUT-
-
The module’s high efficiency (up to 92%) minimizes power loss from your valuable solar storage
Example: Vehicle or RV 24V to 12V Conversion
Some trucks, buses, and RVs use 24V electrical systems but need to power 12V accessories like USB chargers, fans, or navigation equipment.
-
Connect the 24V vehicle power source to IN+ and IN-
-
Connect your 12V device to OUT+ and OUT-
-
The module provides stable 12V power even with engine start/stop voltage fluctuations (as long as input stays within 4.5V-40V range)
Important Considerations
-
Step-Down Only: This is a buck (step-down) converter only. The output voltage (12V) must always be lower than the input voltage. The input must be at least 1.5V higher than the output for proper regulation .
-
Heat Management: For loads above 2A, it is recommended to attach a small heatsink to the metal tab of the LM2596 IC to ensure long-term reliability and prevent thermal shutdown .
-
Fixed Output Advantage: Unlike adjustable versions, this module’s output is factory-set to 12V and cannot be accidentally changed, making it ideal for applications where a stable, preset voltage is critical .
-
Input Capacitor: For stable operation, especially when using long input wires, it is good practice to have a 100µF electrolytic capacitor near the input terminals.
-
Wire Gauge: For 3A loads, use at least 20 AWG wire for input and output connections to minimize voltage drop and heating.
Q: What is the difference between this fixed 12V module and the adjustable version?
The fixed 12V version has its output voltage internally set to 12V and has no potentiometer for adjustment. It is a “plug-and-play” solution for 12V applications . The adjustable version has a potentiometer that allows you to set the output to any voltage between 1.25V and 35V, offering greater flexibility but with the risk of accidental misadjustment. The fixed version is often preferred for production environments where reliability and consistency are critical
Q: Can this module increase voltage (boost)?
No. This is a buck (step-down) converter only. The output voltage (12V) must always be lower than the input voltage. To increase voltage, you would need a separate boost converter
Q: What is the maximum output current I can draw from this module?
The module is rated for a maximum of 3A. For long-term reliability, it is recommended to stay within 2A – 2.5A, and a heatsink should be used for loads above 2A
Q: Can I use this module to power a 12V device from a 12V battery?
Not recommended. As a buck converter, the LM2596 requires the input voltage to be at least 1.5V higher than the output for proper regulation . A 12V battery may drop to 11V under load, which is below the minimum required input. For 12V battery to 12V load applications, consider using a buck-boost or SEPIC converter.
Q: What is the efficiency of this converter?
The conversion efficiency can reach up to 92% under optimal conditions, significantly higher than linear regulators which typically operate at 30-50% efficiency
Q: The module gets hot. Is this normal?
Some heat is normal, especially under high load. If it is too hot to touch, attach a heatsink to the LM2596 IC. Also, ensure the input voltage is not excessively higher than the output (e.g., 48V input to 12V output generates more heat than 24V to 12V)
Q: What is the input voltage range for this module?
The standard input voltage range is 4.5V to 40V DC. Some variants (LM2596HV) support up to 60V . For a stable regulated 12V output, the input voltage must be at least 13.5V (12V + 1.5V minimum differential)
Q: How accurate is the output voltage?
The LM2596-12 fixed output version has a guaranteed ±4% tolerance on output voltage under specified input voltage and output load conditions. This means the output will be between 11.52V and 12.48V
Q: What is the output ripple voltage?
The output ripple is typically less than 30mV, which is suitable for powering most microcontrollers, sensors, and other sensitive electronics
Q: The module has power (LED is on) but there is no output voltage.
Follow this checklist:
-
Verify that your input voltage is above 13.5V (at least 1.5V higher than 12V output)
-
Check that there is no short circuit on the output terminals
-
Ensure your load is not drawing more than 3A, triggering the current limit protection
-
Confirm the module is not in thermal shutdown (let it cool down and retry)
Q: Can I connect the input in reverse?
No. Reversing the input polarity (connecting IN+ to negative and IN- to positive) may damage the module. This module does not have built-in reverse polarity protection . Always double-check your wiring before applying power. Consider adding a reverse protection diode in series with the input for safety.
Q: Why am I measuring 24V on the output instead of 12V?
This typically indicates a faulty module. As noted in technical forums, if the output voltage equals the input voltage, the regulator IC may have failed short-circuit, or there may be an incorrect part used (e.g., adjustable version with fixed output labeling) . Replace the module with a new one.
Q: Can I use this module to charge a 12V lead-acid battery?
While the module can provide 12V to charge a battery, it lacks a dedicated constant current (CC) charging profile. For charging lead-acid batteries, the voltage should be around 13.8V for float charging and 14.4V for bulk charging—not 12V. For unattended charging, it is safer to use a dedicated battery charger module that provides proper CC/CV charging profiles.
Q: What is the quiescent current when no load is connected?
The quiescent current is typically 5mA – 10mA when the module is powered but no load is connected. In standby mode (with the shutdown pin pulled low), it can be as low as 80µA
