Product Overview
The Mini MCU2012 TTL Programmer is a compact, high-performance USB-to-TTL serial adapter designed for programming, debugging, and communicating with microcontrollers and embedded systems. Based on the industry-standard Silicon Labs CP2102 chipset, this miniature module creates a virtual COM port on your computer, allowing seamless communication between your PC and UART-enabled devices such as Arduino Pro Mini, ESP8266, ESP32, STM32, and STC microcontrollers .
What sets the MCU2012 apart is its incredibly compact form factor – measuring just 20mm × 15mm, it is one of the smallest CP2102-based programmers available, making it ideal for space-constrained projects and portable applications . Despite its diminutive size, it retains all essential features including dual 3.3V and 5V power outputs, a self-recovery fuse for short-circuit protection, and full DTR auto-reset support for Arduino-compatible boards .
The module features a Micro USB interface for both power and data connectivity, making it compatible with standard Micro USB cables widely used for Android phones and other devices. The onboard status LEDs provide real-time visual feedback of power and data transmission activity, simplifying troubleshooting and debugging sessions .
This programmer is specifically well-suited for STC microcontroller development, serving as a reliable downloader for STC series chips, while also functioning as a universal serial adapter for a vast range of other UART devices.
Key Features
-
Genuine CP2102 Chipset: Based on the original Silicon Labs CP2102 USB 2.0 to UART bridge controller, ensuring stable COM port generation and broad driver compatibility across Windows, macOS, and Linux .
-
Ultra-Compact Miniature Design: Extremely small PCB footprint of just 20mm × 15mm, making it perfect for portable projects and integration into tight spaces .
-
Micro USB Interface: Features a Micro Mini-USB socket for both power and data connectivity – use standard Micro USB cables you likely already own .
-
Dual Power Output (3.3V & 5V): Provides both 3.3V and 5V regulated power outputs (common ground) to supply your target microcontroller or development board .
-
High-Speed Communication: Supports baud rates from 300 bps up to 1 Mbps, suitable for fast firmware uploads and real-time data logging .
-
Built-in Self-Recovery Fuse: Integrated resettable fuse protects your computer’s USB port and the module from damage in case of accidental short circuits on the target device .
-
DTR Signal for Auto-Reset: Includes DTR (Data Terminal Ready) output signal for automatic reset of Arduino Pro Mini and compatible boards during sketch upload – no manual button pressing required .
-
Visual Status Indicators: Three onboard LEDs provide clear feedback: POWER (power status), TXD (data transmission), and RXD (data reception) for real-time activity monitoring .
-
Wide Communication Format Support: Supports 5, 6, 7, or 8 data bits; 1, 1.5, or 2 stop bits; and odd/even/mark/space/none parity options .
-
Industrial Temperature Range: Rated for operation from -40°C to +85°C, suitable for demanding environments .
Technical Specifications
Pinout & Interface Guide

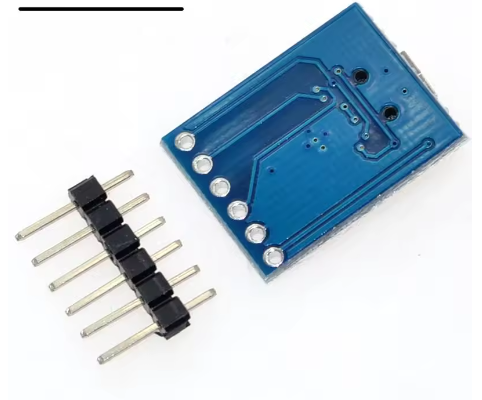

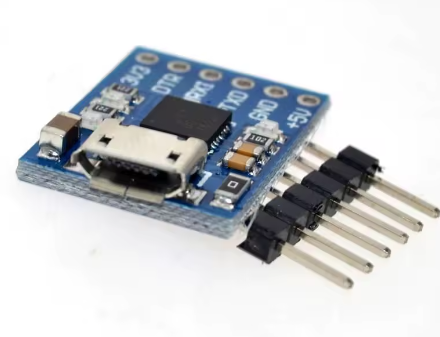

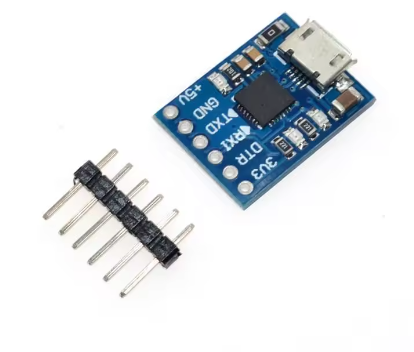

The board features a 6-pin header (2.54mm pitch) with clearly marked pins:
Important Wiring Note: TXD and RXD are labeled from the CP2102’s perspective :
LED Indicators
Usage Guide
Wiring Instructions
IMPORTANT: Always connect the ground (GND) between the module and your target device first.
Standard Programming Connection (e.g., Arduino Pro Mini)
Basic Serial Communication (No Auto-Reset)
Driver Installation
IMPORTANT: The CP2102 requires driver installation before use . Download the official Silicon Labs CP210x Virtual COM Port (VCP) drivers:
-
Windows: Download from Silicon Labs website – supports XP, Vista, 7, 8, 10, 11
-
macOS: Official drivers available for OS-X and newer
-
Linux: Built-in CDC-ACM driver (may work automatically) or download VCP driver
Driver Installation Notes:
-
After driver installation, the module will appear as a virtual COM port
-
On Windows, check Device Manager → Ports (COM & LPT) for “Silicon Labs CP210x USB to UART Bridge”
-
Note the assigned COM port number for use in your IDE
STC Microcontroller Programming
The MCU2012 serves as an excellent STC microcontroller downloader :
-
Connect module to computer via Micro USB cable
-
Wire TXD→RXD, RXD→TXD, GND→GND, and power the target
-
Use STC-ISP programming software
-
Select the correct COM port and baud rate
-
Download your program to the STC microcontroller
Arduino IDE Setup
-
Connect the module to your computer via Micro USB
-
Install CP2102 drivers if not automatically recognized
-
Note the COM port number from Device Manager
-
In Arduino IDE: Tools → Port → Select the COM port
-
Select your board (e.g., “Arduino Pro or Pro Mini”)
-
Click Upload – the DTR line handles auto-reset automatically
ESP8266 / ESP32 Debugging
For 3.3V logic boards (ESP8266, ESP32):
-
Use the 3.3V pin for power
-
Connect TXD→RX, RXD→TX, GND→GND
-
Use serial monitor to view debug output at appropriate baud rate
-
For ESP8266 bootloader, use 74880 baud; for normal operation, 115200 baud is common
Loopback Test (Self-Test)
To verify the module is functioning correctly:
-
Connect a jumper wire between TXD and RXD pins
-
Open a serial terminal on the module’s COM port
-
Type characters – they should echo back, confirming both transmit and receive paths work
Q: What is the difference between MCU2012 and other CP2102 modules?
The MCU2012 distinguishes itself with its ultra-compact 20mm × 15mm footprint – significantly smaller than standard CP2102 modules. It retains the full feature set while offering a Micro USB interface for convenient connectivity
Q: What microcontrollers can I program with this module?
This module works with virtually any UART-programmable microcontroller, including: Arduino Pro Mini, ESP8266, ESP32, STM32 (“Blue Pill”), STC series microcontrollers, AVR, PIC, and many others
Q: What does the DTR pin do? Why is it important?
The DTR (Data Terminal Ready) pin provides auto-reset functionality. When uploading code to Arduino-compatible boards, DTR automatically resets the microcontroller, eliminating the need to manually time the reset button press
Q: What is the maximum baud rate supported?
The module supports baud rates from 300 bps up to 1 Mbps, making it suitable for high-speed data transmission and fast firmware uploads
Q: Does the module provide both 3.3V and 5V outputs simultaneously?
Yes. Both voltage outputs are available at the same time and share a common ground. This allows you to power devices with different voltage requirements from a single module.
Q: How do I install CP2102 drivers on Windows?
Download the latest “CP210x Universal Windows Driver” from the Silicon Labs website. Run the installer, then connect the module – it should be recognized automatically. Check Device Manager under Ports (COM & LPT) to confirm
Q: Why can't I upload code to my board?
Follow this checklist:
-
Wiring mismatch: Verify TXD connects to target RX, RXD connects to target TX
-
Driver issues: Ensure CP2102 drivers are properly installed
-
Wrong COM port: Verify correct port selected in IDE
-
Power issues: Ensure target is properly powered
-
Auto-reset: If DTR doesn’t work, manually reset the board during upload
Q: What does the loopback test do, and how do I perform it?
A loopback test verifies the module’s transmit and receive functionality. Short TXD and RXD pins together, open a serial terminal, and type characters – they should echo back. This confirms both communication paths are working correctly
Q: The module stopped working. What should I check?
The built-in self-recovery fuse may have tripped due to a short circuit. Disconnect the module from USB, wait a few seconds, then reconnect – the fuse will reset automatically
Q: What can I build with this MCU2012 module?
Popular applications include:
-
Programming: Upload firmware to Arduino Pro Mini, ESP8266, ESP32, STM32
-
Debugging: Monitor serial output from any microcontroller
-
PC Interface: Send commands from Python, C# applications to control hardware
-
Data Logging: Receive sensor data for PC visualization
-
GPS Module Interface: Connect GPS modules to computers for navigation software
-
STC Development: Program STC series microcontrollers
Q: Can this module power my microcontroller project?
Yes, with limits. The 5V output derives directly from USB and is typically limited to about 500mA. This is sufficient for low-power microcontrollers (Arduino Pro Mini, ESP8266 without active Wi-Fi) but not for motors, servos, or high-power components. Use external power for demanding projects.
Q: Is the MCU2012 compatible with STC microcontrollers?
Yes. The MCU2012 is specifically noted as an STC programmer downloader . It works with STC-ISP software for program download to STC series microcontrollers.
Q: Does this module work with Raspberry Pi?
Yes. The CP2102 is recognized on Raspberry Pi running Linux. Use it to connect UART devices or as a console debug cable. The device appears as /dev/ttyUSB0 or similar.
