SMD 3 Color LED Module KY-009

SKU: FA3036 Tag:
Dimensions 1.85 × 1.5 × 2 cm
Operating Voltage

5V max
Red 1.8V ~2.4V
Green 2.8V ~ 3.6V
Blue 2.8V ~ 3.6V

Forward Current

20mA ~ 30mA

Operating Temperature

-25°C to 85°C [-13°F ~ 185°F]

The KY-009 RGB Full Color LED module emits a range of colors by mixing red, green, and blue light. Each color is adjusted by using PWM.

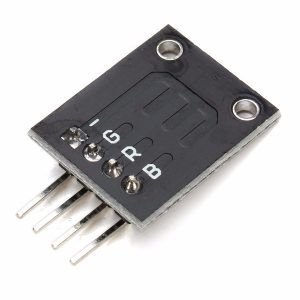

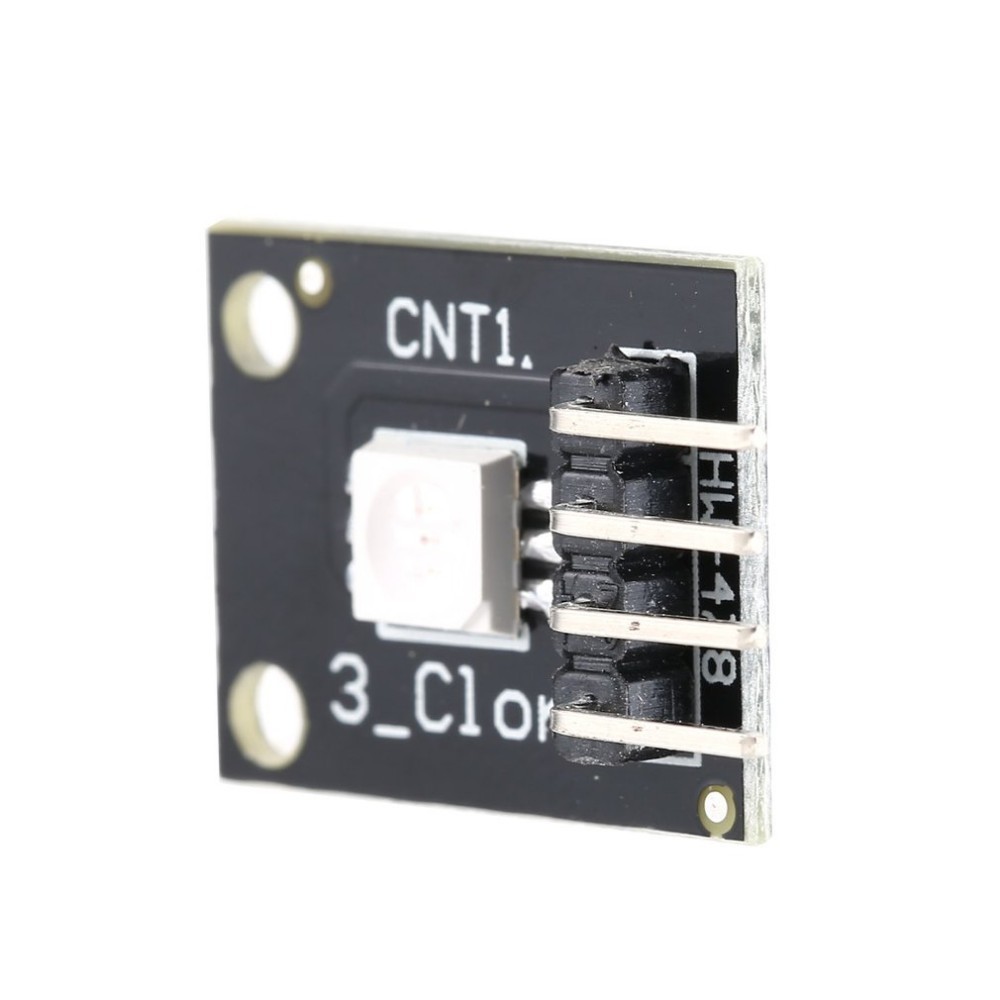

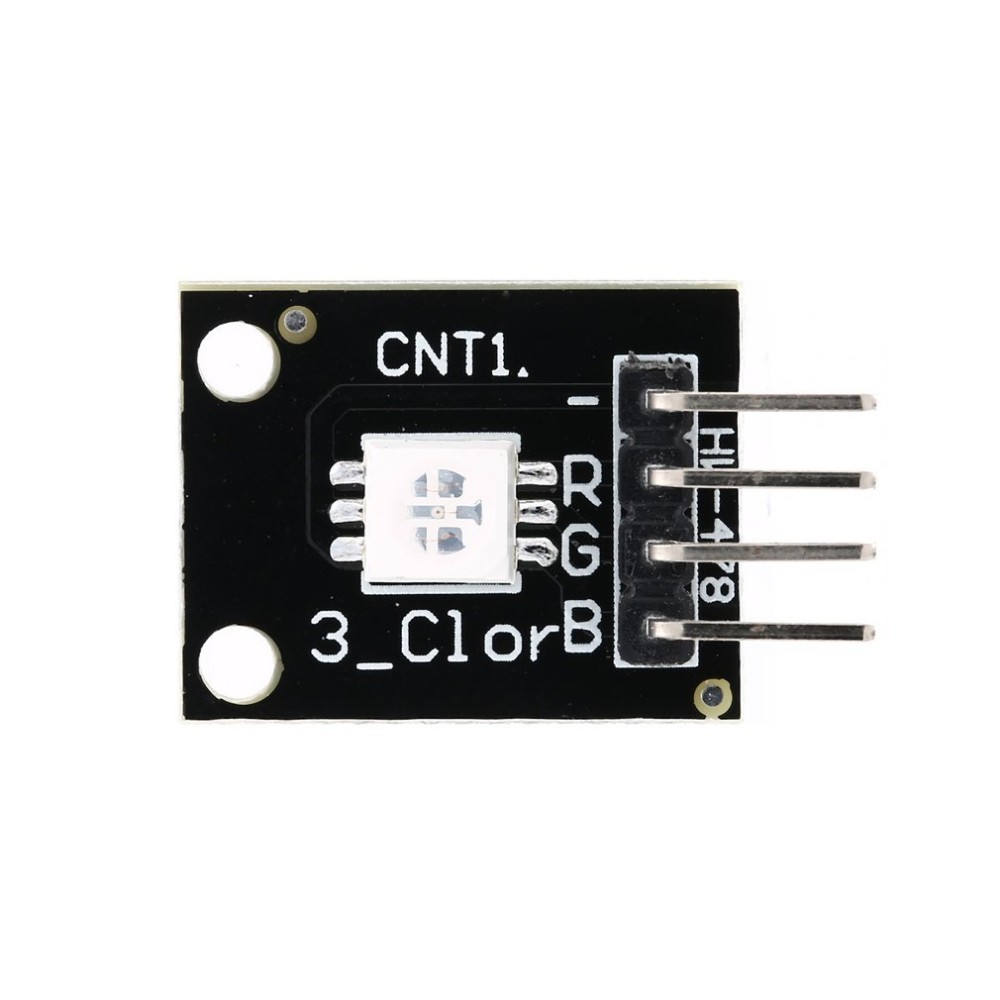

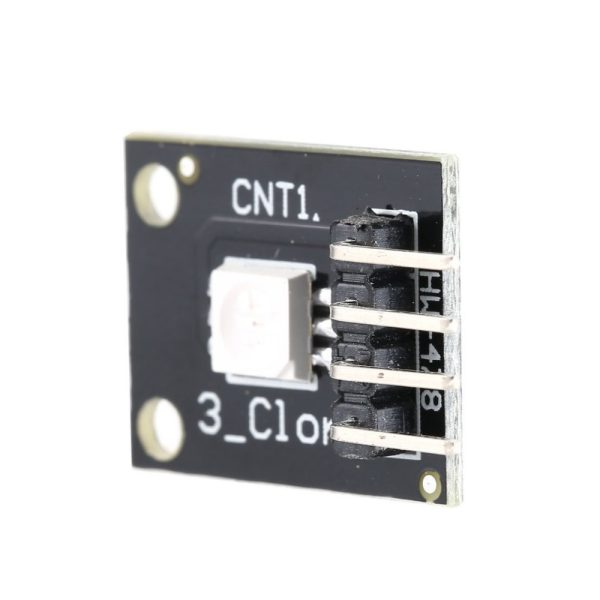

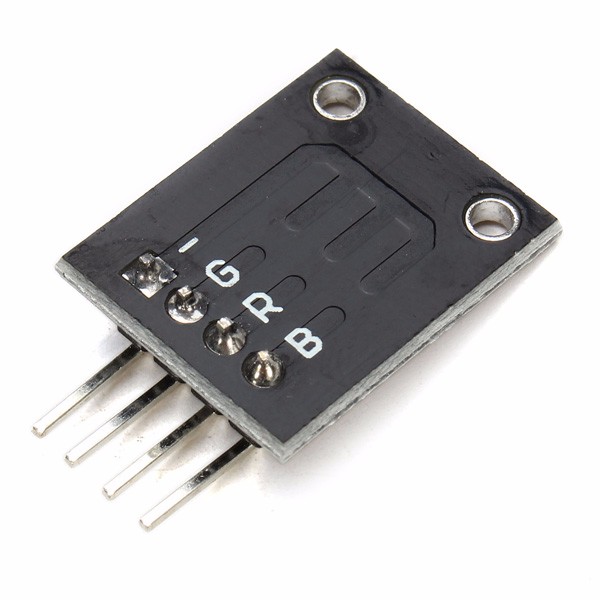

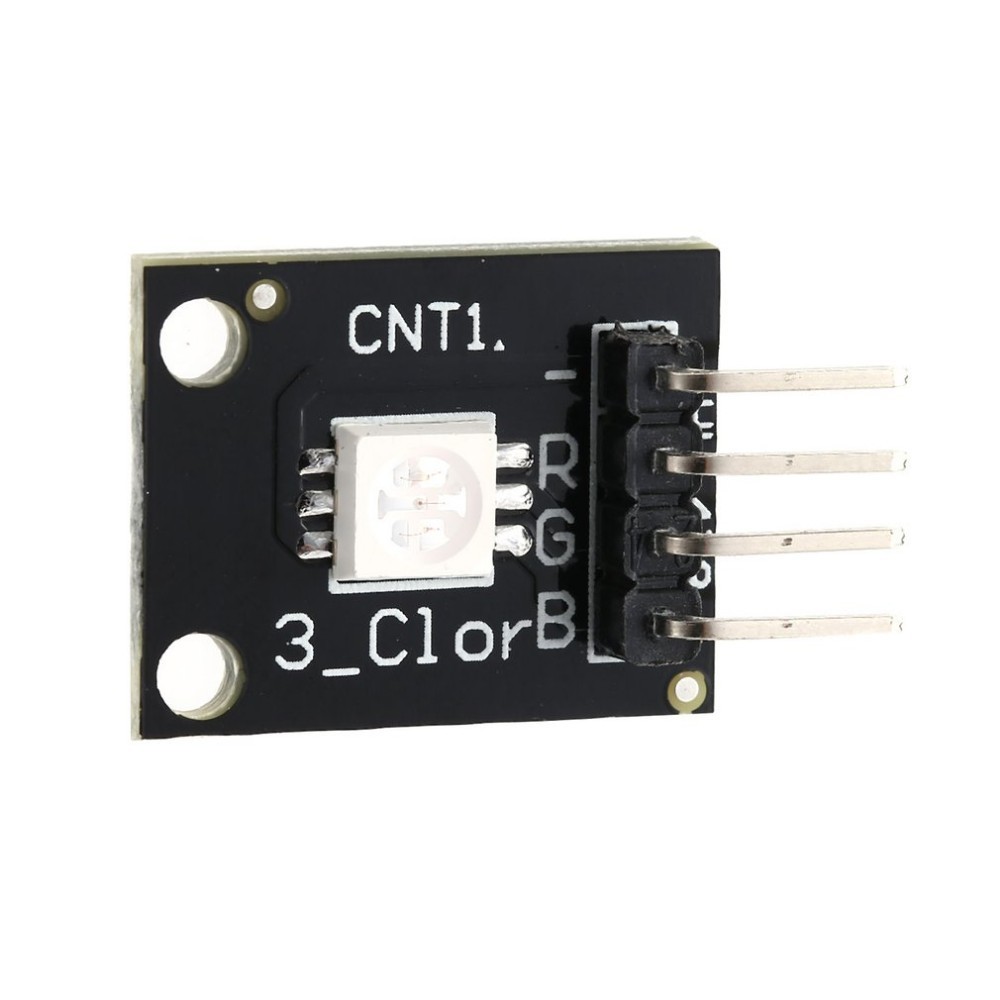

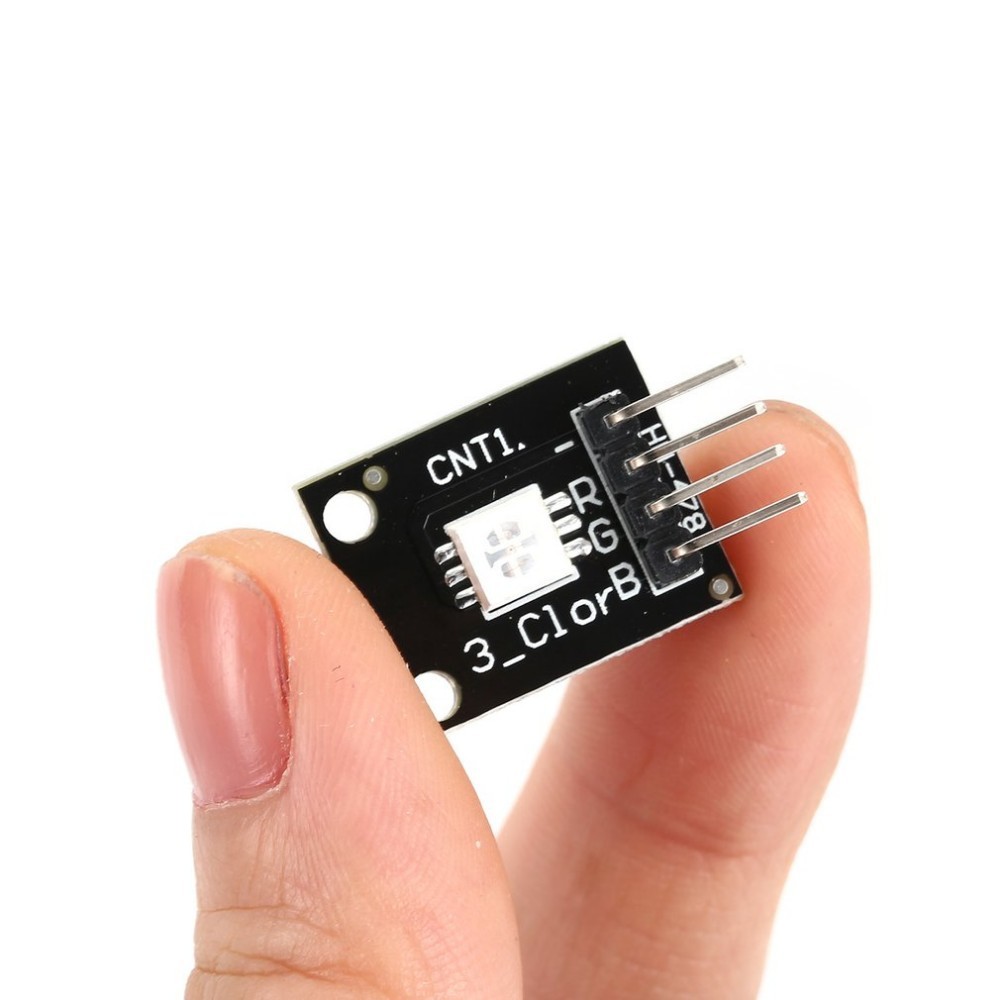

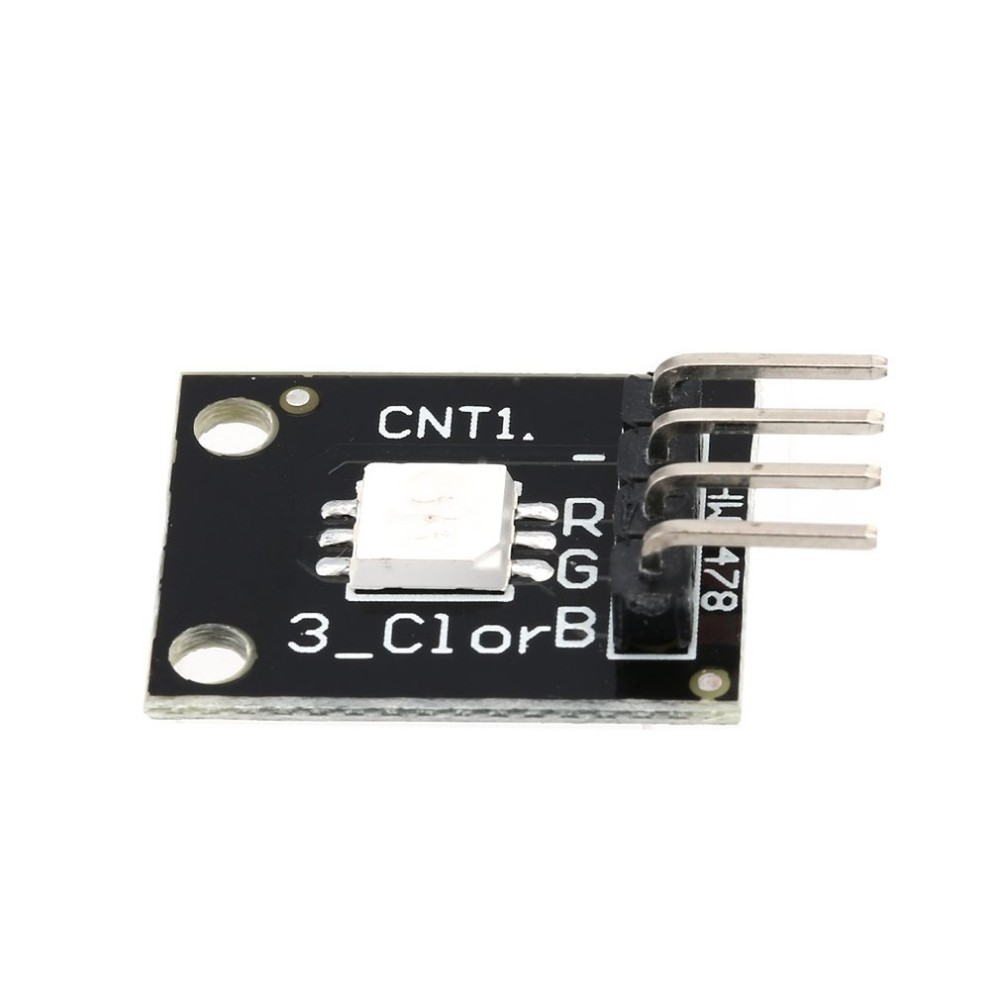

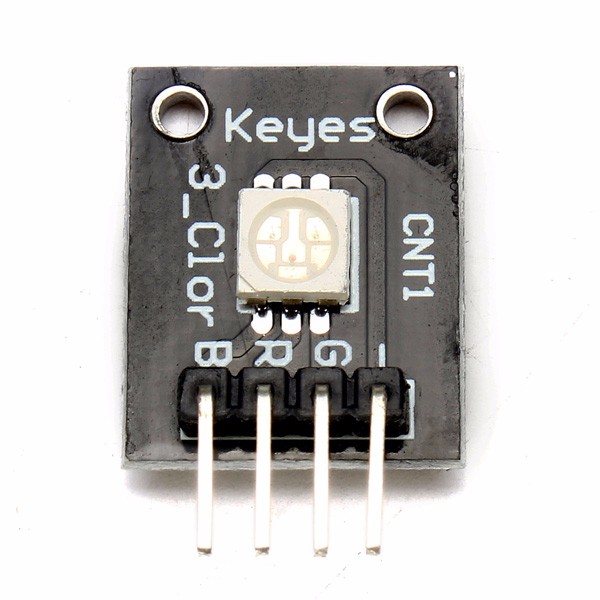

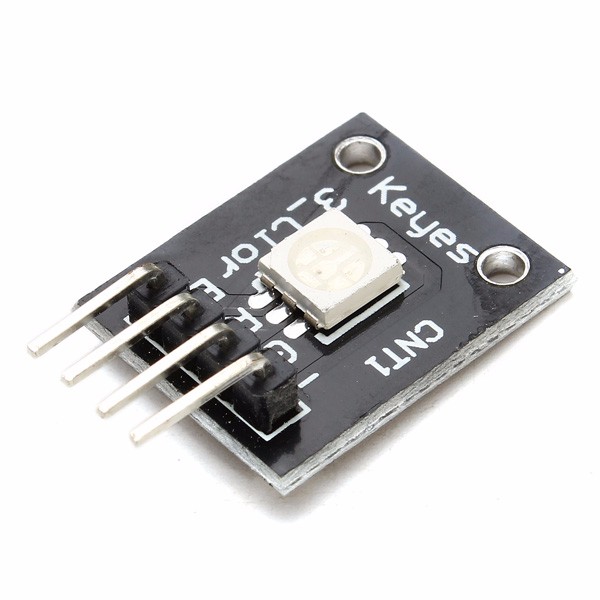

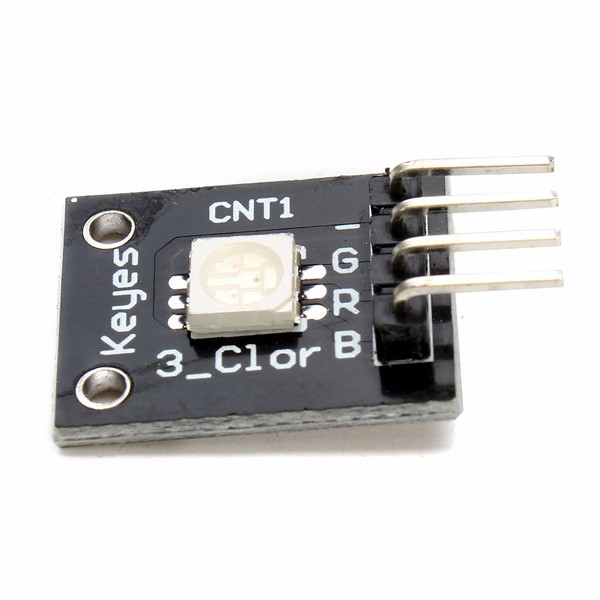

This module consists of a 5050 SMD LED and 4 male header pins. Use with limiting resistors to prevent LED burnout.

Compatible with popular electronics platforms like Arduino, Raspberry Pi and ESP32.
