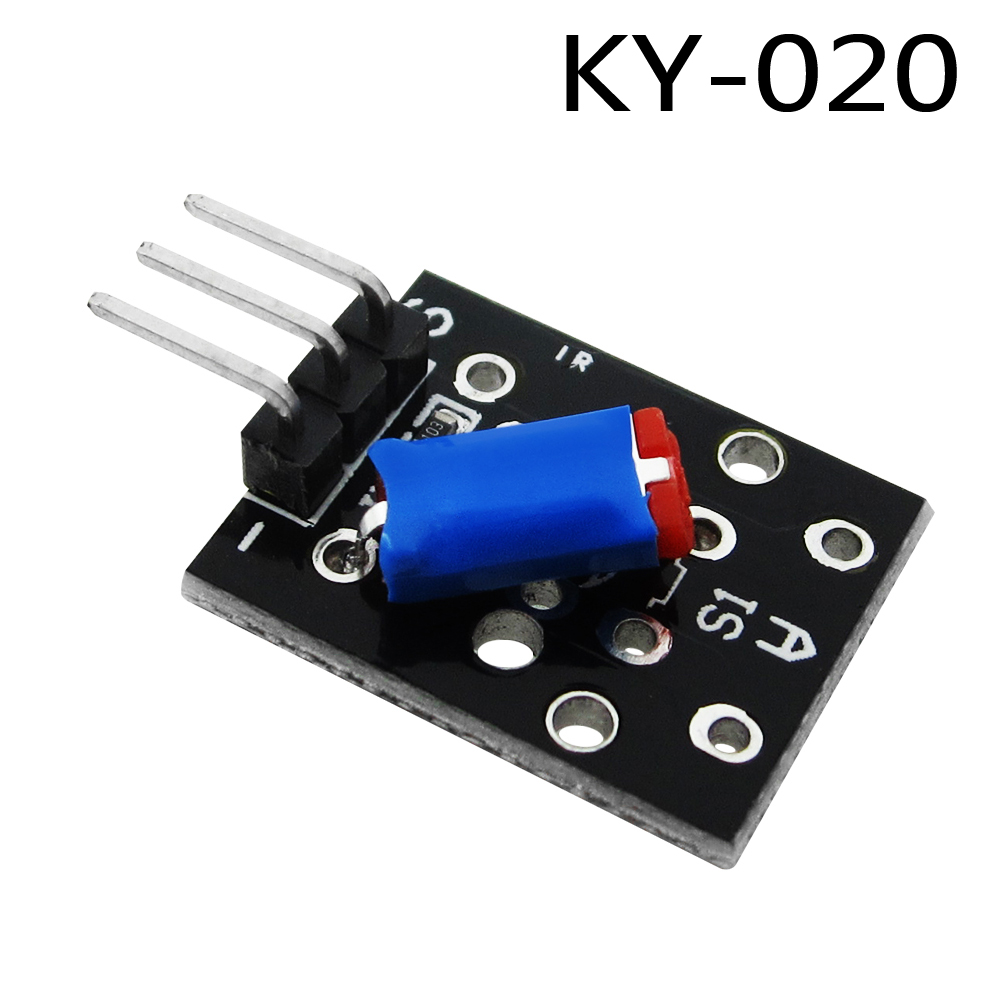

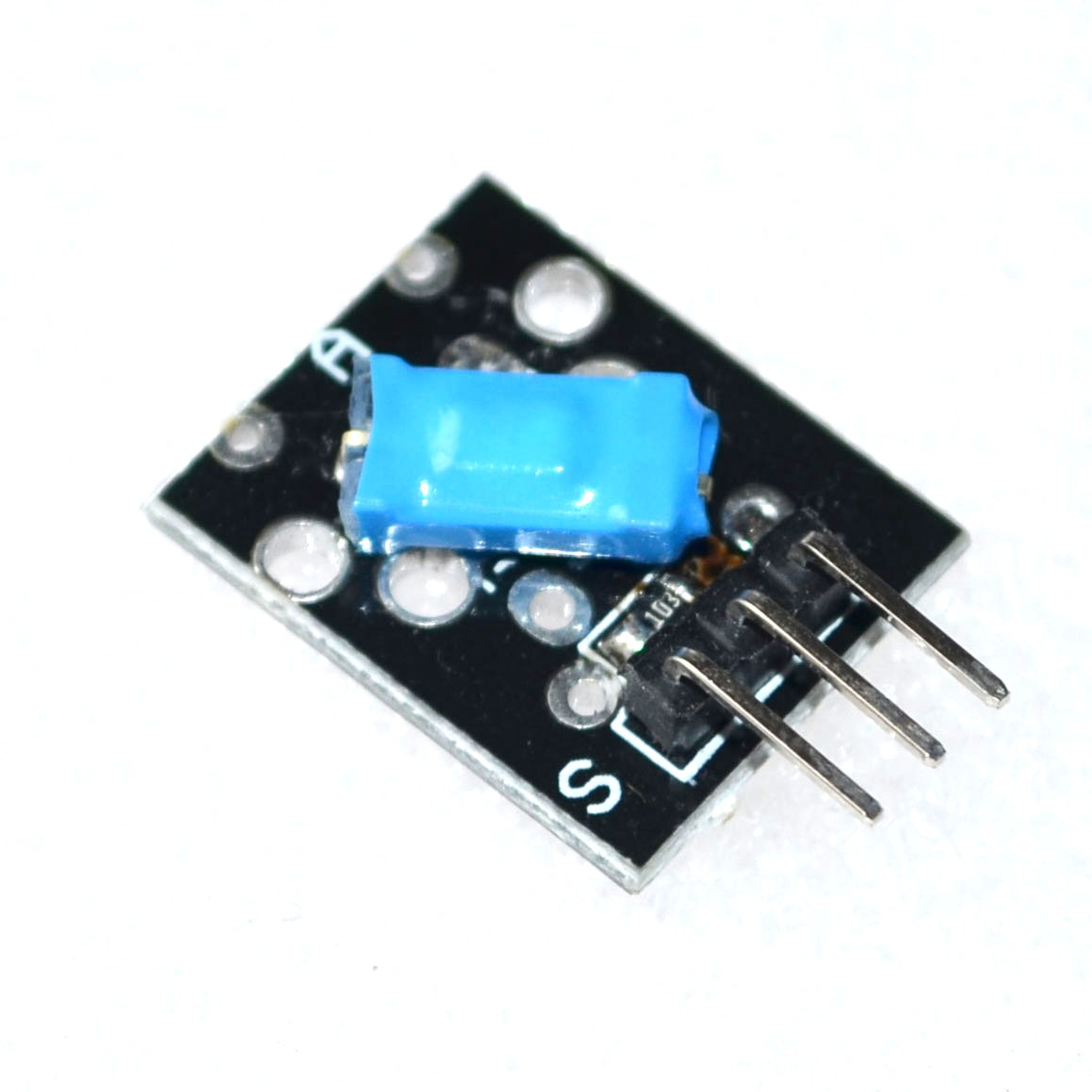

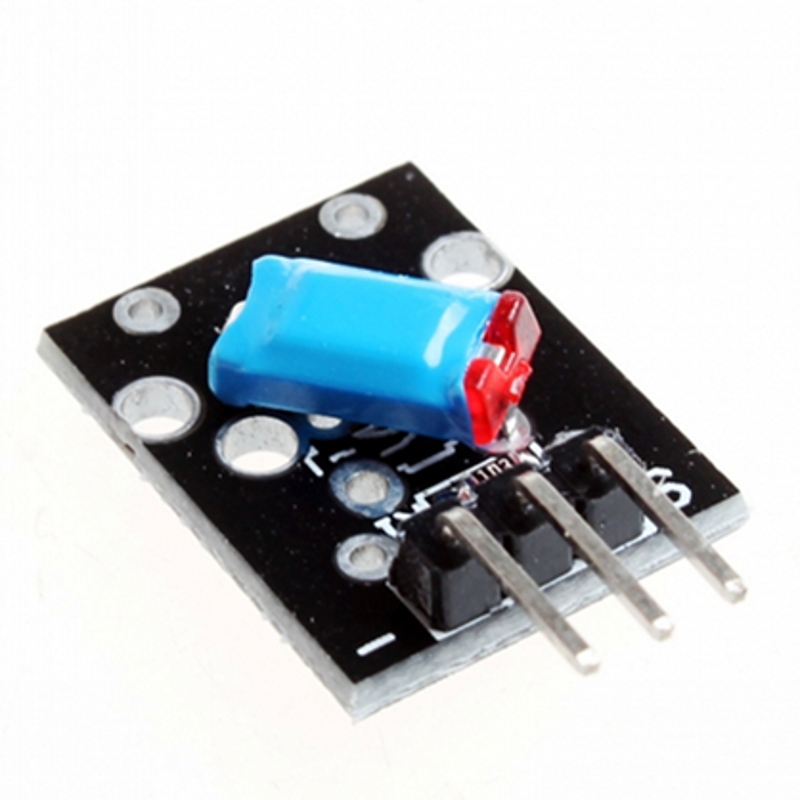

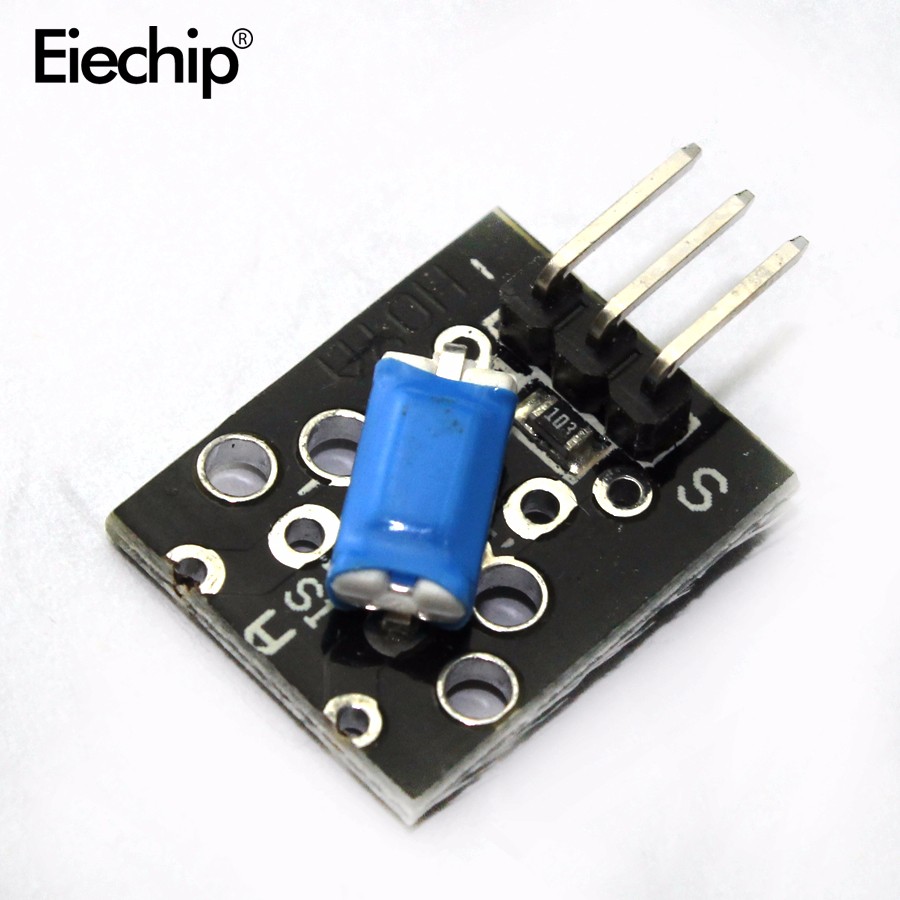

Tilt Switch Module KY-020

SKU: FA3031
Dimensions 1.9 × 1.5 × 1 cm
Operating Voltage

3.3V ~ 5V

Output Type


The KY-020 Tilt Switch Sensor module is a switch that reacts to movement. It closes the circuit when it’s tilted to the side as long as it is moved with enough force and degree of inclination to activate the ball switch inside.

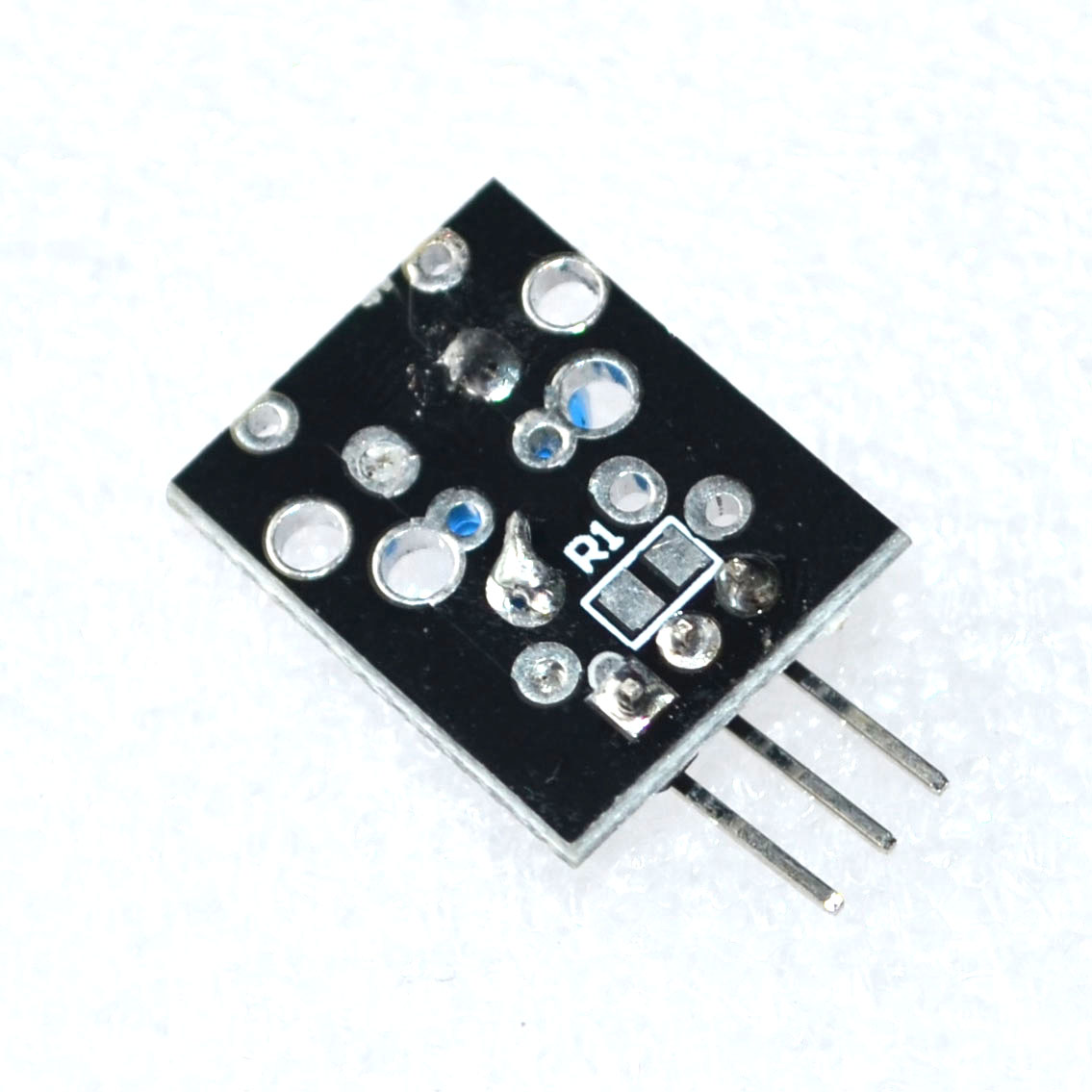

This module consists of a 10kΩ resistor, a metallic ball switch with bidirectional conduction that will open/close the circuit when tilted, and 3 male header pins. This module does not measure tilt angle.

Compatible with Arduino Raspberry Pi, ESP32 and other microcontrollers. For more sensitive tilt detection use the KY-017 Mercury switch module.
