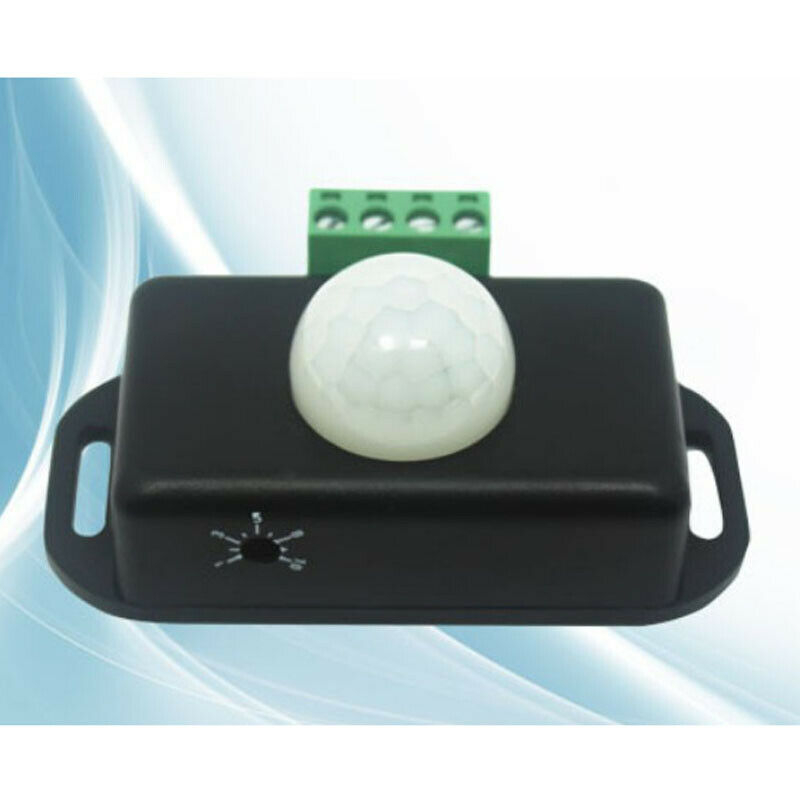

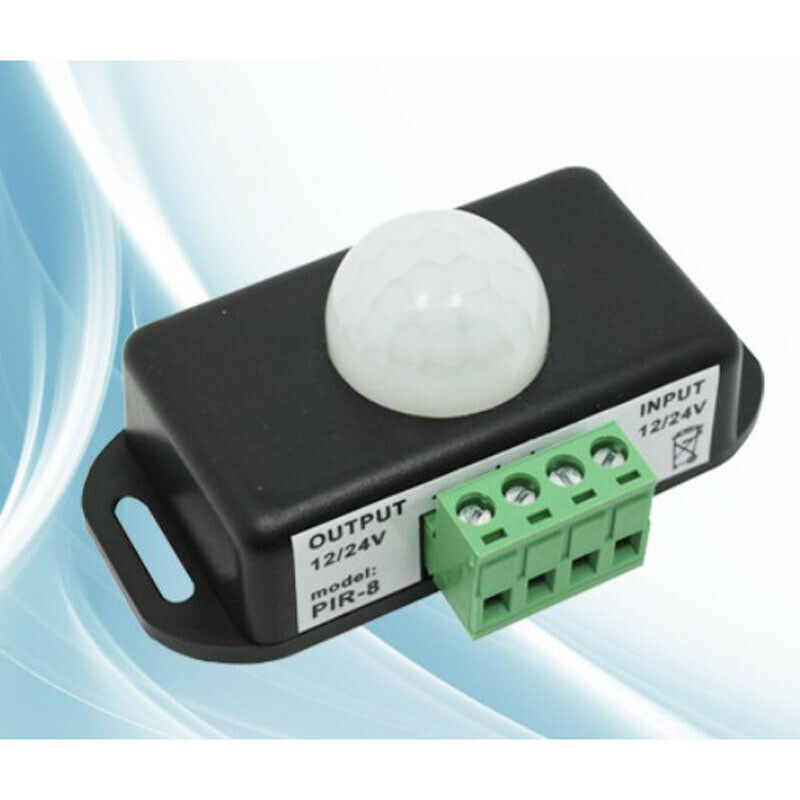

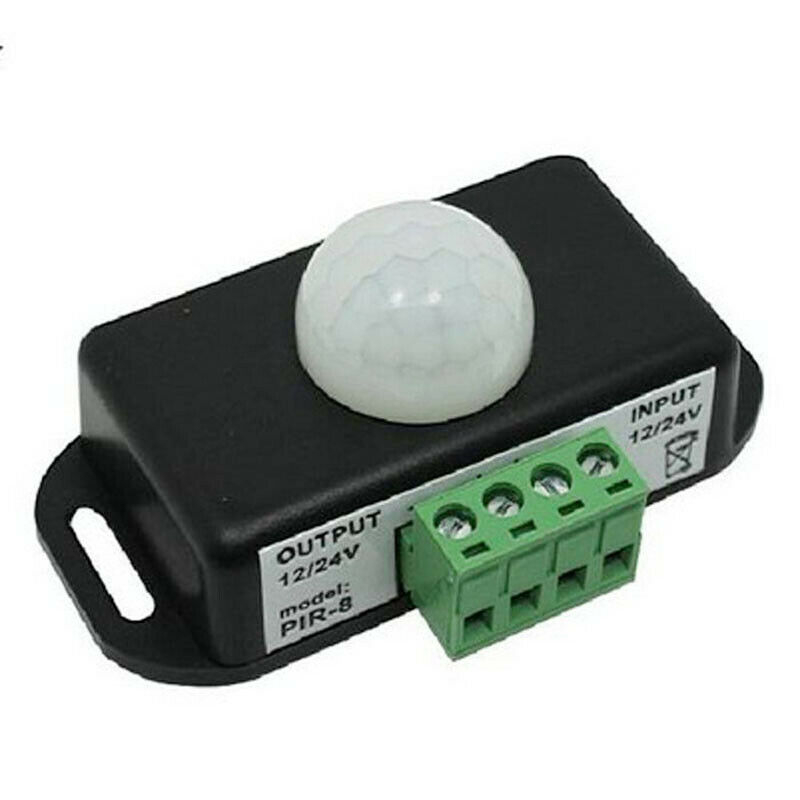

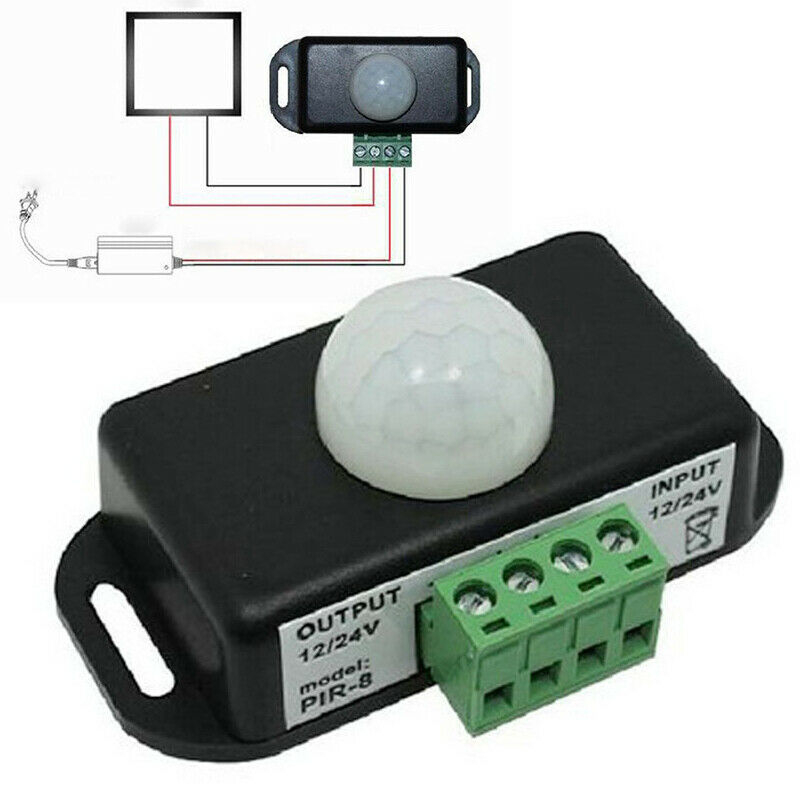

Human body infrared sensor switch led sensor controller time adjustable 12V24V

$3.45

Weight 0.058 kg
Dimensions 7.6 × 4.5 × 3.2 cm
Working temperature

-20 to +60 degrees Celsius

Input voltage

10.5-16 V or 21-32 V

Output voltage

10.5-16 V or 21-32 V

Sensing distance

8M

Induction angle

60 degrees

Output current

less than 6A

Delay

1-10 minutes (adjustable)

Sensing range

5-8m

Colour

Black

Load power

5W

5000 in stock

12V/24V Human Body PIR Infrared Sensor Detector LED Motion Sensor Switch Motion Timer Function Sign Control PIR Controller for LED Light Strip Cupboard Cabinet Kitchen Stairs Black

Description

Product type:Sensor Switch

Working temperature: -20 to +60 degrees Celsius
Input voltage: 10.5-16 V or 21-32 V
Output voltage: 10.5-16 V or 21-32 V
Sensing distance: 8M
Induction angle: 60 degrees
Output current: less than 6A
Delay: 1-10 minutes (adjustable)
Size: 76 * 45 * 32mm
Sensing range: 5-8m
Colour: Black
Load power: 5W

User’s Guidance
Humen human body sensor switch is an infrared detection controller,
Use infrared detection method to control load switch. Users can according to actual needs,
A human body sensor is installed in the correct environment.

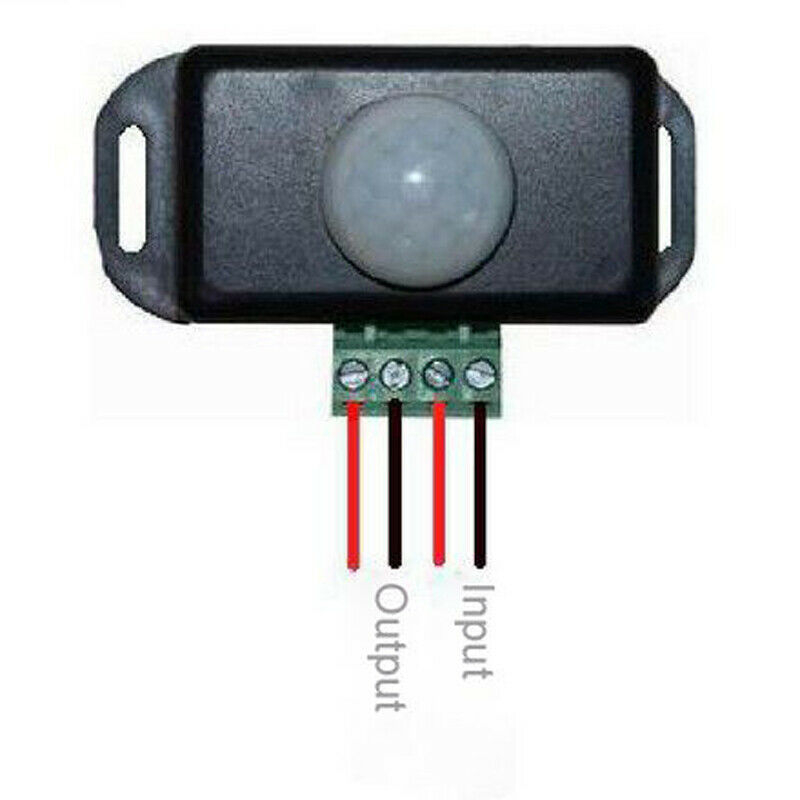

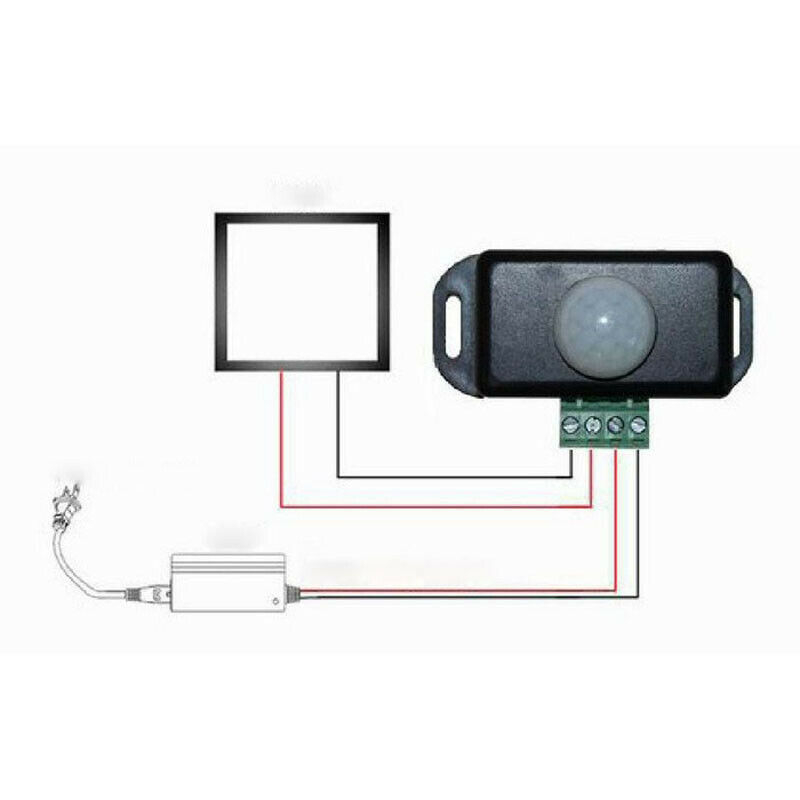

Reconnect the load line and then pass the power line:
Before powering on, make sure that there is no short circuit between the connecting wires:
When someone is detected, the load indicator will light up. When people have time to set the delay time,
The load indicator automatically goes out. The controller signal wire and input wire must be connected.

User’s Guidance
Humen human body sensor switch is an infrared detection controller,
Use infrared detection method to control load switch. Users can according to actual needs,
A human body sensor is installed in the correct environment.
Reconnect the load line and then pass the power line:
Before powering on, make sure that there is no short circuit between the connecting wires:
When someone is detected, the load indicator will light up. When people have time to set the delay time,
The load indicator automatically goes out. The controller signal wire and input wire must be connected.
