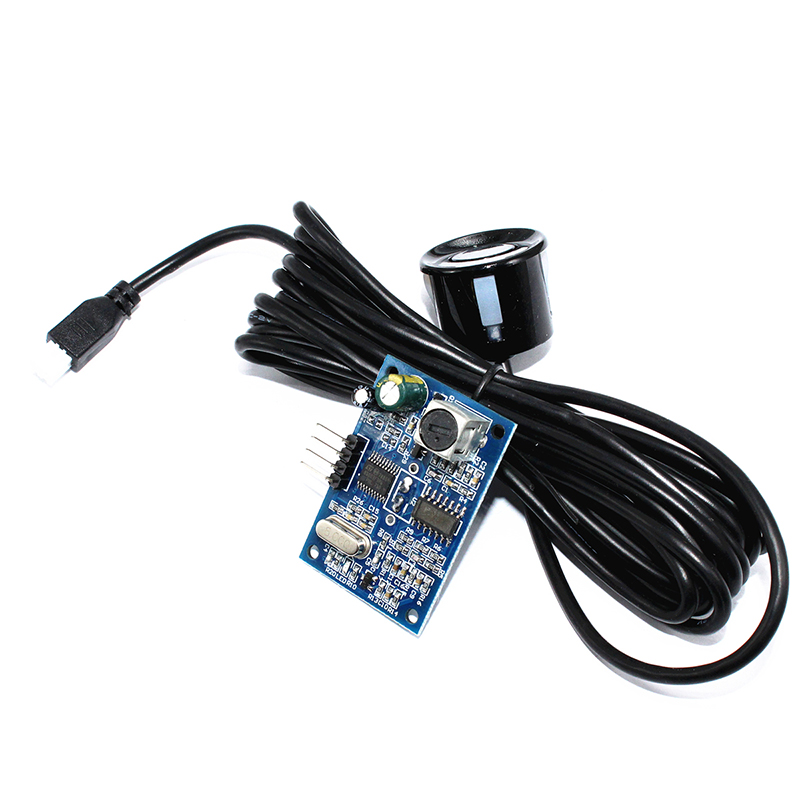

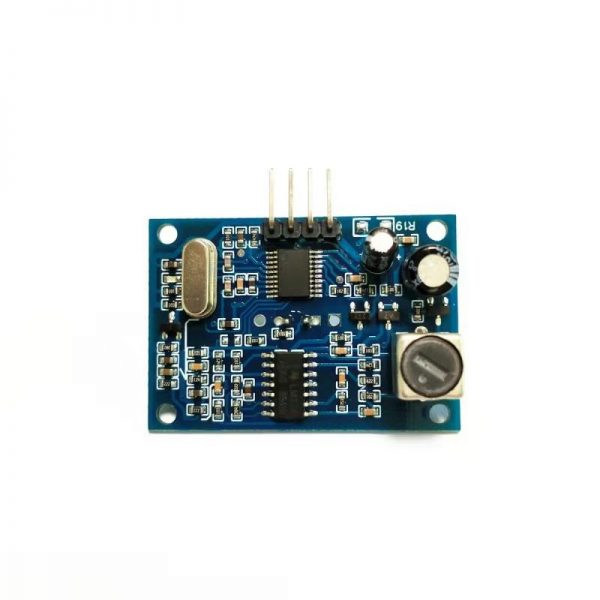

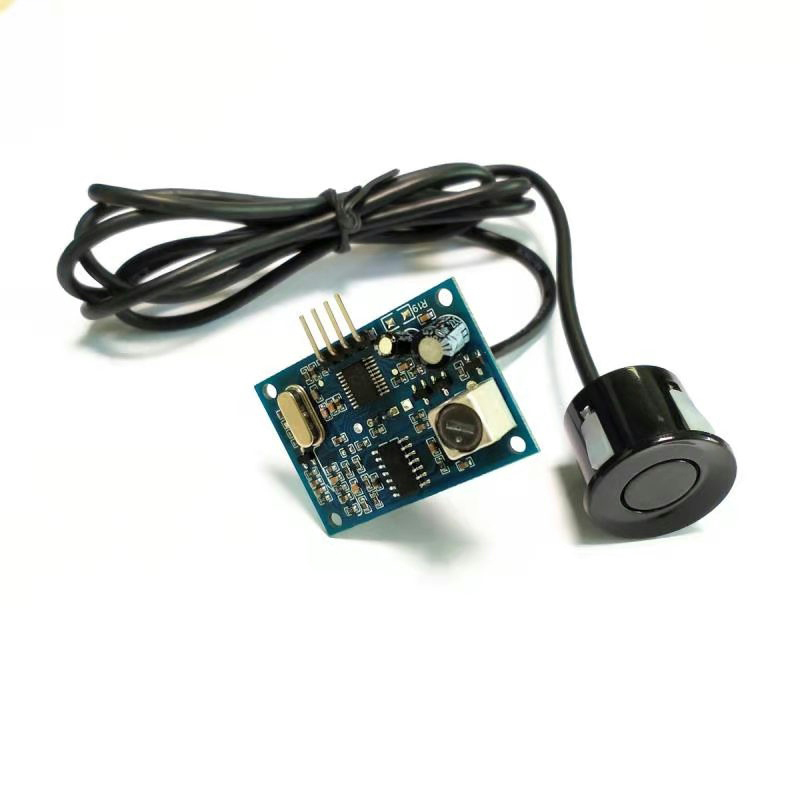

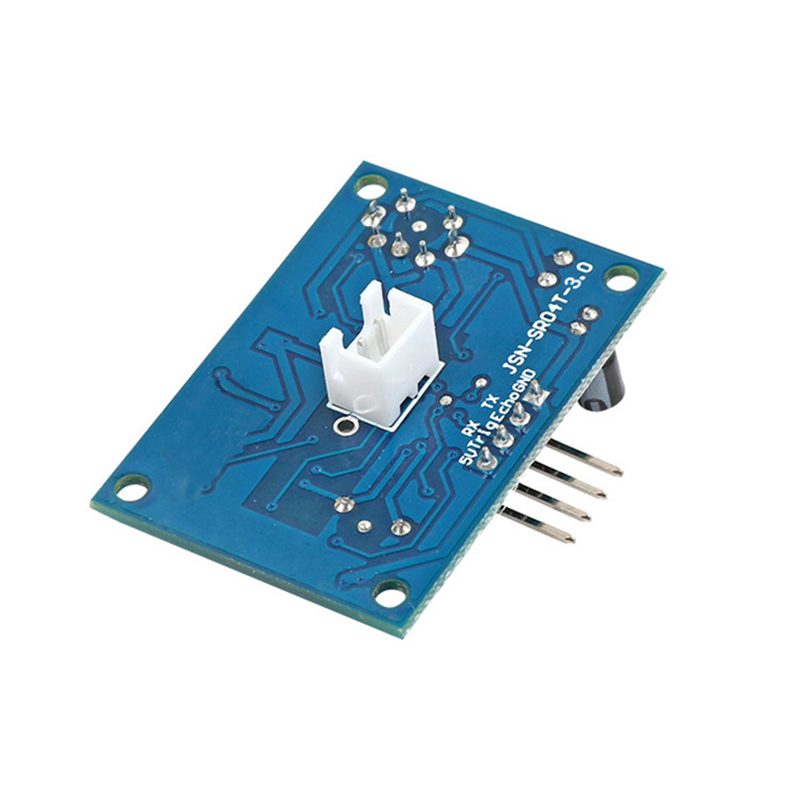

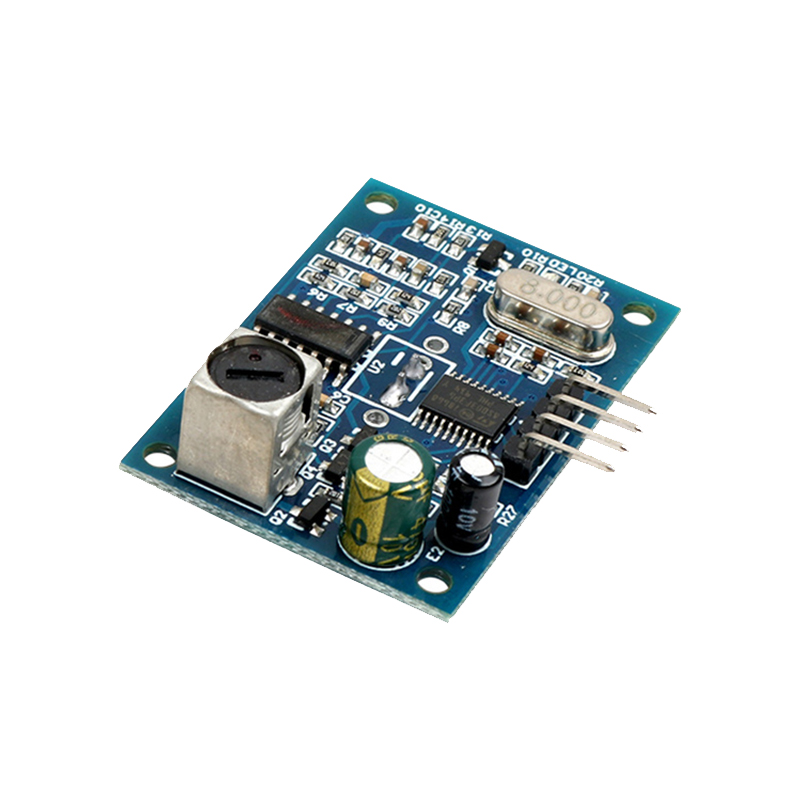

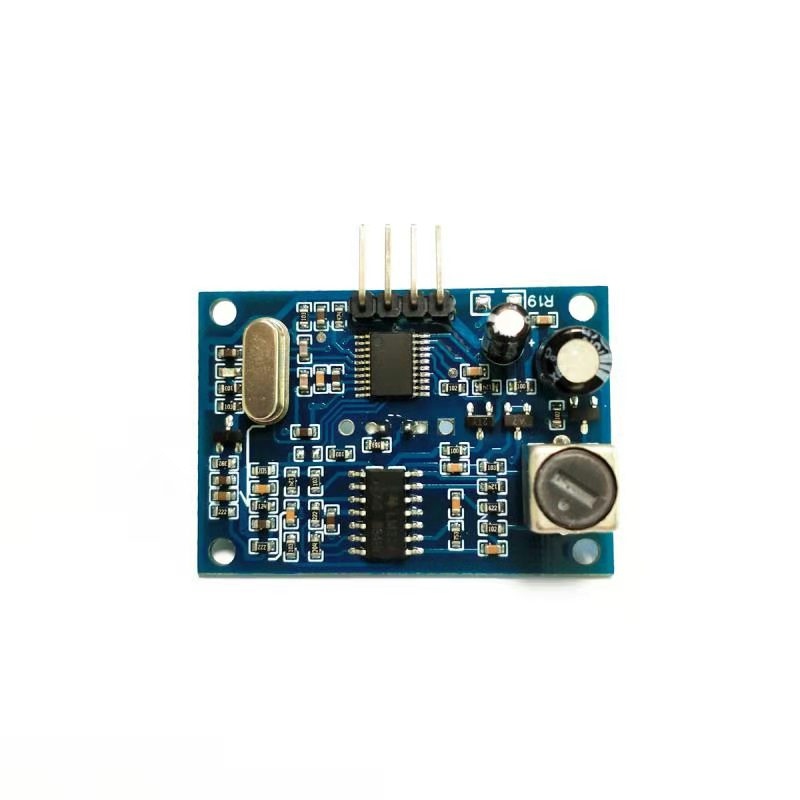

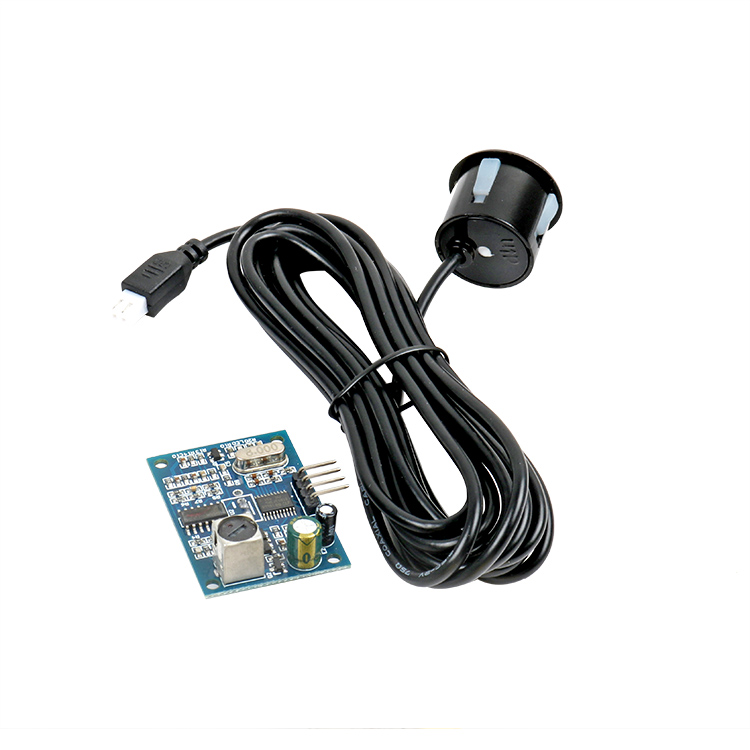

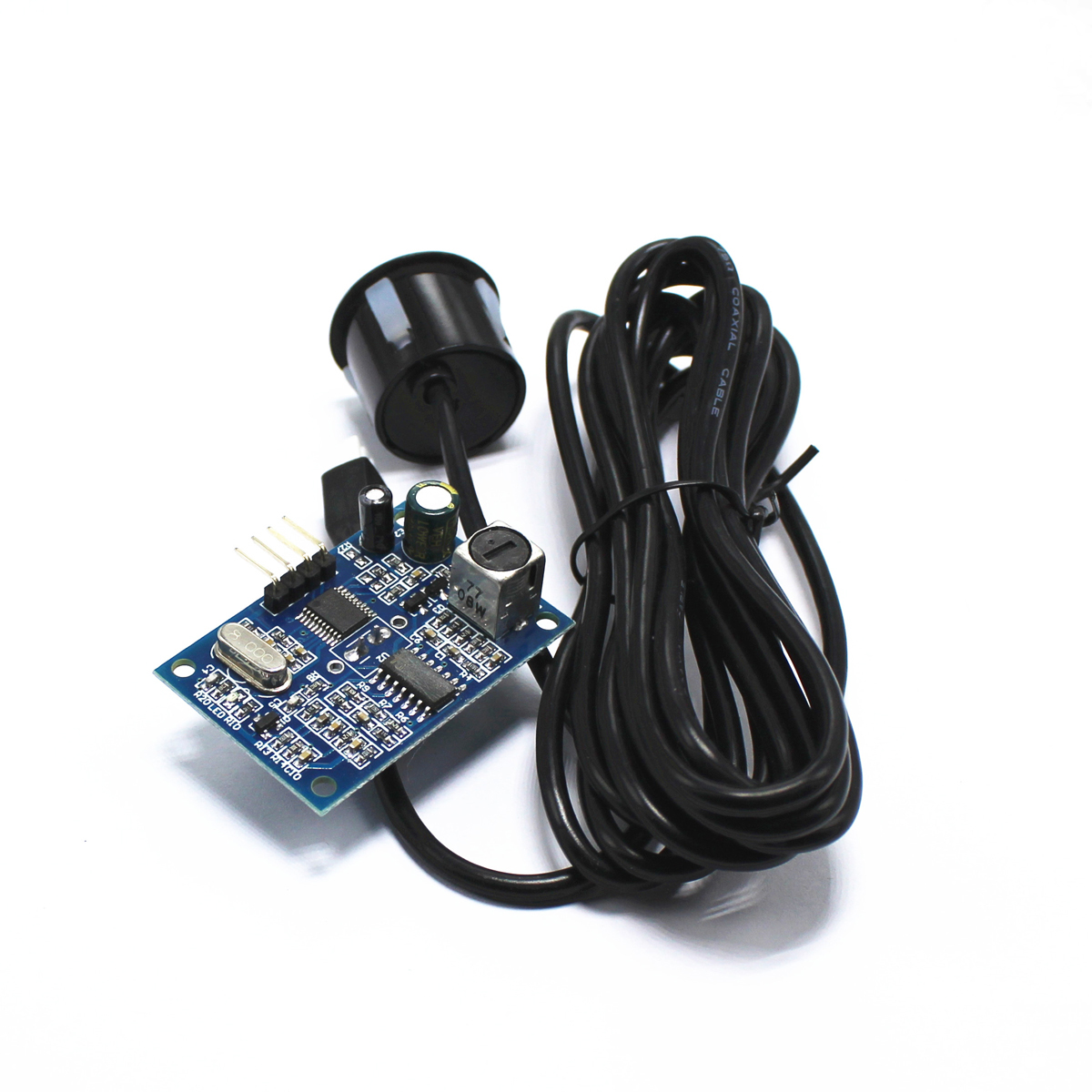

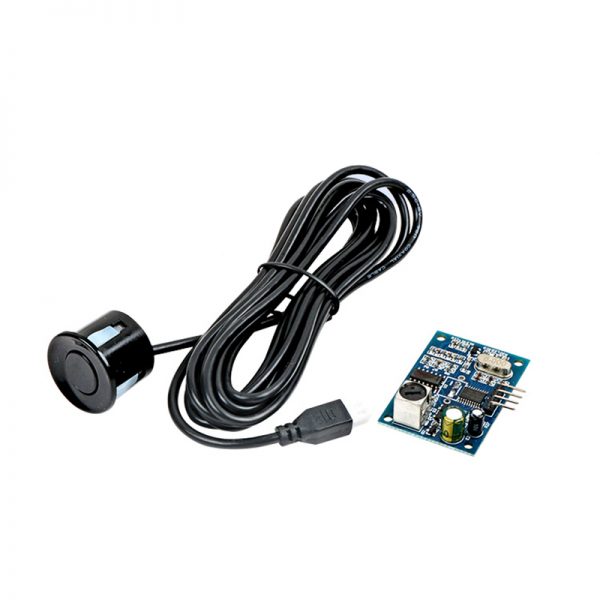

JSN-SR04T integrated ultrasonic ranging module/reversing radar waterproof ultrasonic sensor module

SKU: FA3007-3 Tag:

$2.99

Weight 0.059 kg

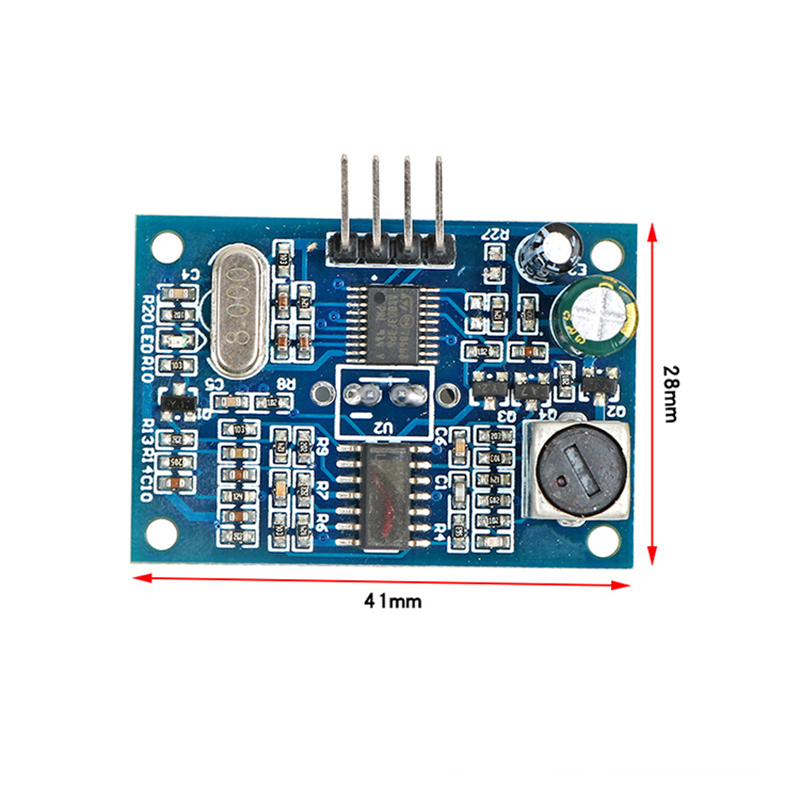

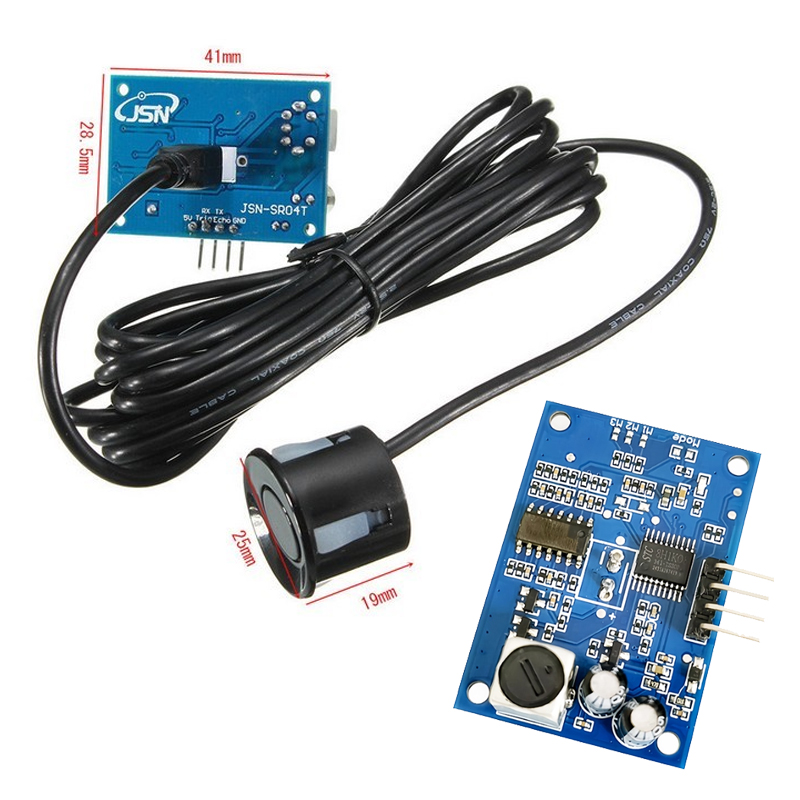

Dimensions 4.1 × 2.8 cm
Working voltage

DC 5V

Static working current

5mA

Working current

30mA

Acoustic emission frequency

40KHz

Wiring

+5V(positive); Trig(control);   Echo(receive);   GND(cathode)

2500 in stock

Features

Small size, easy to use
Low voltage, low power consumption
High accuracy
Strong anti-jamming
Integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions

Specification

Working voltage: DC 5V
Static working current: 5mA
Working current: 30mA
Acoustic emission frequency:40KHz

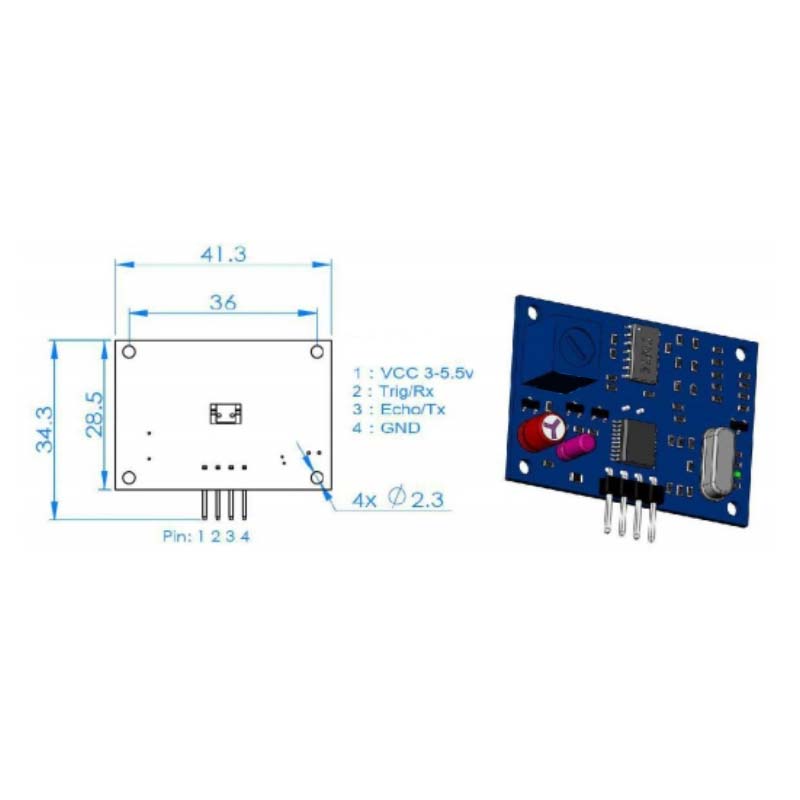

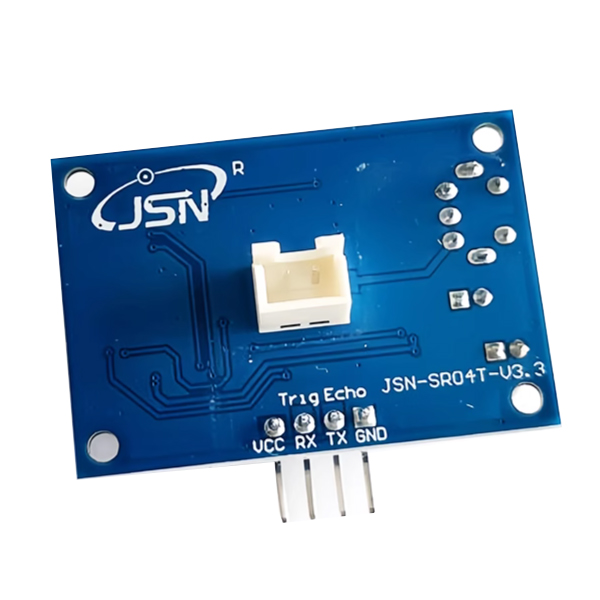

Wiring:+5V(positive); Trig(control);   Echo(receive);   GND(cathode)

Connection with arduino
5V: 5V Supply
Trig: D3
Echo: D2
GND: GND

Application

Horizontal distance messurement
Obstacle avoidance, automatic control
Traffic control
Security, industrial control

Description

There are many ultrasonic ranger module on the market, but sometimes, these kind of sensor needs to work in conditions more than the Lab. This water proof ultrasonic sensor meets this requirement. It has a good performance and almost the same usage of HC-S04 module.
