30:1 N20 Micro gear motor 6V

SKU: FA6022-1 Tag:

$4.27

Weight 0.031 kg
Dimensions 3.4 × 1.05 cm
Voltage

6V

No-load performance

1100 RPM, 150 mA

Stall extrapolation

0.45 kg⋅cm (6.2 oz⋅in), 1.5 A

5000 in stock

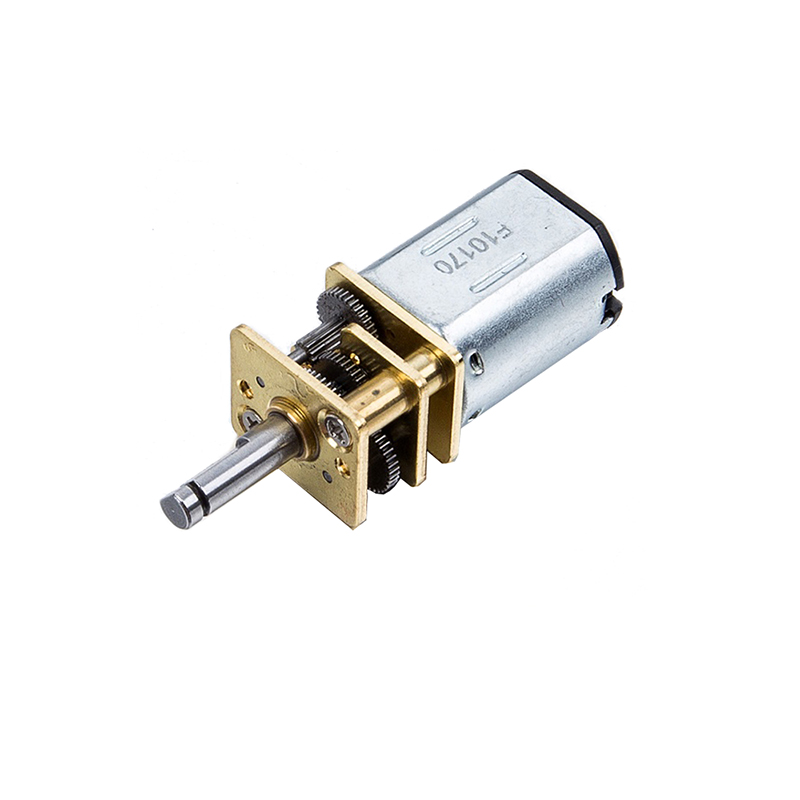

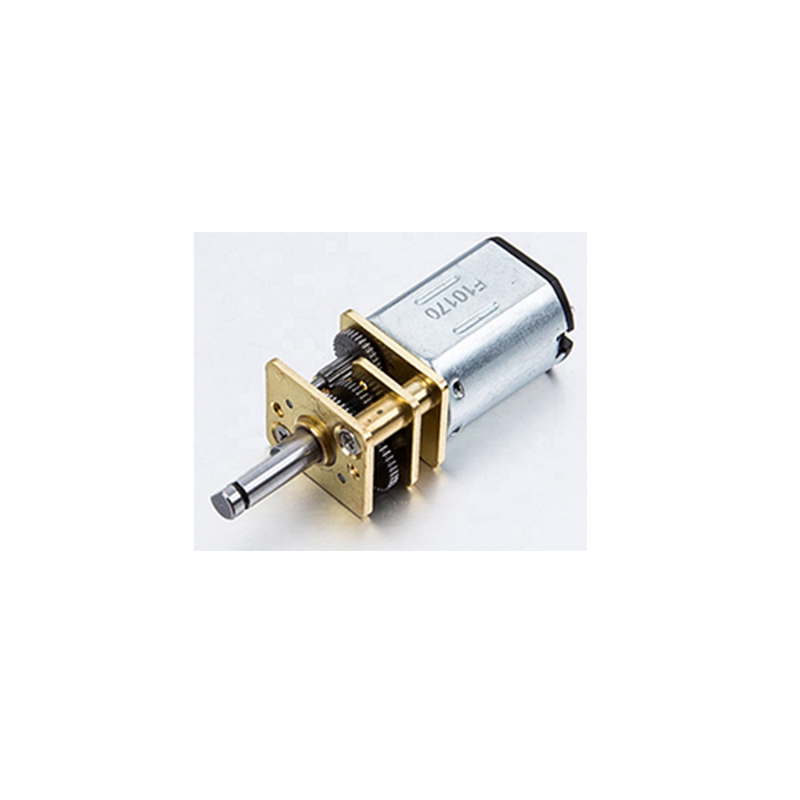

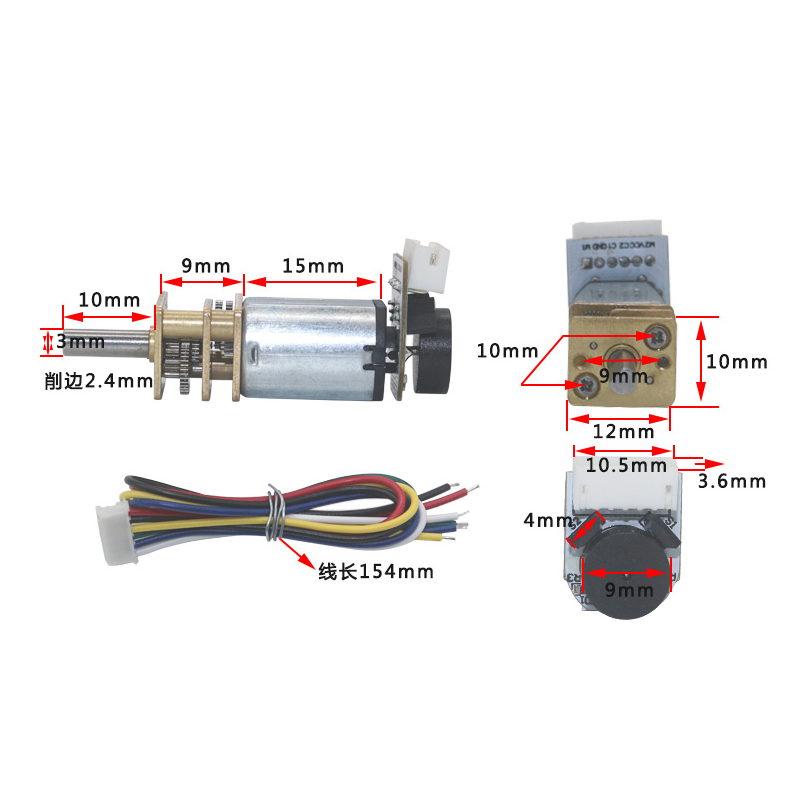

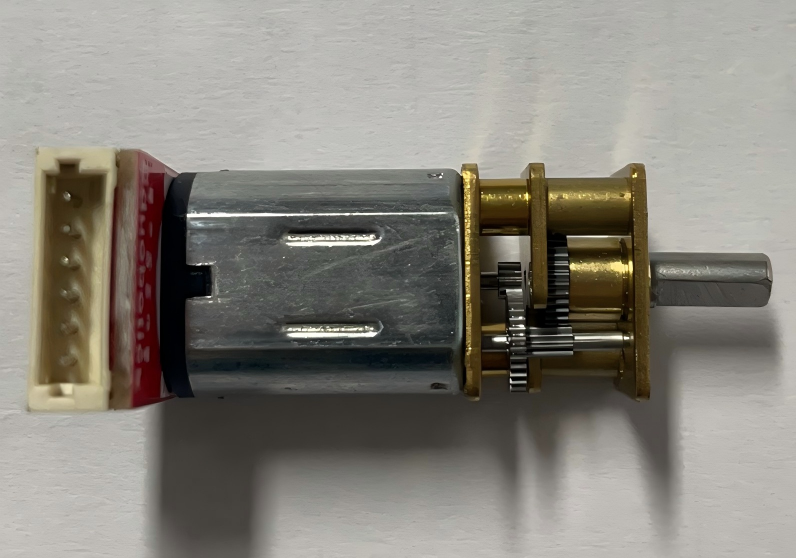

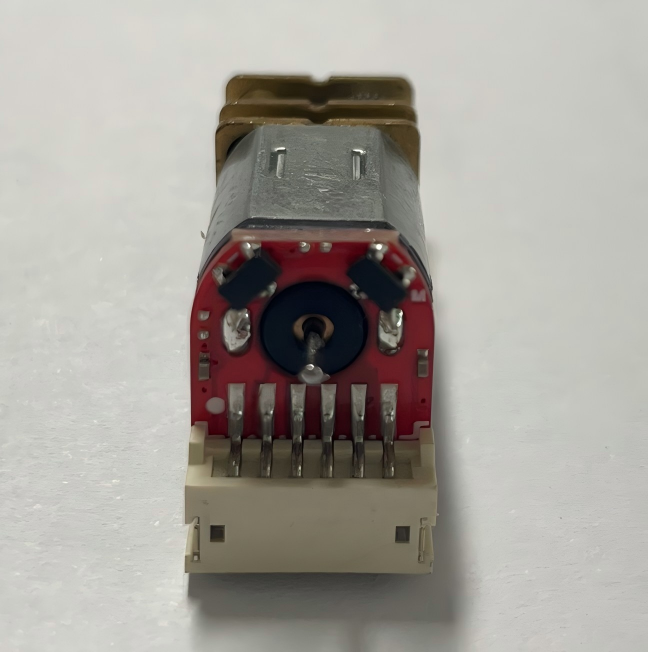

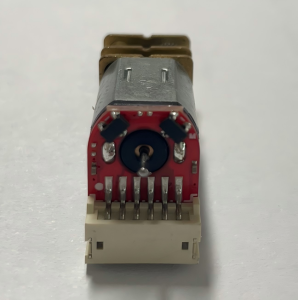

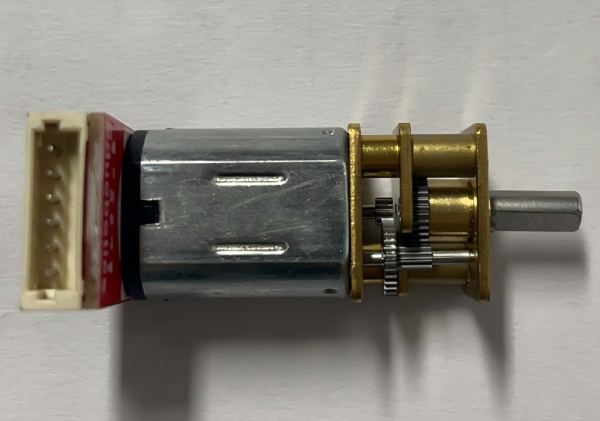

This gearmotor is a miniature high-power, 6 V brushed DC motor with long-life carbon brushes and a 29.86:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter.

Key specifications

voltage no-load performance stall extrapolation
6 V 1100 RPM, 150 mA 0.45 kg⋅cm (6.2 oz⋅in), 1.5 A



Overview

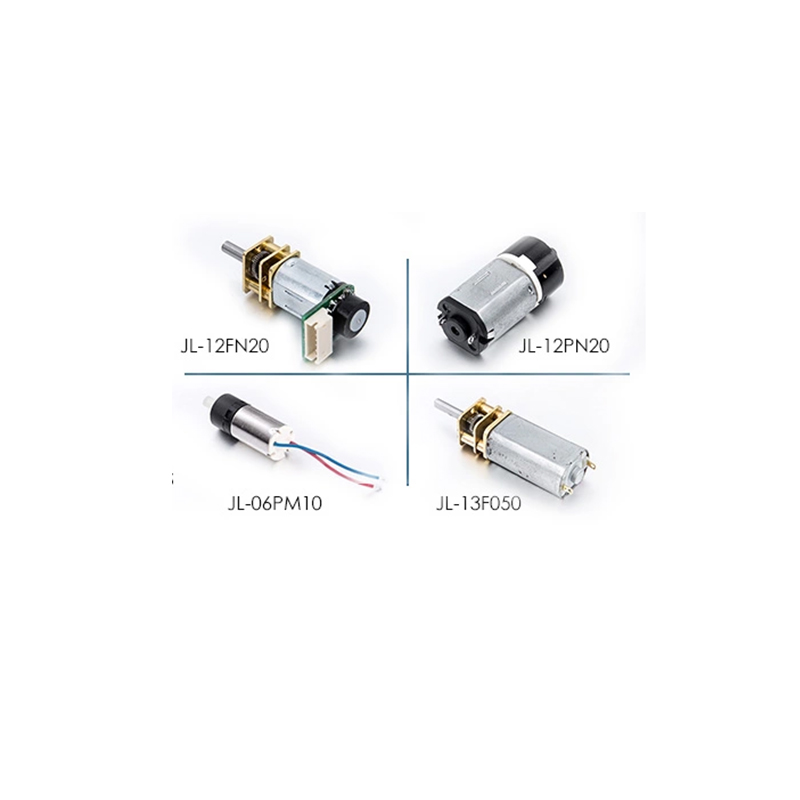

These tiny brushed DC gearmotors are available in a wide range of gear ratios—from 5:1 up to 1000:1—and with five different motors: high-power 6 V  with long-life carbon brushes (HPCB), and high-power (HP), medium power (MP), and low power (LP) 6 V motors with shorter-life precious metal brushes. The 6 V motors offer the same performance at their respective nominal voltages, The 6 V HPCB and 6 V HP motors are identical except for their brushes, which only affect the lifetime of the motor.

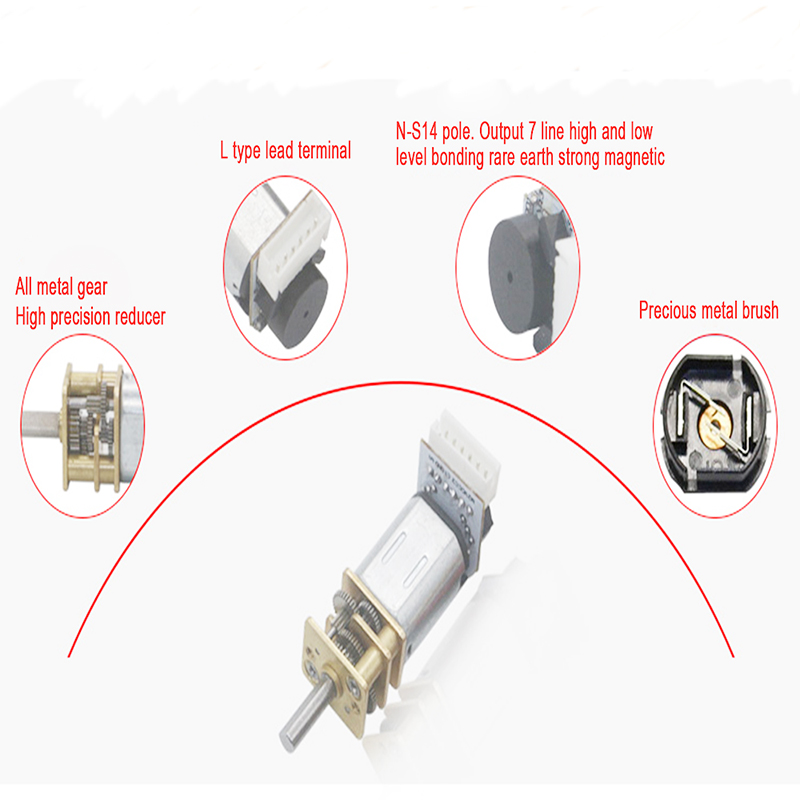

The HPCB versions (shown on the left in the picture below) can be differentiated from versions with precious metal brushes (shown on the right) by their copper-colored terminals. Note that the HPCB terminals are 0.5 mm wider than those on the other micro metal gearmotor versions (2 mm vs. 1.5 mm), and they are about 1 mm closer together (6 mm vs. 7 mm).







This kind of N20 motor bracket is widely used for many applications, such as ATM, Vacuum cleaners, money printing machines, automatic delivery machines, printers, robots, automatic door locks, range hoods, sweepers, dishwashers, etc.

mini-dc-gear-motor-applications
