Description

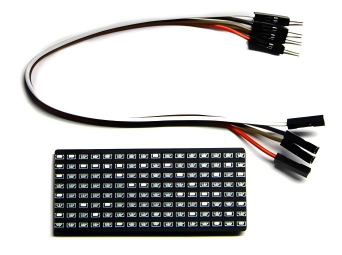

The 8×16 LED Dot Matrix Display Board is a compact and versatile visual output module designed for microcontroller-based projects, electronic signage, and interactive displays. This board features 128 bright LEDs arranged in an 8-row by 16-column grid (8×16 pixels), providing a balanced resolution that is ideal for displaying alphanumeric characters, custom graphics, scrolling text, animations, and real-time data visualizations .

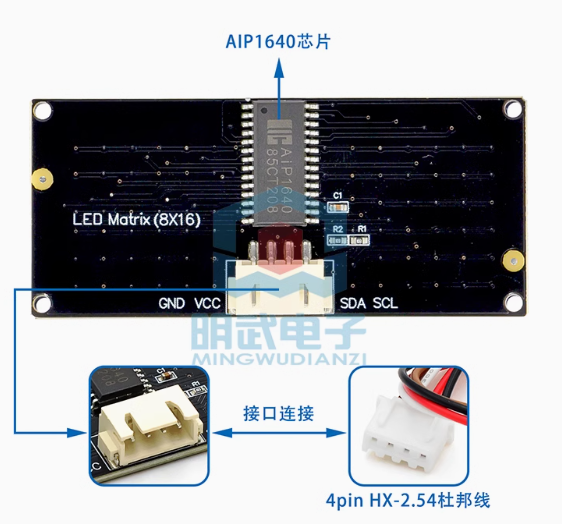

At the heart of this module is the AIP1640 driver chip, which is pre-soldered on the back of the PCB. This dedicated IC handles all the complex multiplexing and refresh timing internally, eliminating the need for constant microcontroller intervention and ensuring flicker-free display performance. The AIP1640 communicates with your microcontroller via a simple I2C-like two-wire interface, requiring only two I/O pins (SCL and SDA) to control all 128 LEDs .

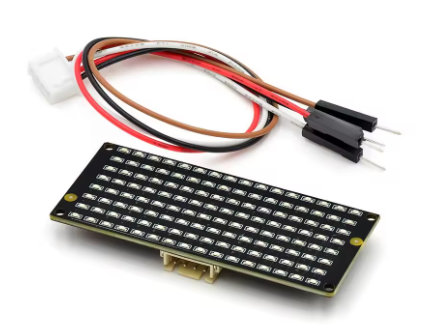

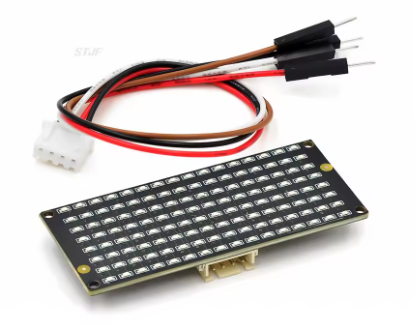

The module includes a standard 4-pin PH2.54 connector and comes with a matching 4-Pin Dupont cable, making it easy to connect to development boards such as Arduino, ESP32, ESP8266, Raspberry Pi, micro:bit, STM32, and 8051-series microcontrollers . The 1.2mm PCB thickness provides durability while maintaining a lightweight form factor.
Color Options: This module is available in three single-color variants—Red, Green, and Yellow. Each variant offers bright, high-contrast illumination suitable for various applications. (Note: This is a single-color display; the color is fixed based on the variant you select.)
The module operates on a wide voltage range of DC 3.3V to 5V, making it compatible with both 3.3V logic (Raspberry Pi, ESP32) and 5V logic (Arduino) systems without requiring level shifters . Four 2.2mm mounting holes at the corners allow for secure installation in enclosures, panels, or custom projects.

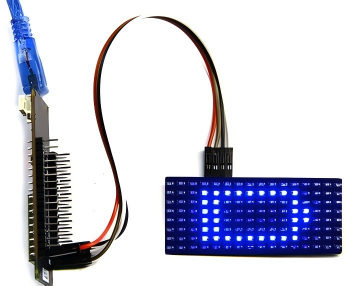

Whether you need to build a scrolling message board, create a real-time sensor data display, design a custom scoreboard, add visual feedback to your IoT project, or teach programming concepts in an educational setting, this 8×16 LED Dot Matrix Display Board delivers reliable, bright, and easy-to-control performance in a compact package.
Key Features
-
128 Individually Controllable LEDs – 8×16 pixel grid for displaying text, numbers, symbols, and custom graphics
-
AIP1640 Driver Chip – Onboard driver handles all multiplexing automatically for flicker-free display
-
Simple 2-Wire Interface – I2C-like communication uses only SCL and SDA pins, saving valuable I/O pins on your microcontroller
-
Wide Voltage Compatibility – Operates on DC 3.3V to 5V, compatible with both 3.3V and 5V logic systems
-
PH2.54 4-Pin Connector – Standard connector with included 4-Pin Dupont cable for easy breadboard and development board connection
-
Single-Color Options – Available in Red, Green, or Yellow high-brightness LEDs
-
Durable Construction – 1.2mm thick PCB with four 2.2mm mounting holes for secure installation
-

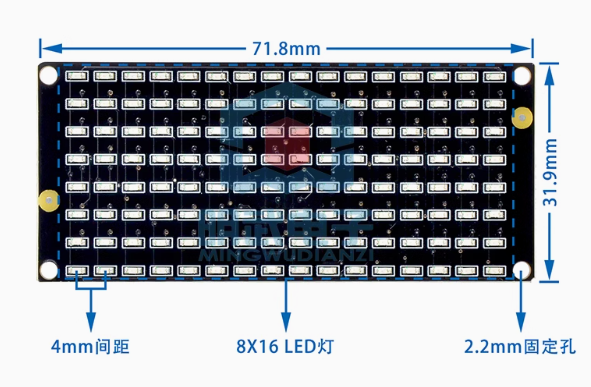

Compact Dimensions – Approximately 72mm x 32mm, ideal for space-constrained projects
-
Wide Operating Temperature – -40°C to +80°C, suitable for indoor and protected outdoor applications
-
Extensive Library Support – Compatible with popular Arduino and MicroPython libraries for easy programming
Technical Parameters
| Parameter | Value |
|---|---|
| Operating Voltage | DC 3.3V – 5V |
| Maximum Power Loss | 400 mW |
| Driving Current | 200 mA |
| Oscillation Frequency | 450 KHz |
| Display Resolution | 8 × 16 pixels (128 LEDs) |
| LED Color Options | Red / Green / Yellow (single color per module) |
| Communication Protocol | I2C / Two-wire serial interface |
| Connector Type | PH2.54 4-pin (GND, VCC, SDA, SCL) |
| PCB Thickness | 1.2 mm |
