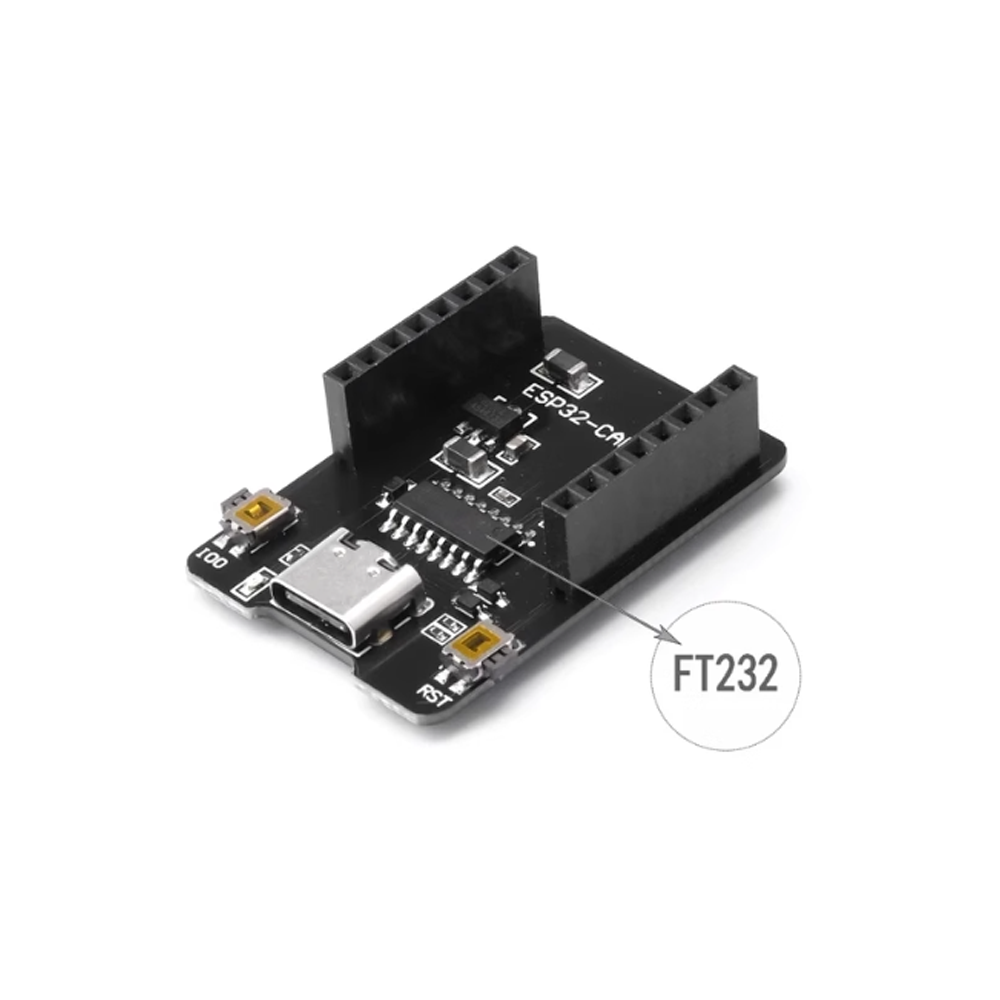

The CAM Download Board with FT232 chip and Type-C interface is a dedicated programming adapter designed specifically for the ESP32-CAM development board. It eliminates the most common frustration in ESP32-CAM projects — the need for external FTDI programmers, manual jumper wires, and precise button-pressing sequences — by providing a simple, plug-and-play Type-C connection for uploading sketches and powering the camera board.
The ESP32-CAM is a powerful and affordable camera development platform, but it lacks a built-in USB-to-serial converter. Traditionally, users had to connect an external FTDI adapter with four jumper wires, manually bridge GPIO0 to GND for programming mode, and press the reset button at the right moment. This download board solves all of those problems. It features the FT232 USB-to-serial chip and a built-in auto-download circuit that handles the programming sequence automatically — just like a standard Arduino board.
The FT232 chip is a well-established, widely trusted USB-to-serial solution known for its reliability, stability, and broad driver availability. It is particularly favored in professional, industrial, and commercial environments where consistent performance is essential. The FT232 requires a one-time driver installation on most operating systems, after which it works seamlessly with the Arduino IDE, ESP-IDF, and other development environments.
The Type-C connector offers reversible plug orientation, is increasingly standard across modern computers, and provides a secure, reliable connection. The download board plugs directly onto the ESP32-CAM‘s GPIO pins, aligning with the camera board’s header layout. This direct connection eliminates the need for jumper wires, reduces the risk of miswiring, and keeps the setup compact and portable.
The board also includes a built-in reset circuit and auto-download functionality, so uploading a sketch is as simple as clicking “Upload” in the Arduino IDE. The board is powered directly from the Type-C connection, supplying the ESP32-CAM with the stable 5V it requires. This integrated power and programming solution simplifies the development workflow and makes the ESP32-CAM accessible to beginners who may not be familiar with FTDI adapters and manual programming procedures.
Whether you are a beginner getting started with ESP32-CAM projects, a hobbyist building a home monitoring system, or a business purchasing in bulk for product development, this download board provides a practical, reliable solution for programming and powering your ESP32-CAM. It is suitable for individual makers, students, and businesses alike.
Features
-
FT232 USB-to-serial chip — Well-established, reliable interface with mature drivers and broad compatibility
-
Type-C USB interface — Reversible connector, modern standard, secure connection
-
Direct plug-in design — Plugs directly onto ESP32-CAM GPIO pins, no jumper wires required
-
Auto-download functionality — Built-in reset circuit handles programming sequence automatically
-
Integrated power supply — Powers the ESP32-CAM with stable 5V via the Type-C connection
-
Compact and portable — Minimal footprint when attached to the ESP32-CAM
-
No external programmer required — Eliminates the need for separate FTDI adapters and manual wiring
-
Wide compatibility — Works with Arduino IDE, ESP-IDF, and other development environments
Technical Specifications
| # | Parameter | Specification |
|---|---|---|
| 1 | USB Interface Chip | FT232 |
| 2 | USB Connector | Type-C |
| 3 | Compatibility | ESP32-CAM development board |
| 4 | Power Output | 5V to ESP32-CAM |
| 5 | Programming Mode | Auto-download with built-in reset circuit |
| 6 | Connection Method | Direct plug-in to ESP32-CAM GPIO pins |
| 7 | Driver Requirement | FTDI VCP driver (one-time installation) |
| 8 | Dimensions | Matches ESP32-CAM form factor for compact assembly |
