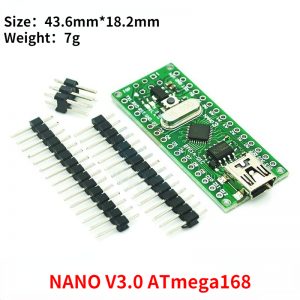

Nano V3.0 ATmega168 USB 16M 5V Microcontroller CH340G Mini USB Board

$2.27

Weight 0.007 kg

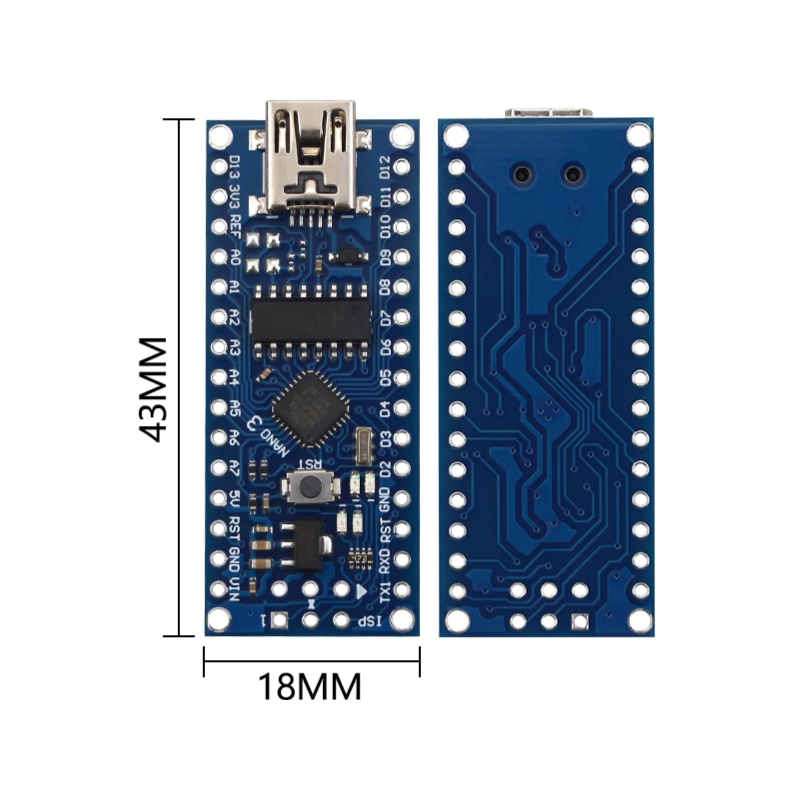

Dimensions 4.36 × 1.82 cm
Microcontroller

ATmega168 (16Mhz)

Interface

CH340G – USB-UART

Input voltage

6-12V

Output voltage

5V/800mA, 3.3V/180mA (Only in NEW vesrion)

Connection socket

Mini USB

Resetable Fuse on SB port

500mA

100 in stock

Product Description

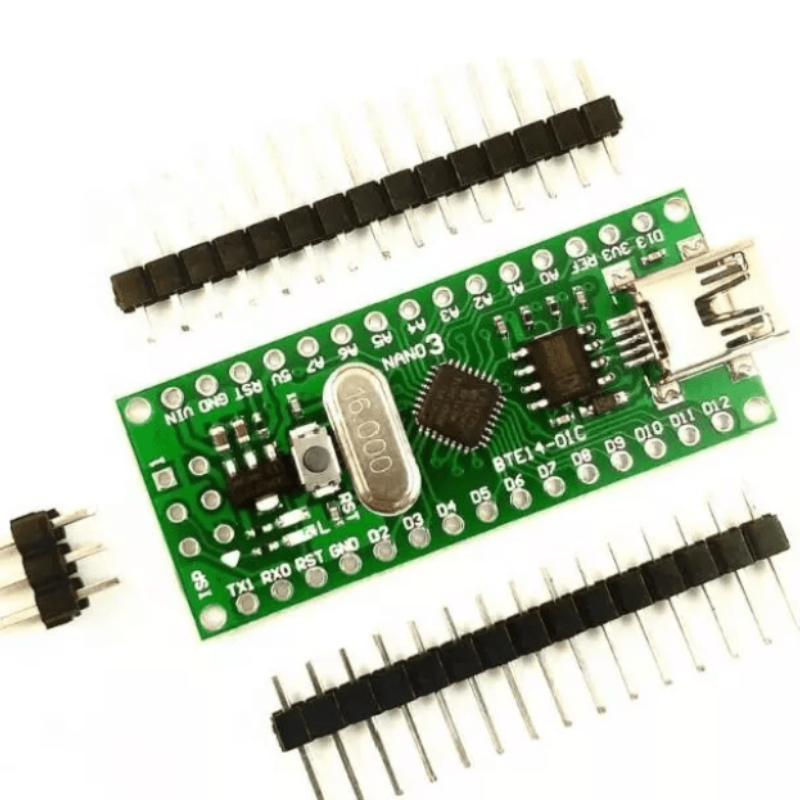

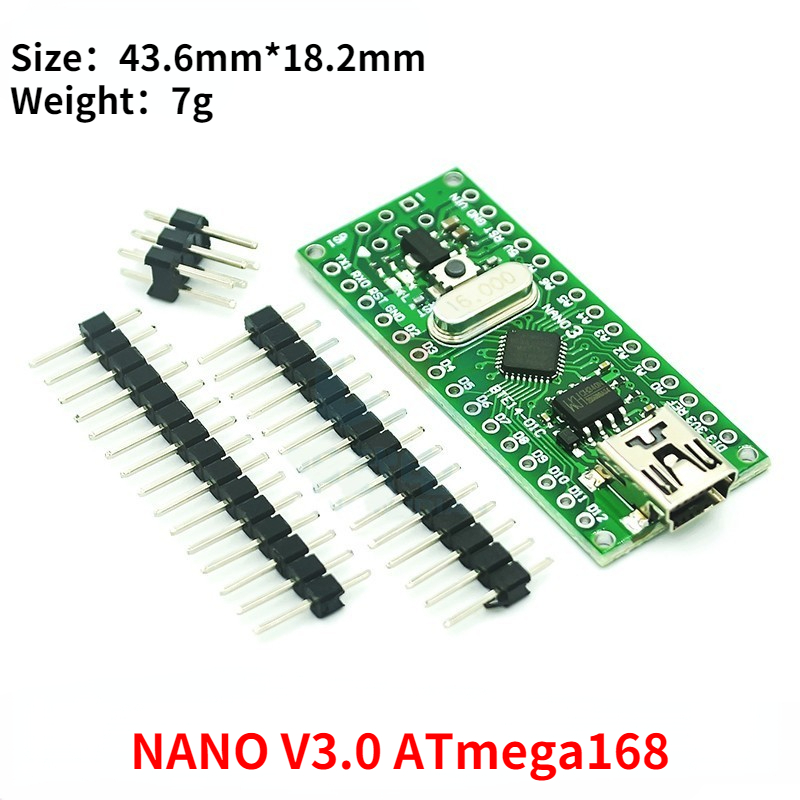

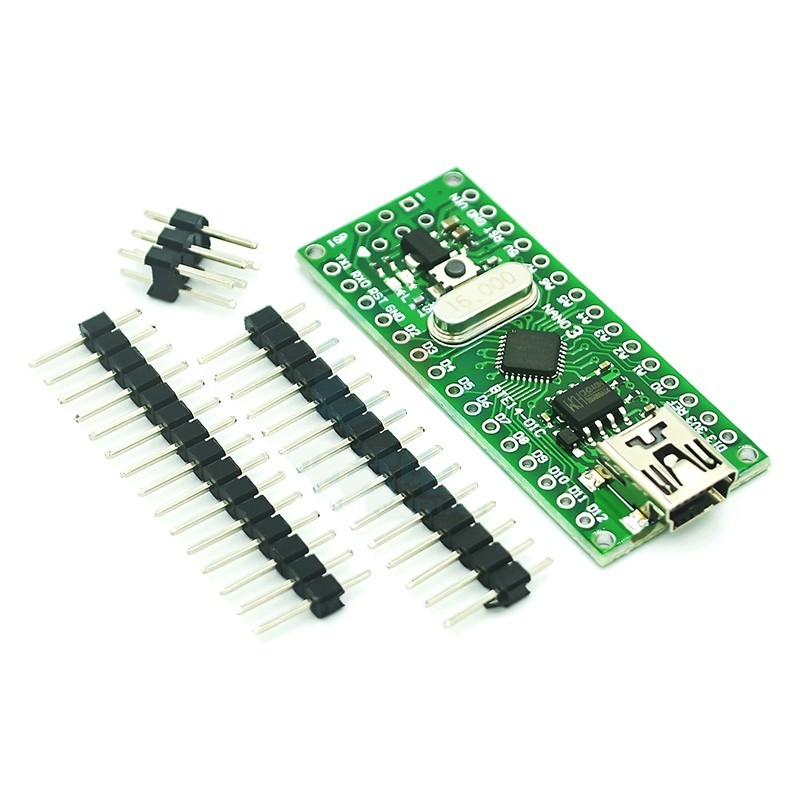

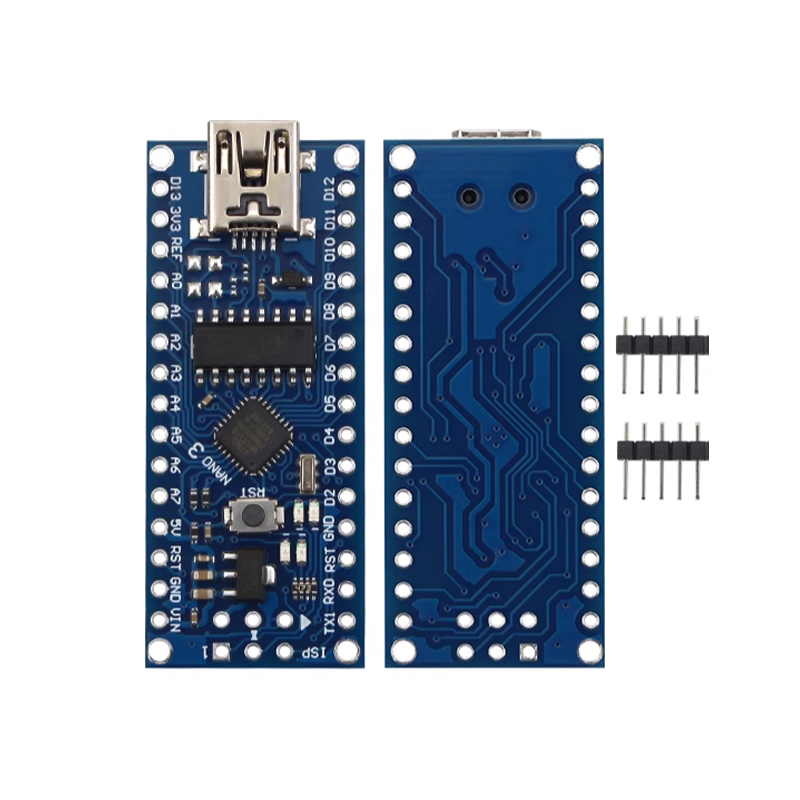

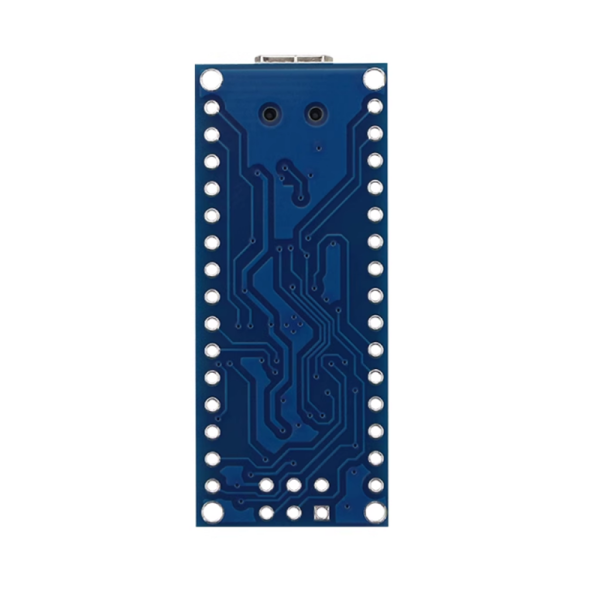

NEW version – Nano V3 constructed on the ATmega168 microcontroller (16MHz) has the small size and can be used together with model boards for solderless wiring (breadboard). It has similar structure with FOR Ar duino Diecimila/Duemilanove, but different size. To reduce the size, components are mounted on both sides of the PCB.

The board uses a chip CH340G as converter UART-USB. Chip CH340G – is a budget solution. With an operation frequency in 12Mhz, yields stable result of a data interchange (for correct installation of drivers on the computer follow the instruction).
Nano V3, can be powered via mini usb port (up to 500mA). External power supply 6-12V unregulated to output VIN, or 5V external power source to a regulate output of 5V. The power supply is automatically selected with the maximum voltage value.
* This Nano ATmega168 have PinOut for V3, not V2.
Technical details:
Nano V3 form-factor,
ATmega168 (16Mhz) microcontroller,
CH340G – USB-UART interface,
Input voltage 6-12V,
Output voltage 5V/800mA, 3.3V/180mA (Only in NEW vesrion),
Mini USB – connection socket,
500mA resetable Fuse on SB port

NEW version – Nano V3 constructed on the ATmega168 microcontroller (16MHz) has the small size and can be used together with model boards for solderless wiring (breadboard). It has similar structure with FOR Ar duino Diecimila/Duemilanove, but different size. To reduce the size, components are mounted on both sides of the PCB.
The board uses a chip CH340G as converter UART-USB. Chip CH340G – is a budget solution. With an operation frequency in 12Mhz, yields stable result of a data interchange (for correct installation of drivers on the computer follow the instruction).
Nano V3, can be powered via mini usb port (up to 500mA). External power supply 6-12V unregulated to output VIN, or 5V external power source to a regulate output of 5V. The power supply is automatically selected with the maximum voltage value.
* This Nano ATmega168 have PinOut for V3, not V2.
Technical details:
Nano V3 form-factor,
ATmega168 (16Mhz) microcontroller,
CH340G – USB-UART interface,
Input voltage 6-12V,
Output voltage 5V/800mA, 3.3V/180mA (Only in NEW vesrion),
Mini USB – connection socket,
500mA resetable Fuse on SB port
