Product Overview

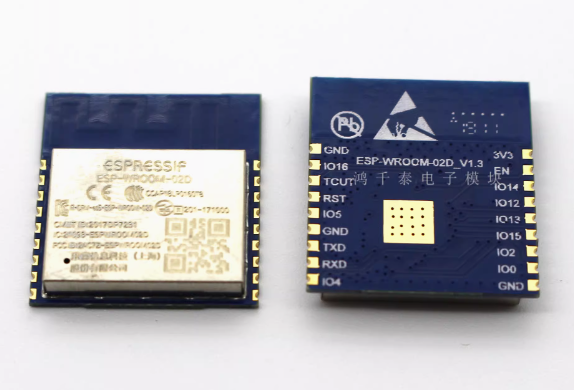

The ESP-WROOM-02D (4MB) is a highly integrated, certified Wi-Fi module developed by Espressif Systems, the original creator of the ESP8266 ecosystem. This module represents the official, production-ready implementation of the ESP8266EX chip, featuring 4 MB (32 Mbit) of SPI flash memory—double the storage capacity of the standard version—providing significantly more space for complex applications, web interfaces, and robust OTA (Over-The-Air) update partitions .
This “D” variant features an optimized PCB layout with enhanced RF performance, delivering superior wireless stability and range compared to earlier modules . At its heart lies the ESP8266EX chip—a Tensilica L106 32-bit RISC processor running at up to 160 MHz, with 50 kB of user-available SRAM . The module supports 802.11 b/g/n Wi-Fi protocols at 2.4 GHz, with a built-in PCB antenna that delivers up to +20.5 dBm output power and excellent receiver sensitivity down to -98 dBm .
Designed and manufactured by Espressif, the ESP-WROOM-02D comes preloaded with AT command firmware, allowing you to add Wi-Fi connectivity to any microcontroller using simple serial commands, or you can reprogram it as a standalone IoT processor using the Arduino IDE, MicroPython, or ESP-IDF .
Key Features
-
Official Espressif Module: Designed and manufactured by Espressif Systems, the creators of the ESP8266, ensuring the highest quality and reliable RF performance .
-
4 MB Flash Memory: Equipped with 4 MB (32 Mbit) of SPI flash memory—double the capacity of standard ESP-WROOM-02 modules—providing ample storage for complex firmware, web interfaces, and OTA (Over-The-Air) updates with room for dual firmware partitions .
-
Optimized RF Performance: Enhanced version of the ESP-WROOM-02 with improved PCB layout and RF tuning for superior wireless stability and range .
-
Integrated 32-bit Processor: Powered by the Tensilica L106 32-bit RISC processor running at up to 160 MHz, capable of running application code independently without an external microcontroller .
-
Complete Wi-Fi Solution: Supports 802.11 b/g/n protocols at 2.4 GHz with integrated PCB antenna. Delivers up to +20.5 dBm output power with receiver sensitivity down to -98 dBm .
-
Preloaded AT Command Firmware: Ships with industrial-grade AT firmware that allows control via simple serial commands, enabling rapid integration with any microcontroller .
-
Multiple Operating Modes: Supports Station (STA), SoftAP (Access Point), and SoftAP + STA modes, enabling devices to connect to existing networks or create their own .
-
Rich Peripheral Interfaces: Provides UART, HSPI, I2C, I2S, IR Remote Control, PWM, and 10-bit ADC interfaces, allowing connection to a wide variety of sensors, actuators, and display devices .
-
Ultra-Low Power Consumption: Features multiple sleep modes with deep sleep current as low as 20 µA and standby power consumption less than 1.0 mW, making it ideal for battery-powered applications .
-
Global Regulatory Certifications: Certified with FCC, CE-RED, TELEC, KCC, IC, NCC, and SRRC, simplifying the certification process for commercial products .
-
Wide Operating Temperature: Rated for operation from -40°C to +85°C, suitable for demanding industrial environments and outdoor installations .
-
Compact SMD Package: Measures just 18.0 mm × 20.0 mm × 3.2 mm with 18 castellated pins, designed for automated surface-mount assembly .
-
Upgradable Firmware: Supports local serial flashing, OTA (Over-The-Air) updates, and host download for flexible firmware management .
Technical Specifications
Pinout & Interface Guide
The ESP-WROOM-02D features 18 castellated pins for easy soldering to a PCB or connection via a development board .
Boot Mode Configuration
The module’s boot mode is determined by the state of GPIO0, GPIO2, and GPIO15 :
Critical Notes:
-
GPIO15 must be pulled LOW during boot for both modes
-
GPIO2 must be pulled HIGH during boot
-
GPIO0 must be LOW to enter programming mode, HIGH for normal operation
Usage Guide
Power Supply Requirements
The ESP-WROOM-02D requires a stable 3.3 V DC power supply capable of providing at least 500 mA during peak operation . For reliable operation:
-
Use a low-dropout regulator (LDO) such as AMS1117-3.3 or LM1117-3.3
-
Add a 10 µF to 100 µF electrolytic capacitor and a 0.1 µF ceramic capacitor close to the VCC pin for power decoupling
-
Do not apply 5 V to any pin—this will permanently damage the module
Programming the ESP-WROOM-02D
Method 1: Using a USB-to-TTL Adapter
This is the simplest method for programming the module :
Enter Programming Mode :
-
Connect GPIO0 (pin 8) to GND
-
Connect GPIO15 (pin 6) to GND
-
Connect GPIO2 (pin 7) to VCC (pull HIGH)
-
Connect EN (pin 2) to VCC (pull HIGH)
-
Apply power or pulse RST LOW (pin 18)
-
Upload firmware via Arduino IDE or esptool
-
After upload, disconnect GPIO0 from GND and reset
Setting Up Arduino IDE for ESP-WROOM-02D
-
Install ESP8266 Board Package:
-
Open Arduino IDE → File → Preferences
-
Add to “Additional Boards Manager URLs”: https://arduino.esp8266.com/stable/package_esp8266com_index.json
-
Tools → Board → Boards Manager → Search “esp8266” → Install
-
Select Board:
-
Configure Flash Settings :
-
Flash Size: 4 MB (32 Mbit)
-
Upload Speed: 115200 (or 921600 for faster uploads)
-
CPU Frequency: 80 MHz (or 160 MHz for higher performance)
-
Flash Mode: DOUT or DIO
AT Command Example
With the default AT firmware, the ESP-WROOM-02D can be controlled via simple serial commands. Important: AT commands require both Newline and Carriage Return (CR+NL) to be enabled in your serial terminal .
AT // Check communication
AT+GMR // Check firmware version
AT+CWMODE=1 // Set to Station mode
AT+CWJAP="SSID","PASSWORD" // Connect to Wi-Fi
AT+CIFSR // Get IP address
AT+CIPSTART="TCP","192.168.1.100",8080 // Open TCP connection
AT+CIPSEND=5 // Send data
> HELLO // Data to send
Flashing AT Firmware
To flash or update AT firmware, use the ESP8266 Flash Download Tool with the following settings for 4MB (32Mbit-C1) flash map :
Basic Arduino Example Code
#include <ESP8266WiFi.h>
const char* ssid = "your_SSID";
const char* password = "your_PASSWORD";
void setup() {
Serial.begin(115200);
Serial.println("\nESP-WROOM-02D (4MB) Wi-Fi Test");
WiFi.begin(ssid, password);
Serial.print("Connecting to Wi-Fi");
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}
Serial.println("\nConnected successfully!");
Serial.print("IP Address: ");
Serial.println(WiFi.localIP());
Serial.print("Flash Size: ");
Serial.print(ESP.getFlashChipSize() / (1024 * 1024));
Serial.println(" MB");
}
void loop() {
}
Using WiFiEspAT Library
For easy integration with Arduino, the WiFiEspAT library allows you to control the module using Arduino-style Wi-Fi commands:
#include <WiFiEspAT.h>
#define RX_PIN 16
#define TX_PIN 17
#define AT_BAUD_RATE 115200
const char* ssid = "your_SSID";
const char* password = "your_PASSWORD";
void setup() {
Serial.begin(115200);
Serial1.setRX(RX_PIN);
Serial1.setTX(TX_PIN);
Serial1.begin(AT_BAUD_RATE);
WiFi.init(Serial1);
WiFi.begin(ssid, password);
while (WiFi.status() != WL_CONNECTED) {
delay(1000);
}
Serial.println("Connected to Wi-Fi");
Serial.print("IP: ");
Serial.println(WiFi.localIP());
}
Development Environments
-
Arduino IDE: User-friendly environment with extensive libraries
-
PlatformIO: Professional development environment with ESP8266 support
-
ESP-IDF: Official Espressif development framework for advanced users
-
MicroPython: Python-based development for rapid prototyping
-
NodeMCU (Lua): Lua-based firmware for quick project development
Applications
The ESP-WROOM-02D is widely used in :
-
Smart Home: Lighting control, smart plugs, thermostats, window/door sensors
-
Industrial IoT: Equipment monitoring, predictive maintenance, industrial wireless control
-
Environmental Monitoring: Temperature, humidity, air quality stations
-
Medical Devices: Patient monitoring, medical device data transmission
-
Wearable Electronics: Fitness trackers, health monitors
-
Sensor Networks: Wireless sensor networks, data acquisition systems
-
Consumer Electronics: Smart appliances, voice-controlled devices
Q: What is the difference between ESP-WROOM-02 and ESP-WROOM-02D?
The ESP-WROOM-02D is an optimized version of the original ESP-WROOM-02 with improved RF performance and a refined PCB layout. Both modules are based on the ESP8266EX chip, but the 02D variant features enhanced wireless stability and is designed for improved production consistency
Q: What is the difference between ESP-WROOM-02D and ESP-12 series modules?
The ESP-WROOM-02D is the official Espressif module, designed and manufactured by the creators of the ESP8266 chip. It features:
-
Official support and certification: FCC, CE-RED, TELEC, and RoHS certified
-
Optimized RF performance: Superior wireless stability and range
-
Consistent quality: Rigorous testing by Espressif
-
Industrial temperature range: -40°C to +85°C
Q: Can the ESP-WROOM-02D operate as a standalone microcontroller?
Yes. The ESP8266EX chip includes a 32-bit processor capable of running application code directly. You can program it with Arduino, MicroPython, or the ESP8266 SDK without requiring an external microcontroller
Q: How much flash memory does this version have?
The module is equipped with 4 MB (32 Mbit) of SPI flash memory. This is double the capacity of the standard 2MB version, providing ample storage for complex applications, web interfaces, and robust OTA (Over-The-Air) update partitions
Q: What is the maximum range of the Wi-Fi connection?
With its PCB antenna, the ESP-WROOM-02D achieves ranges of up to 100-200 meters in open space. In practical indoor applications with walls and obstacles, the range is typically 30-50 meters.
Q: Does the ESP-WROOM-02D support Bluetooth?
No. The ESP8266 series is Wi-Fi only. For Bluetooth capability, consider the ESP32 series modules like ESP32-WROOM-32
Q: Is this module still recommended for new designs?
Important: Espressif has designated the ESP-WROOM-02D as “Not Recommended for New Designs” (NRND) as of 2024-2025 . For new projects, consider the successor models like ESP32-C3-WROOM-02 (ESP32-C3 based) which offer improved performance, RISC-V architecture, and Bluetooth capability. However, the ESP-WROOM-02D remains an excellent choice for existing designs and applications where the ESP8266 ecosystem is already established.
Q: What voltage does the ESP-WROOM-02D require?
The module requires a stable 3.3 V DC power supply with an operating range of 2.7 V to 3.6 V . Never apply 5 V to the VCC pin or any GPIO pin—this will permanently damage the module.
Q: How much current does the ESP-WROOM-02D draw?
Current consumption varies by operating mode :
Q: Can I power the ESP-WROOM-02D with batteries?
Yes. The module’s low deep sleep current (20 µA) makes it suitable for battery-powered applications. A single 18650 lithium-ion cell (3.7 V) can be used with a 3.3 V LDO regulator. With proper deep sleep management, battery life of months is achievable.
Q: Why does my ESP-WROOM-02D not boot?
Common boot issues include:
-
GPIO15 not pulled LOW during boot
-
GPIO0 pulled LOW (this enters programming mode)
-
GPIO2 not pulled HIGH during boot
-
EN/CH_PD not connected to VCC
-
Insufficient power supply (current sag during startup)
Q: How do I put the ESP-WROOM-02D into programming mode?
To enter programming (UART download) mode :
-
Pull GPIO0 LOW (connect to GND)
-
Pull GPIO15 LOW (connect to GND)
-
Pull GPIO2 HIGH (connect to VCC)
-
Pull EN HIGH (connect to VCC)
-
Apply power or pulse RST LOW
Q: Why can't I upload code to my ESP-WROOM-02D?
Common upload issues:
-
GPIO0 not held LOW during power-on/reset
-
Incorrect serial connections (TX to RX, RX to TX)
-
Insufficient power supply (USB-to-TTL adapters may not provide enough current)
-
Wrong board selection in Arduino IDE (select “Generic ESP8266 Module”)
-
Missing pull-down on GPIO15
Q: What is the default baud rate for AT commands?
The default baud rate is 115200 bps. The bootloader outputs diagnostic information at 74880 baud during startup . AT commands require both Newline and Carriage Return (CR+NL) to be enabled in your serial terminal
Q: Can I use the ESP-WROOM-02D with Arduino IDE?
Yes. Install the ESP8266 board package via Boards Manager, then select “Generic ESP8266 Module” as the board. Configure the flash size (4 MB) and upload speed appropriately
Q: How do I change the baud rate of the module?
Use the AT command: AT+UART_DEF=9600,8,1,0,0 to change to 9600 baud, or adjust the value as needed. This setting persists after reset.
Q: How do I verify the flash size of my module?
You can use the ESP.getFlashChipSize() function in Arduino code to read the detected flash size, or use esptool.py with the flash_id command.
Q: What can I build with the ESP-WROOM-02D?
Popular applications include :
-
Smart home devices: Lighting control, smart plugs, thermostats, window/door sensors
-
Environmental monitoring: Temperature, humidity, air quality stations
-
Industrial wireless sensors: Equipment monitoring, predictive maintenance
-
Medical devices: Patient monitoring, medical data transmission
-
Wearable electronics: Fitness trackers, health monitors
-
Weather stations: Remote data logging and monitoring
Q: Is the ESP-WROOM-02D suitable for commercial products?
Yes. The ESP-WROOM-02D is certified with FCC, CE-RED, TELEC, KCC, IC, NCC, SRRC, and RoHS . This makes it ideal for commercial products requiring regulatory approval, significantly reducing certification costs and time.
Q: What firmware options are available?
Popular firmware choices include:
-
AT Command Firmware: Default firmware for co-processor mode
-
NodeMCU (Lua): Open-source Lua-based firmware for easy programming
-
MicroPython: Python-based development for rapid prototyping
-
Arduino/C++: Custom code via Arduino IDE
-
ESP-IDF: Official Espressif development framework
Q: Does the ESP-WROOM-02D support OTA (Over-The-Air) updates?
Yes. The 4 MB flash memory supports OTA firmware updates with room for two firmware partitions (OTA A and OTA B) plus a file system partition, allowing you to upload new code wirelessly without physical connection to the module
Q: Can I host a web server on the ESP-WROOM-02D?
Yes. The ESP-WROOM-02D can function as a web server, serving HTML pages and handling HTTP requests. This is commonly used for device configuration interfaces and IoT dashboards
