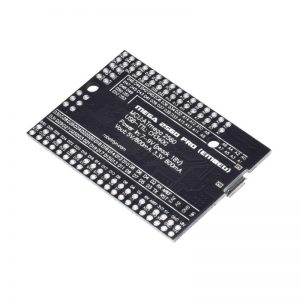

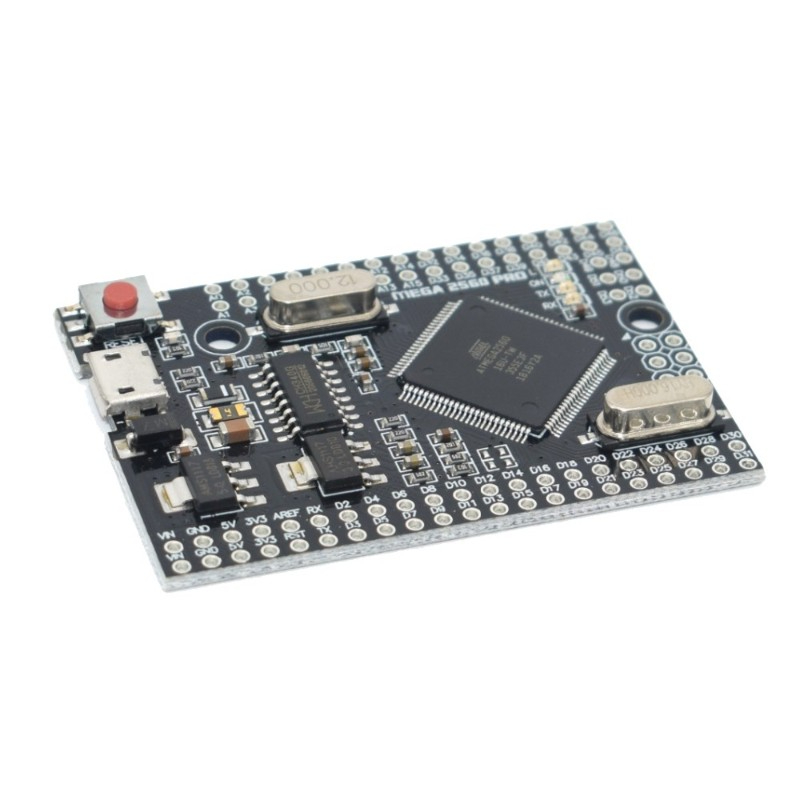

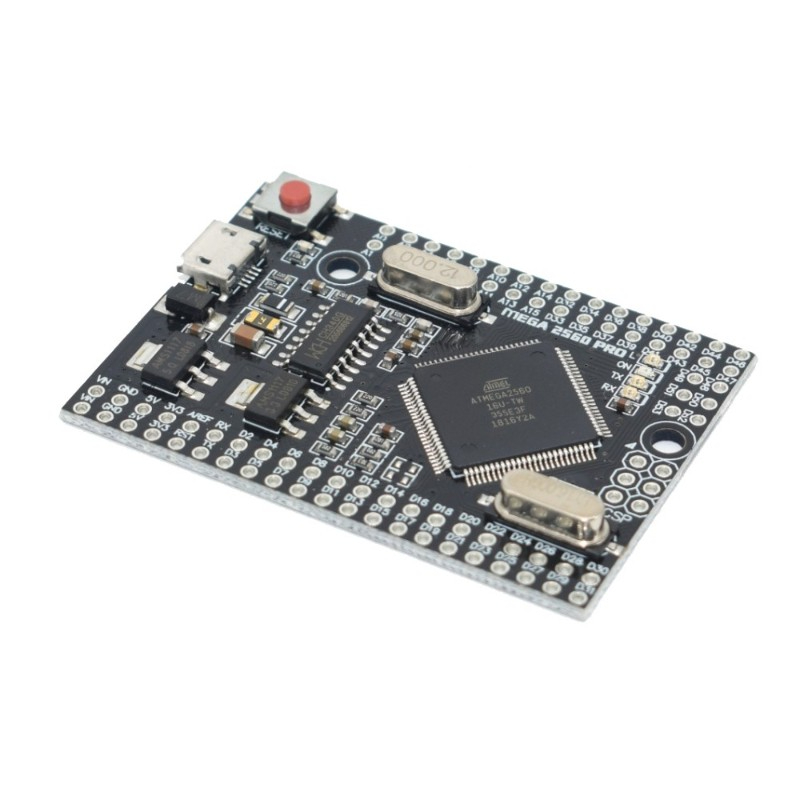

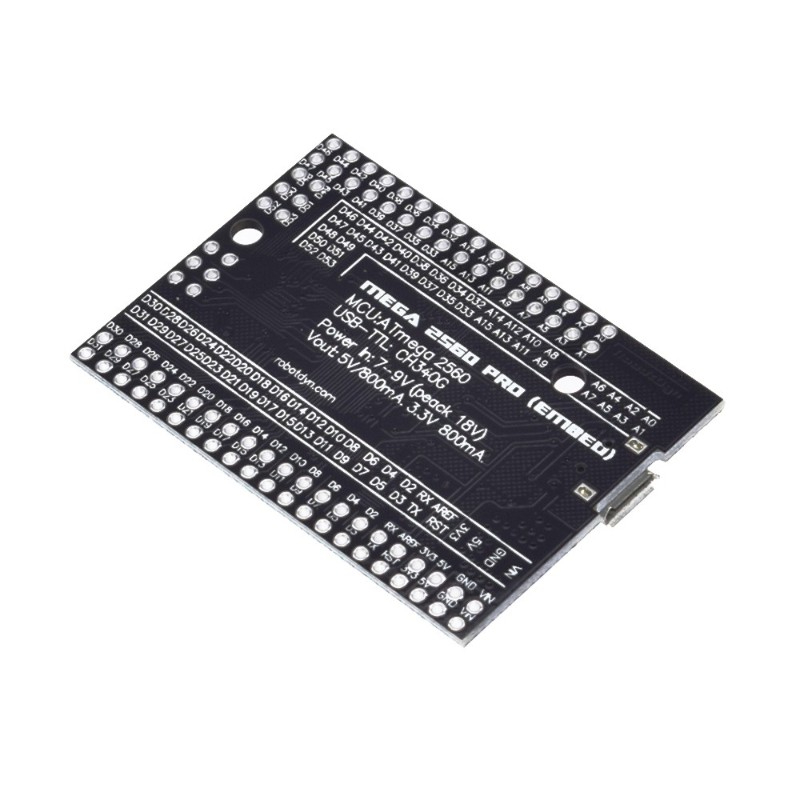

Mega2560 Pro ATmega2560 USB CH340G

SKU: FA1006-1 Tag:

$8.52

Weight 0.045 kg
Dimensions 5.4 × 3.8 cm
Processor

ATmega2560

Clock

16MHz

USB chipset

CH340

System logic voltage

5V

Supply voltage

7-9V

Current efficiency of the 5V pin

max 800mA

Current efficiency of the 3.3V pin

max 800mA

Max current on I/O pin

40 mA

I/O pins

54 (15 ports can work in PWM mode)

Analog pins

16 (A/C converter channels)

FLASH memory

256 KB of which 8kB used by the bootloader

SRAM memory

8 KB

EEPROM memory

4 KB

Micro USB connector

programming, power supply

100 in stock

Description:

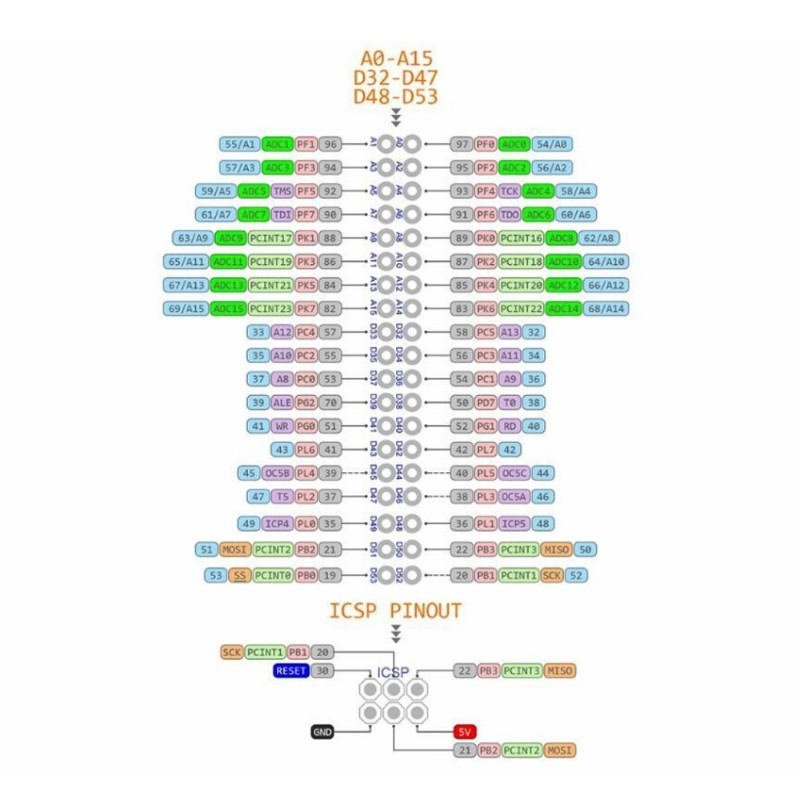

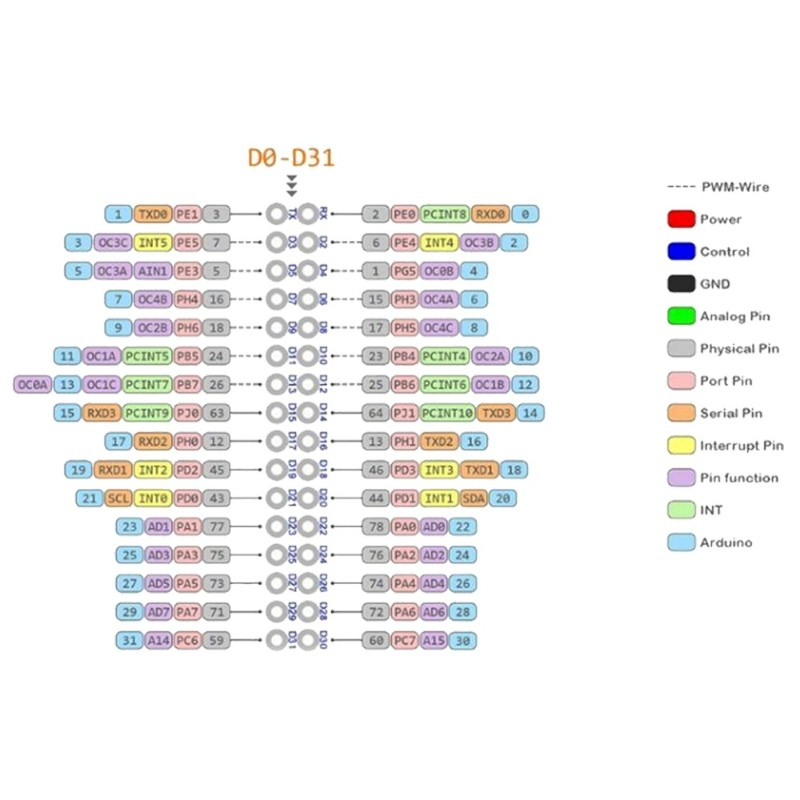

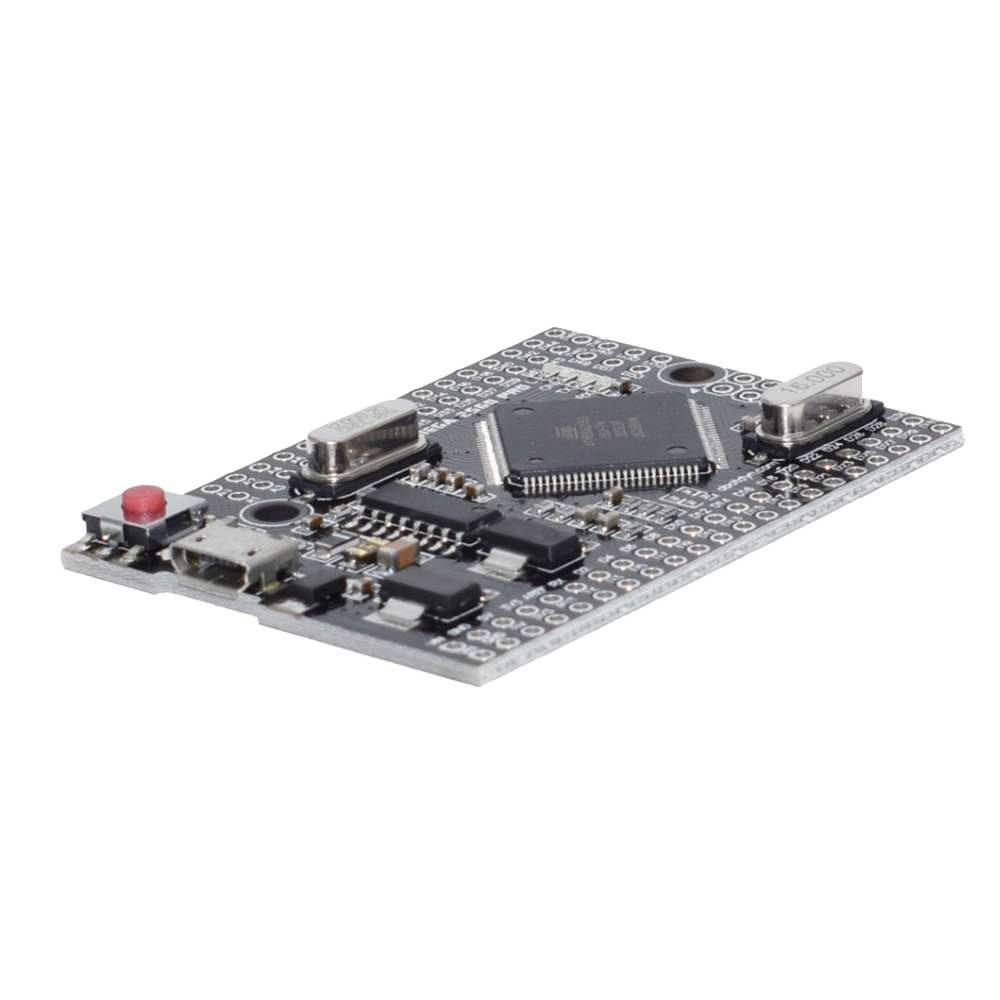

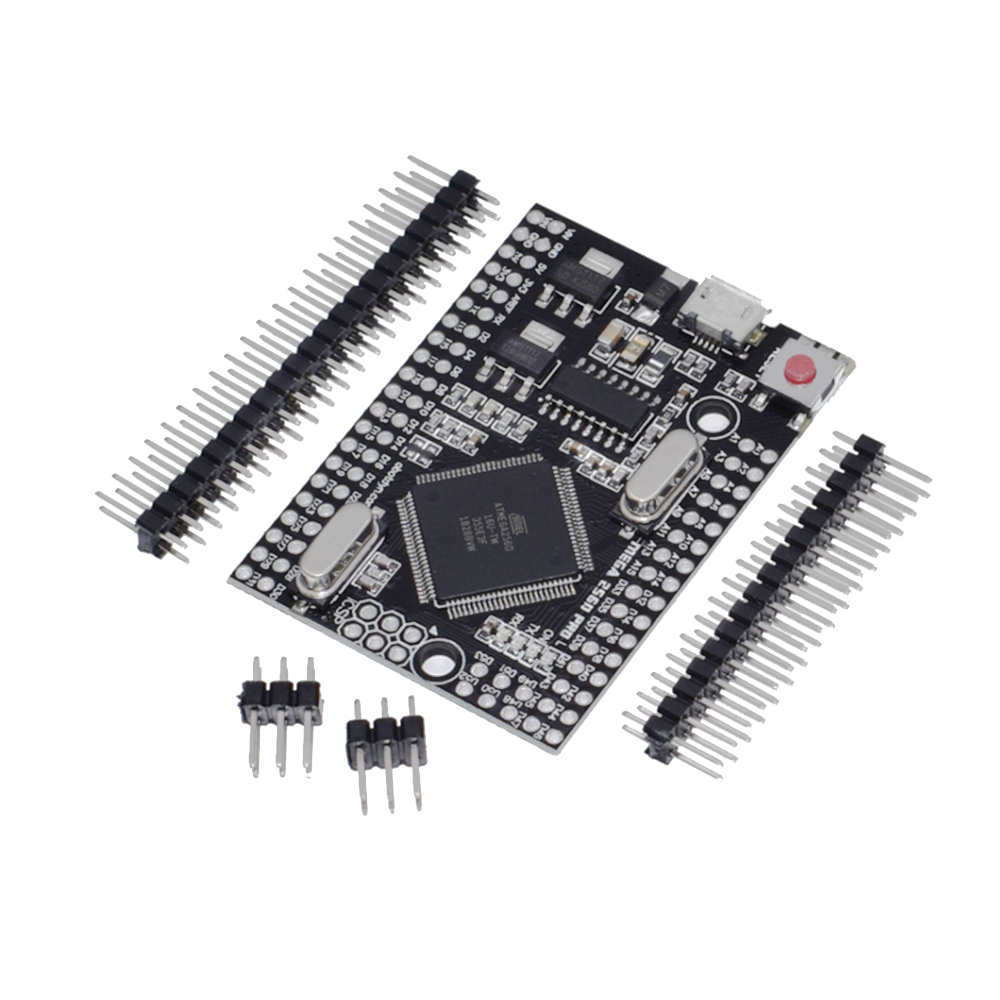

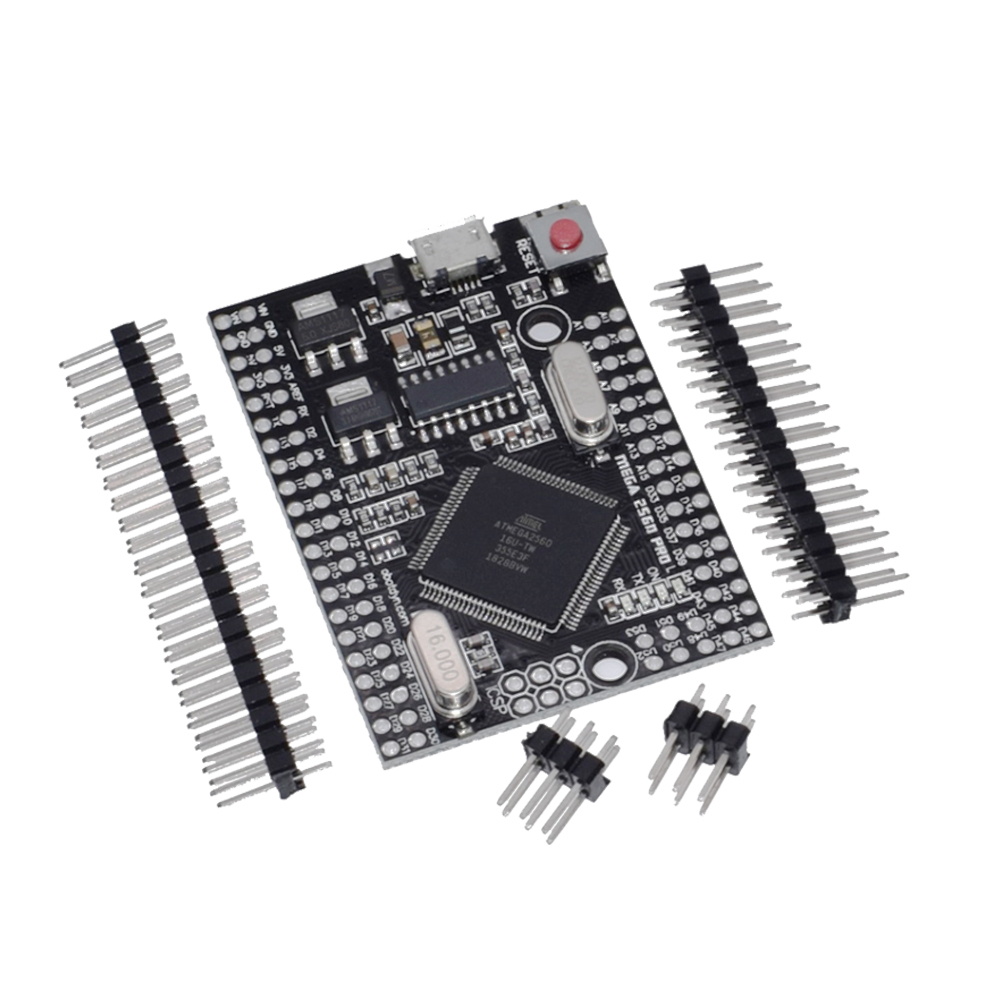

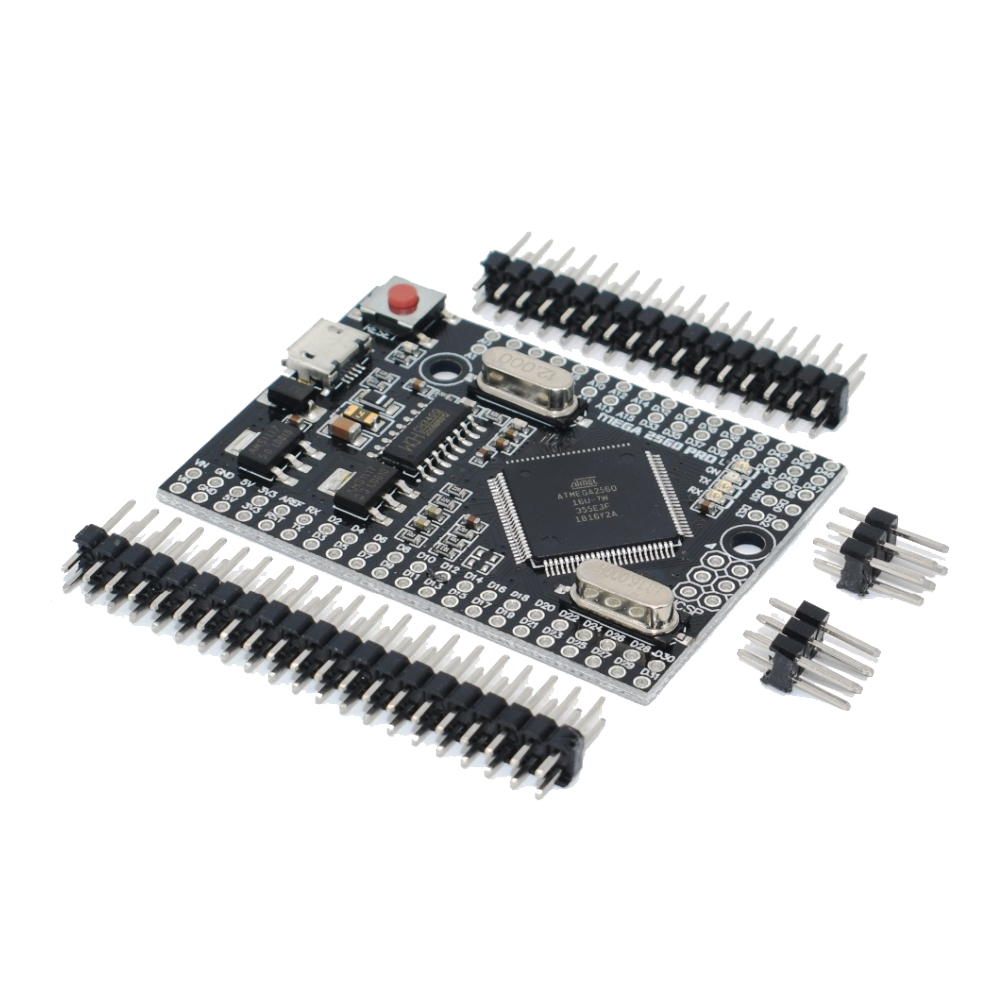

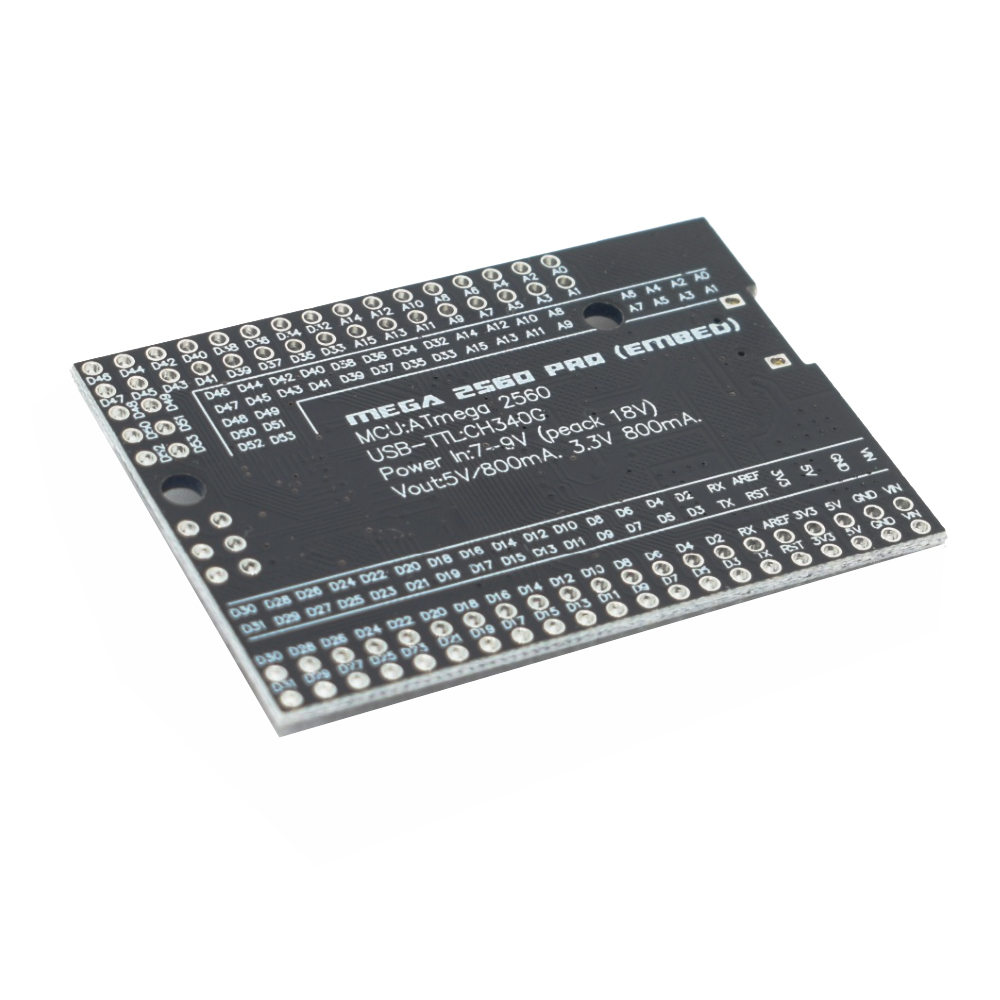

Embedded version of Mega 2560 CH340G / ATmega2560-compatible with Arduino Mega 2560 board. Built in ATmega2560 Atmel microcontroller and CH340G USB-UART interface chip.

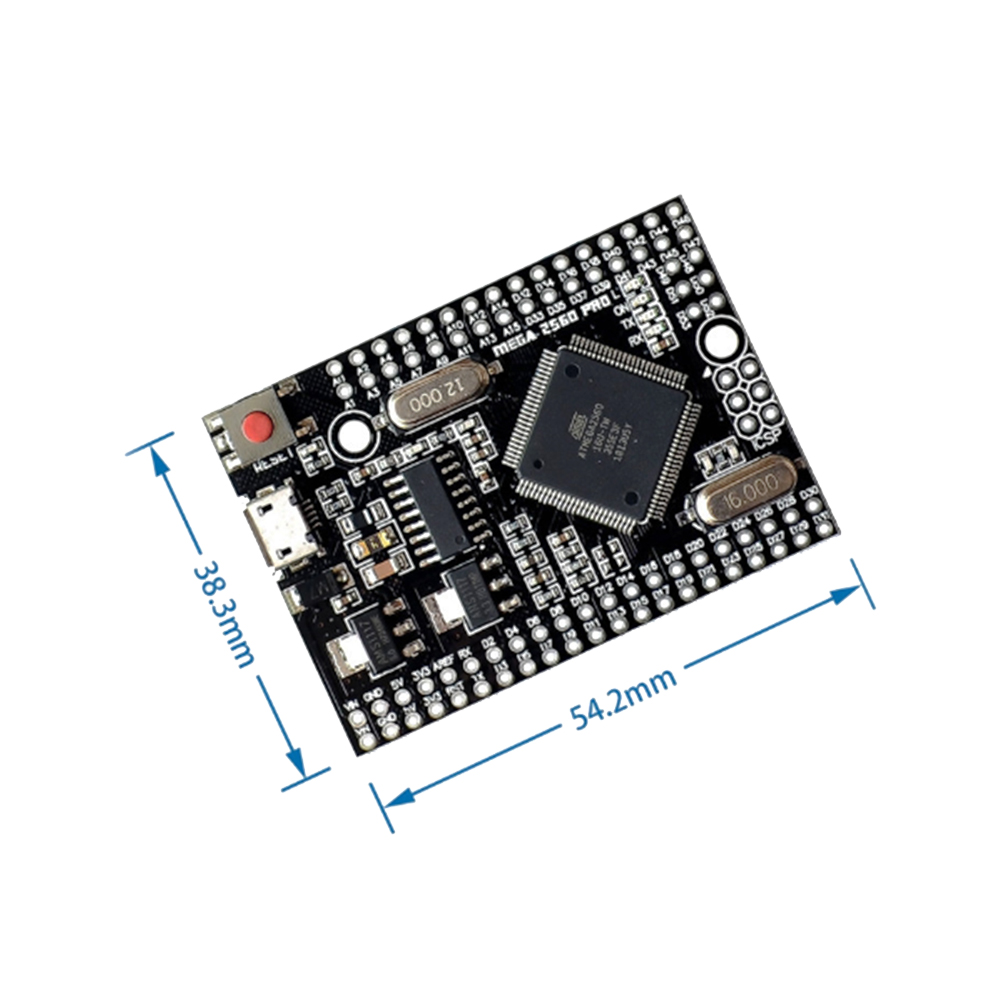

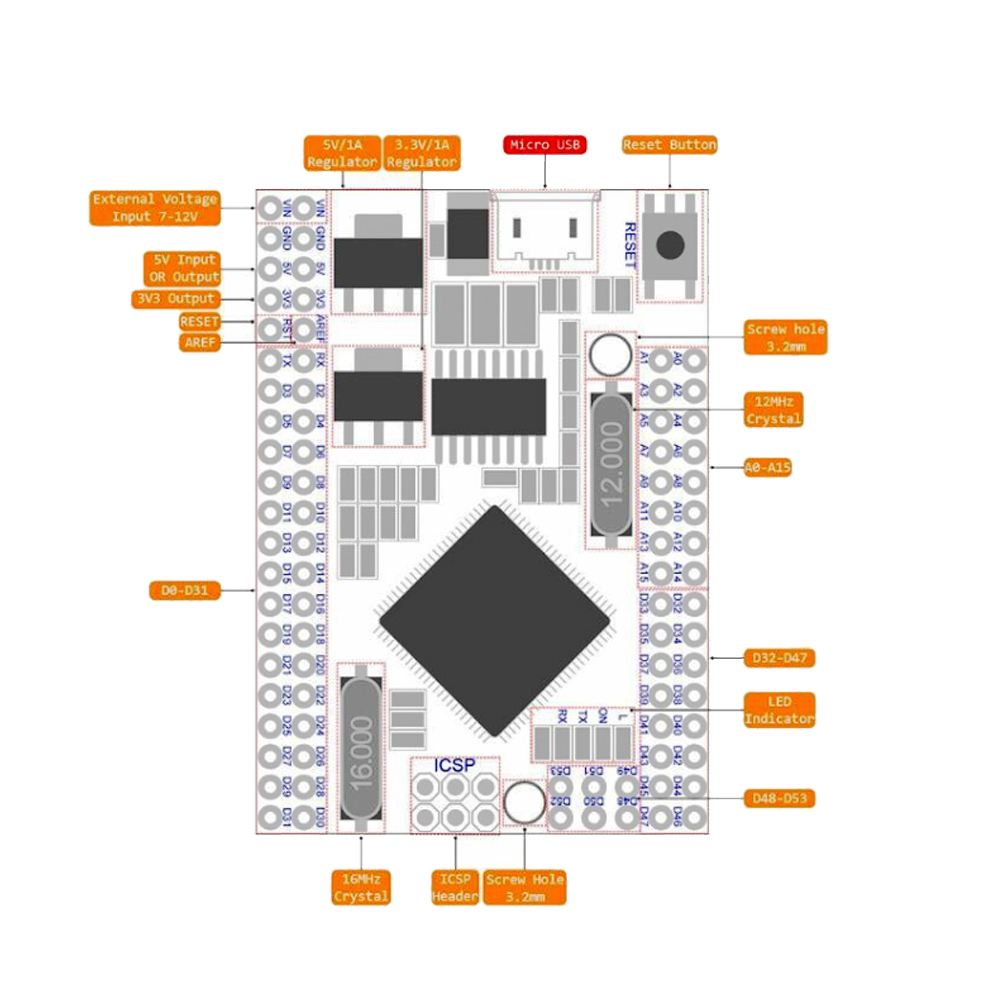

The plate has a compact size of 38x55mm. It is a good solution, to make your final project in proto-board welding.

Plate for functionality similar to Arduino Mega 2560. It is an embedded plate, but just as stable, and uses the original ATmega2560 (16 MHz) chips.

The board used the CH340G chip as a UART-USB converter. When you work on the 12 MHz frequency, giving a stable result of the exchange of data (it is necessary to install drivers in the computer).

Mega PRO (Embed) 2560 CH340G / ATmega2560-connects to the computer through the microUSB cable (used for almost all Android smartphones).

You can supply power on board through the MicroUSB connector or to power the heads. The voltage regulator (LDO) can treat the incoming voltage from 6 V to 9 V (peack 18 V) DC. Output current for 5 V-around 3.3 Ma, for V-approximately 800 mA (keep in mind that the higher the input voltage, the lower the outgoing current). That will provide reliable power for most of your initial projects.

Details:
Form factor-Mega PRO,
Microcontroller-ATmega 2560 (16 MHz),
USB-UART-CH340G interface (12 MHz),
input voltage-6-9 V (peack 18 V),
PC-MicroUSB connection socket
70 digital I / O,
16 analog entries
14 PWM …
4 UART bus.

The board used the CH340G chip as a UART-USB converter. When you work on the 12 MHz frequency, giving a stable result of the exchange of data (it is necessary to install drivers in the computer).

Mega PRO (Embed) 2560 CH340G / ATmega2560-connects to the computer through the microUSB cable (used for almost all Android smartphones).

You can supply power on board through the MicroUSB connector or to power the heads. The voltage regulator (LDO) can treat the incoming voltage from 6 V to 9 V (peack 18 V) DC. Output current for 5 V-around 3.3 Ma, for V-approximately 800 mA (keep in mind that the higher the input voltage, the lower the outgoing current). That will provide reliable power for most of your initial projects.
