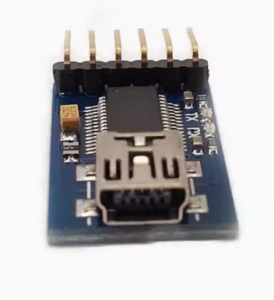

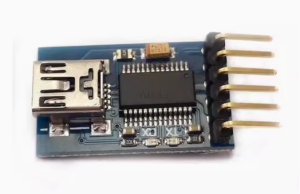

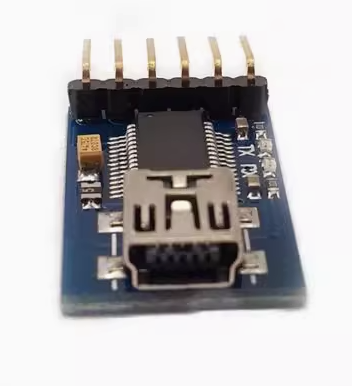

FT232RL USB to TTL Serial Adapter – 3.3V/5V Dual Power Supply, FTDI Chip, MWC Debugger for Arduino & Embedded Systems

SKU: FA2048-1
Main Chipset

FTDI FT232RL (High-Stability Core)
USB Interface

Mini USB Type-B
Logic Levels

3.3V or 5V (Selectable via Jumper)
Baud Rate Range

300 bps to 3 Mbps
Output Power

5V (Up to 500mA) / 3.3V (Up to 50mA)
Supported OS

Windows 11/10/8/7, macOS, Linux, Android
Communication Mode

Full-Duplex UART
Dimensions

36mm x 18mm
Product Description
The FT232RL USB to TTL Serial Adapter is the gold standard for reliable USB-to-Serial communication. Built around the world-renowned original FTDI FT232RL chipset, this module provides a rock-solid bridge between your computer’s USB port and any microcontroller or serial device. Unlike budget alternatives, the FTDI chipset is famous for its driver stability across Windows, macOS, and Linux, making it the preferred choice for professional engineers, industrial maintenance, and academic research.
This adapter is specifically optimized as an MWC (MultiWii) Debugger, making it an essential tool for drone pilots and hobbyists configuring flight controllers. It features an onboard jumper to switch between 3.3V and 5V logic levels instantly, ensuring safe operation with both legacy 5V systems and modern, sensitive 3.3V microcontrollers like the ESP32 or STM32. Its compact design and integrated status LEDs (TX/RX) provide immediate visual feedback, making it an indispensable tool for firmware development, hardware “unbricking,” and long-term serial data logging.
Key Features
  • Original FTDI FT232RL Chip: Industry-leading stability with official driver support natively integrated into most modern operating systems.
  • Dual-Voltage Logic & Power: Onboard jumper allows seamless switching between 3.3V and 5V TTL levels to protect sensitive hardware.
  • MWC Debugger Ready: Fully compatible with MultiWii flight controllers and standard drone telemetry systems for real-time tuning and debugging.
  • Visual Status Indicators: Integrated high-brightness LEDs for Power (PWR), Transmit (TXD), and Receive (RXD) provide real-time diagnostic feedback.
  • Integrated Over-Current Protection: Features an onboard 500mA self-restoring fuse to protect your computer’s USB port from accidental shorts or surges.

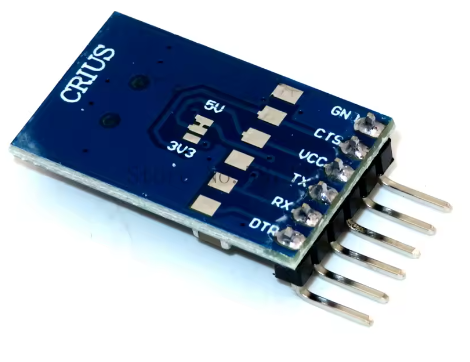

  • Full 6-Pin Standard Breakout: Includes DTR, RXD, TXD, VCC, CTS, and GND for 100% compatibility with Arduino Pro Mini “Auto-Reset” programming.
Usage & Applications
  • Microcontroller Programming: The primary tool for uploading code to Arduino Pro Mini, LilyPad, and custom-designed AVR/ARM boards.
  • Drone Tuning (MWC): Debugging and configuring MultiWii flight controllers, OSDs, and GPS modules for UAVs.
  • Hardware Recovery (Flashing): Accessing the serial console of routers, switches, and hard drive controllers for low-level repair and “unbricking.”
  • Industrial Data Logging: Interfacing RS232/TTL sensors (LiDAR, Flow Meters, GPS) with a PC for long-term monitoring.
  • Embedded Debugging: Monitoring real-time serial print statements from embedded software during the R&D phase.
Q: Why choose the FT232RL over a cheaper CH340 or CP2102 module?

The FTDI FT232RL is the most reliable serial chip in the industry. It has superior driver support and handles high-speed, continuous data streams with significantly fewer errors and lower latency than budget alternatives

Q: Do I need to move the jumper for my project?

Yes. If you are working with 3.3V devices (like ESP8266 or STM32), ensure the jumper is set to 3.3V. For standard 5V Arduino-based projects, use the 5V setting. Sending 5V logic to a 3.3V device can cause permanent damage

Q: Does this module support "Auto-Reset" for Arduino programming?

Yes. The DTR pin is broken out specifically to trigger the reset circuit on microcontrollers, allowing for automatic code uploads without needing to press a manual reset button

Q: Where can I find the drivers?

Most modern operating systems will download the drivers automatically. If not, the latest official “VCP” (Virtual COM Port) drivers are always free to download from the FTDI Chip website.

Q: Can this module power my external circuit?

It can provide 5V (up to 500mA) or 3.3V (up to 50mA). While sufficient for basic sensors, high-power components like motors or cellular modems will require a separate external power source
